Wiped film molecular distiller rose oil extraction machine short path molecular distillation supplier
Material
Glass/glass and stainless steel
Function
Distillation, Extraction, Separation
Package
Wooden case + export carton
Molecular Distillation is applied for creating a high value clear distillate from Plant Oil Concentrates, for example, refine hemp concentrates into a golden clear distillate that can be infused into a variety of edible products or fine oils to be used in vape cartridges or other products.

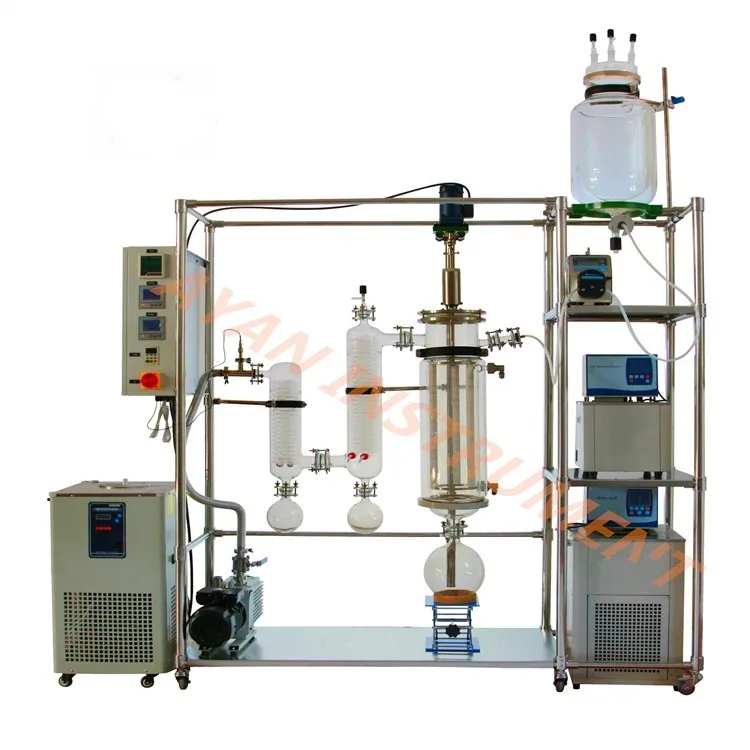

1. Jacketed feeding flask with manual feeding valve 2. Magnetic drive rotation with motor 3. Jacketed glass barrel with Internal condenser 4. External condenser for collecting terpenes (optional) 5. Cooling coils cold trap (optional: Dry ice cold trap) 6. Receiving flasks (Distillate and Residue) 7. Continues collection module (Distillate and residue) 8. Control System 9. Gear Pump for automatic and continuous feeding (Optional) 10. Vacuum Pump 11. Diffusion pump (Optional) Heater & Chiller 12. Heating circulator for jacketed feeding vessel 13. Heating circulator for jacketed glass barrel 14. Heating/cooling circulator for internal condenser 15. Cooling circulator for external condenser (Optional) 16. Cooling circulator for cooling coils cold trap (Optional)
Model
AYAN-B60
AYAN-B80
AYAN-B100
AYAN-B150
AYAN-B200
AYAN-B220
Internal Diameter
60mm
80mm
100mm
150mm
200mm
220mm
Effective evaporation area
0.06m2
0.1m2
0.15m2
0.25m2
0.35m2
0.5m2
Condensing Area
0.1m2
0.15m2
0.25m2
0.45m2
0.55m2
0.65m2
Feeding Volume
1L
(customizable)
2L
(customizable)
2L
(customizable)
2L
(customizable)
5L(customizable)
5L(customizable)
Processing Flow
0.1-0.2L./H
0.5-4.0L./H
0.5-5.0L./H
1.0-8.0L./H
1.5-10L./H
2.0-15L./H
Motor Power
120W
120W
120W
120W
120W
120W
Max.Speed
450r/min
450r/min
450r/min
450r/min
450r/min
450r/min
Distillates receiving flask
1L
(customizable)
1L
(customizable)
2L
(customizable)
3L
(customizable)
5L
(customizable)
5L (customizable)
Residues receiving flask
1L
(customizable)
1L
(customizable)
2L
(customizable)
3L
(customizable)
5L
(customizable)
5L
(Customizable)
Cold Trap
Yes
Yes
Yes
Yes
Yes
Yes
External Condenser
Optional
Optional
Optional
Optional
Optional
Optional
Cooling Device
Yes
Yes
Yes
Yes
Yes
Yes
Vacuum Device
<10Pa
<10Pa
<10Pa
<10Pa
<10Pa
<10Pa
Heating Temperature
0~200°C
0~200°C
0~200°C
0~200°C
0~200°C
0~200°C

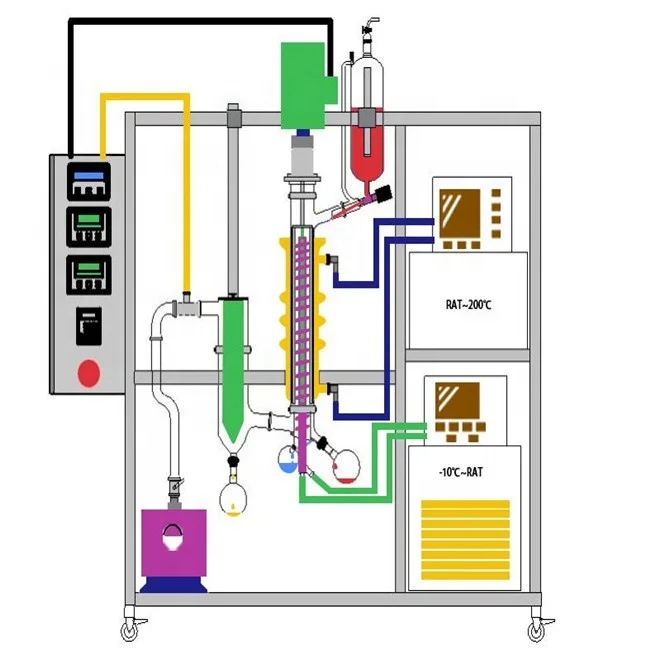

Molecular distilaltion system consists primarily of a heating jacket,an internally rotatable wiper, and a condenser and vacuum system. In the high vacuum system, the feeding liquid is fed from the upper part of the evaporator. After that, under the driving of the gravity and the rotating wiper, a downwardly swirling film is formed along the inner wall surface of the jacket.The finishing fluid is discharged from the bottom discharger,while the steam is discharged from the upper part.
Details Images
Taking advantage of molecular distillation working principle, our Wiped Film Molecular Distillation System is a high efficient apparatus for distillation of animal and plants oil.

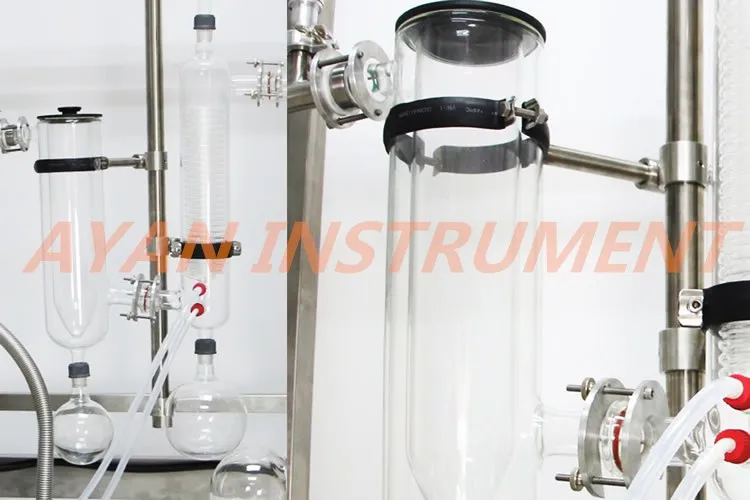

Glassware parts with excellent visibility are self-manufactured,with great flexibility in production, and can be completely customized according to customer
Short residence time so that heat-sensitive substances will not deteriorate

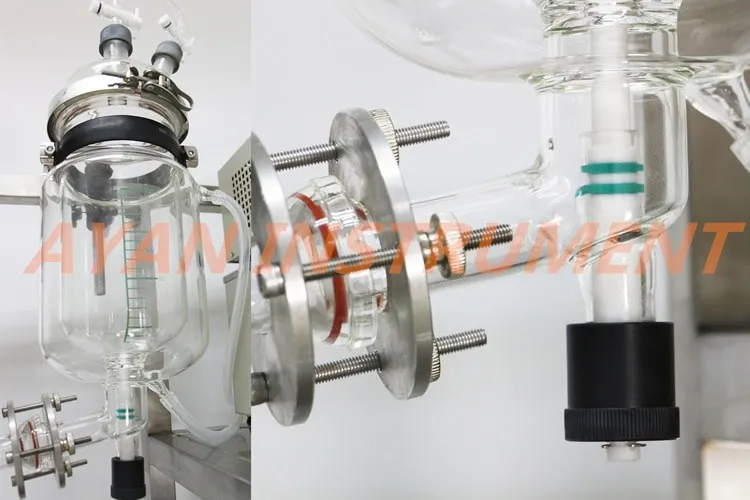

Magnetic seal components are independently developed to ensure maximum vacuum in the system and efficient evaporation.
Optional medol designs:
Our professional R&D team provide customized model designs according to the demands of customer.
Product Usage
Extraction crude oil
Dewaxing/filtration to remove impurity
Concentration recycling ethand
Separation CBD oil
crystalization 99% to 99.99% CBD isolates
Extra vapor into Cold trap, further collect
Product usage introduction
Molecular distillation system has been widely used in the Pharmaceutical and chemical industry
Certifications:
Related Products
Packing&Shipping
Spare parts and glass are well packed with internal export carton
Outside with wooden case
Company Introduction
Hangzhou Anyan Instrument Manufacturing Co., Ltd. Is located in Yuhang District, Hangzhou city. It’s a professional manufacturer focusing on R&D, production, sales and service of lab equipments. More than 90% of the company’s R&D personnel are senior experts engaged in scientific research instrument industry for many years. Strong technical force greatly ensure the quality of our products and technical support service. The company’s main products are Molecular distillation equipment, Thin film evaporator, Fully-closed nitrogen blowing instrument, Nitrogen generator, Constant temperature thawing instrument, Low temperature spray dryer, Solid phase extractor, Fat analyzer, Soxhlet extractor and so on.
Anyan products are CE certified, and strictly implementing ISO9001-2000 quality control system instructions in the whole procedure of R&D and production. Currently, we have established long-term cooperation with many domestic university laboratories, well-known hospitals, Pharmaceutical companies, Food processing plants, Chemical plants and etc., sales channel cover over 30 provinces and autonomous regions in China, and has been exported to Europe, America, Oceania, the Middle East, Southeast Asia and other Countries and Regions. The products are well received by customers.
Our Services & Strength
All products have to be tested 3 times before packing and delivery
Each machine will deliver with full documents package to guarantee that customers won't meet any problems. Also, we provide 12 months guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time during the guarantee period.
FAQ
1.Q: Are you a trading company or manufacturer?
A: We are a professional manufacturer of apparatus for laboratory and pilot plants. We can customize according to clients'
requirements.
2.Q: Where is your factory?
A: Our factory located in Hangzhou City, Zhejiang Province.
3.Q: How long is your delivery time?
A: Generally our delivery time is within 15 working days. Ayan occupies a 2000 M2 production base, is able to guarantee our quality and fast delivery to users. Genuine products are assured by factory direct sales.
4.Q: What are your MOQ and your payment term?
A: Our MOQ is 1 set. While the value is less than 10,000USD, 100% prepayment. While the value more than 10,000 USD, 50% T/T in advance, balance before shipping.
5.Q: What is your package?
A: Sufficient inner protection with different materials, including bubble bag, foam board and foam grain. Then pack into plywood boxes or cartons for different products.
6.Q: How to install the apparatus and how to operate?
A: All of our apparatus are designed by simplicity assembly. The critical parts will be fixed in our plant and the whole equipment is debugged and tested before transportation.
