12V 32V пластиковая крышка Держатель плавкого предохранителя M5 серьги-гвоздики со светодиодной индикаторной лампой 6 выходов 12 способов лезвие для авто лодка морской

 FE`%[H(RXB5WOL(G7ZY1Z.png" ori-width="800" ori-height="800"/>

[fuse function]: when the circuit breaks down or is abnormal, the current increases continuously, and the increased current may damage some important or valuable devices in the circuit, or burn the circuit or even cause a fire. The fuse protects the electronic equipment from being hurt by the current, and also avoids the serious injury caused by the internal fault of the electronic equipment. Therefore, each fuse has a rated specification. When the current exceeds the rated specification, the fuse will blow. If the fuse is correctly placed in the circuit, the fuse will cut off the current when the current abnormally rises to a certain height and a certain temperature, so as to protect the safe operation of the circuit.

[product advantages]:

[1] the product is made of PBT fire-resistant, high and low temperature resistant and environmental friendly material, which fully meets the conditions of [fuse holder must have good mechanical strength, insulation, heat resistance and flame retardancy, and shall not have fracture, deformation, combustion and short circuit in use]

[2] all busbars and fuse clamps are nickel plated copper with corrosion resistance and excellent conductivity

[3] all fasteners are made of stainless steel. The input and output ends of the fuse box are fixed with screw type screws, which can be installed more quickly. And the fuse box is fixed with self tapping screws, which is simpler and safer to install.

[4] the product is designed with red LED indicator light, which corresponds to the electrical appliance connected with each fuse piece. When the fuse is disconnected, the red light will be on. You can immediately know which fuse is broken, so it is convenient to deal with it in time

[5] the product is presented with a sticker. According to the name on the sticker, it can be pasted on the electrical appliance we are connected to. When the fuse is broken and the red light is on, we can immediately identify which electrical appliance has a problem, saving time and effort

[6] the product distributes double fuses. When the fuse is burnt out, it can be replaced from the spare fuse immediately, and the fuse sends multiple times. You can choose the fuse according to the current electrical appliance

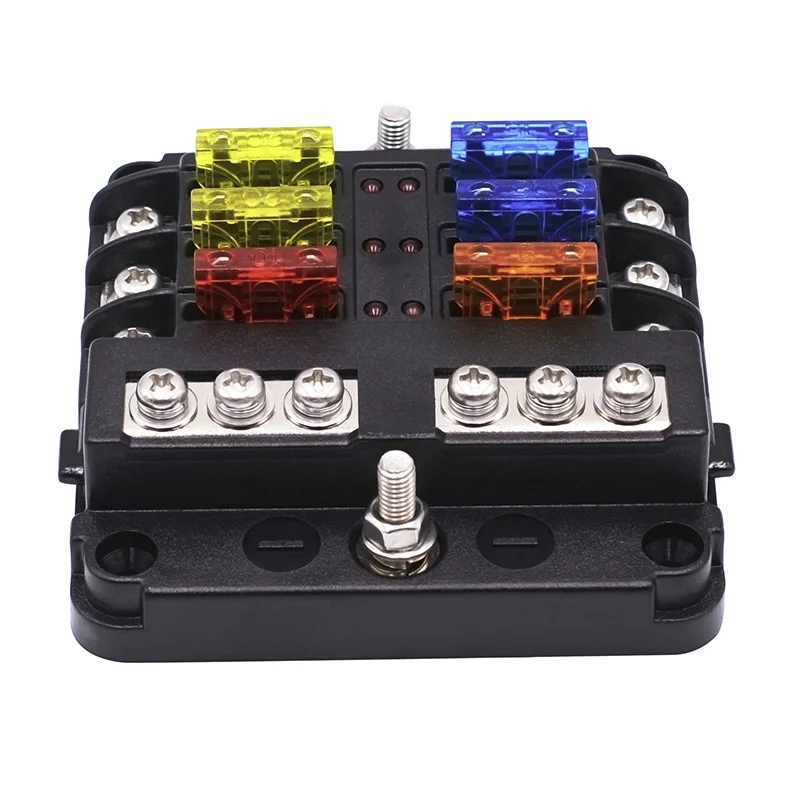

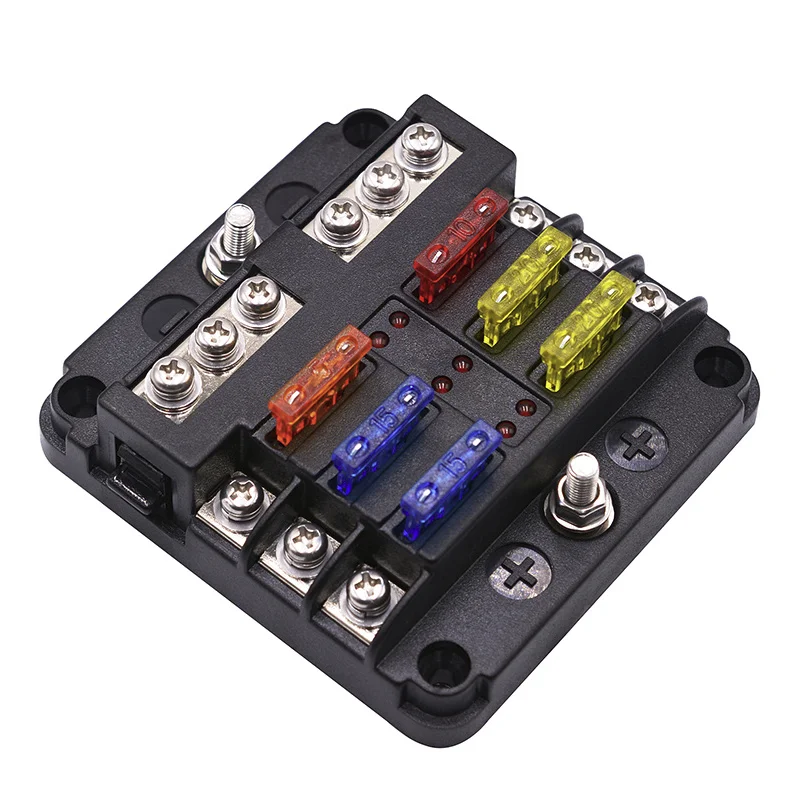

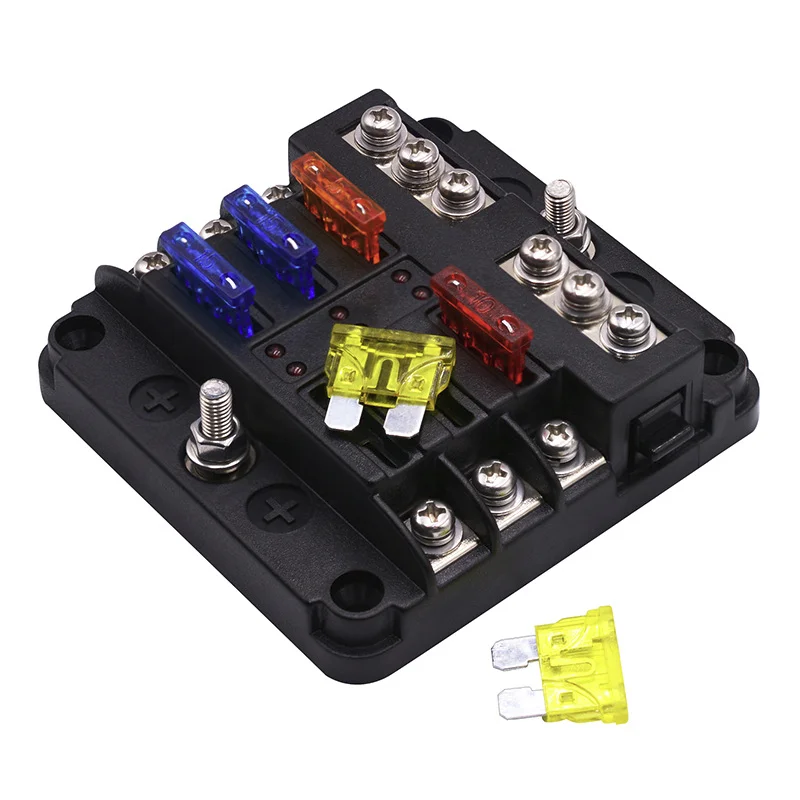

6 Ways Fuse Box:

product net weight: 176g
product size: 87.75*85*36.5mm
product material: PBT body, PC waterproof and dustproof cover, nickel-plated copper connector, PPX40 sticker
Input rated voltage: 32V
input rated current: 100A
output maximum current: each circuit is 30A
Main thread terminal: M5 threaded stud
Single thread terminal: M4 threaded stud
scope of product installation: it can be used on cars, houses, RVS, buses, yachts, boats, etc
product accessories:
sticker X1; Self-tapping screw X4; 20A fuse X4; 15A fuse X4; 10A fuse X2; 5A fuseX2

product advantages:
1. the product adopts PBT anti-fire, material.
2. all bus and fuse clips are nickel-plated copper
3. all fasteners are stainless steel.

12 Ways Fuse Box:

product net weight: 279g
product size: 138.25*85*36.5mm
Input rated voltage: 32V
input rated current: 100A
output maximum current: each circuit is 30A
Main thread terminal: M5 threaded stud
Single thread terminal: M4 threaded stud
indicator light: when the red LED light is on, it means the fuse has been disconnected, and it needs to be replaced in time to continue running
scope of product installation: it can be used on cars, houses, RVS, buses, yachts, boats, etc
product accessories:
sticker X1; Self-tapping screw X4; 20A fuse X6; 15A fuse X6; 10A fuse X6; 5A fuse X6
product advantages:
1. the product adopts PBT anti-fire material
2. all bus and fuse clips are nickel-plated copper with corrosion resistance
3. all fasteners are stainless steel.
