1, Factory sell directly
2, 2 years quality warranty
3, Samples will be shipped in 3-5 working days
4, Exchange goods without reasons within 7 days
5, Support alibaba assurance order with your money safety and your order safety
6, OEM&ODM (do as your requirements on package,brand or other designs)
Click here for more alibaba order review

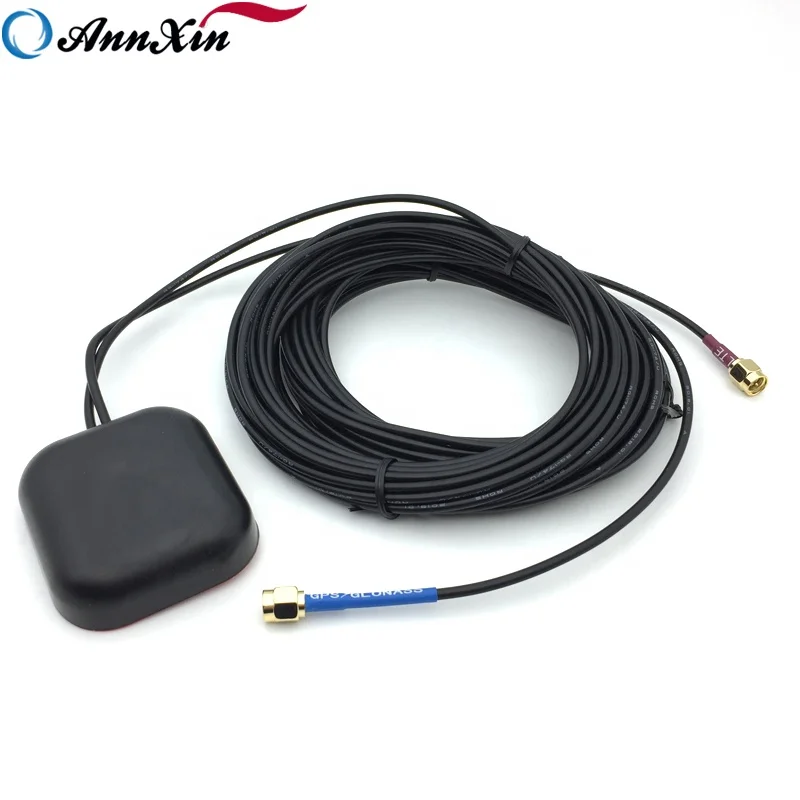

Dielectric Antenna Specification | |
Center Frequency | 1575.42MHz |
Frequency Range | CF±5MHz |
V.S.W.R | 1.5 |
Attenuation | fo±100MHz>30dB |
Impendence | 50 ohm |
Peak Gain | >3dBic, Based on 7×7cm ground plane |
Gain Coverage | >-4dBic at minus 90°<0<+90°(over 75% Volume) |
Polarization | Right-handed Circular(RHCP) |
LNA specifications | |
LNA Gain (Without cable) | 30dB Typical |
Noise Figure | 1.5dB |
V.S.W.R | <1.65 |
DC Voltage | 2.7V-5.0V±0.5V |
DC current | 13mA Max(5V DC) |
Mechanical Specifications | |
Weight | <200 |
Cable | 3m RG174 |

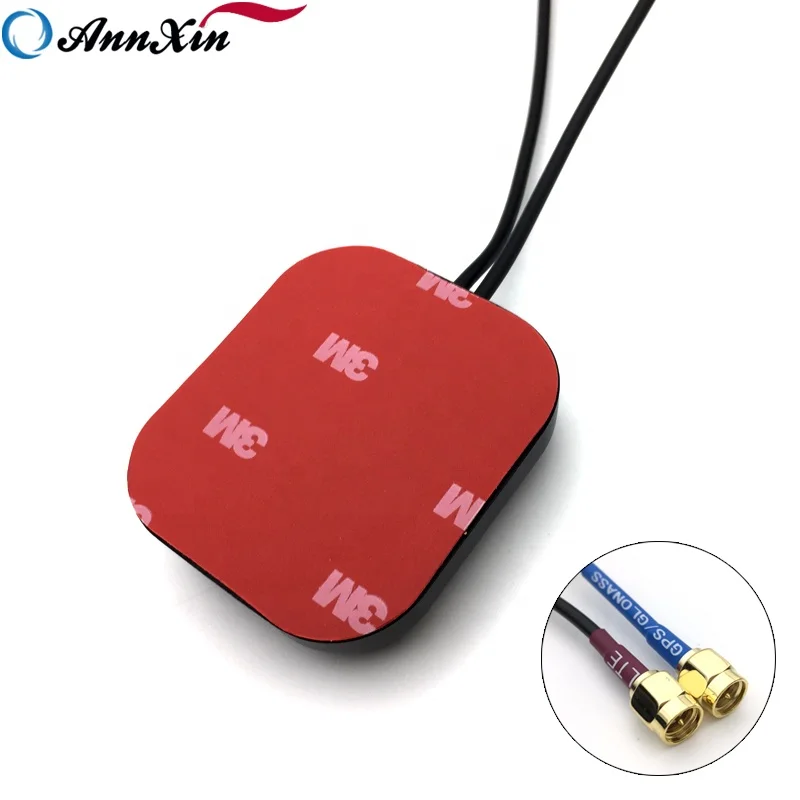

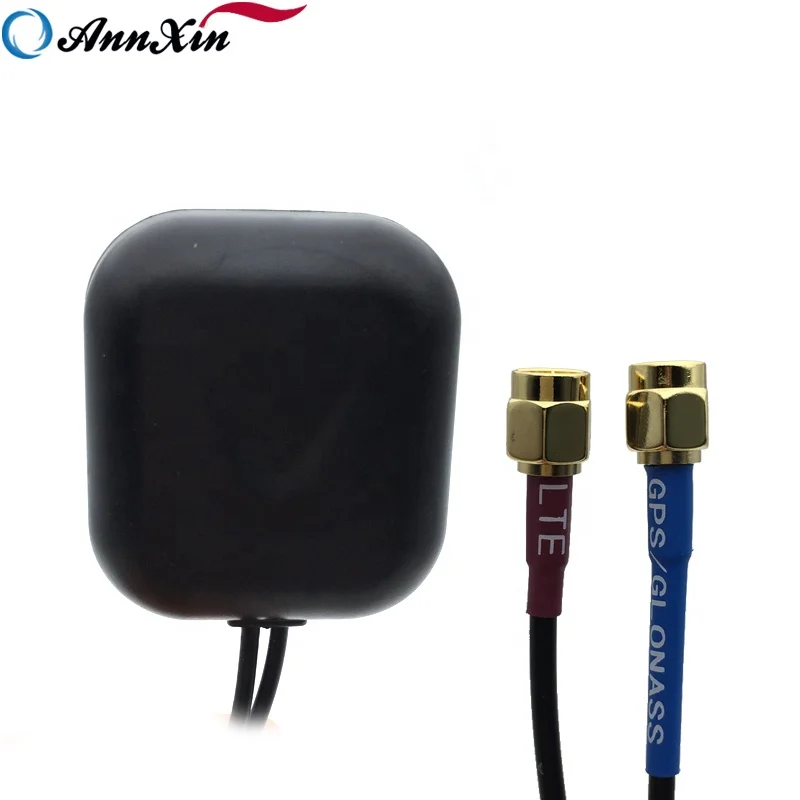

Connector | FAKRA ,MCX, FME, SMA male straight, SMB, or others |

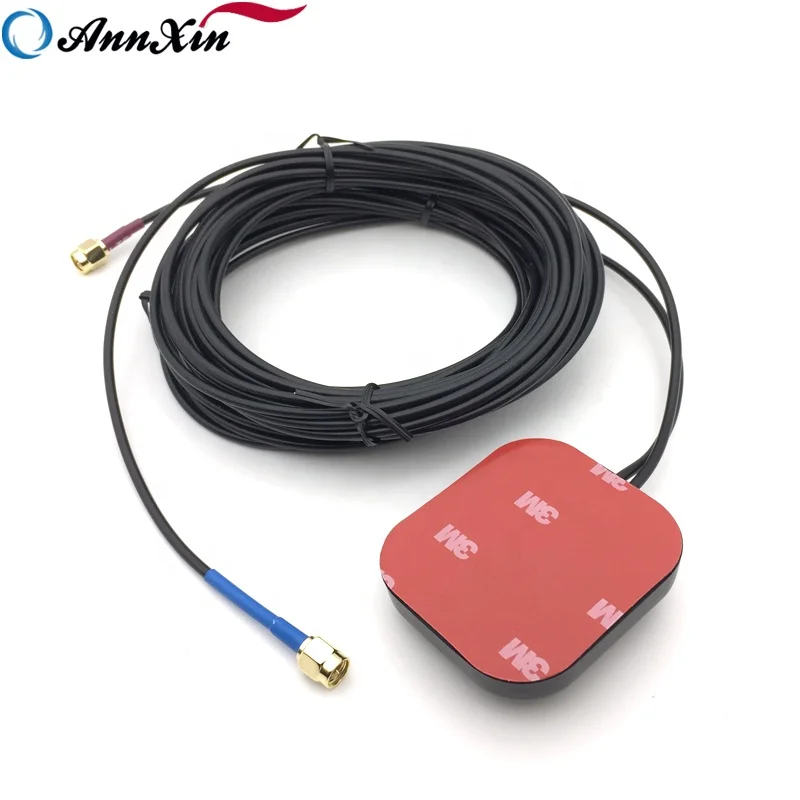

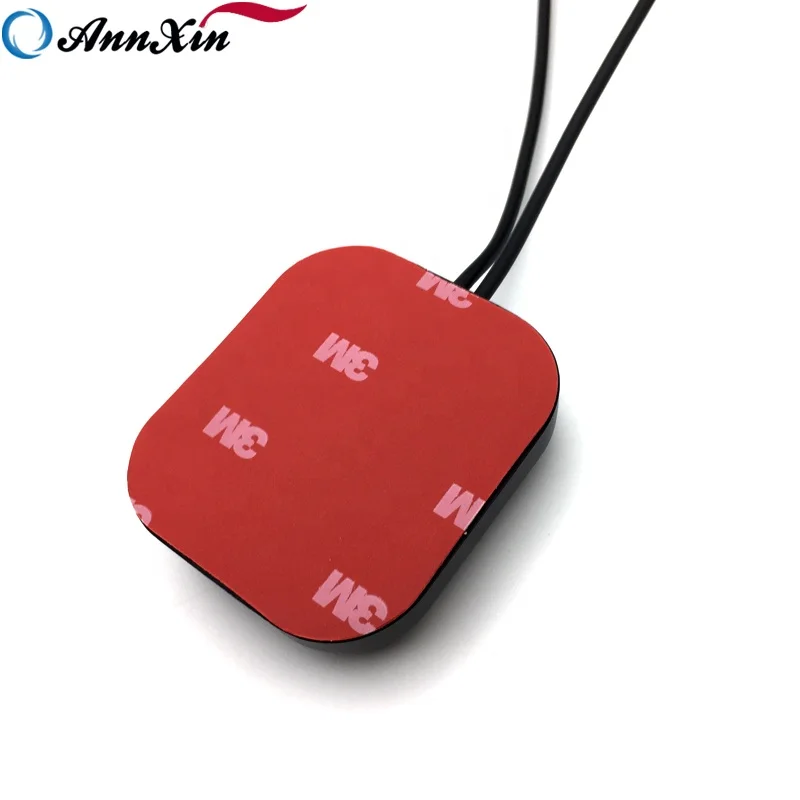

Mounting | Magnetic or Adhesive |

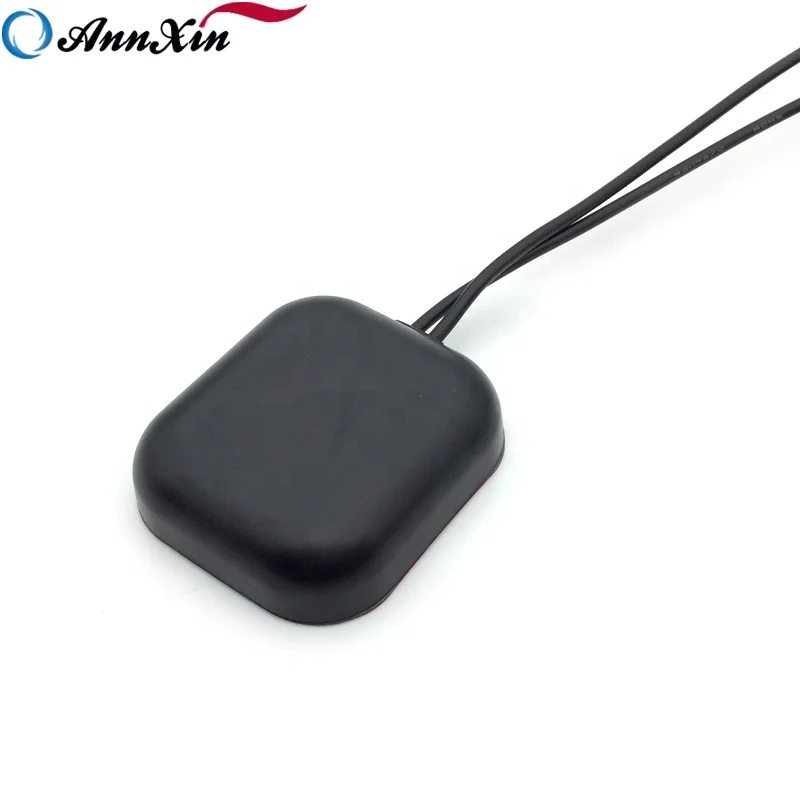

Housing | Black ABS |
Environmental Specification | |
Working Temp | -40 degree~+85 degree |
Storage Temp | -40 degree~+85 degree |
Vibration | Sine sweep 1g(0-p), 10~50~10Hz each axis |
Humidity | 95%~100%RH |
Weatherproof | 100%Waterproof |
MTBF=1×10-6/pc.hr | 40 degree±5 degree, DC=3.0V±0.5V, 2000pcs For 480h |
ANNXIN TECHNOLOGIES CO.,LTD. is a professional manufacturer and leading distributor in Dongguan(near Shenzhen)China since 2006.We carry series of RF ANTENNAS RF/ MICROWAVE COAXIAL CONNECTORS RF CABLE ASSEMBLIES, (Such as SMA, SMB, TNC, BNC, MCX, MMCX, N, FME, ADAPTERS) Other Cable Assemblies(USB,HDMI,VGA,DVI,DP, Netowrk,RJ11 Cables etc.) which are reliable and dependable to you all.Our broad line of coaxial connectors, cable assemblies and Wi-Fi antenna are quite popular and the reception of these items is quite favorable in the market.With very professional technology, strictly QC and QA, as well as our best service to our customers in no time, we will provide our customers with the most effective, competitive products, as well as complete service and supports.Welcome your enquiries!
Q:Can I get some samples? |
A:Yes,sample order is available for quality check and market test,and it will be freight collect payment |
Q:What's the delivery time? |
A:It usually takes about 1-3 days to produce samples. It usually takes about 3-7 days to produce the products. |
Q:What's your payment term? |
A:We usually accept PAYPAL,T/T as the main payment term,and other payments can also be negotiated. |
Q:Quality problems? |
A:If thers is any quality problem or question,we could offer technical support or return service. |
Q:How to contact us? |
A:Send your inquiry details in the below,click"send" now !!! Free sample sample and best answers are waiting for you. |
