Низкий уровень шума 300 Вт 1000 3000 ручной лазерный сварочный
- Категория: Лазерные сварочные станки >>>
- Поставщик: Jinan,Dwin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.4 $* | 0.22 $* |
| Aug-16-2025 | 0.81 $* | 0.51 $* |
| Jul-16-2025 | 0.32 $* | 0.41 $* |
| Jun-16-2025 | 0.84 $* | 0.77 $* |
| May-16-2025 | 0.77 $* | 0.75 $* |
| Apr-16-2025 | 0.96 $* | 0.38 $* |
| Mar-16-2025 | 0.53 $* | 0.25 $* |
| Feb-16-2025 | 0.38 $* | 0.8 $* |
| Jan-16-2025 | 0.91 $* | 0.79 $* |
Характеристики
Product Description

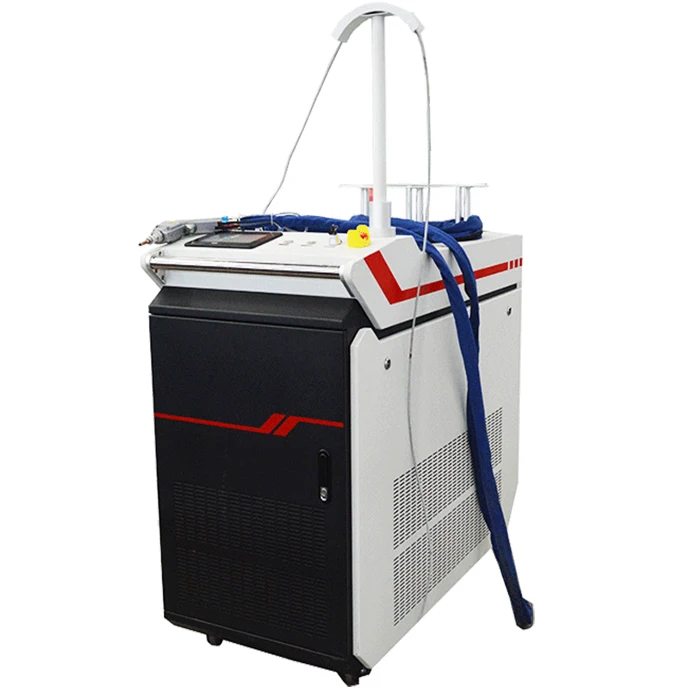

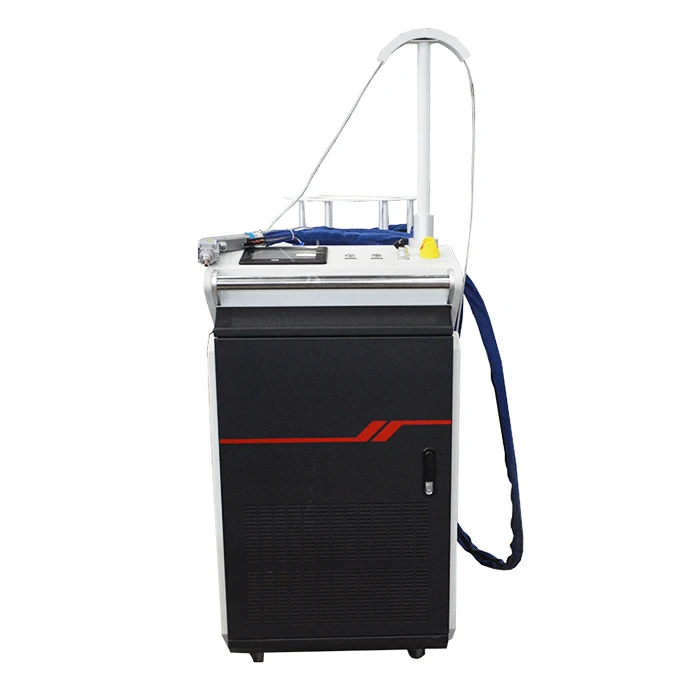

Low Noise 300W 1000W 3000W hand held hold laser manual welding machine
1.This welding equipment can be used for complex and irregular welding of metal equipment, stainless steel households and other
industries. The process of connecting, perfect replacement of traditional argon arc welding, electric welding in the welding of
thin metal plates, iron plates, aluminum plates and other metal materials.
industries. The process of connecting, perfect replacement of traditional argon arc welding, electric welding in the welding of
thin metal plates, iron plates, aluminum plates and other metal materials.
2.The internal design is dexterous, and the good
interactive control system expands the tolerance range of the machined parts and the width of the weld seam, solves thedisadvantage of small spot size and better weld formation.
interactive control system expands the tolerance range of the machined parts and the width of the weld seam, solves thedisadvantage of small spot size and better weld formation.
3.The shape is light, the body engineering design method is adopted,
and the grip is comfortable, the hand is easy to control and the operation is simple and easy to use.
and the grip is comfortable, the hand is easy to control and the operation is simple and easy to use.
4.With multiple safety
alarms, it automatically locks light after removing the work piece, which is safe.
alarms, it automatically locks light after removing the work piece, which is safe.
5.The weld is beautiful, fast, no consumables,
no weld marks, no discoloration, no need for post-grinding. 6.A variety of angle nozzles can be configured to meet the welding needs of different products.
no weld marks, no discoloration, no need for post-grinding. 6.A variety of angle nozzles can be configured to meet the welding needs of different products.
Products Description
Products advantages
1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the
heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly
increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat
and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly
increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat
and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
6.The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Product Paramenters
Machine model | Hand-held fiber laser welding machine | laser power | 500W,800W,1000W,2000W,3000W | |
operate mode | continuation/ modulate | Welding speed range | 0~120 mm/s | |
Cooling chiller | Industrial water chiller | Beam quality | 1.1 | |
Working environment temperature range | 15~35 ℃ | Welding gap requirements | ≤0.5mm | |
Humidity range of working environment | < 70%No condensation | Dimensions | 93*60*88cm | |
Welding thickness recommendations | 0.5-3mm | working voltage | 220V |

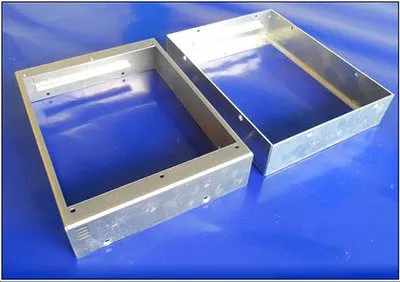

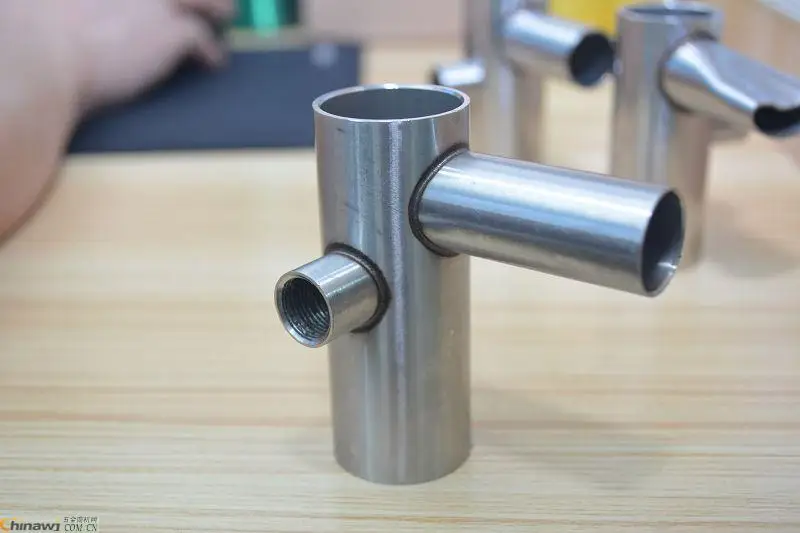

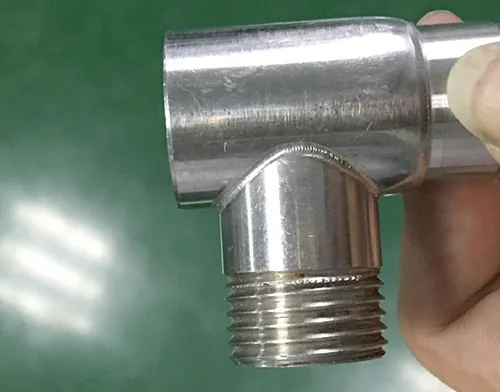

Machine samples

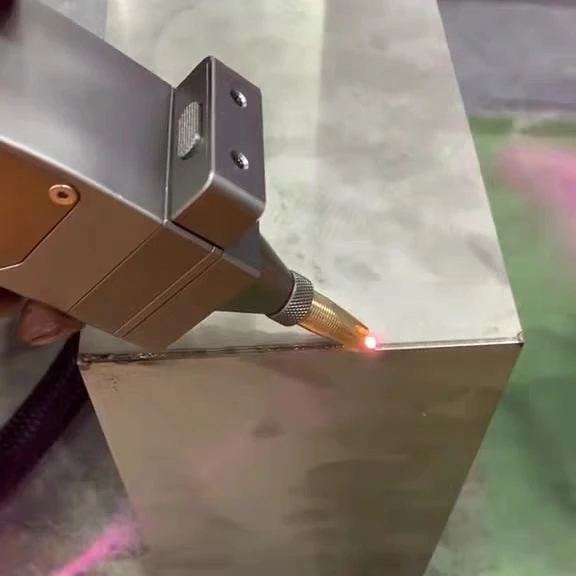

Machine using in variety industries
1.This welding head could be widely used in complex and irregular welding process such as cabinets, kitchen, staircase, shelf,
gridiron, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries. It is a
perfect replacement of traditional argon arc welding, in welding thin stainless steel plate, iron plate, aluminum plate and other
metal materials.
2.Smart internal design and interactive control system expand the tolerance range and welding width of the processing parts, and
solve the disadvantage of minor laser welding spot, and provide better welding forming.
3.Light shape, Ergonomic design, advanced structure, and reliable performance ensure comfort grip and simple operation.
4.Nice welding seam, fast welding speed, no consumables, no welding marks, no discoloration, no later polish.
5.This head could be equipped with a variety of angular nozzles to meet the welding needs of different products.
gridiron, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries. It is a
perfect replacement of traditional argon arc welding, in welding thin stainless steel plate, iron plate, aluminum plate and other
metal materials.
2.Smart internal design and interactive control system expand the tolerance range and welding width of the processing parts, and
solve the disadvantage of minor laser welding spot, and provide better welding forming.
3.Light shape, Ergonomic design, advanced structure, and reliable performance ensure comfort grip and simple operation.
4.Nice welding seam, fast welding speed, no consumables, no welding marks, no discoloration, no later polish.
5.This head could be equipped with a variety of angular nozzles to meet the welding needs of different products.
Certifications
Our Advantages
Free design of fixtures as customers required.
Free training for operation staffs.
Free marking samples of customer provided.
Our service
A. Machine will be supplied with training video and user's manual in English for installation, operation, maintenance and
trouble-shooting, and shall give technical guide by e-mail, fax, telephone, Skype…. for fast solution.
B. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and
maintenance. During training in our workshop, we offer free training and living cost for 5 days, limit 2 people.
C. We offer technician to customer site for installation and training, customer covers travel cost and local living cost.
trouble-shooting, and shall give technical guide by e-mail, fax, telephone, Skype…. for fast solution.
B. Customer may come to our factory for training. We will offer training of installation, operation, machine trouble-shooting, and
maintenance. During training in our workshop, we offer free training and living cost for 5 days, limit 2 people.
C. We offer technician to customer site for installation and training, customer covers travel cost and local living cost.
My whatsapp: 008617615838486
