PD132 Traffic Hign Sensetive одноканальный/двухканальный детектор петли транспортного


Поделиться:


Цена:11,00 $ - 20,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-18-2025 14.75 $* 14.8 $*
Jul-18-2025 11.31 $* 11.1 $*
Jun-18-2025 14.9 $* 14.64 $*
May-18-2025 14.68 $* 14.17 $*
Apr-18-2025 11.96 $* 11.10 $*
Mar-18-2025 13.58 $* 13.26 $*
Feb-18-2025 13.79 $* 13.56 $*
Jan-18-2025 13.19 $* 13.11 $*

Характеристики

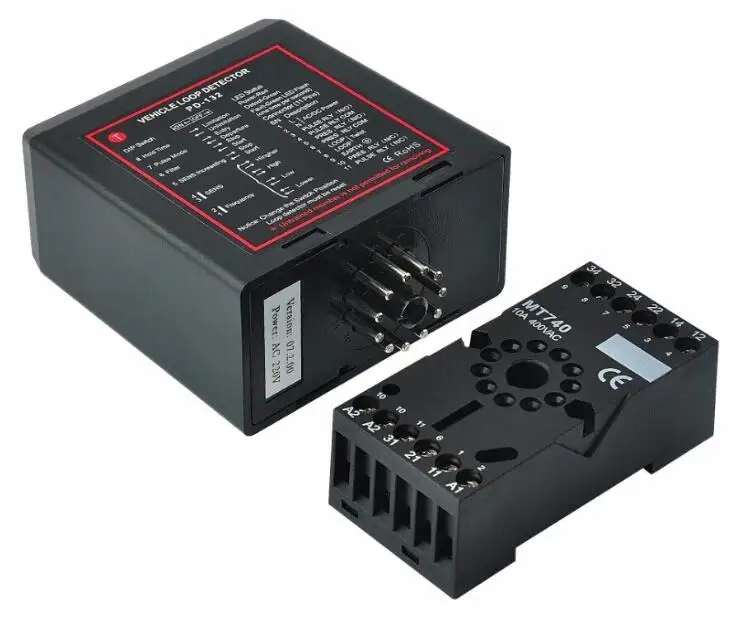

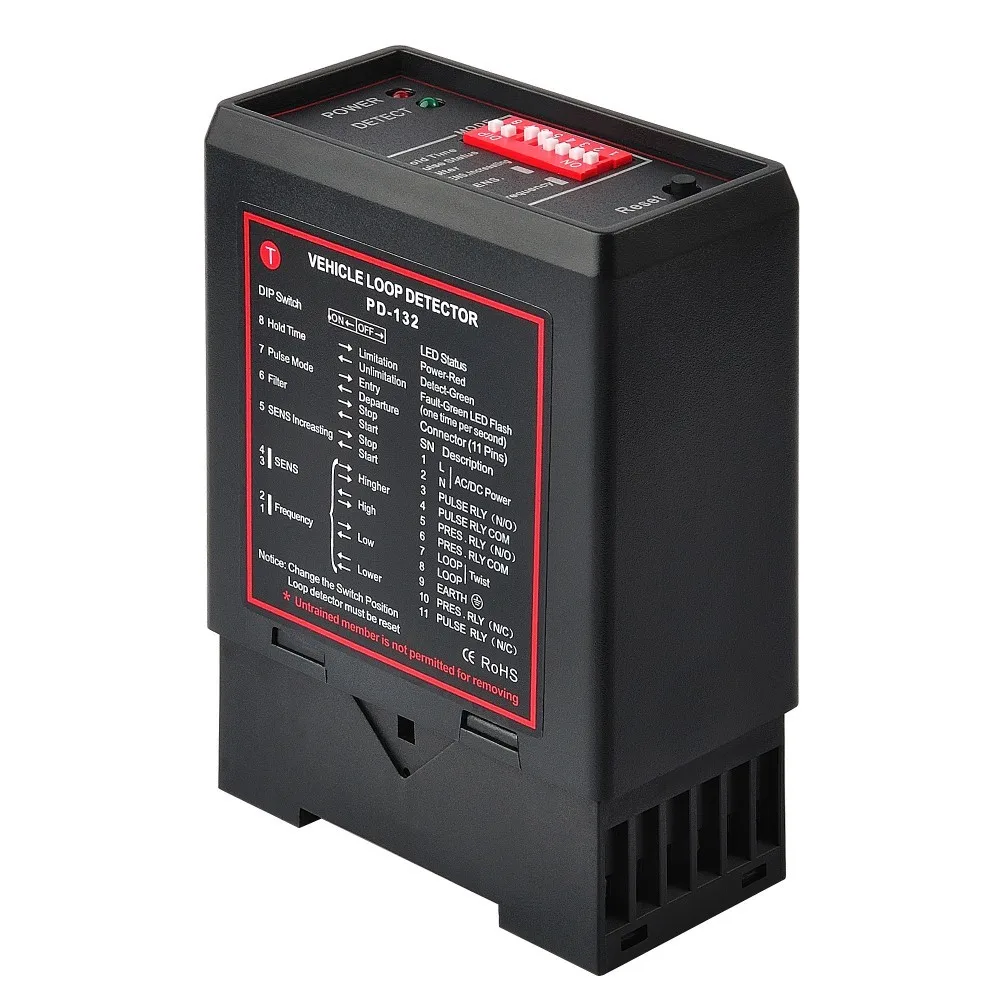

Products Description


Product Name
pd132 vehicle detector single loop/single channel detector
Work Voltage
AC 220V 110V DC24V 12V
Frequency Range
20KHz~170KHz
Frequency Adjustment
4
Sensitivity
4
Reaction time
100ms
Dimension
78x40x108 mm
Applications
Parking System , Roadway control, etc


Product Name
AC220V Dual Loop Detector for Parking Access Control PD-232
Work Voltage
AC 220V
Frequency Range
20KHz~170KHz
Response time
100ms
Loop quantity
2
Sensitivity
4 level
Dimension
78*40*108MM
Applications
Parking System , Roadway and so on


Technical Specifications


Power Consumption: 4.5VA
Output relays: 240V/5A
Operating temperature: -20°C to +65°C
Storage temperature: -40°C to +85°C
Signal holding time: Unlimited / limited when loop is permanently covered 10 minutes
Sensitivity: Adjustable in 4 increments
Loop inductance: Total loop plus connection wiring: 50μH to 1000μH(Ideal is 100μH to 300μH)
Loop connection wiring: Maximum length 20 meters, twisted at least 20 times per meter

Loop detectors are used wherever vehicles have to be detected, for example: monitoring and safe guarding access ways or counting
vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic
light systems in car parks or activating card dispensers in car parks.
Loop detector with direction detecting function that can be used to statistics the vehicle flux. The principle is based on a
change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up
and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.








Company Profile


BISEN SMART ACCESS CO,.LTD was established in 1999, located in NanChang, China.


We are the biggest professional manufacturer for parking management system and equipments, gate and door automatic operators in China. more than 70 experienced engineers are engaging in R&D team , and more than 500 employees are working in manufacturer and service. We can provide quality ODM / OEM service for customers.


Our main products: Parking system auto-barrier gate, Sliding gate opener, Swing gate opener, Industrial sectional door opener, anti-terrorism road blocker, Hydraulic bollard, Pedestrian gate, Entrance control system etc.



Exhibition






Certifications




Manufacturing Technique




Testing Equipment




Our Services


1.ODM,OEM Customised for special requirements.2. MOQ: 1 piece
3. Warranty:1 year
4. 24- hour responce.
5. Training


FAQ


Q: Are you trading company or manufacturer ?
A: We are a manufacturer.

Q: How long is your delivery time?
A: Depends upon the quantity. Normally about 5 days for 1 full 20 container, 7 days for 1 full 40 container.

Q: Do you provide samples ? Is it free or extra ?
A: Yes, we provide samples, it depends on the price, free or not need to negotiate.

Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance, balance before leaving factory

If you have any other question, pls feel free to contact us.
