Оптовая продажа с завода электрические устойчивые пластиковые жесткие трубы серого цвета из

Описание и отзывы

Трекер стоимости

Характеристики

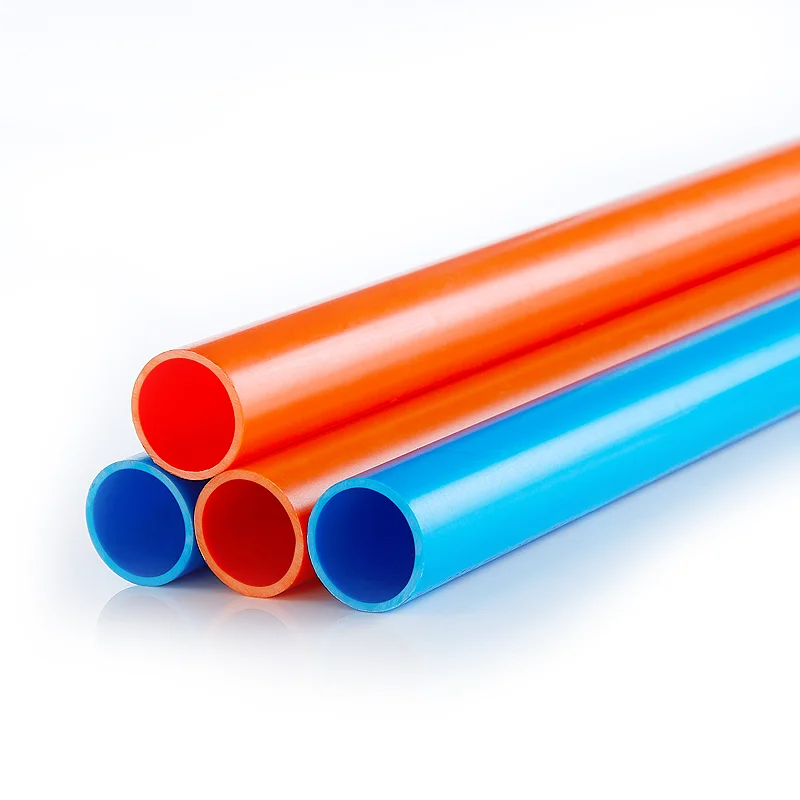

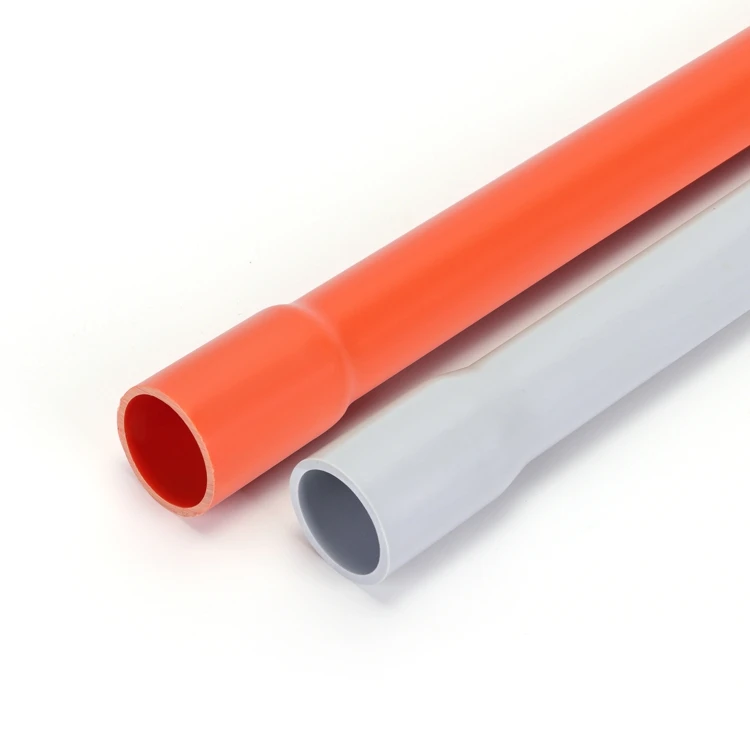

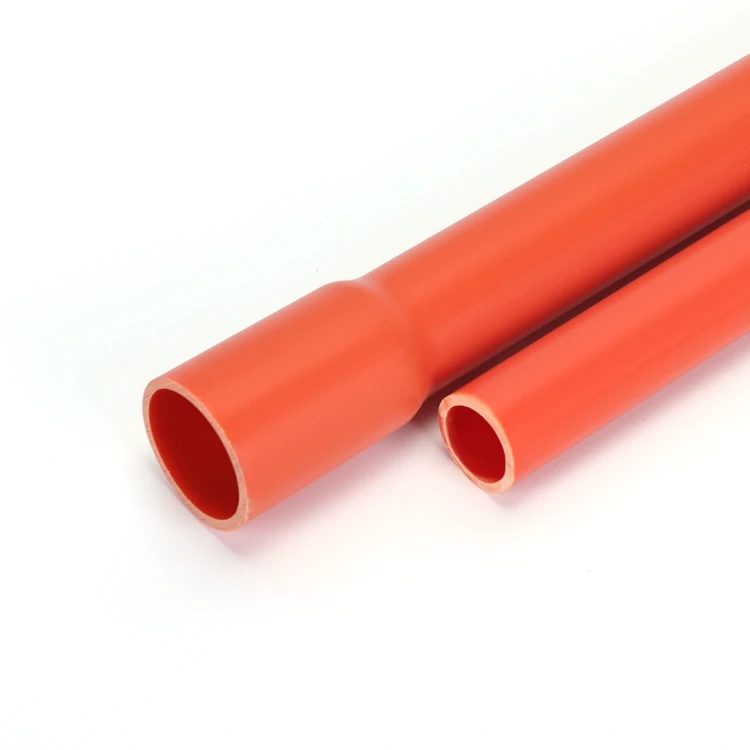

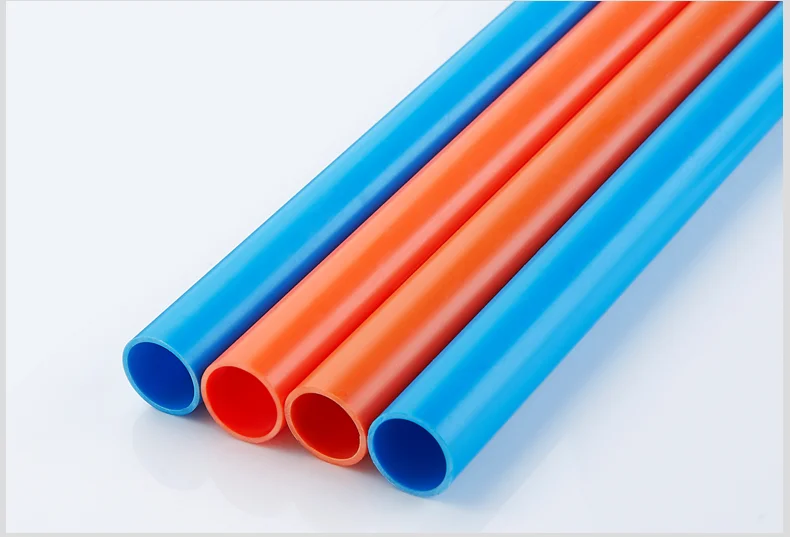

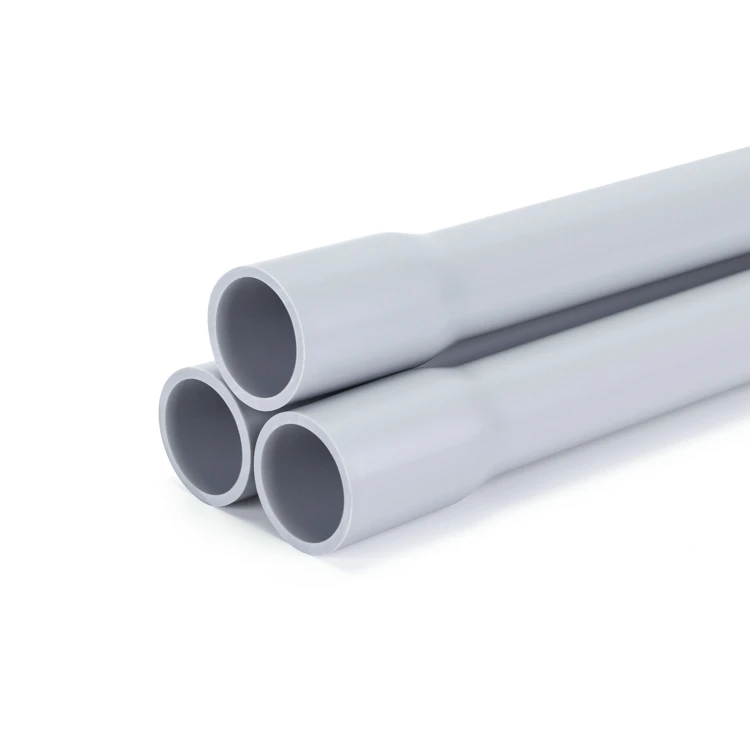

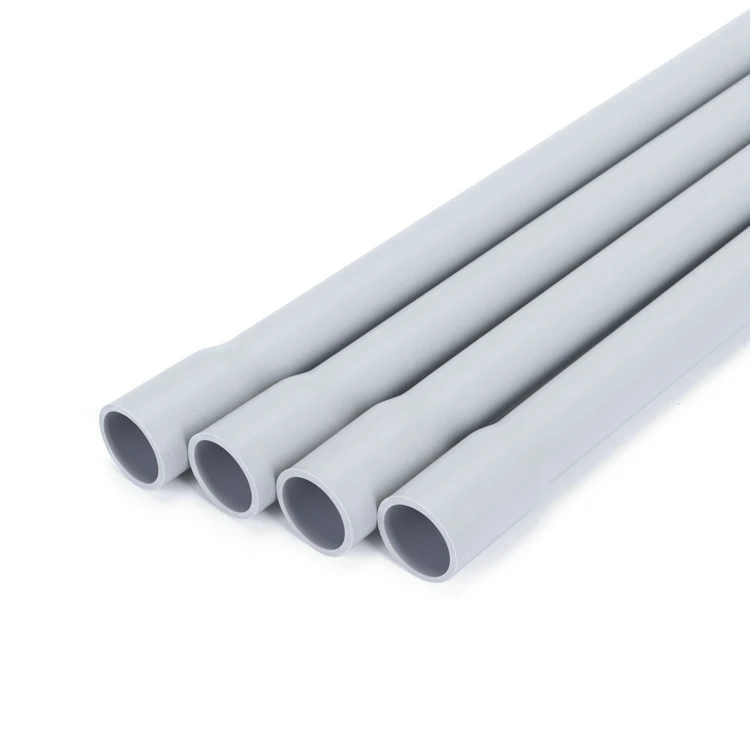

Electrical  Rigid Conduit Pipe



SN	Description	Part Number	Size
1	pvc conduit pipe	CT001610	OD16*1.0mm
2		CT001612	OD16*1.2mm
3		CT001614	OD16*1.4mm
4		CT002010	OD20*1.0mm
5		CT002012	OD20*1.2mm
6		CT002014	OD20*1.4mm
7		CT002016	OD20*1.6mm
8		CT002018	OD20*1.8mm
9		CT002512	OD25*1.2mm
10		CT002514	OD25*1.4mm
11		CT002516	OD25*1.6mm
12		CT002518	OD25*1.8mm
13		CT002520	OD25*20mm
14		CT003214	OD32*1.4mm
15		CT003216	OD32*1.6mm
16		CT003218	OD32*1.8mm
17		CT003220	OD32*2.0mm
18		CT003222	OD32*2.2mm
19		CT004016	OD40*1.6mm
20		CT004018	OD40*1.8mm
21		CT004020	OD40*2.0mm
22		CT004022	OD40*2.2mm
23		CT005018	OD50*1.8mm
24		CT005020	OD50*2.0mm
25		CT005022	OD50*2.2mm
26		CT005025	OD50*2.5mm
27	AS pvc conduit pipe	CT001613	OD16*1.3mm MD Grey
28		CT002018	OD20*1.8mm MD Grey
29		CT002518	OD25*1.8mm MD Grey
30		CT003221	OD32*2.1mm  MD Grey
31		CT004024	OD40*2.4mm  MD Grey
32		CT005028	OD50*2.8mm  MD Grey
33		CT002023	OD20*2.3mm HD Orange
34		CT002525	OD25*2.5mm HD Orange
35		CT003227	OD32*2.7mm HD Orange
36		CT004031	OD40*3.1mm HD Orange
37		CT005034	OD50*3.4mm HD Orange









Related Products:

Halogen Free Low Smoke Conduit



>> Why choose Low Smoke and Halegen free conduit?

⌊Low Smoke⌋

In case of a fire accident, they ensure better visibility of escape routes due to their low smoke emission.

The common test on smoke release follows IEC 61034.



⌊Halogen Free⌋

In case of fire, halogens generate toxic smoke. Halogen free installation systems ellminate this hazard.

Halogen free conduit don’t release toxic and corrosive gases during combustion, protecting people and

environment. The halogen content of plastics is tested according to EN 50267-2-2.



⌊Flame Retardancy⌋

They contain flame retardants that reduce flame propagating. To aviod flame propagation in buildings,

conduits have to be flame retardant.  The relevant standard test is subject to IEC 61386.



(Medium duty & Heavy duty)

Properties:

1) Outer diameter:	φ16, φ20, φ25, φ32, φ40, φ50, φ63mm
2) Resistance to compression:	750Nt/5cm  or 1250Nt/5cm
3) Resistance to impact:	6J
4)Temperature range:	-45oC+120oC
5) Resistance to bending:	Rigid
6) Electrical characteristics:	With electrical insulated characteristics
7) Fire resistance:	V0
8) UV resistance:	UV Stabilized
9) Color selection:	White/Black/Grey
10)OEM	Available
