Небольшой ротационный формовщик для печенья Skywin/формовочная машина

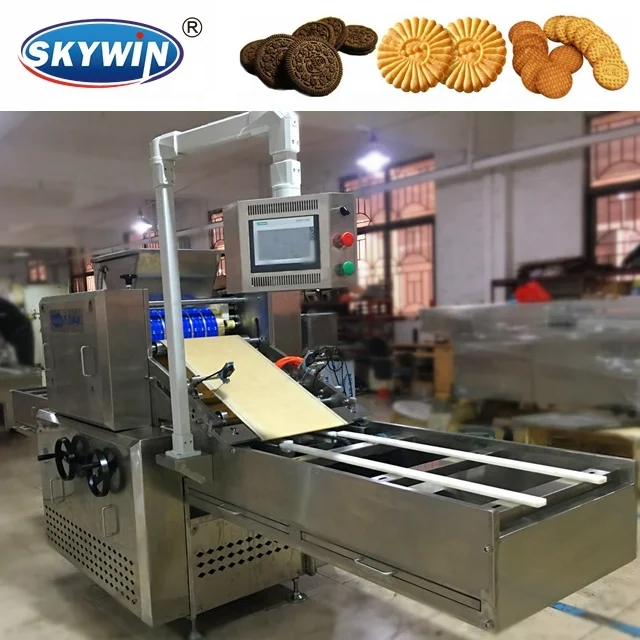

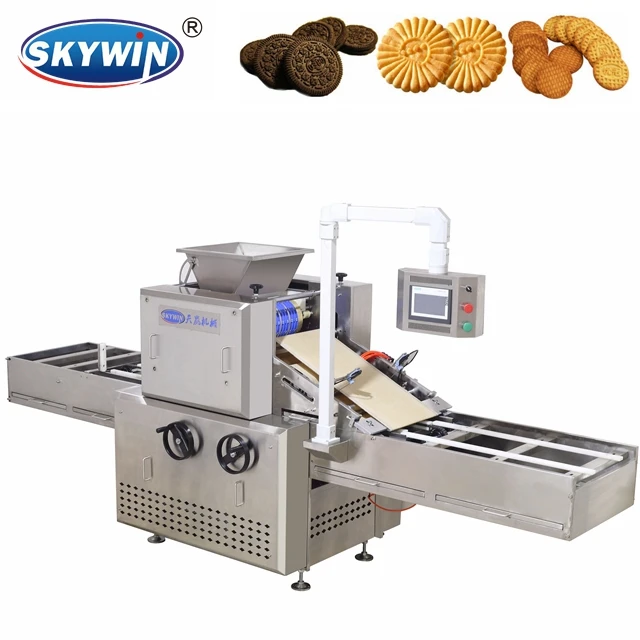

Model-400 Tray Type Rotary Moulder is a high-speed automatic equipment will form biscuit from wheat dough into dough biscuit, biscuit machine suitable for rectangular biscuit,square and round, animal shape and other shapes depends on biscuit mould.The machine can reduce labor costs and waste, increase production, efficiency, quality and flexibility.\t\t\t\t\t

1.Flexible structure: with a series of quick-change biscuit molds device,can produce different shapes of biscuits.\t\t\t\t\t

2. With automatic loading and belt centering adjustment device. Ensure the automatic alignment of pallets and canvas;\t\t\t\t\t

3 .Adopt 304 stainless steel, chromed plated treatment, to meet food hygiene requirements.\t\t\t\t\t

4. The machine is using frequency converters, Siemens brand PLC&touch screen control system,and other electrical components, mechanical stability and durability;\t\t\t\t\t

5.Machine control by Siemens Touch screen, easy to operate, no downtime at any speed will not be affected.\t\t\t\t\t

6.The machine is easy to clean and maintenance, waste collection pan for automatic collection of waste materials, avoid waste.\t

machine customized. pictures and videos for reference only.\t\t\t\t

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Machine Conponent

Tray Type 400mm width Rotary moulder (Including two biscuit moulds)
For Soft Biscuit forming production
Auto loading and feeding device
Automatic tracking and adjusting canvas belt by air cylinder.

ØWorking width 400mm.
ØTray size: W400 x L600mm
ØCapacity around 120kgs/hr.
ØThree motor driver, Chain driver
ØStainless steel 304#cover thickness 1.2mm
ØFrequency speed adjusted, SIEMENS brand Touch Screen.
ØBelts support by stainless steel 430# 3mm thickness.
ØStrong Stainless steel 420# Dough scrap knife.
Siemens Inverter, Guomao Motor
ØMachine dimension: 4000mm length x 1000mm width x 1050mm height
ØPower: 4.5kw, 380V/50Hz (220V SURPPORTED)

We provide two sets of soft biscuit moulds for free
All the biscuit mould designs can be customized

Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
