Высококачественная Автоматическая намотка для катушек LY 840 намоточная машина проволоки 0 03-0 5 мм 4 оси ширина 110 диаметр винта 80 220 В/110

Описание и отзывы

Трекер стоимости

Характеристики

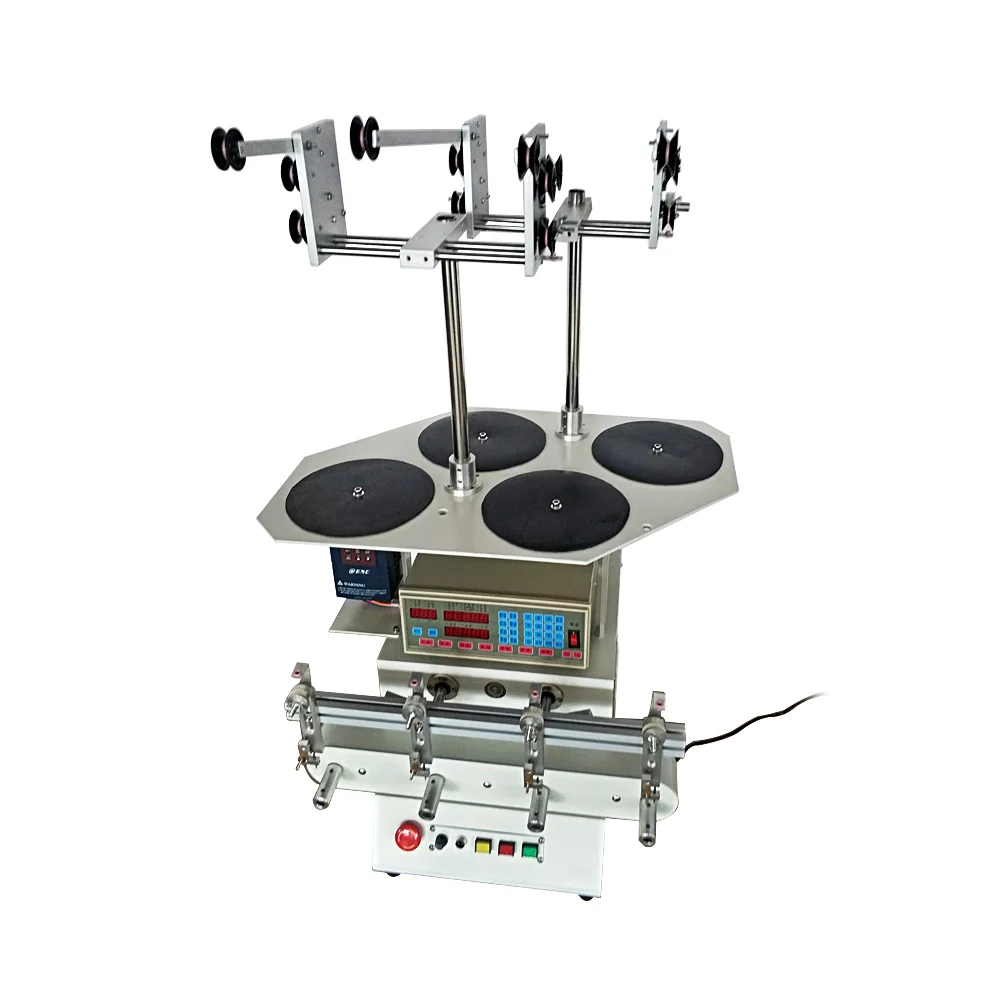

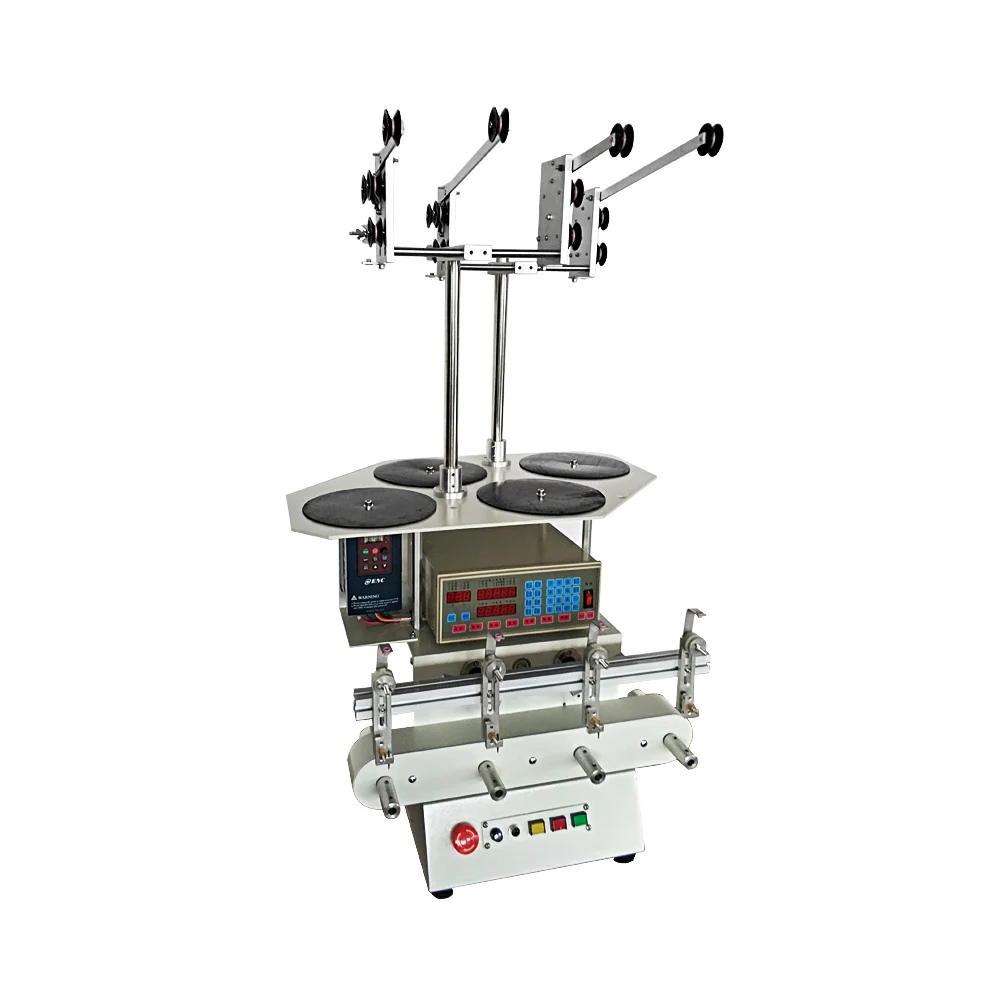

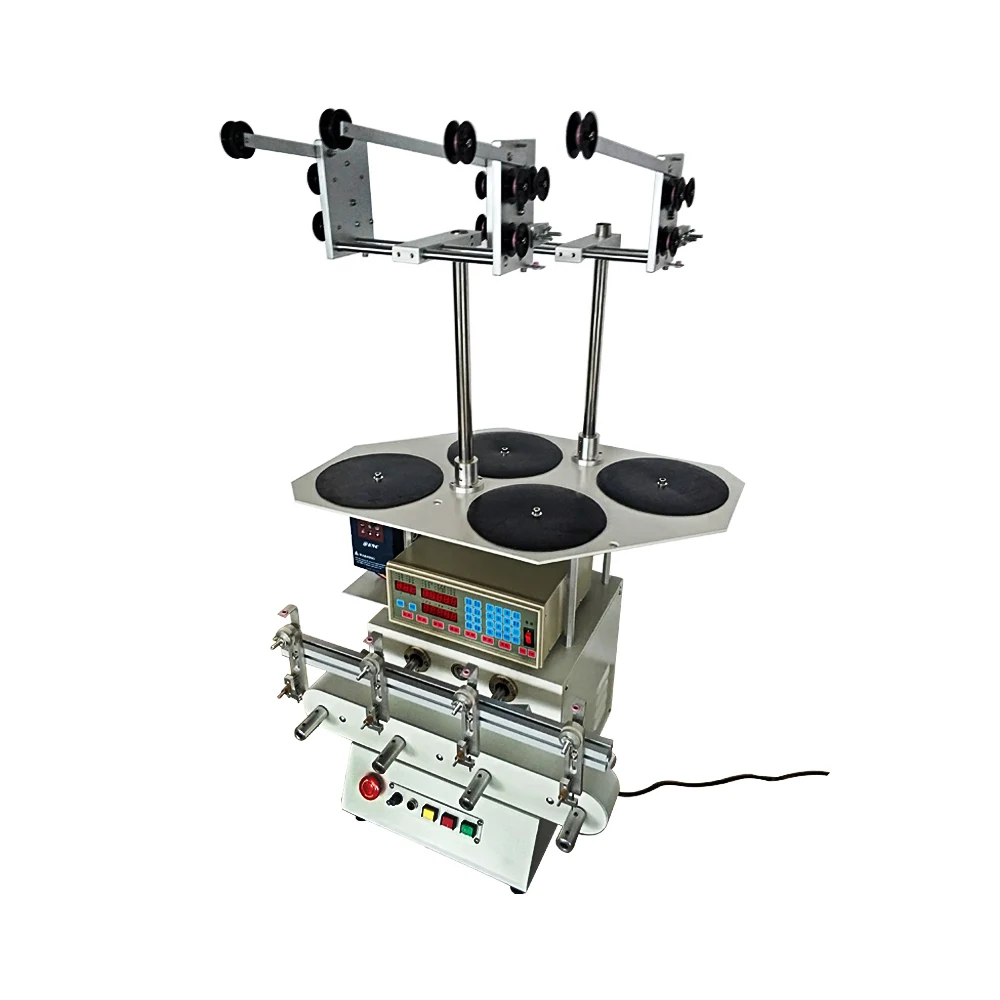

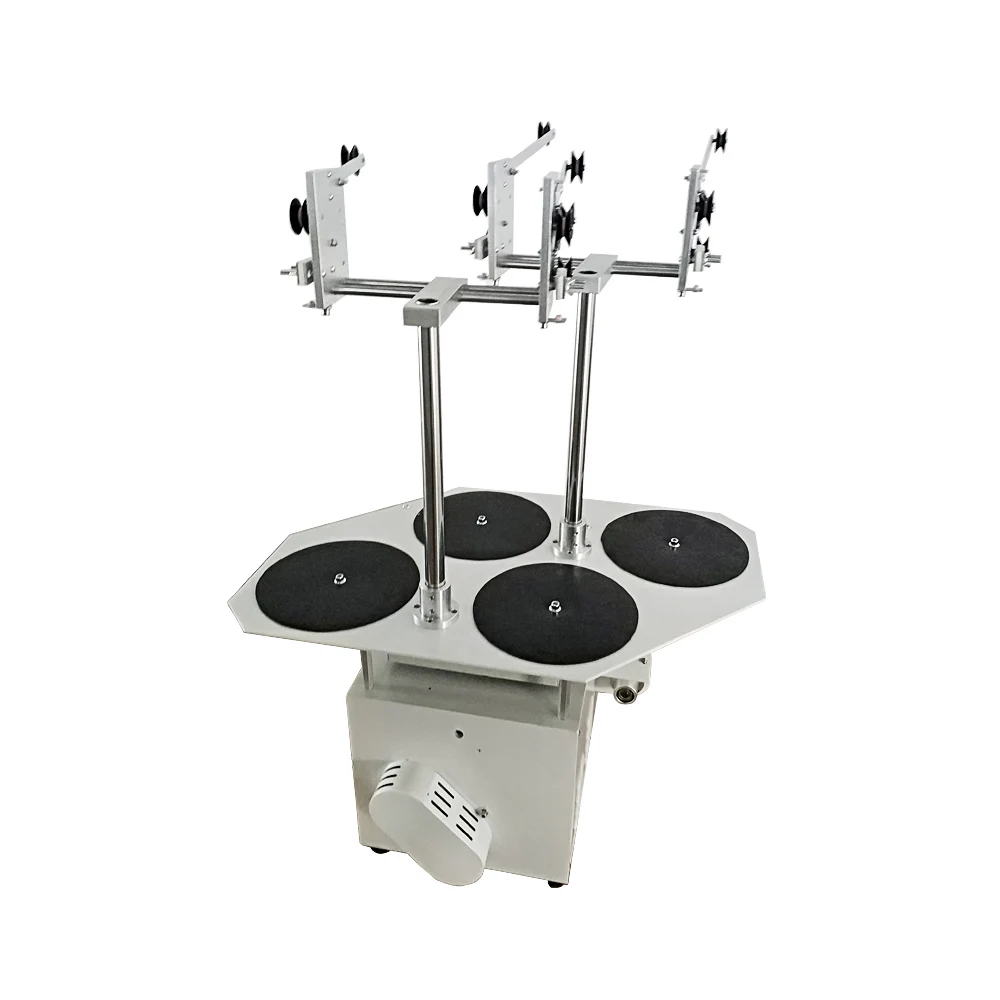

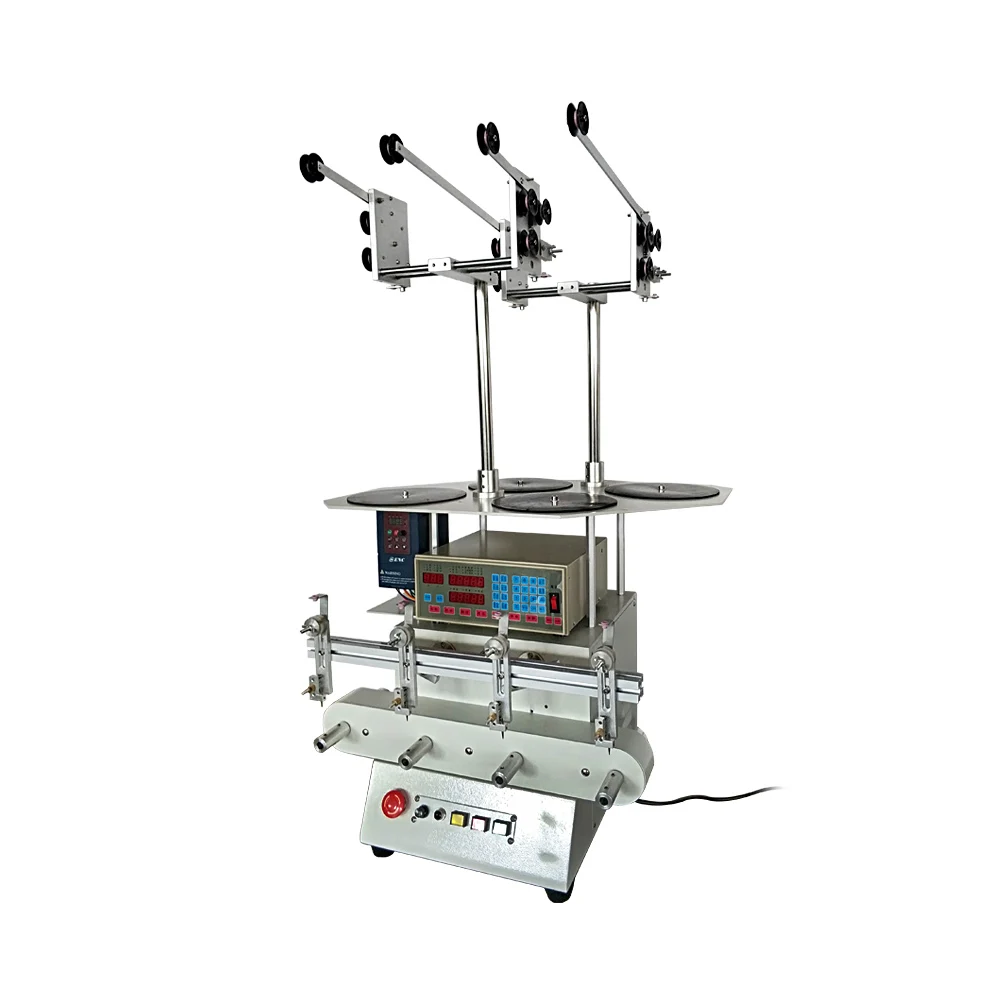

LY 840 High quality Automatic Coil Winder Winding Machine for 0.03-0.6mm wire 4 axis width 110mm screw diameter 100mm 220V/110V



Notice : when the parcel arrived to your customs ,please pay the
tax and pick up the parcel ,we are not responsible for
any customs duty or import tax

if your place is remote ,then need to pay 35usd .
Feature

1.This series of automatic filament winder computer controller adopts the latest synchronous winding , it is with high precision and there will be no obstacles appear when in excessive speed winding displacement process .

2.Super elevated wisdom model , it has self-inspecting functions, including the errors of the equipments ,excessive speed tracking and the calibration of the speed.

3.Has vernier caliper functions and can measure the winding width and starting point easily.

4.The speed of the cop motor can be changed at random when in operation , and the strand oscillator also can synchronize with it.

5.After the startup of the cop motor , the time of speed growing can be changed at random depend on the type of the machines.

6.Obtain winding excessive speed detecting function , and it can reduce the winding speed automatically to the most steady state.

7.Can settle data: starting point, wire gage, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding)

8.Foot-switch connection for better efficiency.

9.Winding parameters and options can be set independently for each step.

10.Memory capacity accommodates 999 steps of parameters with off-power memory retention.


Specification
Brand:LY
Model:840
Spindle Motor: Frequency conversion motor
Spreading Motor:Stepper motor
Numbers of cop:4 axis
Windable wire size:0.03-0.60mm
Wire distance:0-9.999mm
Winding diametre:1-100mm
Spread range:0-110mm
Power:220V/110V(Optional)
Motor power:750W
Maximum turning speed of cop:6000circles/minute,speed adjust function
Storable winding groups:999 groups
Counting resolution:0.1 circle
Complete appliance weight:45kg
Machine Size:580*580*800mm
Wooden box size: 800*650*680mm
Gross weight:80KG
