JF-8 автоматический Капсулы Таблетки Счетная машинка для
- Категория: Tablet Counter >>>
- Поставщик: ZHEJIANG,CAPSULCN,IMP&EXP,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 10591.88 $* | 11121.10 $* |
| Aug-18-2025 | 10502.44 $* | 11027.79 $* |
| Jul-18-2025 | 8811.82 $* | 9252.6 $* |
| Jun-18-2025 | 10324.9 $* | 10840.8 $* |
| May-18-2025 | 8989.62 $* | 9438.89 $* |
| Apr-18-2025 | 10146.52 $* | 10653.3 $* |
| Mar-18-2025 | 10057.9 $* | 10560.54 $* |
| Feb-18-2025 | 9968.62 $* | 10466.20 $* |
| Jan-18-2025 | 9879.74 $* | 10373.55 $* |
Характеристики
Products Description

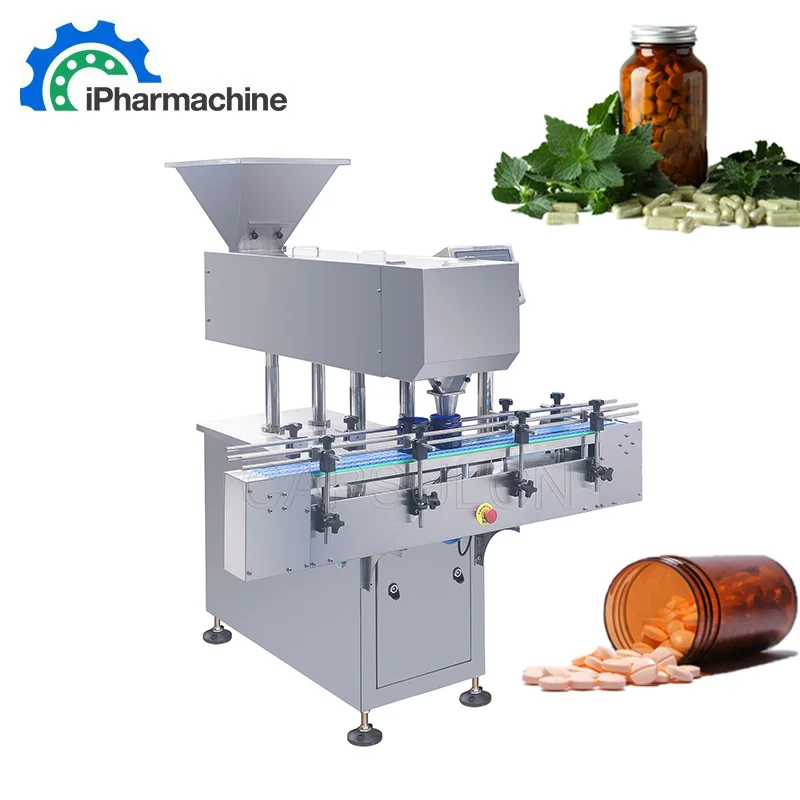

JF-8 Electronic Counting Machine
Electronic Counting Machine SED-8 is mainly suitable for medicine, industry, chemical industry, food and other industries. It can be widely used for counting and bottling solid preparations, such as pills, sugar-coated tablets, plain tablets, soft and hard capsules and other shapes of medicine granules. This machine can be used independently, and can also form a linked production line with other supporting equipment such as bottle unscrambler, paper stopper, capping machine, sealing and labeling machine.
Main Application
Details Images

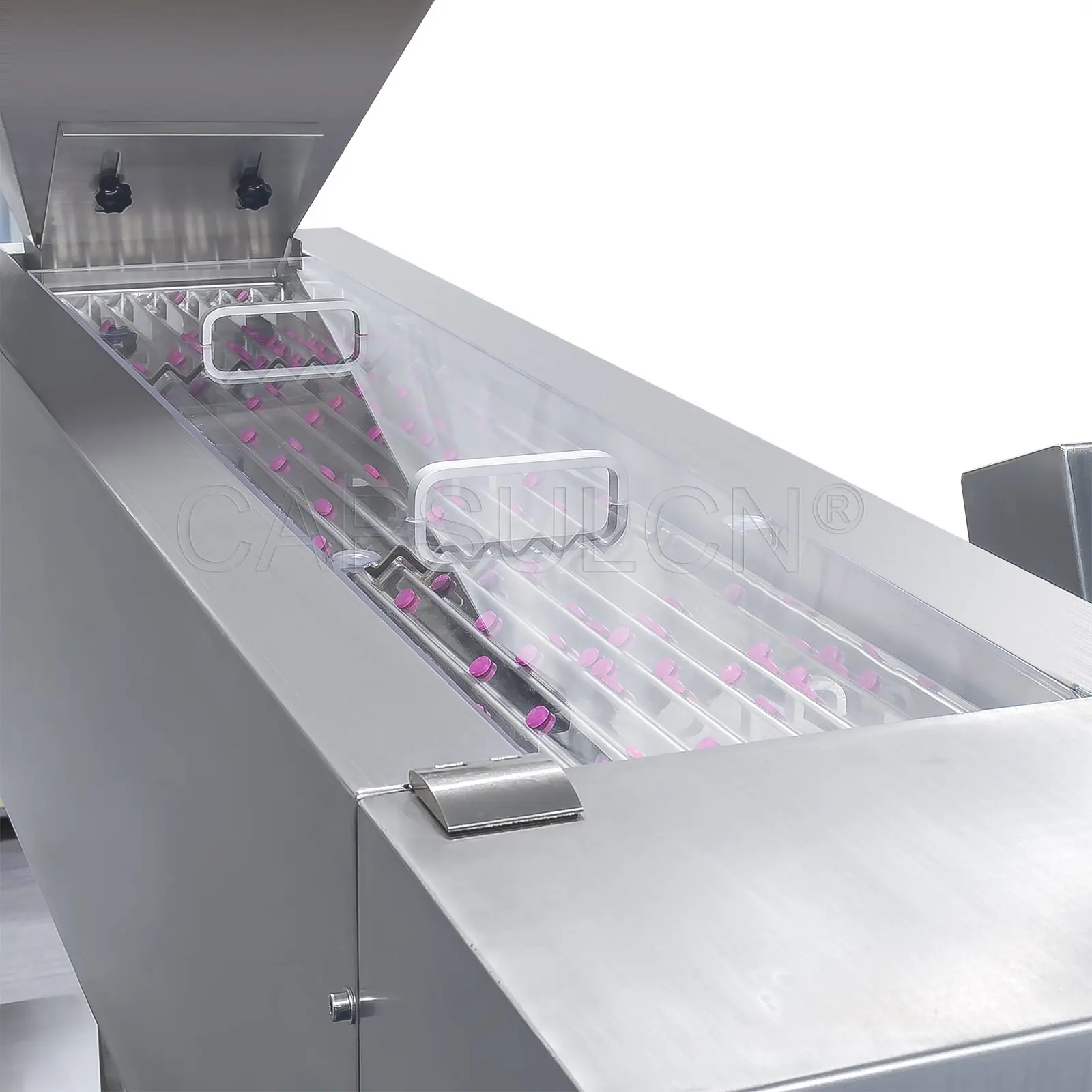

Capsule or tablet feeding unit
It consists of the hopper, the three-stage vibrator, the vibrating plate and the anti-dust cover.

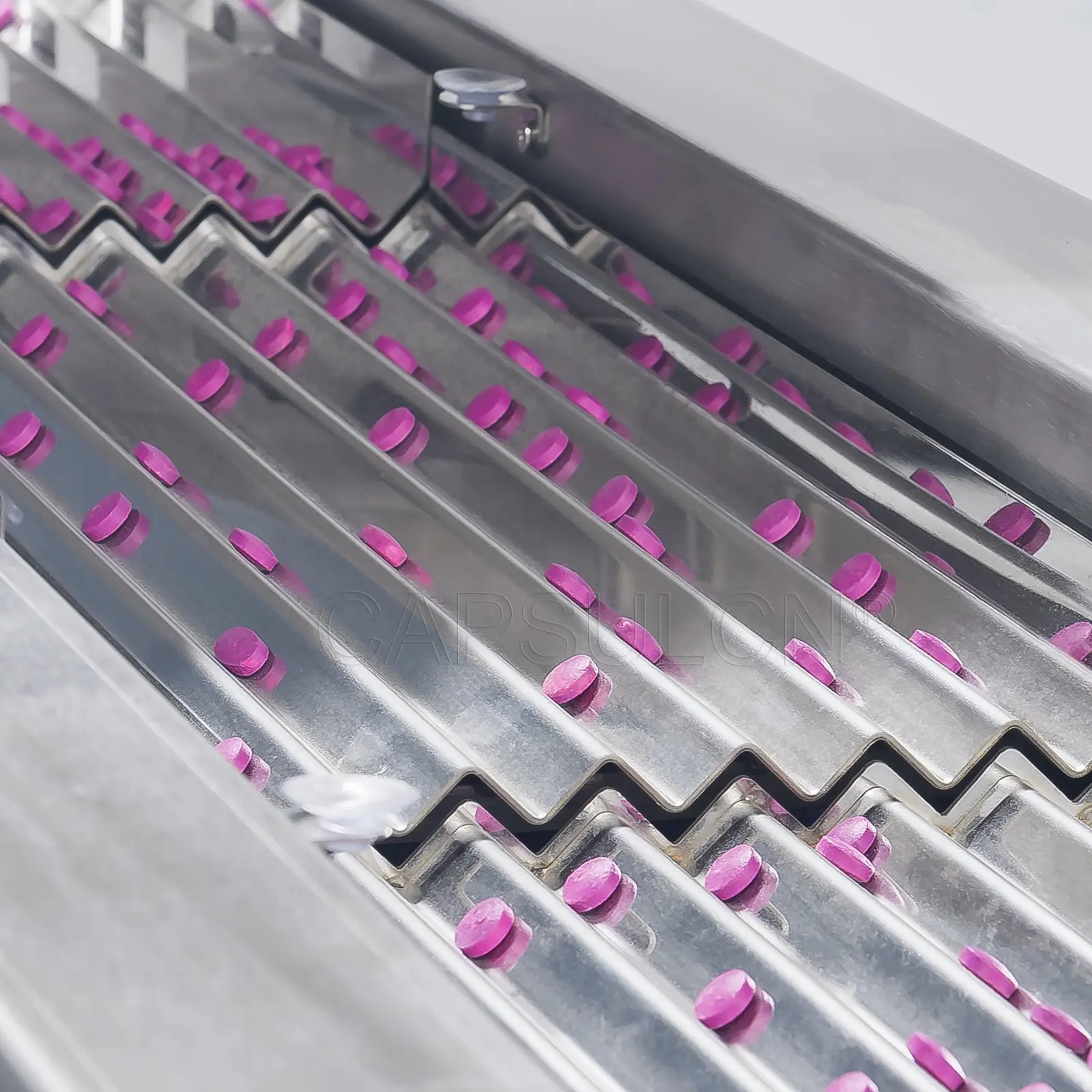

Three-stage vibrators
With 8-channel vibration, materials are distributed more evenly.

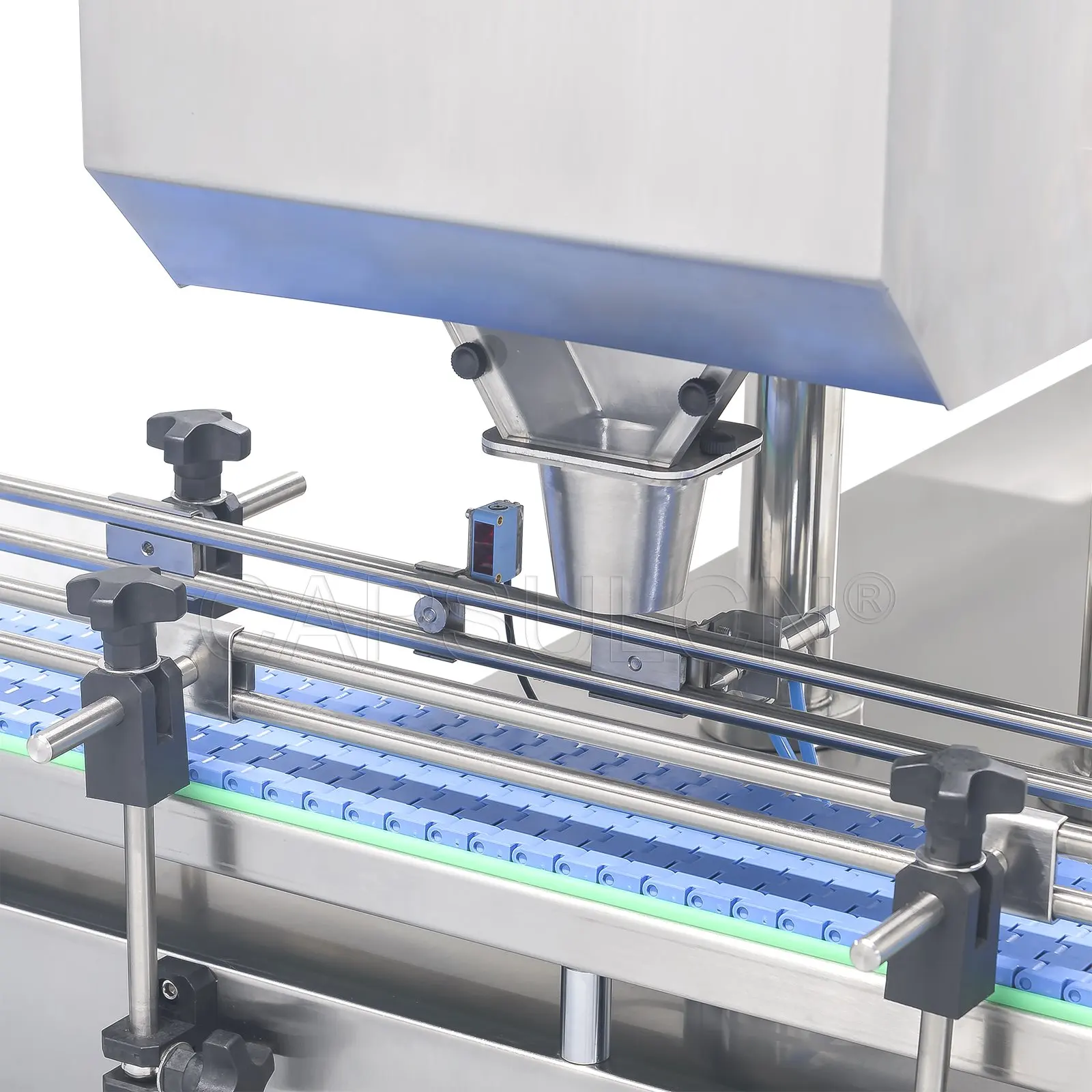

Counting & filling unit
It consists of filling pipes, counting sensor, hopper, etc.

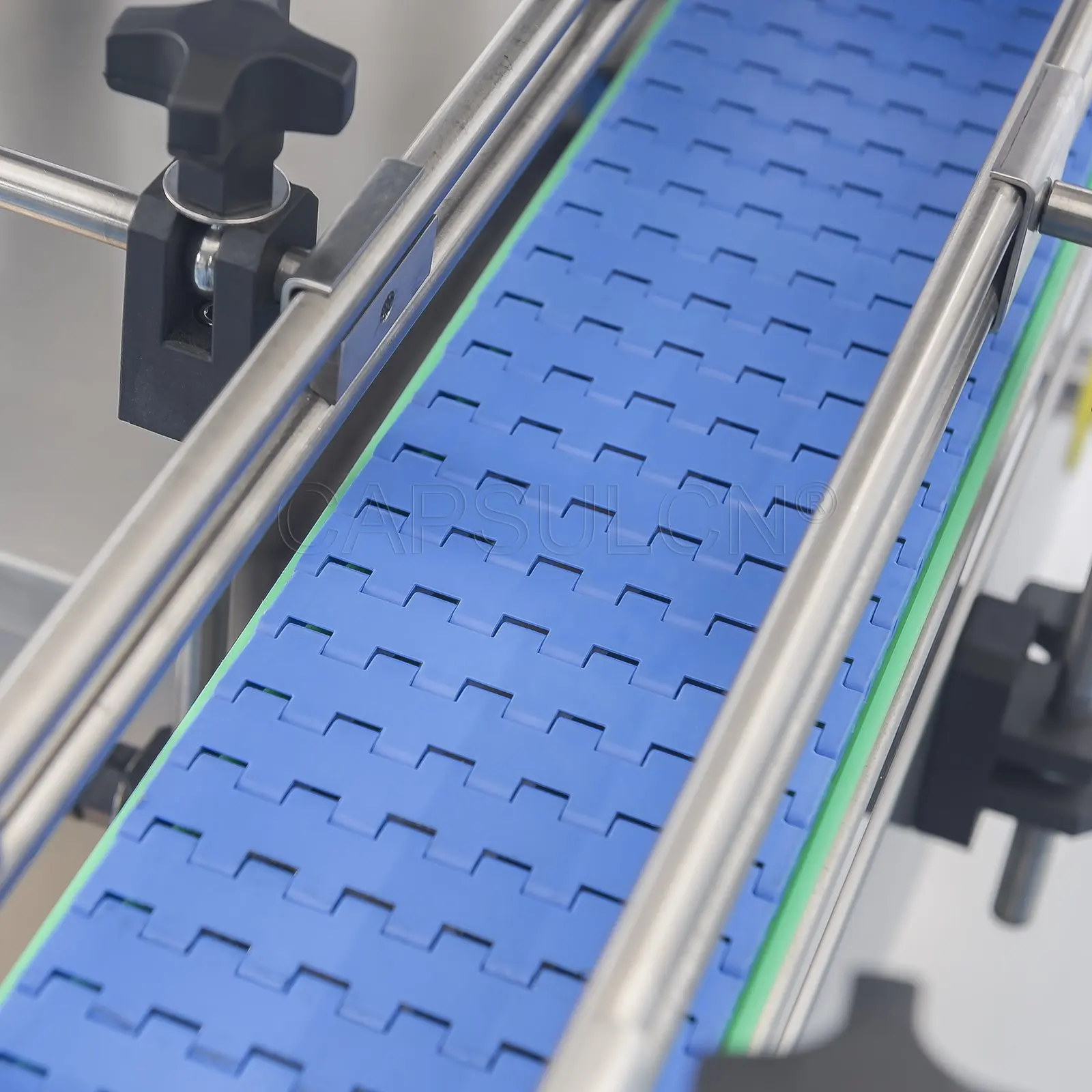

Bottle-conveying unit
composed of the drive system, the conveyer belt, the bottle-pause cylinder, bottle-intercepting cylinder, bottle-illuminating sensor, etc.

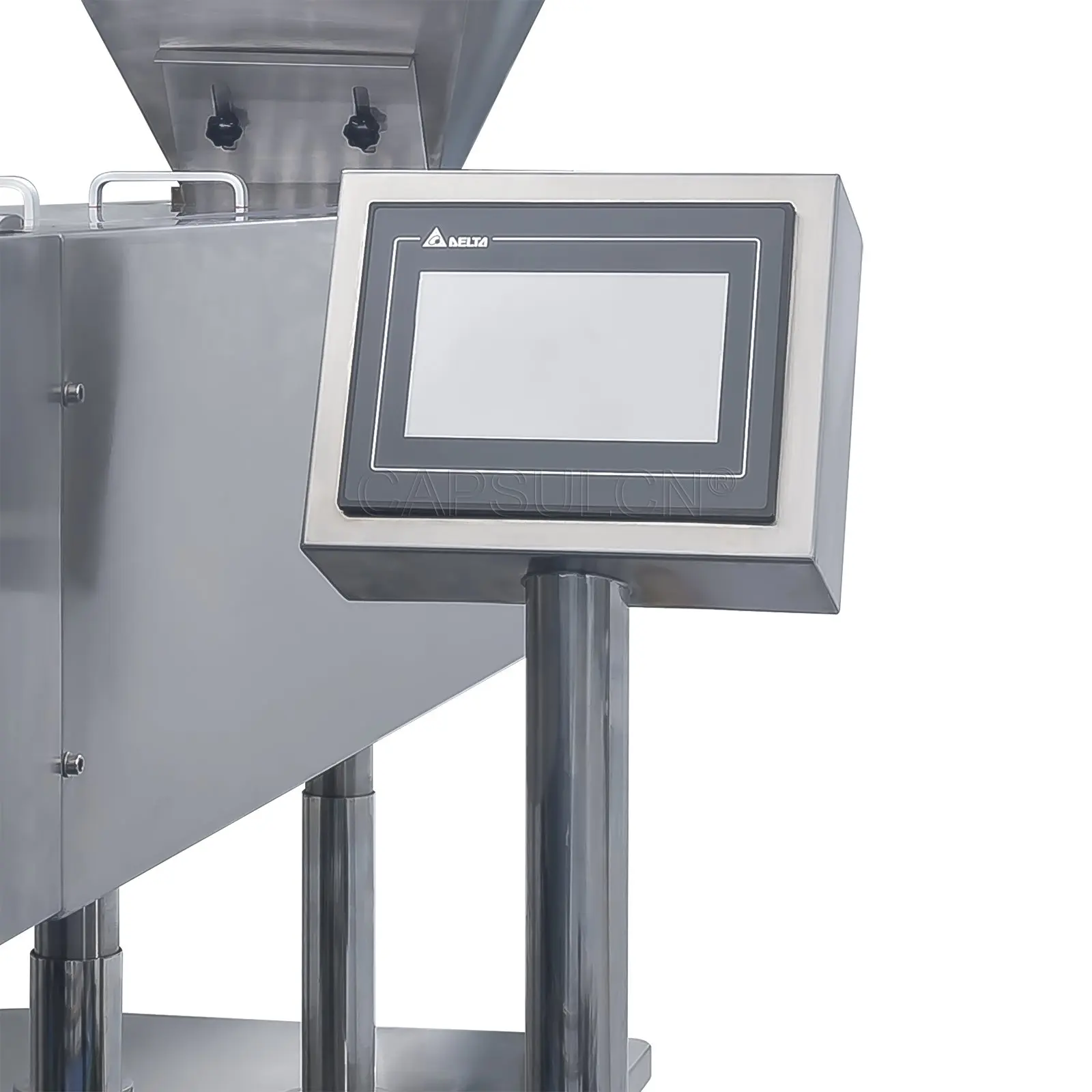

Electrical control system
(Control panel)This part includes HMI, PLC and the power amplifier.
Machine frame
It consists of the electrical cabinet and supporting legs.
The Principle of Working
The product uses the principle of photoelectric induction to count, divide bottles and transport the medicine particles, and all the operating data can be monitored and set in real time. The product is 8 channel machine, that is to say, there are 8 vibration "V" groove on the table vibration plate, and it can work at the same time, and the particles of the hopper can be counted one by one automatically by using the vibration effect.
Product Paramenters
Model | JF-8 |
Applicable bottle shape | round, square plastic bottle |
Filling material | 0~5#capsule、soft capsule、Φ5.5～12compressed tablet、special-shaped tablet sugarcoated tablet，Φ3～12pill |
Production capacity | 10-30 bottles per minute(It depends on the bottle size、filling quantity and the tablet size) |
The setting range of bottling volume | 1-9999 |
Power supply | AC220V 50Hz 0.6kw |
Overall dimension | 1360*1650*1650mm |
Weight | 300kg |
Recommend Products
Product packaging
Company Profile
FAQ
Q: Where is your factory? How can I visit your factory?
A: Our factory is located In Rui'an Zhejiang province. We are warmly welcome you visit our Factory if you have a travel plan.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer
picture for you. If chance, we can take video online and show u.
Q: How can I trust you for the first time business?
A: Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance
service. it will protect your money during the whole stage of the transaction.
Q: How about the after service and guarantee period?
A: We make the guarantee time 12 months from the machine's arrival in buyer's facility and we have a professional team with an
experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
Q: How do we contact you?
A: Please leave a message and click "send" to send us an inquiry.
Please find the contact information our this page, so you can contact us through Email, WeChat, Skype, WhatsApp, QQ, Facebook, phone and etc.
