Высококачественный Контейнер T50 для пропана сжиженного нефтяного газа ISO 20 футов
- Категория: Tank Containers >>>
- Поставщик: Henan,Lishixin,Logistics,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.20 $* | 0.45 $* |
| Aug-16-2025 | 0.77 $* | 0.3 $* |
| Jul-16-2025 | 0.54 $* | 0.83 $* |
| Jun-16-2025 | 0.2 $* | 0.49 $* |
| May-16-2025 | 0.70 $* | 0.19 $* |
| Apr-16-2025 | 0.79 $* | 0.38 $* |
| Mar-16-2025 | 0.58 $* | 0.49 $* |
| Feb-16-2025 | 0.35 $* | 0.81 $* |
| Jan-16-2025 | 0.57 $* | 0.28 $* |
Характеристики

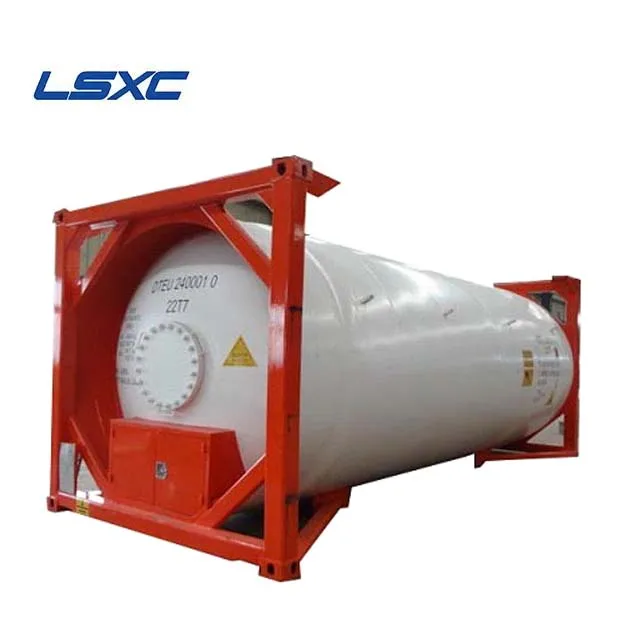

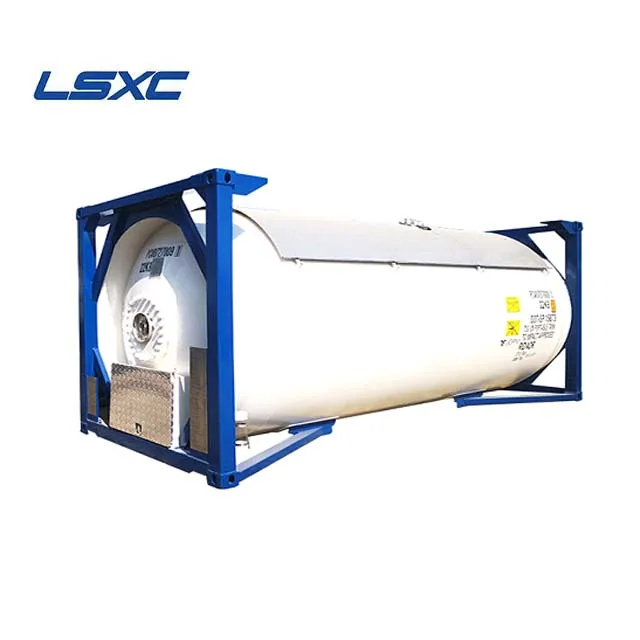

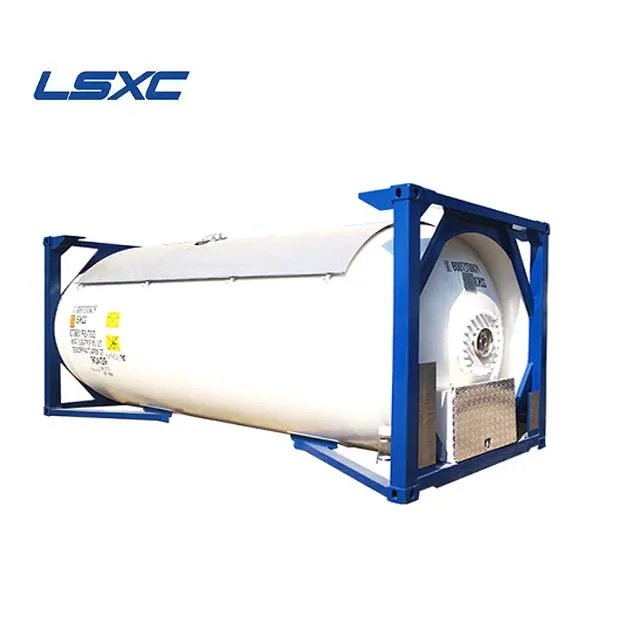

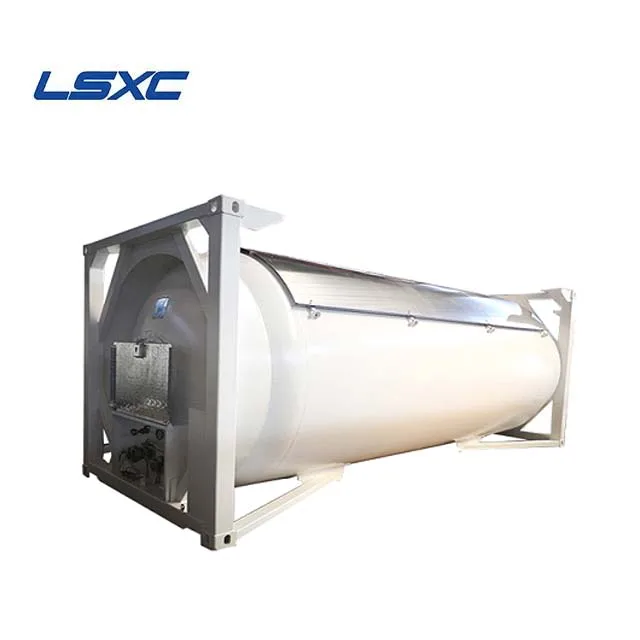

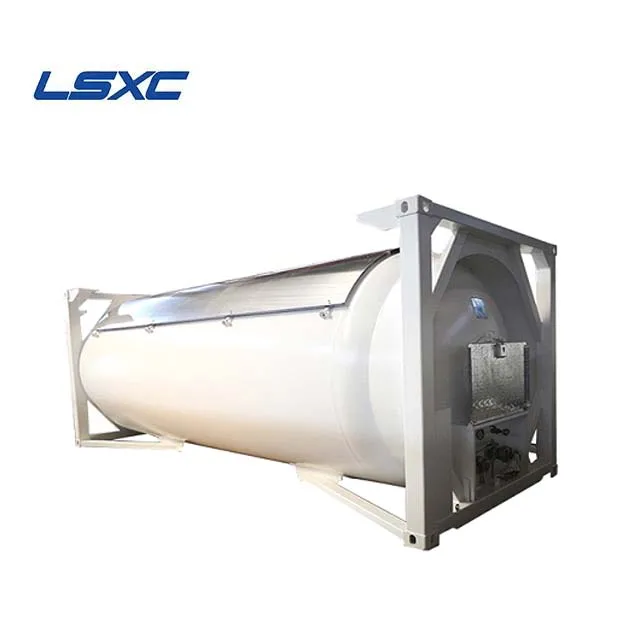

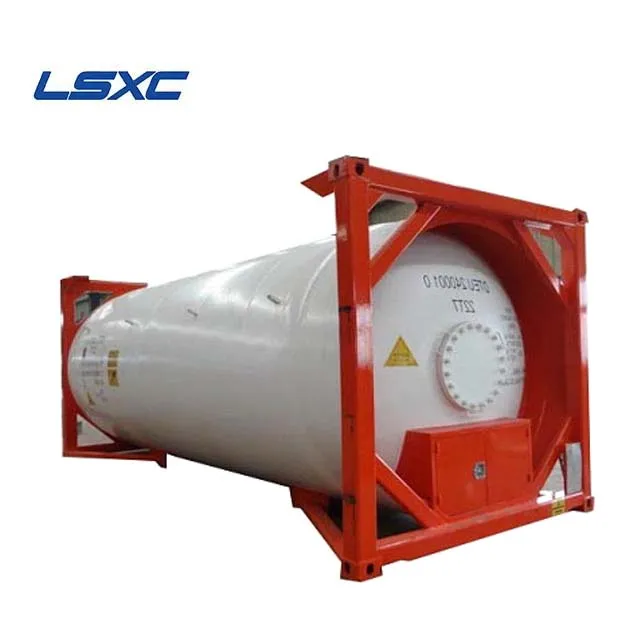

High Quality T50 Propane LPG ISO 20ft 40ft Tank Container
Product Description
| Description and Function Target | |||
| Items | Unit | Parameter | |
| Design code and regulations | ASME BPVC.VIII. 1-2015Ed+CASE2260-1,T50 un portable tank (IMDG, RID/ADR) TIR,UIC,CSC,TC,ISO 1496-3,USDOT,FRA(by SP). | ||
| ASME Certification mark stamping | Yes | ||
| Lloyd’s Register of Shipping Certification | Yes | ||
| MAW.P | 1.8/-0.1 MPa at 55℃ | ||
| Contents | LPG(UN1075) | ||
| Design specific gravity | 0.42 Kg/L | ||
| External dimension/Frame Dimension(LxWxH) | Meter | 6.058*2.438*2.591 | |
| Total volume(nominal ±1%) | m3 | 24.65 | |
| Max. payload gross weight | kg | 34000 | |
| Allowance stacking mass | kg | 192000 | |
| Tare weight | kg | 7520 | |
| Design temperature | ℃ | -40 to +50 | |
| Hydrostatic test pressuse | 2.34 MPa AT 4-48℃ | ||
| Max. design minus tempretures | -40℃ | ||
| Pressure relief valves' setting | 1.80 MPa | ||
| Sunshield | Aluminium | ||
| Corrosion allow ance | 1mm | ||
| Nominal thickness of shell | 15mm | ||
| Minimum thickness of the head (A / F) | 13.43mm | ||
| Heat treatment | Postweld heat treatment | ||
| Joint efficiency (SHELUHEAD) | 1.0/1.0 | ||
| RT(SHELUHEAD) | 100%/100% | ||
| MT | All the nozzle welds and more than 6mm angle welds attached to vessel | ||
| Leak test | 0.7MPa | ||
| Cylinder/Head | SA-612M Normalized | ||
| Flanges/weld-in forgings | SA-350M LF2 Cl.1 N | ||
| Impact test required of cylinder/head by ASME VIII DIV1 | Not required except forging-per ucs-66 | ||
| Gasket | PTFE | ||
| Manway(pressure) stud/nut | SA-193 B7/SA-194 2H | ||
| Frame-plate/hollow sections | Q345D | ||
Detailed Images
Detailed images of our container: such as stand ladder, valve and inside of the tank.
The following is the factory production details of our products, from the details control, from the quality control.
