Прямые продажи с китайской фабрики высокочастотный гальванический электрогальванический выпрямитель 3000A15V гальванизированный источник

Описание и отзывы

Трекер стоимости

Характеристики

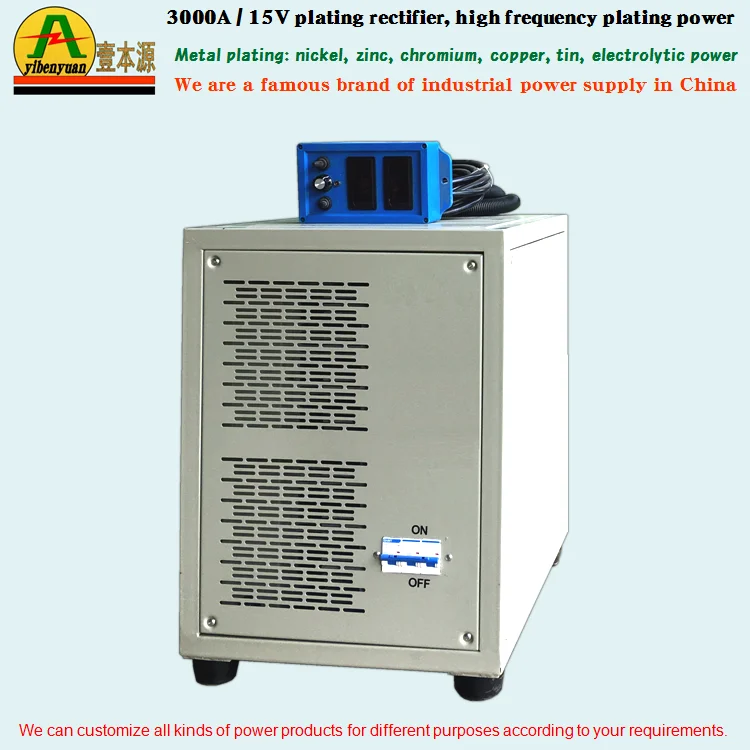

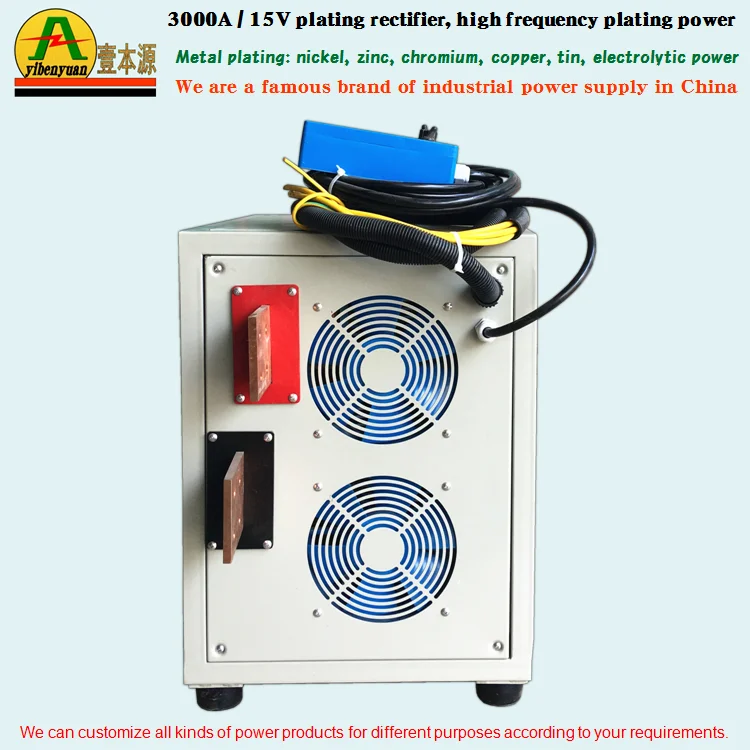

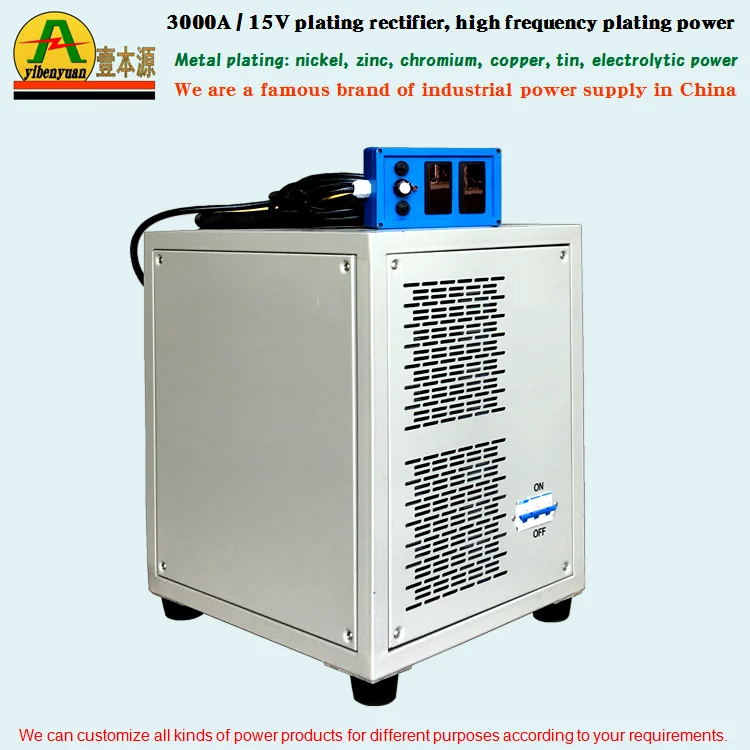

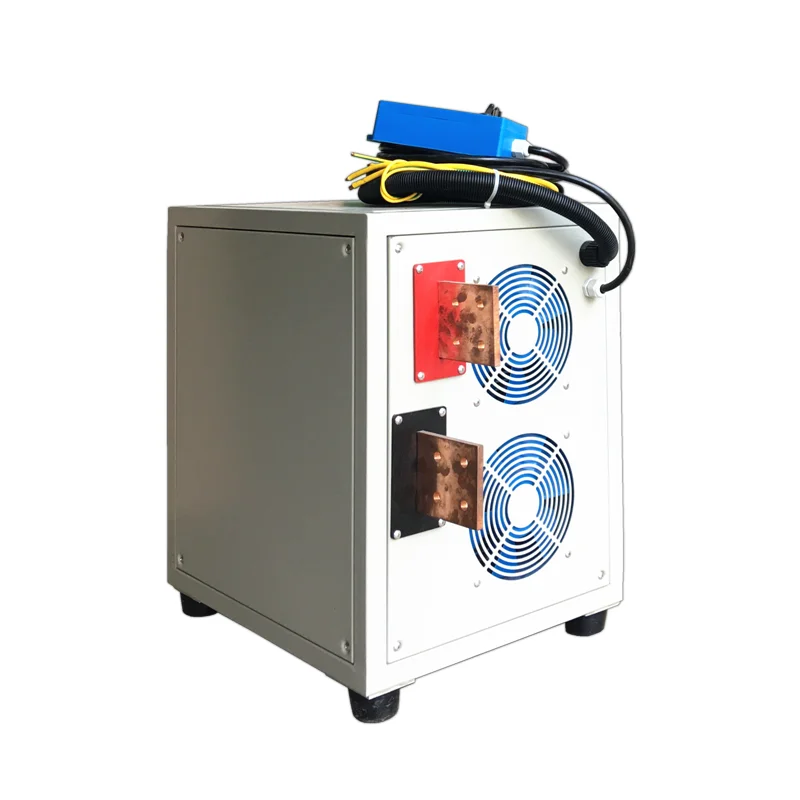

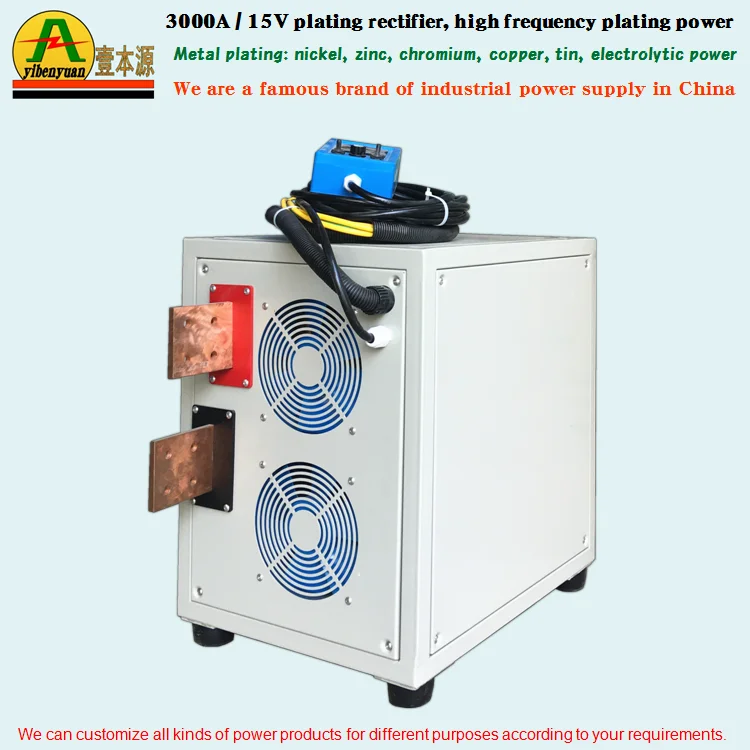

Chinese factory direct sales 3000A15V high frequency electroplating powerelectroplating rectifier Galvanized power supply





























3000A / 15V high power adjustable high frequency DC power supply, electroplating power supply, electrolytic power supply
Product suitable range:
The power supply can be applied to various metal surface electroplating, electrolytic degreasing, electrolytic polishing, electrolytic copper foil, sewage treatment, non-ferrous metal electrolysis, rare earth electrolytic smelting single crystal furnace heating
product manual:
* The product is beautiful in appearance, the structure is firm and sturdy, the surface of the shell is powder-coated, and it is strong and corrosion-resistant.
*The power supply adopts the world's advanced control system PWM technology and stable and reliable circuit topology to design the control circuit, and is equipped with German imported Infineon brand module (IGBT) control. The main transformer is wound with nano-crystalline magnetic core and pure copper wire, which has good heat dissipation, sufficient power, low power consumption, long-term durability and stable performance. The main components such as the rectifier bridge and rectifier are made of high-quality materials from around the world. The power supply has added advanced LC filtering design. It has the characteristics of small output ripple coefficient and good current distribution; a wide range of output voltage and current, and high stability of voltage and current.

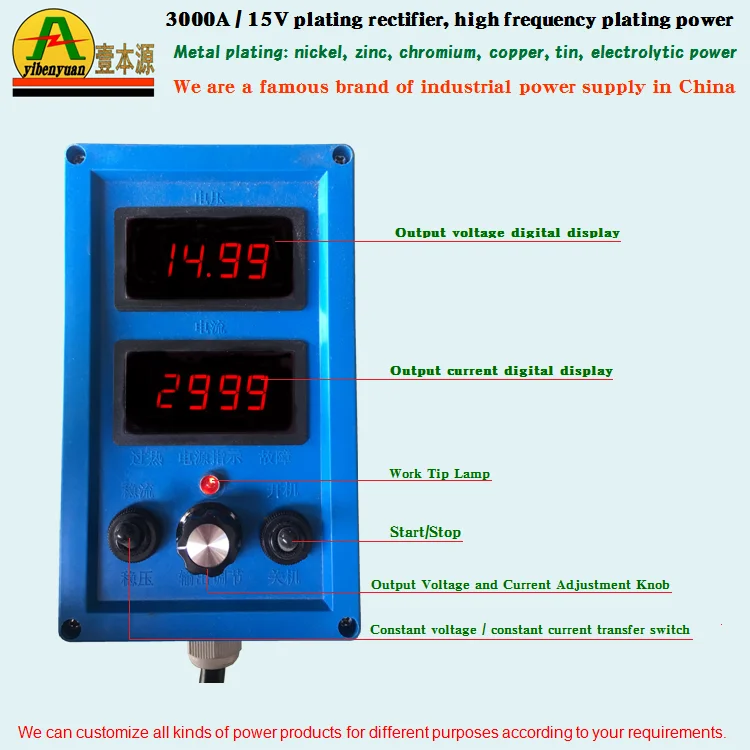

* Constant voltage / constant current conversion, and can continuously adjust the voltage and current from 0 to the maximum value. With phase failure, overheating, overvoltage, undervoltage, overcurrent, short circuit and other automatic fault protection functions.
* The internal circuit board adopts anti-salt spray acid proof anti-adhesive and an independent sealed box, which is effective in preventing dust, moisture, and preventing the short-circuit phenomenon caused by the entry of small insects. .Power lines, control line contacts, and trigger signal line contacts are sealed with silicone to prevent leakage, moisture, and corrosion; all circuit boards are treated with secondary immersion paint after assembly and commissioning, making the product suitable for damp , Acid corrosion plating and electrolytic environment.
 * The product uses generous materials, sufficient power, and a large design margin for electronic components and important components, which can ensure that the product can maintain full load and work continuously for a long time.
