Высокотемпературная электрическая лабораторная Стоматологическая вакуумная

Высокотемпературная электрическая лабораторная Стоматологическая вакуумная

Категория: Lab Supplies >>>
Поставщик: Henan,Sante,Furnace,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.68 $*	0.1 $*
Aug-16-2025	0.66 $*	0.87 $*
Jul-16-2025	0.94 $*	0.5 $*
Jun-16-2025	0.74 $*	0.53 $*
May-16-2025	0.10 $*	0.54 $*
Apr-16-2025	0.50 $*	0.42 $*
Mar-16-2025	0.97 $*	0.14 $*
Feb-16-2025	0.16 $*	0.50 $*
Jan-16-2025	0.4 $*	0.0 $*

Характеристики

Product Description

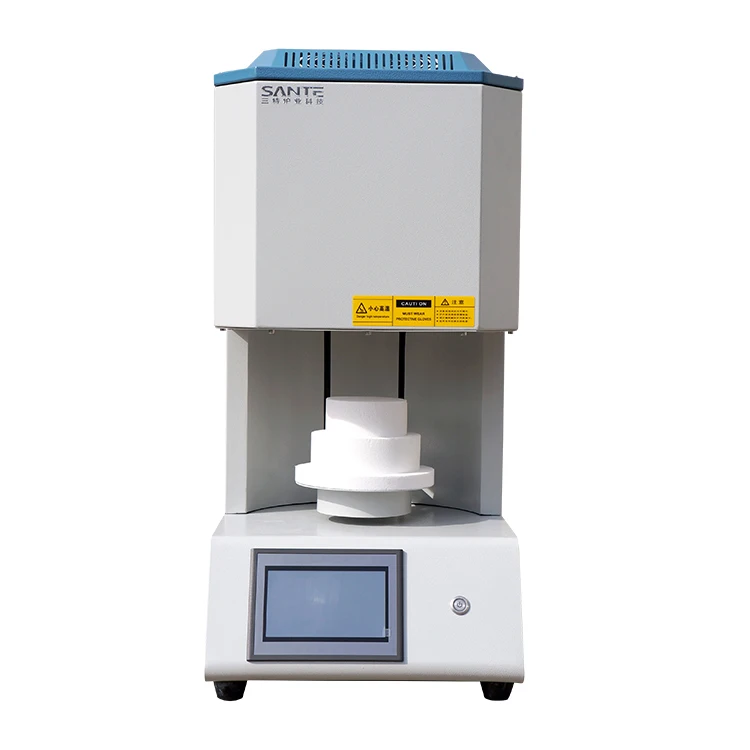

lab dental vacuum porcelain ceramic furnace

the lab dental porcelain furnace is mainly for the daily application development of the laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality alloy resistance wire is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.

High temperature electric porcelain ceramic furnace is mainly for the daily application development of the laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality alloy resistance wire is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.

Detail Pictures

Technical Parameters

Model	STY-120-12	STY-150-12	STY-200-12	STY-300-12
*Chamber Size mm(WDH)*	Dia. 120x120mm	Dia. 120x120mm	Dia. 120x120mm	Dia. 120x120mm
Power supply	220V/2KW	220V/3KW	220V/4KW	380V/6KW
Type	Benchtop Bottom-loading
Usage	General purpose furnace ideal for general laboratory uses—gravimetric analysis, sintering, quantitative analysis and heat treatment
Furnace structure	1. The furnace is consist of heating system, vacuum system 2. chamber is consist of insulation material and heating elements and atmosphere boxes 3. Temperature controller is consist of PID temp. controller, control elements and thermocouple 4. Integrated the furnace body and the temperature controller in one, the furnace is fixed on the temperature controller
Max. temperature	1200℃
Continuous Working temperature	1100℃
Heating Rate	≤15℃/min (suggest 10℃/min for longer life using of furnace)
Heating Element	With the features of small volume, low energy consumption and light weight, the mini furnace is convenient for every person hold one set in the laboratory. It use electric resistance wire as heating element, adopted carbon steel shell structure and intelligent temperature control system
Chamber material	1. Adopt high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties 2. High quality 1300 degree fiber alumina as refractory lining, pure white color 3. Ceramic fiber insulation for fast heat-up and reduced energy consumption—rise time to 1100°>C takes only 50 minutes 4. Embedded heating elements on the round chamber which give an ideal temperature uniformity
Temp. Uniformity	±5°C
Thermocouple	N type
Temperature Controller	1. Control system integrated in the furnace base, Defined application within the constraints of the operating instructions 2. Furnace temperature controller utilizes Intelligent PID 4 group 8 segments program 3. Feature single setpoint digital control, LED display of actual temperature VS set point 4. A high-precision digital microprocessor controller fitted with self-tuning and manual PID settings makes temperature and other parameters easy to control 5. Temperature controller Precision ±1℃
Electronic component	SCHNEIDER maker air switch, buttons, solid-state relay, A.C contactor etc.
Furnace Shell	1. High quality cold-rolled steel sheets CNC processing 2. Environmental electrostatic plastic-spraying on surface after deoiling, derusting, phosphating etc. nine processes 3. Energy efficient insulation keeps exterior safe to touch
Safety Precautions	1. Overheating & Broken thermocouple protection 2. Leakage circuit breaker 3. Automatic power off when furnace door opens (optional function) 4. Over-temperature protection and alarm allow for operation without attendant(s) 5. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature
Supply Scope	1. One furnace body 2. One set of temperature controller system 3. Three-meter power line 4. One thermocouple 5. One pair of crucible stongs 6. One pair of high temperature furnace gloves 7. An instruction book
Optional Accessories	1. Quartz Boat 2. paperless recorder 3. exhaust chimney
Certification	ISO9001 CE SGS
Warranty	One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products respectively

Company Information

SAFtherm Furnace.jpg

Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan, China Free Trade Zone. SANTE products cover 1000℃~1800℃ Muffle furnace, Tube furnace, Vacuum furnace, High Temperature Furnace, 2000℃ Ultra-High Temperature Furnace, Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace and so on

Our goal is to continuously meet the various demands for various kinds of high temperature heating treatment lab furnaces and to be the world first-class enterprise with providing excellent service and high-quality products for our cooperation partners!

.jpg .jpg .jpg

FAQ

FAQS

1: Are you a factory?

Yes. We are China leading laboratory and industrial heating treatment furnace manufacturer, which integrates design, manufacture and sales for nearly 20 years.

2: Do you have customization or OEM service?

We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.

3: What is the delivery time?

Normally within 15 working days after receiving the advanced payment or depends on order quantity.

4: How can you guarantee the production quality?

Firstly, we are ISO9001:2008 and CE certified factory, all the processes are strictly following the standard of the metallurgy process; secondly. We have QC department who perform strictly in each producing process including package.

5: How long is your furnace warranty period?

One year(expect thermocouple and heating element), lifetime support

6: What payment terms does SAFTHERM support?

T/T, L/C and so on.
