Автоматическая формовочная машина горизонтального типа для литья литейного
- Категория: Машины для литья металла >>>
- Поставщик: Qingdao,Hezhi,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 11900.75 $* | 12495.18 $* |
| Aug-16-2025 | 11800.17 $* | 12390.26 $* |
| Jul-16-2025 | 9900.29 $* | 10395.32 $* |
| Jun-16-2025 | 11600.2 $* | 12180.77 $* |
| May-16-2025 | 10100.25 $* | 10605.46 $* |
| Apr-16-2025 | 11400.79 $* | 11970.74 $* |
| Mar-16-2025 | 11300.62 $* | 11865.10 $* |
| Feb-16-2025 | 11200.87 $* | 11760.6 $* |
| Jan-16-2025 | 11100.92 $* | 11655.91 $* |
Характеристики

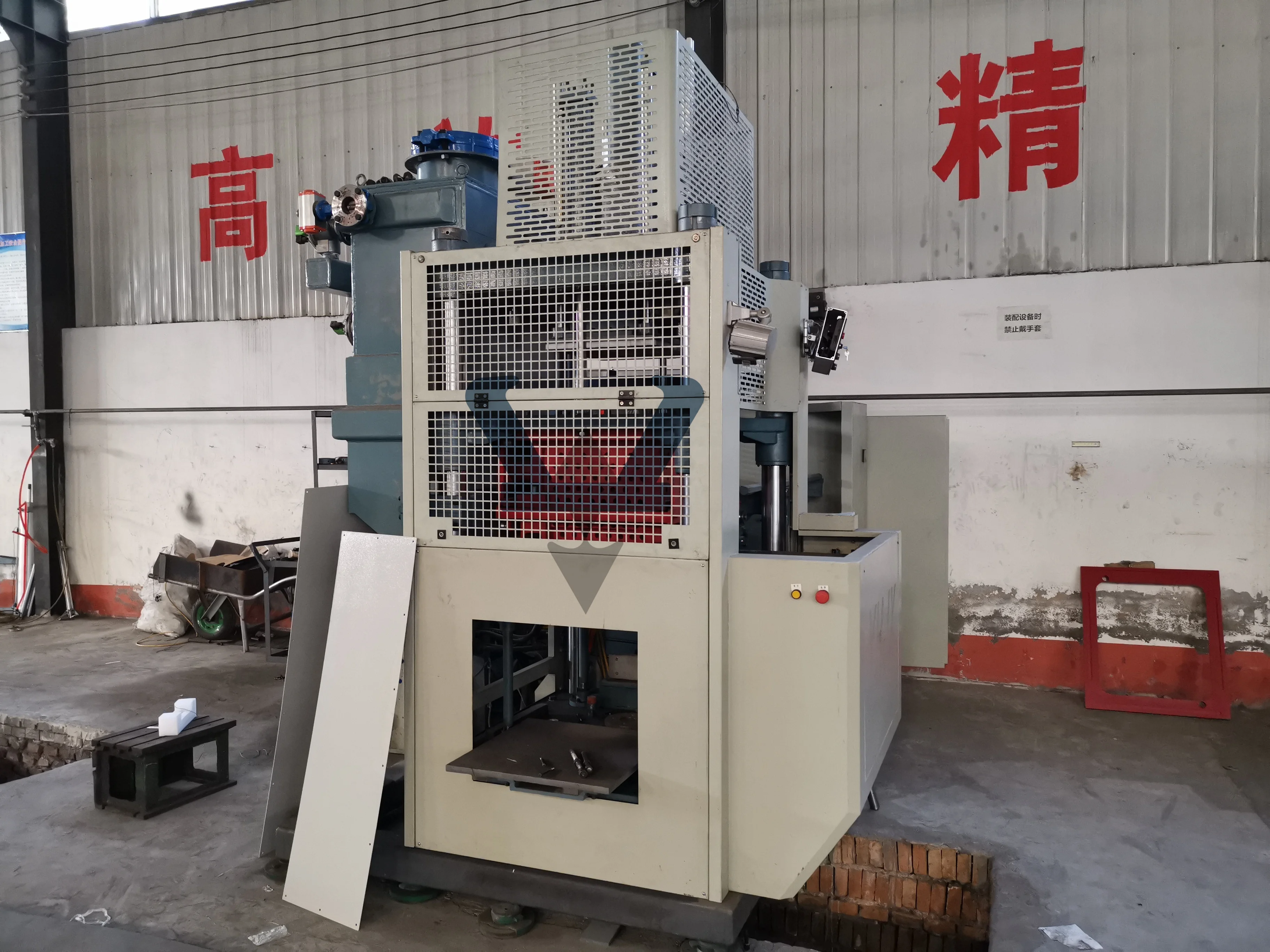

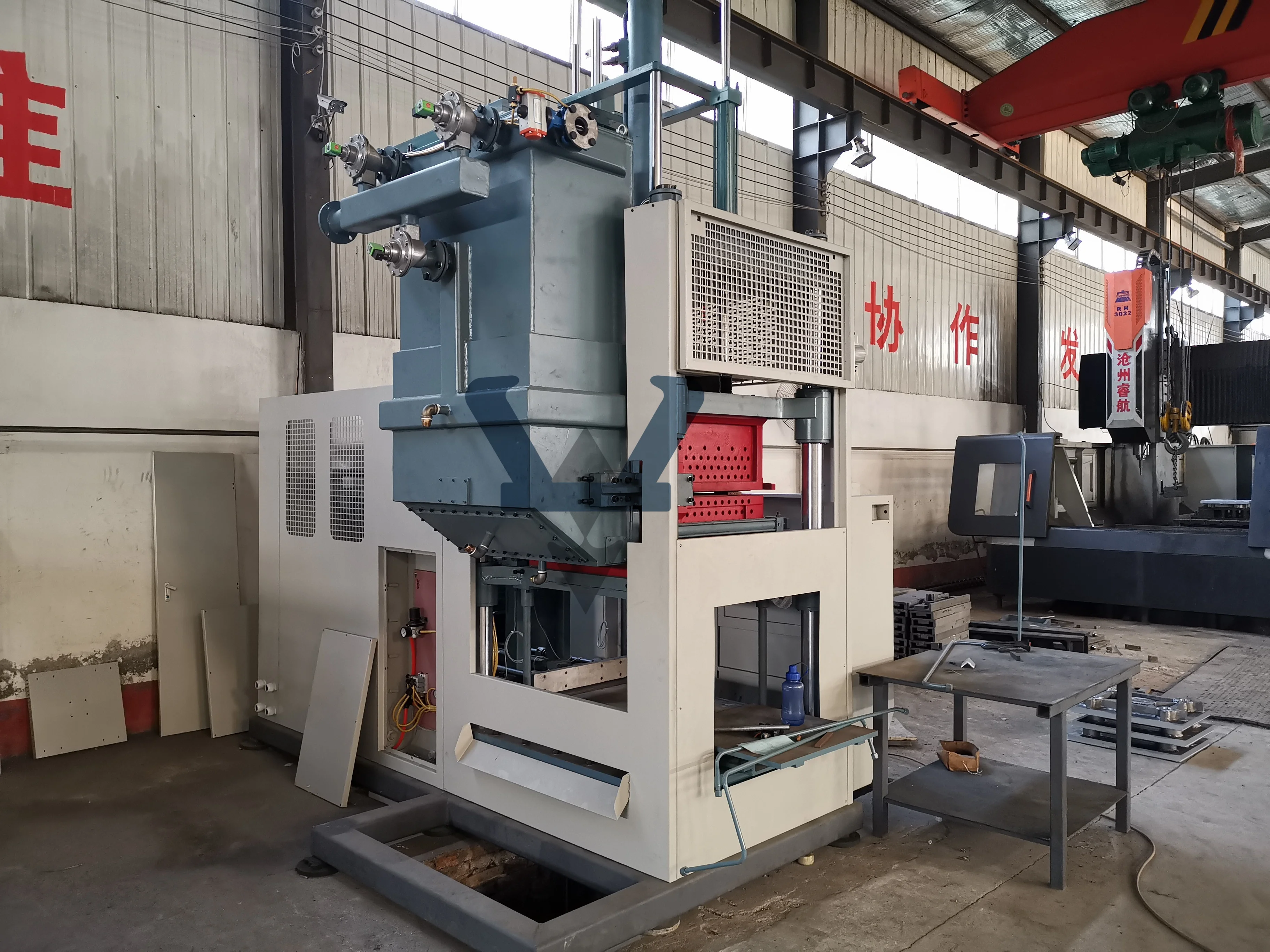

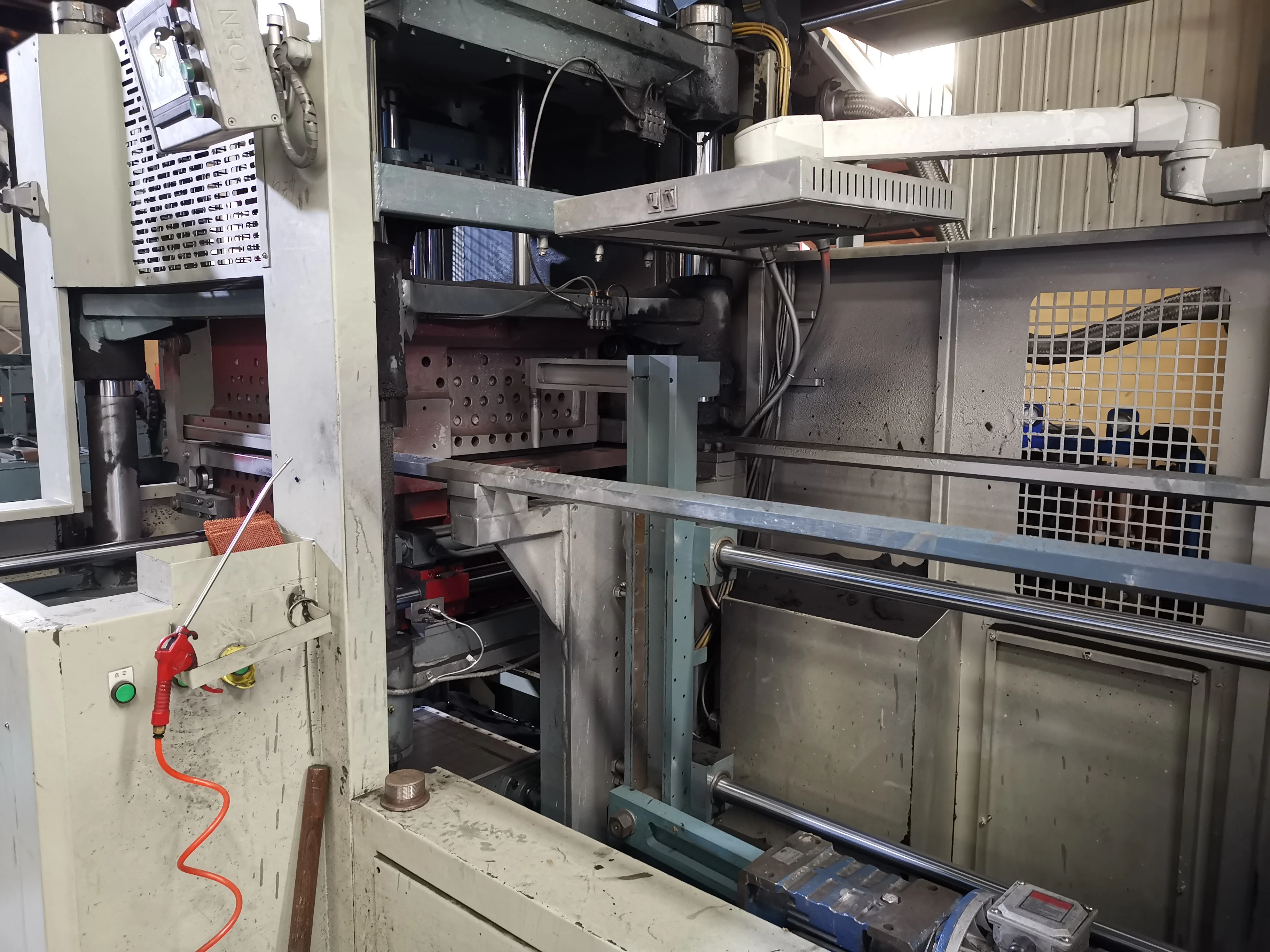

Flaskless molding machine don't need flask.it's an improved version of sand molding machine,Patterns are moved to the middle and two half iron molds will close.Green sands are injected into molds and hydraulic power of two half molds will compact the sand molds.

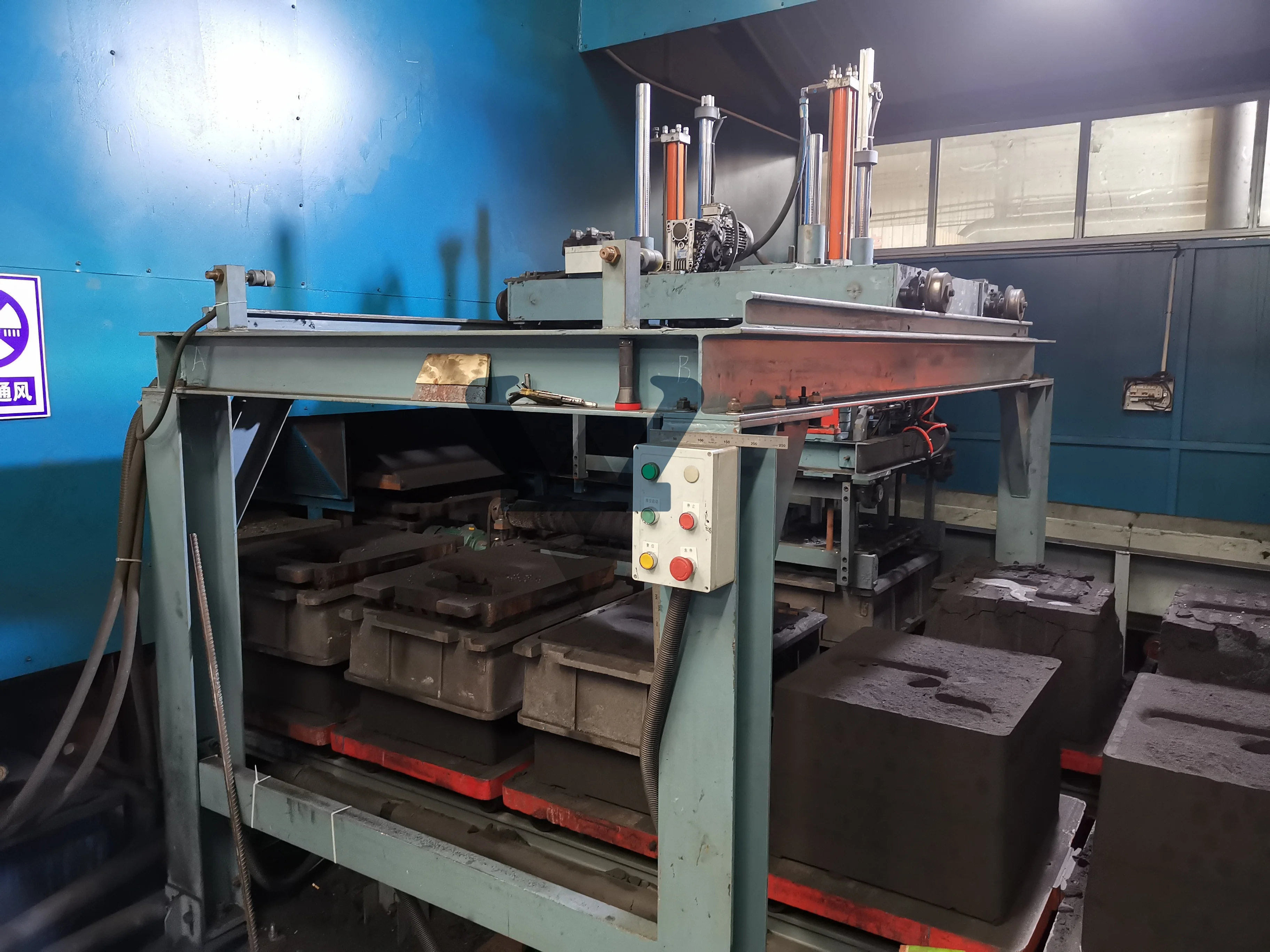

Finished green sand mold will be transferred by trolley automatically. Sometime flask frame is necessary for some casting.

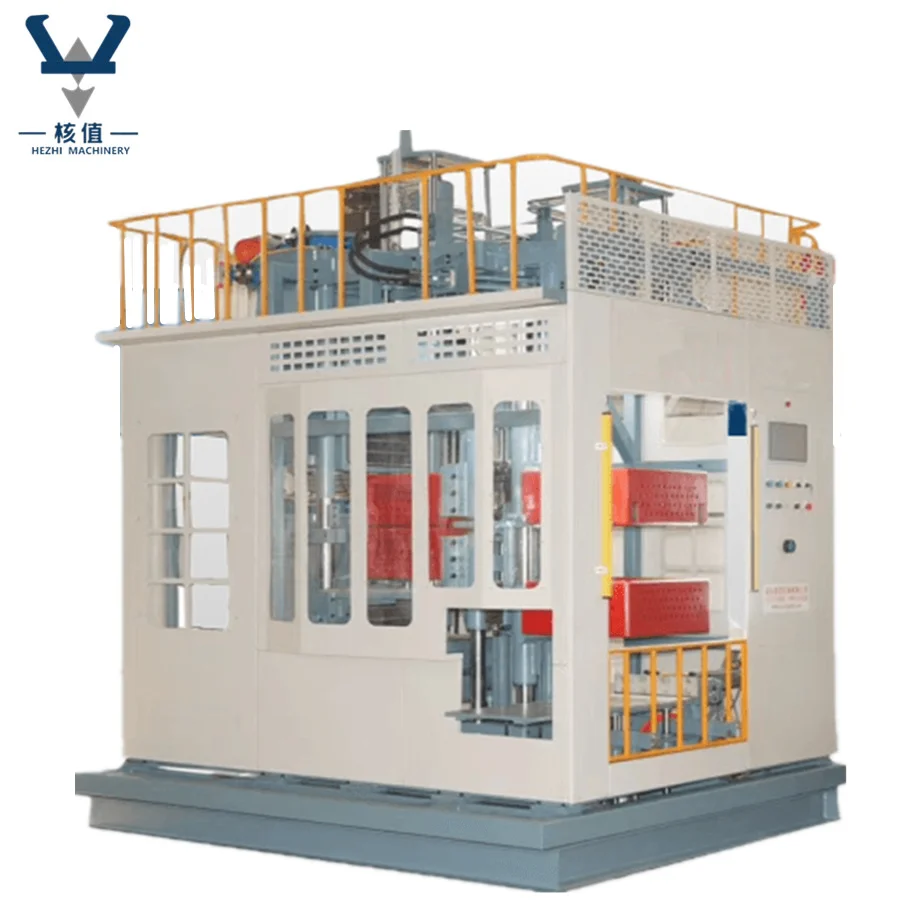

HZ61 series flaskless molding machine is for automatic mass production of small and medium clay sand castings. Especially for casting weight is below 50kg and without sand core or simple core. Such as machinery parts, auto and motorcycle parts, valves, bearings, cylinder head, flywheel housing and brake caliper, but also pipe fitting, shaft and cover, like T joint, elbow and clampetc .
More competitive for those products require inner sand core
More competitive for those products require inner sand core
Flaskless molding machine has the advantages of light equipment, small footprint, high safety performance, simple modeling, high precision, make low noise.and wide application range.
Item/Model | HZ613 | HZ615 | HZ616 | HZ617 |
LxW | 450x350mm | 600x500mm | 650x650mm | 700*600 |
Upper & Lower Boxes Height | 110-150mm | 110-220mm | 125-250mm | 125-250mm |
Capcity | 220 molds/h | 200molds/h | 180molds/h | 180molds/h |
Air consumption | 0.3 m3/mold | 0.45m3/mold | 0.65 m3/mold | 0.65 m3/mold |
Power | 22 kw | 38 kw | 42kw | 45KW |
Compressed air pressure | 0.5-0.65Mpa | 0.5-0.65Mpa | 0.5-0.65Mpa | 0.5-0.65Mpa |
We also design custom production line of green sand casting prodcution.
Automatic Sand Molding Machine Advantages
a. Sand shot up and down, instead of single shot in the back & sand shot in both sides & vertical single
a. Sand shot up and down, instead of single shot in the back & sand shot in both sides & vertical single
way shot
b. Double-station models, not double-box model
c. Accurate mold clamping, box closing accuracy <0.1mm
d. Large core space
e. No nozzle interference during mold clamping and unboxing to avoid sand dropping problems

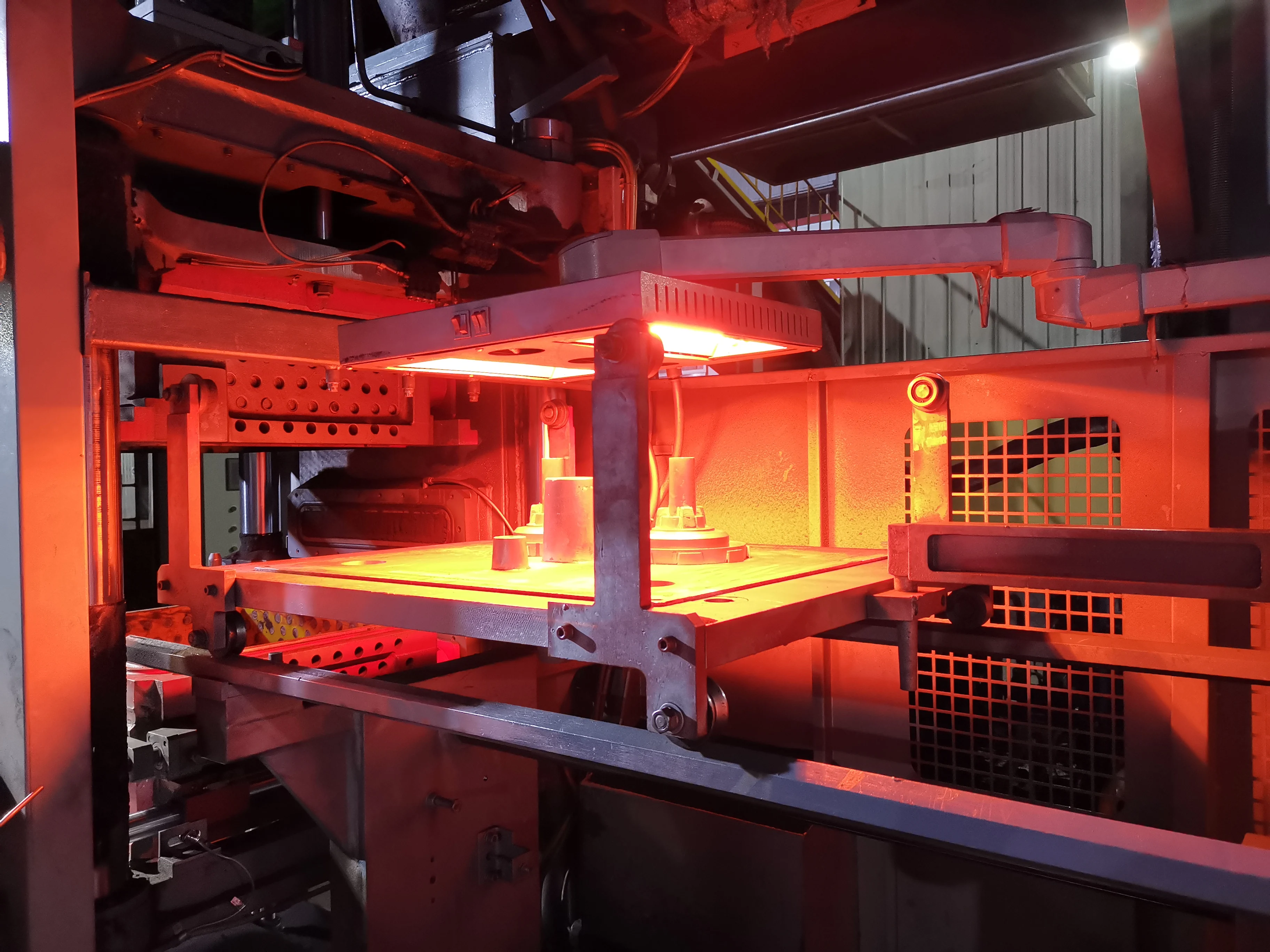

f. Automatic template heating
b. Double-station models, not double-box model
c. Accurate mold clamping, box closing accuracy <0.1mm
d. Large core space
e. No nozzle interference during mold clamping and unboxing to avoid sand dropping problems
f. Automatic template heating
g. Forming principle: air-flow sand, hydraulic compaction,
h. Max compaction specific pressure: 10kg / cm3
h. Max compaction specific pressure: 10kg / cm3
Qingdao Hezhi is a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
We owned 3600m2 work shop area for production with 2x10 cranes.
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
Q: How many days do you need to produce this machine?
A: It depends on the size of the machine. Usually 20-30days for shot blasting machine and sand casting machine.45days for production line equipments.
Q: How to control your quality ?
A: First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly.
For the smaller machine we will install the machine at our workshop to make sure it can work well.
For the bigger machine, we will install the machine for our customers until it can work well
Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.
Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.
More questions please contact with Anna, my phone No. is 0086 1995325 9235
