Автоматическая машина для изготовления черепицы из переработанного пвх ASA производственная линия китайский
- Категория: Plastic & Rubber Machinery >>>
- Поставщик: Jiangsu,Acemien,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 101150.69 $* | 106208.25 $* |
| Aug-16-2025 | 100300.80 $* | 105315.74 $* |
| Jul-16-2025 | 84150.68 $* | 88358.22 $* |
| Jun-16-2025 | 98600.70 $* | 103530.81 $* |
| May-16-2025 | 85850.21 $* | 90143.42 $* |
| Apr-16-2025 | 96900.73 $* | 101745.59 $* |
| Mar-16-2025 | 96050.52 $* | 100853.52 $* |
| Feb-16-2025 | 95200.39 $* | 99960.65 $* |
| Jan-16-2025 | 94350.57 $* | 99068.63 $* |
Характеристики
Product Description

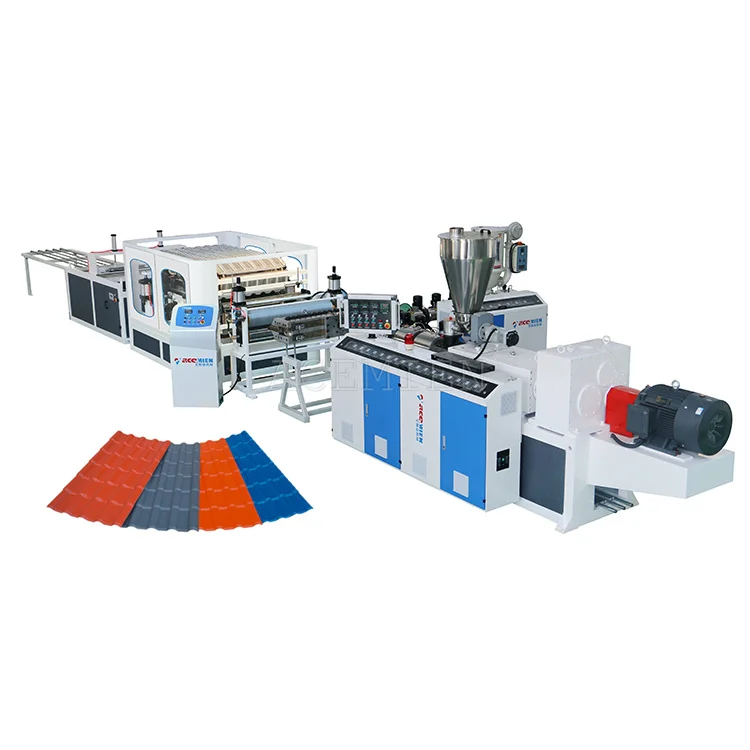

Co-extrusion Corrugated Roofing tile Making machine
Final product width: 1130mm
Final product thickness:1.5-3mm adjustable

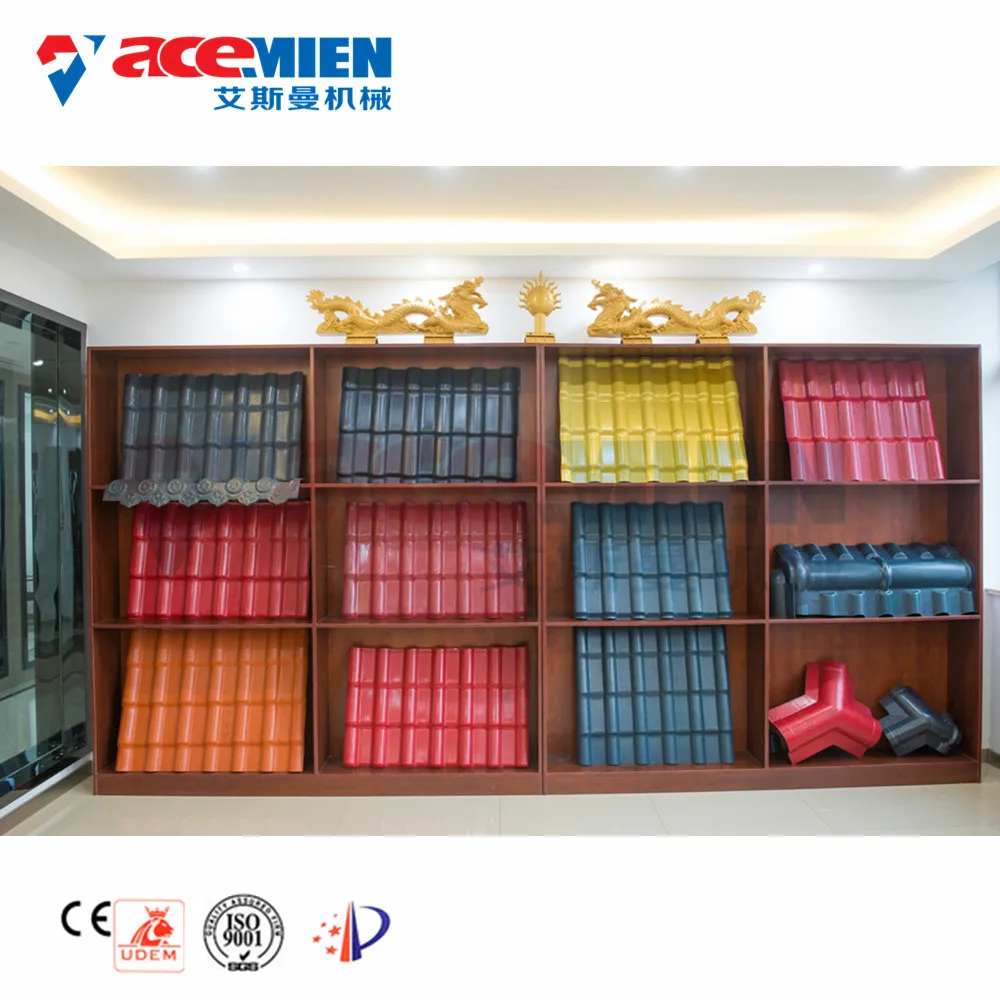

Final product features
1.Using life more than 20 years
2.Good sound and heat insulation
3.Fire resistance, anti-corrosion
4.Using recycled PVC ,environment-friendly
5.Excellent anti-load performance
6.Easy to install, packing and transport
2.Good sound and heat insulation
3.Fire resistance, anti-corrosion
4.Using recycled PVC ,environment-friendly
5.Excellent anti-load performance
6.Easy to install, packing and transport
Final product application
Used for Roofing.Such as factories, warehouses, sheds, farmers market, hoardings, walls,
temporary shops, sheds and other very suitable insulation.
temporary shops, sheds and other very suitable insulation.
Details Images

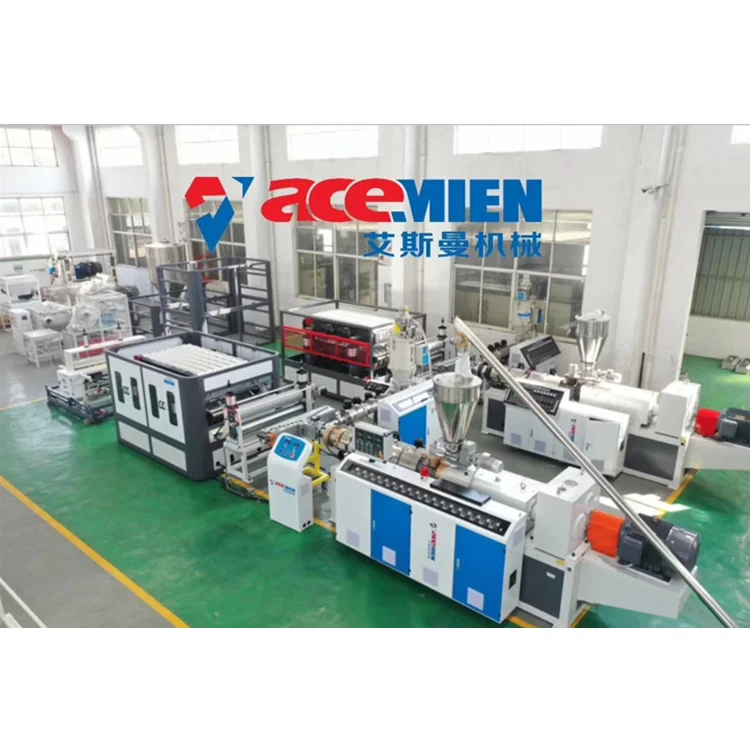

Main Machine | ||||||
No. | Machine name | Qty. | Remark | |||
1 | Screw loader | 1set | For SJZ 80/156 extruder | |||
2 | SJZ 80/156 conical twin-screw extruder | 1set | For bottom layer(PVC) | |||
3 | Vacuum loader | 1set | For SJ50 extruder | |||
4 | Drying hopper | 1set | For SJ50 extruder | |||
5 | SJ50/30 single screw extruder | 1set | For surface layer(ASA) | |||
6 | Mould unit | 1set | Die width: 920mm / 1130mm | |||
7 | Distributor | 1set | ||||

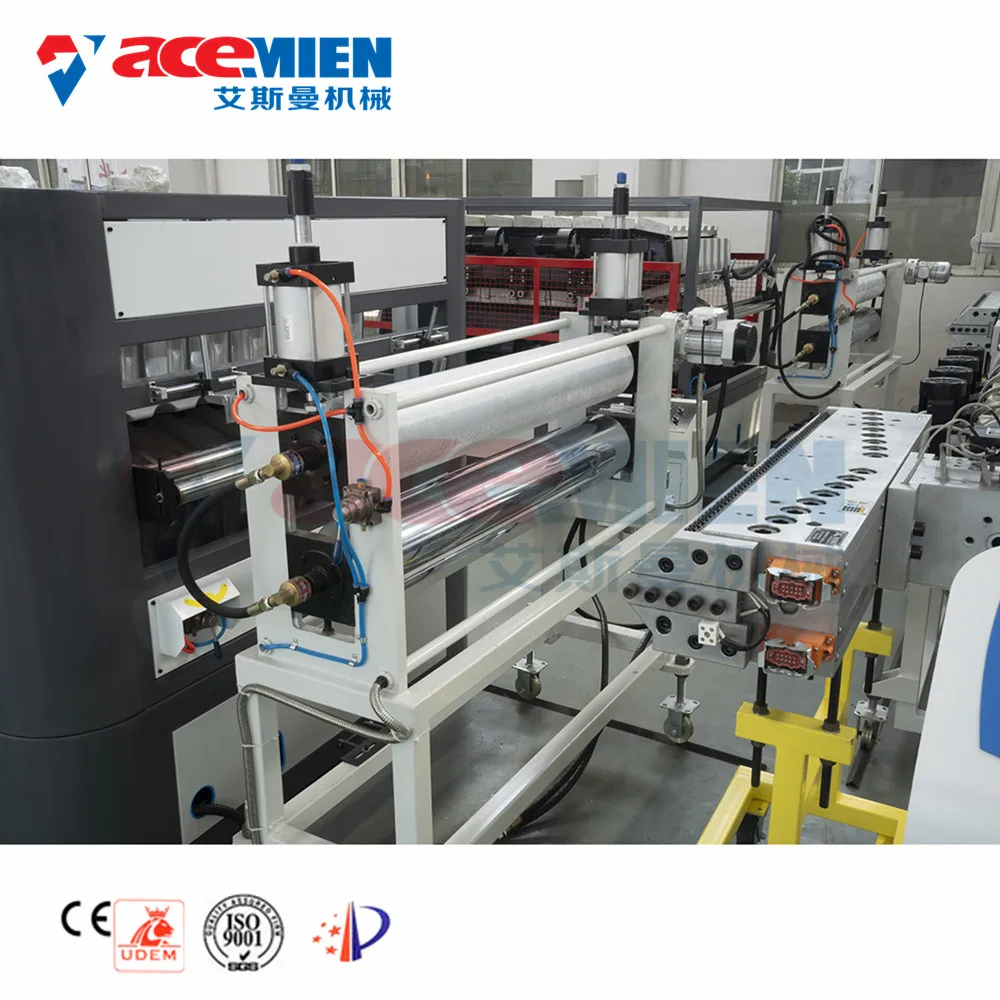

8 | Embossing roller | 1set | Final product: 840mm / 1050mm | |||
9 | Forming machine | 1set | ||||
10 | Cutter machine | 1set | ||||
11 | Stacker | 1set | ||||

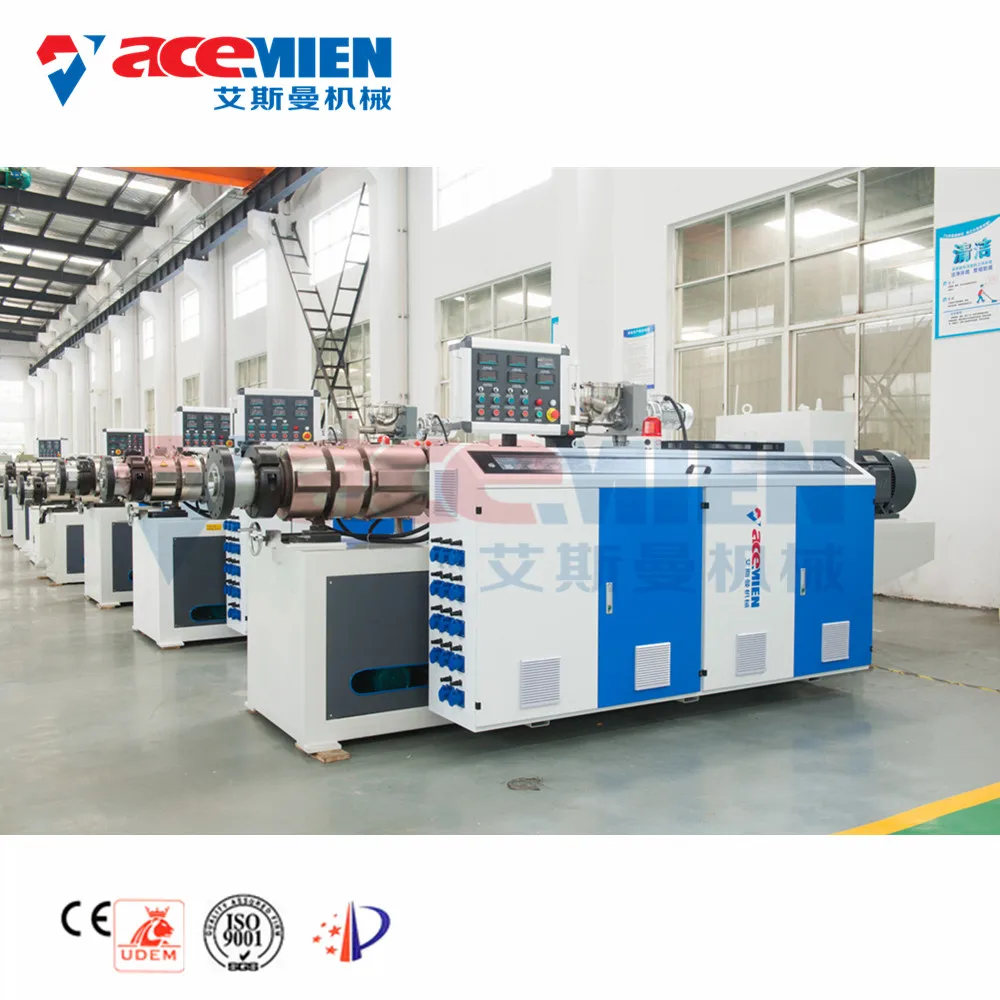

SJZ80/156 Conical twin screw extruder
Technical parameters:
Capacity:280-350kg/h
Main motor :55kw Siemens Brand.
Inverter:ABB
Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
Vacuum pump : Double station.
Main motor :55kw Siemens Brand.
Inverter:ABB
Screw barrel: 38CrMoAl, hardness Hv950 or more , high-efficiency and long service life.
Vacuum pump : Double station.
Vacuum loader & dry hopper
Technical parameters:
[Vacuum loader]
Capacity: 200kg/hMotor power: 1.1KW
Hopper : stainless steel
[Dry hopper]
Load capacity: 50kg/h
Power of air-blower: 0.12KW
Heating power: 4.8KW
SJ50/30 single screw extruder
Technical parameter:
Capacity:50kg/h
Main motor :15kwInverter:ABB
L/D:30:1
L/D:30:1
Outer size:2800mm×1350mm×1400mm
Weight:1500kg
Extrusion mould & distributor
Technical parameter:
[Extrusion mould]
Mould type: clothes rackMaterial of die-head: 5CrNiMo steel
Effective width of mould lip: 1300mm
Adjusting arrange of mould thickness: 1-4mm
Final width of product: 920 / 1130mm
Final thickness of product: 1.5-3mm
Heating power of each zone: 5KWx7sets
[Distributer]
Distributor :PVC+ASA
Technical paramter

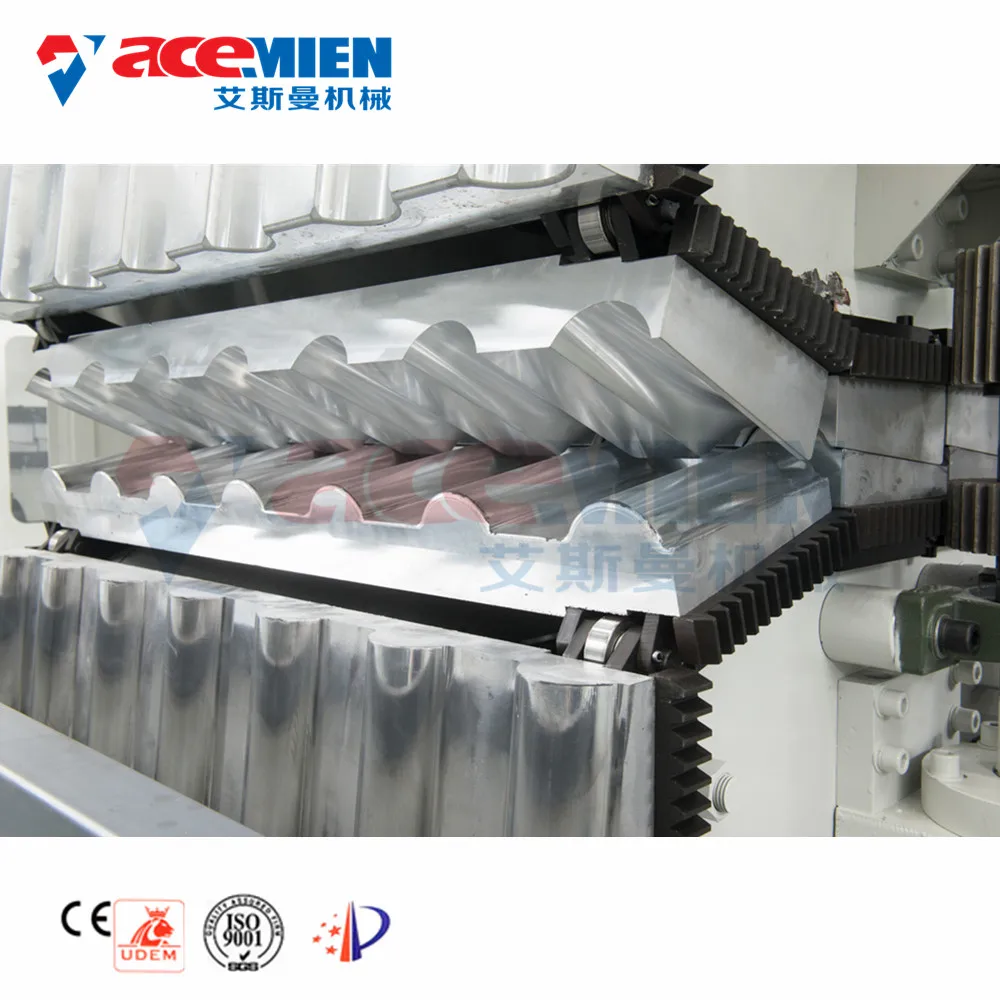

[Calibration mould]
Quality of blade: 2pcsLength:1000mm
Width:1250mm
Rise and drop method of mould: pneumatic
Width:1250mm
Rise and drop method of mould: pneumatic
[Haul-off unit]
Driving method: ABB inverter control, Haul off roller material: Neoprene CR
Rise and drop method of mould: pneumatic
Fine adjustment method: manual
Rise and drop method of mould: pneumatic
Fine adjustment method: manual
Technical parameter
Cutting method: SawCutting motor power: 2.2KW
Lateral saw-input :0.37kw
Cutting length: can be adjustment
Material of cutter:Cr12
Cutter hardness: HRC55-58
Auxiliary Machine | ||||||
12 | Crusher | 1 | Power: 11kw,22kw,30kw | |||
13 | Pulverizer | 1 | Power: 45kw,55kw,75kw | |||
14 | SRL-Z300/600 Mixer unit | 1 | Capacity : 450-550kg/h | |||
15 | Screw loader for SRL-Z 300/600 Mixer | 1 | ||||
Crusher
Technical parameter
Capacity:200—300kg/h
Power: 11kw
Moving blade: 12pcs
Stationary blade: 2pcs
Stationary blade: 2pcs
Sieve size :10mm
Technical parameter
Capacity:200-250kg/hPower: 45kw
Rotor number:3
Spindle rotate speed:3400-3700rpm
Technical parameter
Capacity:450kg/h
Hot mixing power: 55kw
Speed controller:ABB inverter
Cold mixing power:7.5kw
Cooling method: Interlayer water, cooling water ring
Recommend Products
Company Profile
Certifications
Product packaging
Packaging - 1 | ||
Size | 800mm(L) * 600mm (W) * 45mm (D) | |
Weight | 0.8 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too higher,we will use moistureproof film for packing or pack it according to customers special request. | |
Packaging - 2 | ||
Size | 25m (L) * 3m (W) * 3m (D) | |
Weight | 10 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too higher,we will use moistureproof film for packing or pack it according to customers special request. | |
Service
DISCUSSING AND DESIGN
All senior engineers should discuss and design the better quotations for customers.Until the customer is satisfied.
TESTING IN ACEMIEN
ACEMIEN must test all machines to ensure proper operation of equipment before delivery.
INSTALLATION IN CUSTOMER
ACEMIEN will send 1-2 senior engineers to customer factory to installation machines and teach operation technique.
FAQ
1.HOW MANY DAYS TO MAKE MACHINE?
Normally,it is about 60 days to finish all machine when customer order.
2.What is the payment terms?
L/C at sight or T/T.
3.What is machine packing?
Standard packing
4.What is the guarantee?
12 months OR MORE
5.How to install machine when machine arrive?
We will arrange our engineer to customer factory for installation and teach customer`s worker how to operate the machine.
Normally,it is about 60 days to finish all machine when customer order.
2.What is the payment terms?
L/C at sight or T/T.
3.What is machine packing?
Standard packing
4.What is the guarantee?
12 months OR MORE
5.How to install machine when machine arrive?
We will arrange our engineer to customer factory for installation and teach customer`s worker how to operate the machine.
6.MOQ
All machines quantity is 1 set
