DUROCK линейный переключатель механические переключатели с 62g 67g 78g позолоченный пружинный Smokey корпус черный стержень Linears
- Категория: Keyboards >>>
- Поставщик: Shenzhen,Durock,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.88 $* | 0.83 $* |
| Aug-15-2025 | 0.77 $* | 0.52 $* |
| Jul-15-2025 | 0.18 $* | 0.23 $* |
| Jun-15-2025 | 0.8 $* | 0.77 $* |
| May-15-2025 | 0.57 $* | 0.86 $* |
| Apr-15-2025 | 0.17 $* | 0.25 $* |
| Mar-15-2025 | 0.9 $* | 0.79 $* |
| Feb-15-2025 | 0.78 $* | 0.44 $* |
| Jan-15-2025 | 0.17 $* | 0.32 $* |
Характеристики
Product Description

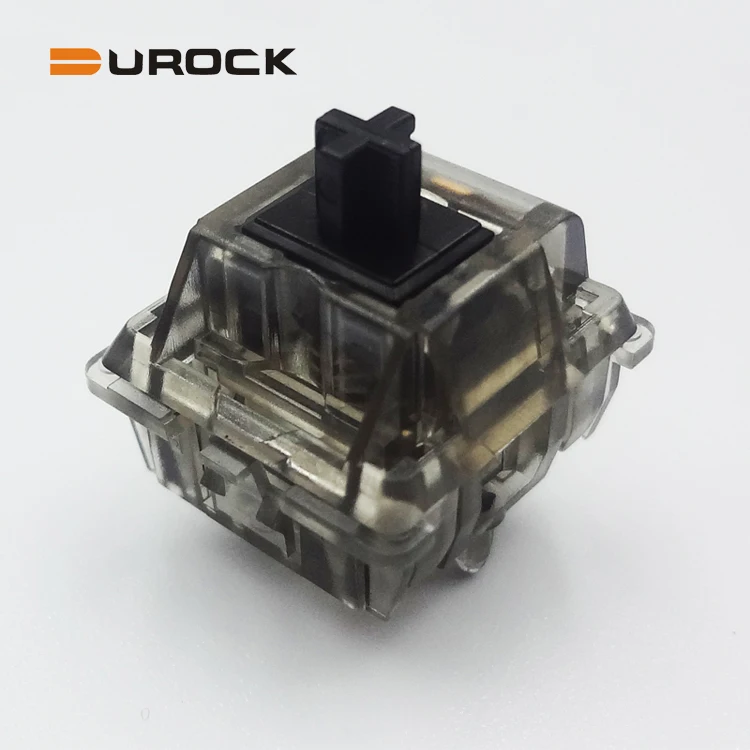

DUROCK Linear Switch Mechanical key switches with 62g 67g 78g Gold Plated Spring Smokey Housing Black Stem Linears Keyswitch
A Mechanical Keyboard Switch -- 62g / 78g PCB Mount Linear Switch, Plate Mount Switches
62g / 78g spring weight is rated at bottom out force, not actuation.
DUROCK OEM PCB Mount Linear Switch with much more Smooth performance.
These 5 pins switches are also able to be used in plate mounted keyboards with simply cut the 2 small plastic pins off.
DUROCK OEM PCB Mount Linear Switch with much more Smooth performance.
These 5 pins switches are also able to be used in plate mounted keyboards with simply cut the 2 small plastic pins off.
Specifications
1. Polycarbonate & Polymer Nylonhousing.
The top housing is Polycarbonate, the lower housing is Polymer Nylon.
We know exactly the materials are very important for the switch performances, sound and feelings.
Polycarbonate is with higher intensity and more transparency features to act as top housing.
Polycarbonate is with higher intensity and more transparency features to act as top housing.
Nylon is wear-resistant which is more suitable for switch lower housing.
2. OEM Special Design Stem with POM material.
3. Gold plated 62gf /67gf/ 78gf Spring
4. Style: Linear
5. LED styles: SMD and through-hole
6. Gold-plated cross-point
7. Simple Pre-lubed on producton lines
Rating | 12V DC 0.1A |
Insulation Resistance | 100MΩMin(250VDC) |
Contact Resistance | 100mΩ Max |
Dielectric Strength | 250VAC 50/60HZ for 1 min |
Operating Temperature Range | -25 ℃ to 85 ℃ |
Work Travel | 2.0±0.6mm |
Total Travel | 4.0±0.3mm |

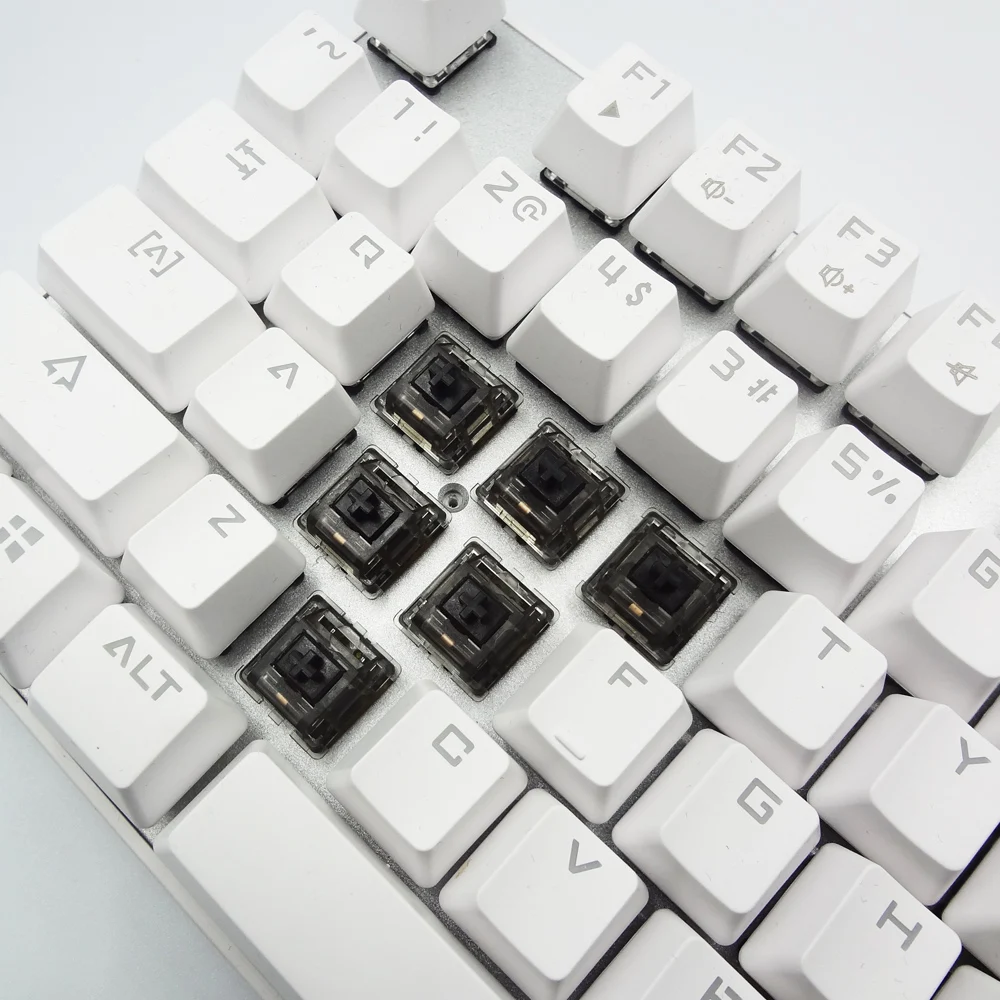

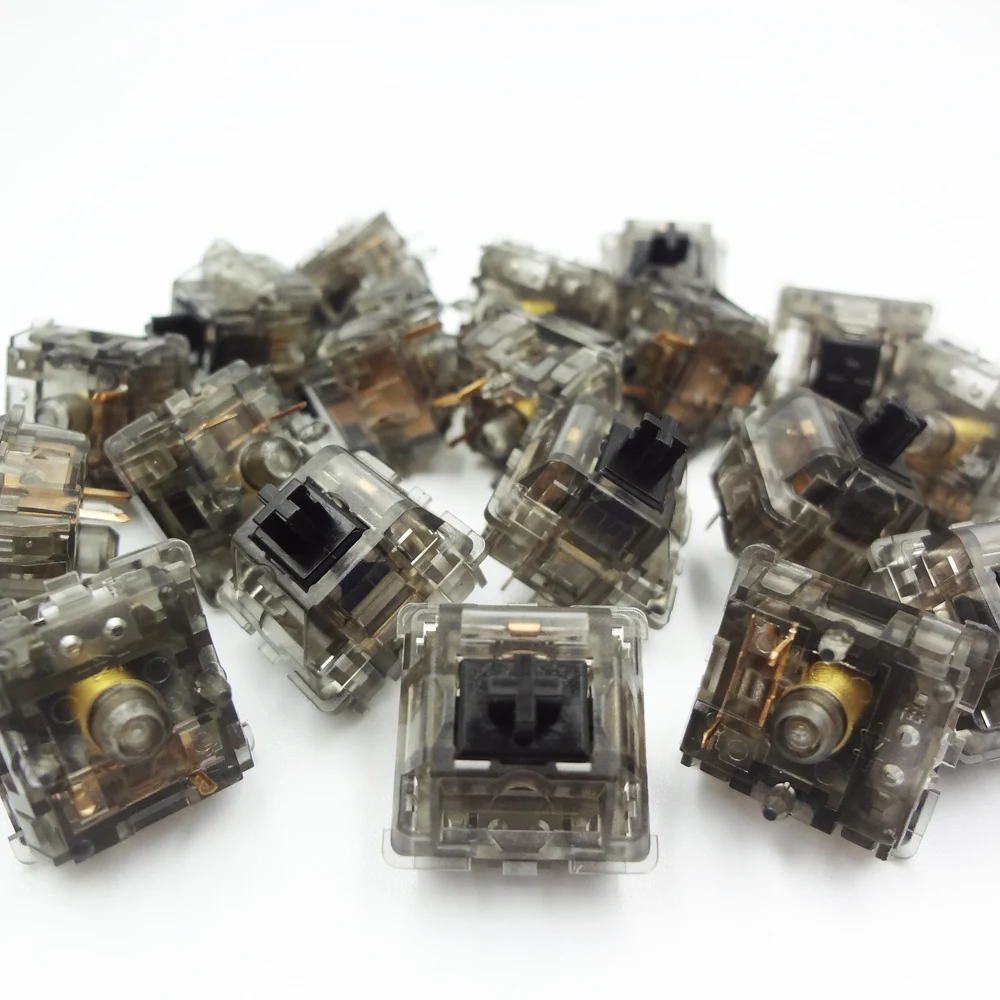

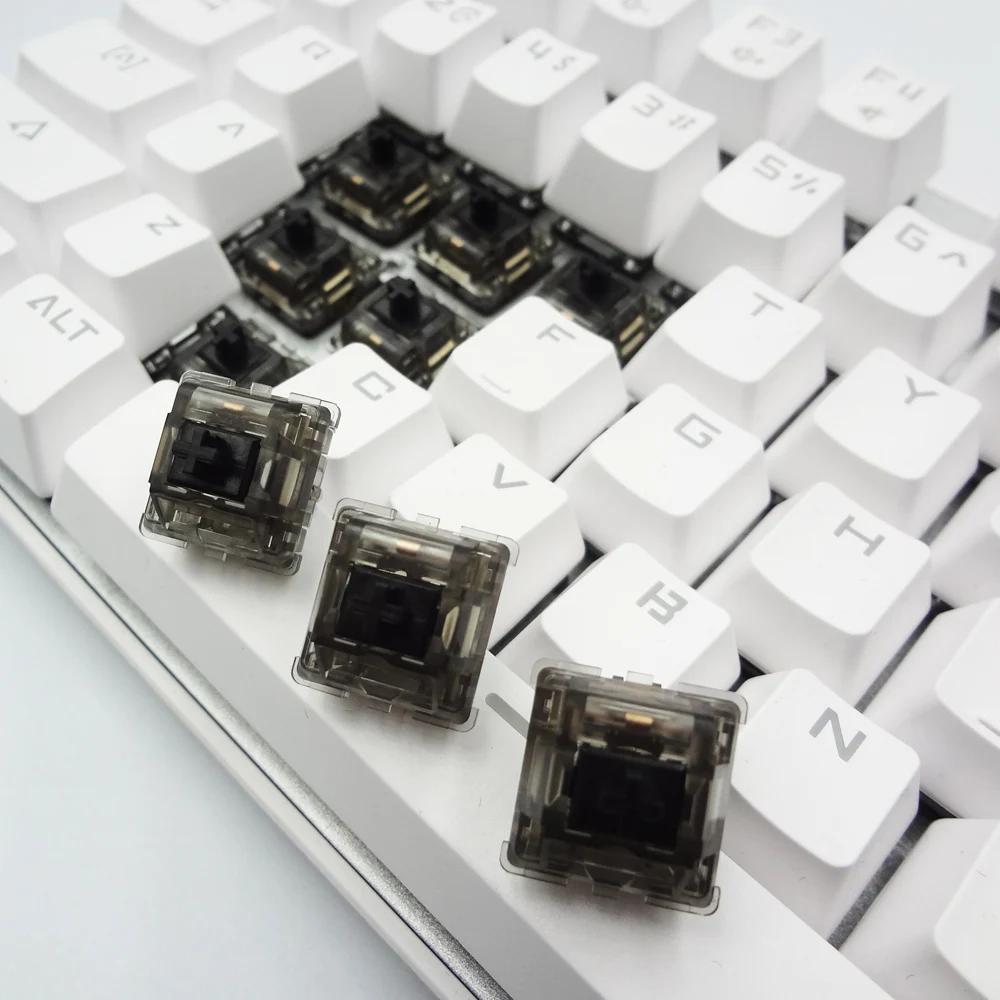

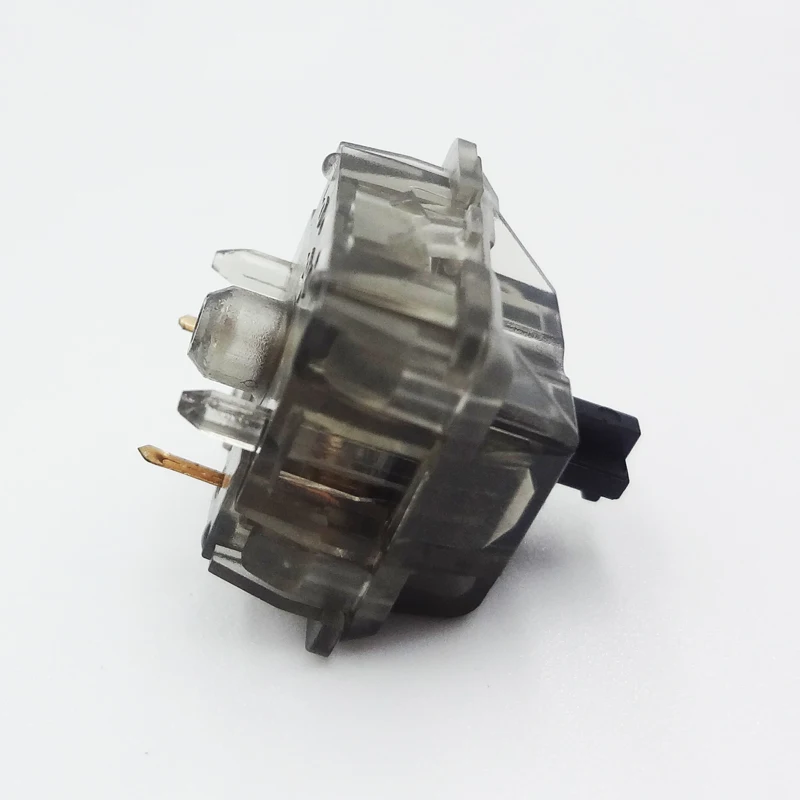

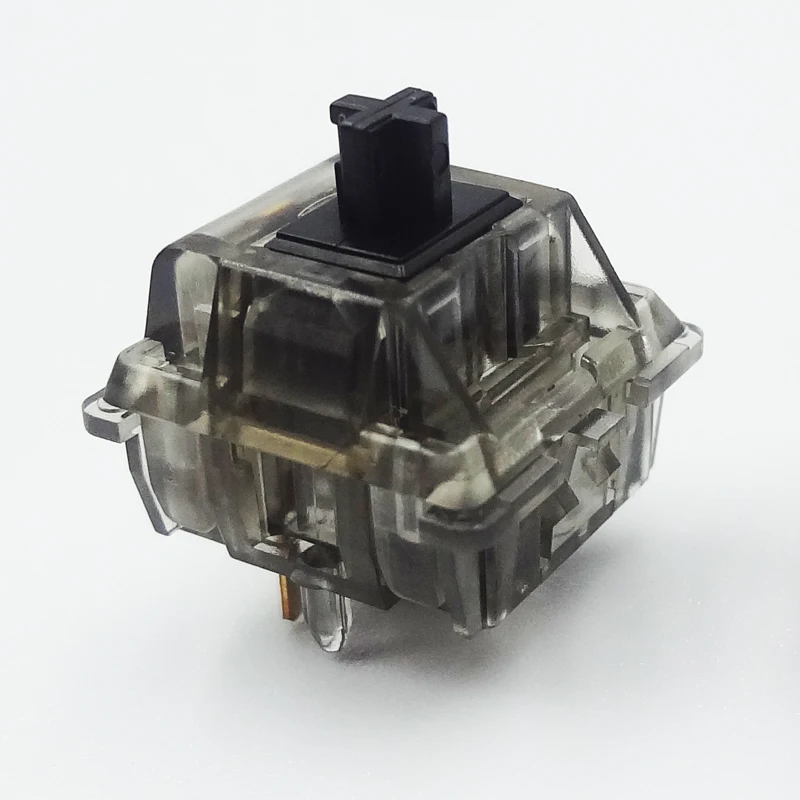

Detailed Images
Name | Mechanical Keyboard Switch |
Switch | Linear |
Type | PCB Mount, Plate Mount |
Bottom Out Force | 62gf / 67gf / 78g for Gaming Keyboard Switch |
Advantage | More Accurate typing, Longer service life. |
About Mechanical Keyboards
A mechanical keyboard has actual, physical switches beneath the keys that recreate the experience of typing on a typewriter. Press a key, and you press its switch down. Although there are different types of switches used in mechanical keyboards, they all have the same result: More accurate typing.
Our Company
DUROCK is one leading manufacturer specialized in Micro Switches, waterproof switches, auto switches, mechanical keyboard switches, etc.
DUROCK focuses on R&D and manufacturing, our main engineers have professional R&D experiences in the lines of switches & connectors over 20 years. All of our products are safety approved by UL, cUL, ENEC & CQC. Our factory has certificated of ISO9001 and ISO/TS16949 quality assurance system.
DUROCK provides not only a Micro Switch, but also R&D services and complete solutions at all levels of complexity to different customers. We always would like to establish the relationships with our customers as a partner, much more than a supplier!
We produce, we care, we serve!
Micro Switches Automatic Assembly Lines
Waterproof Micro Switch Manually Assembly Lines
Automatic Quality Inspection Machines
Experienced Office Staffs 24 hours online Service
Packing & Delivery
Blister Plate inside with Outer Carton
Mass Production in Plate
International Transport Cooperation
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order is available
3. We will reply you for your inquiry in 24 hours.
4. after despatching, we will track the products for you once every two days, until you get the products.
When you got the goods, test them, and give me a feedback.
If you have any questions, please don't hesitate to contact us for a solution.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack the Micro Switches in plastic blister plates, each Switch in one position of the plate, the put into brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
For samples, Paypal, Western Union payment methods are accepted.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We have experiences R&D department for molding and tooling.
Q6. What is your sample policy?
A: Free samples are available for test, freight collect with customer's Courier Account.
We also have our own Express agent for shipping, if use our agent, the shipping cost should be charged from clients.
Q7. Do you test all your goods before delivery?
A: Yes, our factory fulfills 7S quality control system, all the materials and products will be 100% test before delivery.
Durock sales will double inspection before shipment arranged.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from. We produce, we care, we serve!
