Машина для прокатки листового металла
US $10000
Конкурентоспособная цена роликовый затвор двери роликовая формовочная
- Категория: Машины для производства плитки >>>
- Поставщик: Botou,Kaiyite,Cold,Bending,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.28 $* | 0.96 $* |
| Aug-16-2025 | 0.14 $* | 0.29 $* |
| Jul-16-2025 | 0.99 $* | 0.7 $* |
| Jun-16-2025 | 0.33 $* | 0.7 $* |
| May-16-2025 | 0.67 $* | 0.60 $* |
| Apr-16-2025 | 0.53 $* | 0.27 $* |
| Mar-16-2025 | 0.65 $* | 0.49 $* |
| Feb-16-2025 | 0.11 $* | 0.89 $* |
| Jan-16-2025 | 0.74 $* | 0.49 $* |
Характеристики
CCompetitive Price Roller Shutter Door Roll Forming Machine

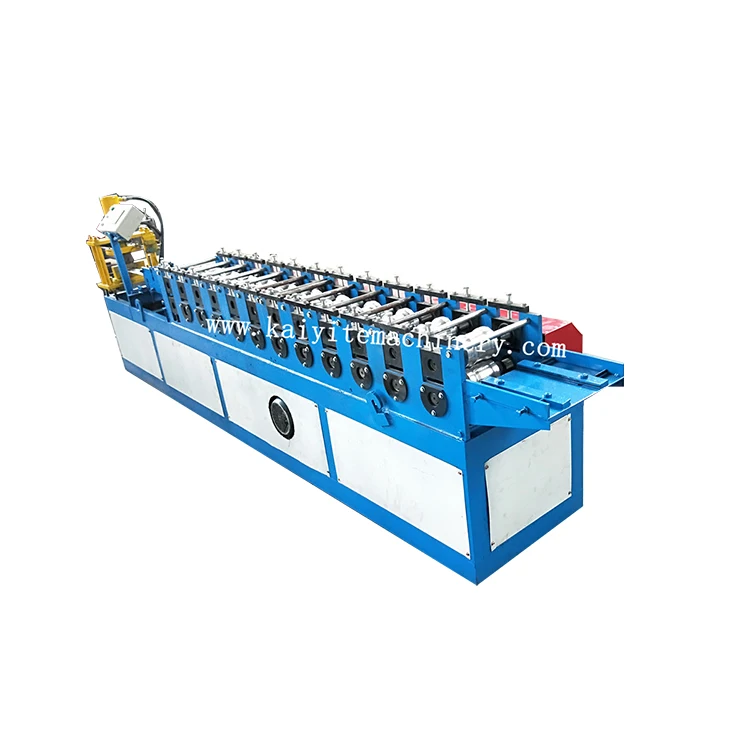

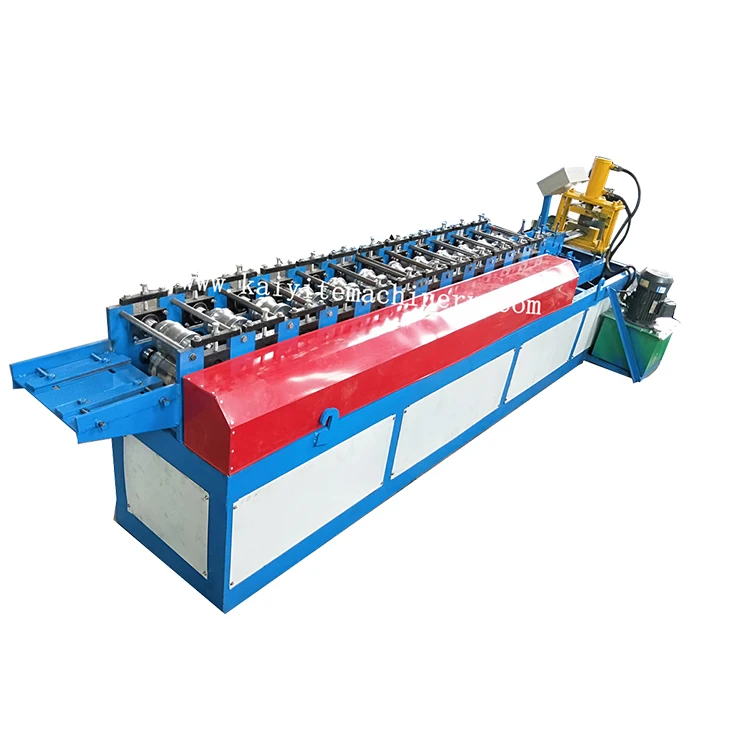

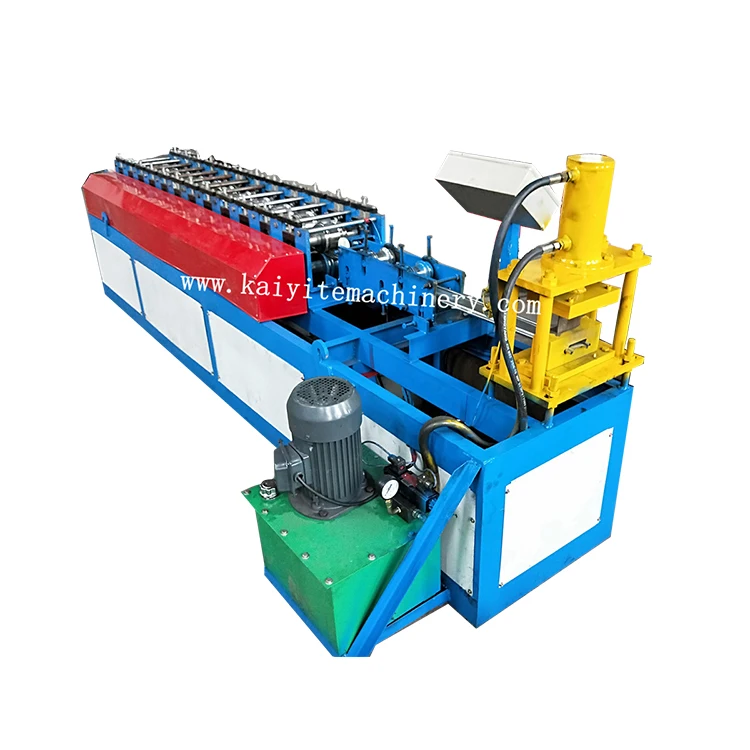

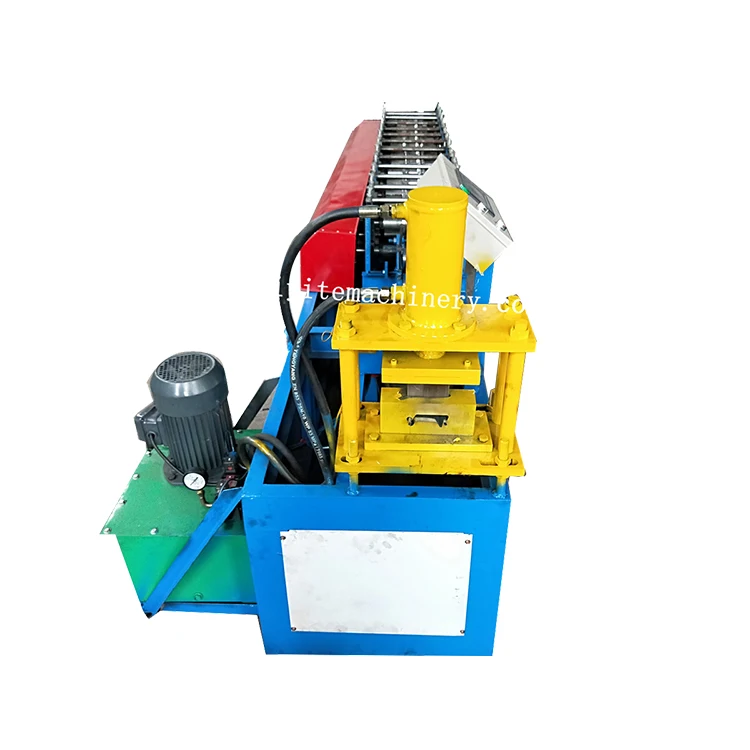

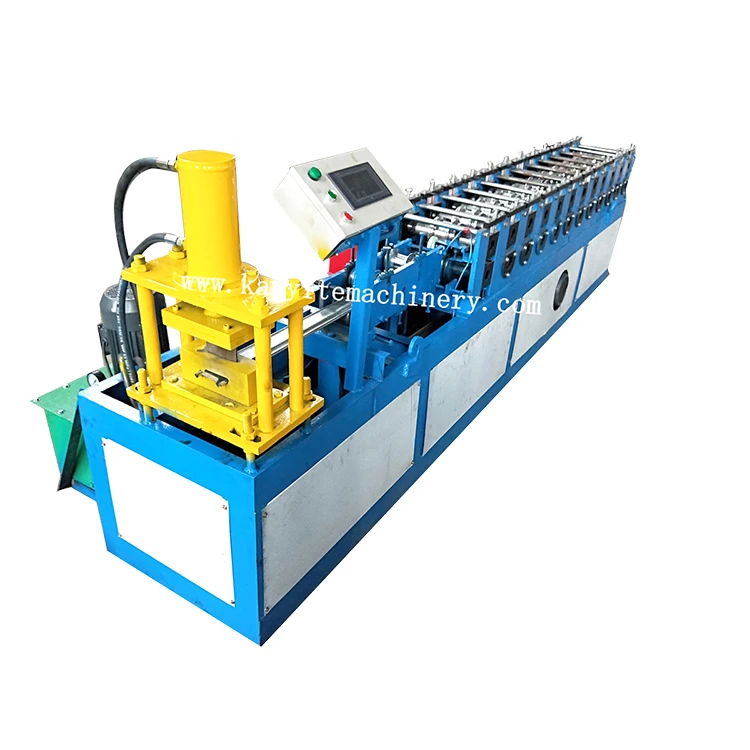

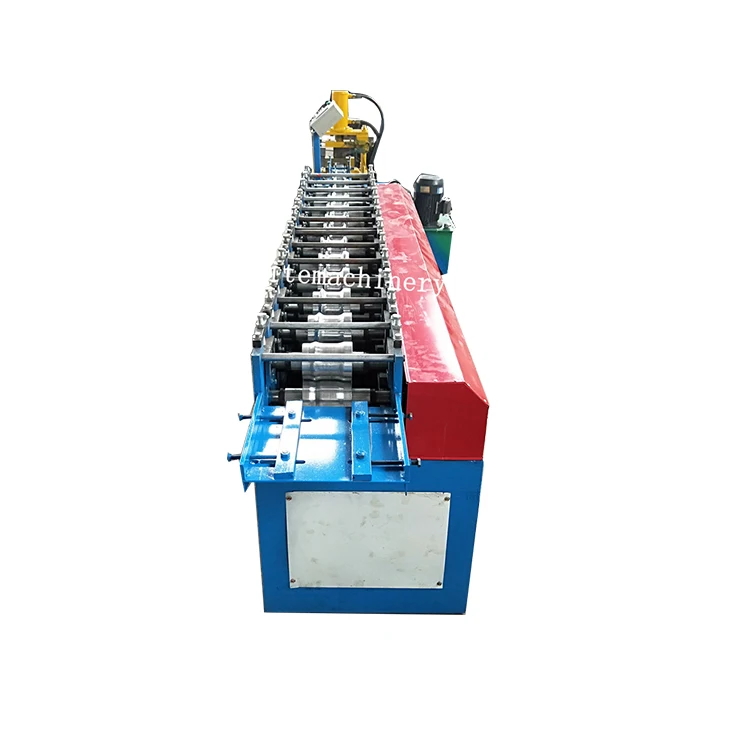

Product Show
Specifications
No. | Type | Specification | |
1 |
Row Material | Type | Colored steel plate, Galvanized board, Aluminum plate ect |
Feeding width | 122mm or According to client’s requirement | ||
Thickness | 0.7-0.8mm | ||
2 |
Main Body | Forming roller station | 12 Stations |
Straight roller station | 3 Stations ( Up layer 2 rollers , down layer 3 rollers ) | ||
Diameter of shaft | 40mm | ||
Shaft material | High grade 45# steel | ||
Roller material | High grade 45# steel , hard treatment and polishing ( plated chrome on surface ) | ||
Main body frame | Whole set of square pipe | ||
Frame thickenss | 14 mm | ||
Working speed | 8-15 m/min | ||
Size (L*W*H) | About 6800*850*1310mm | ||
Weight | About 2.5 tons | ||
3 |
Power | Motor power | 3 kw |
Hydraulic power | 3 kw | ||
Voltage | 380V 50Hz 3phases or Customerization | ||
Drving Way | By Gear | ||
4 |
PLC Control System | Language | English and Chinese |
Brand Of PLC | Delta brand ( Touch Screen ) | ||
Operation | Manual and Automatic ( Two Type ) | ||
Delta brand | |||
5 |
Cutting Device | Cutting Type | Hydraulic Cutting |
Blade of Cutting | Cr12 , quenching treatment | ||
Cutting Tolerance | ± 1mm | ||
Main Producs
FAQ
Q1: Are you a manufacturer?
A1:Yes, we are professional manufacturer of the roll forming machine
Q2. What are the main key points for selecting right machines?
A2: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q3. Can you provide OEM service for roll forming machine?
A3: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q4. How about the after-sale service?
A4: We provide 5 years free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q5:I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
A5: If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 80 -100 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.
Q6: I receive a lot of quotations, they are big range, How could i choose?
A6: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for contacting with me.
Q7: I have not whatsapp and skype, how could I contact with you?
A7: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.
Q8. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A8: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
When you arrive our station, we will arrange to pick up you there!
