T199 канистровый датчик нагрузки а также надежный компрессионного типа для всех тяжелых нагрузок 10T 20T
- Категория: Sensors >>>
- Поставщик: Changzhou,Right,Measurement,And,Control,System,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 71.36 $* | 75.43 $* |
| Aug-16-2025 | 71.48 $* | 75.65 $* |
| Jul-16-2025 | 59.90 $* | 62.30 $* |
| Jun-16-2025 | 70.51 $* | 74.43 $* |
| May-16-2025 | 61.26 $* | 64.39 $* |
| Apr-16-2025 | 68.61 $* | 71.84 $* |
| Mar-16-2025 | 68.62 $* | 71.56 $* |
| Feb-16-2025 | 67.50 $* | 70.32 $* |
| Jan-16-2025 | 67.91 $* | 70.7 $* |
Характеристики
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t

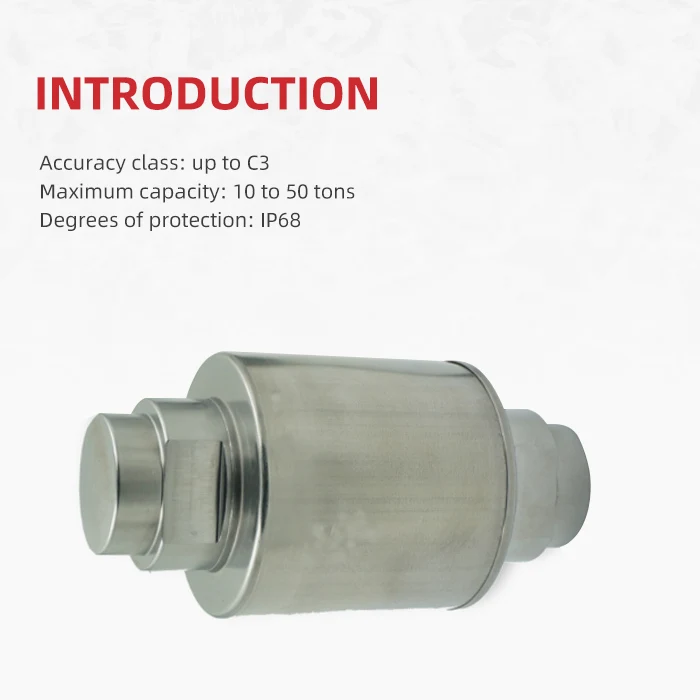

Introduction
The Robust Load Cell for All Heavy Loads
The self-restoring T199 load cells are extremely robust, reliable, and versatile and can also be used for very high loads.
Type T199 Self-Restoring Load Cell: Reliable Weighing up to 50 Tons
The T199 rocker pin load cells ensure optimal force application, are especially robust and allow for precise weighing up to a maximum capacity, ranging from 10 to 50 tons.
They are also suitable for use in harsh environments, for example, in weighbridges for road or rail vehicles or for level measurement in silos. In addition, T199 load cells with IP 68 degree of protection.
Ooervoltage protection, and robust cable variants offer additional protection.
Accuracy class: up to C3
Maximum capacity: 10 to 50 tons
Degrees of protection: IP68
Precise
Accuracy class up to C3
6-wire configuration for compensating changes in resistance and cables that can be cut to length individually
Self-restoring and equipped with rotation stop that prevents rotation about the y-axis
Optimized for parallel connection including off-center load compensation
High accuracy, due to high-grade load cell technology that is not affected by interference.
Robust
Load cell made of stainless steel
Not affected by temperature variations
IP68 degree of protection ensures durability under permanent humidity and dirt
EMC tested per IEC 45501:2015
Overvoltage protection
The self-restoring T199 load cells are extremely robust, reliable, and versatile and can also be used for very high loads.
Type T199 Self-Restoring Load Cell: Reliable Weighing up to 50 Tons
The T199 rocker pin load cells ensure optimal force application, are especially robust and allow for precise weighing up to a maximum capacity, ranging from 10 to 50 tons.
They are also suitable for use in harsh environments, for example, in weighbridges for road or rail vehicles or for level measurement in silos. In addition, T199 load cells with IP 68 degree of protection.
Ooervoltage protection, and robust cable variants offer additional protection.
Accuracy class: up to C3
Maximum capacity: 10 to 50 tons
Degrees of protection: IP68
Precise
Accuracy class up to C3
6-wire configuration for compensating changes in resistance and cables that can be cut to length individually
Self-restoring and equipped with rotation stop that prevents rotation about the y-axis
Optimized for parallel connection including off-center load compensation
High accuracy, due to high-grade load cell technology that is not affected by interference.
Robust
Load cell made of stainless steel
Not affected by temperature variations
IP68 degree of protection ensures durability under permanent humidity and dirt
EMC tested per IEC 45501:2015
Overvoltage protection
Specification
- Parameter -
Specifications | ||

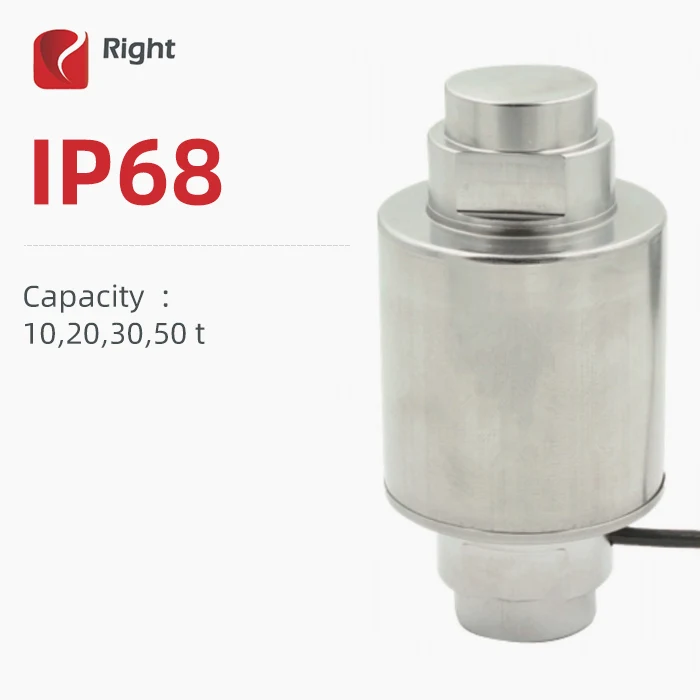

Capacity | 10,20,30,50 t | |
Rated output | 2.0±0.5%mV/V | |
Zero balance | ±2% F.S. | |
Non-linearity | 0.017%F.S. | |
Hysteresis | 0.017%F.S. | |
Repeatability | 0.017%F.S. | |
Creep(30min) | 0.017%F.S. | |
Temp.effect on output | 0.01%F.S./10℃ | |
Temp.effect on zero | 0.02%F.S./10℃ | |
Input impedance | 780±20Ω | |
Output impedance | 700±10Ω | |
Insulation | ≥5000MΩ/100VDC | |
Recommended excitation | 3~12V | |
Maximum excitation | 15V | |
Compensated temp range | -10~60℃ | |
Operation temp range | -30~70℃ | |
Safe overload | 150%F.S. | |
Ultimate overload | 200%F.S. | |
Cable size | φ5.4×10m | |
Material | stainless steel | |
Weight approx. | 0.5kg | |

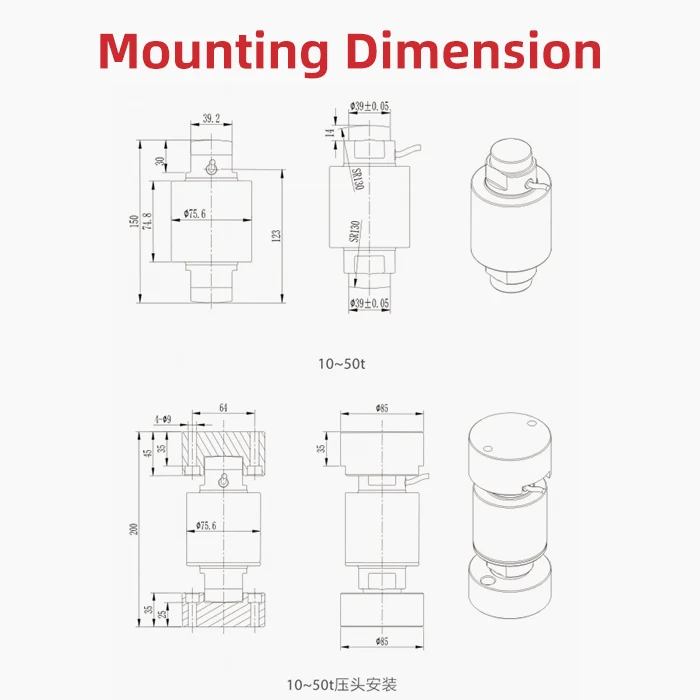

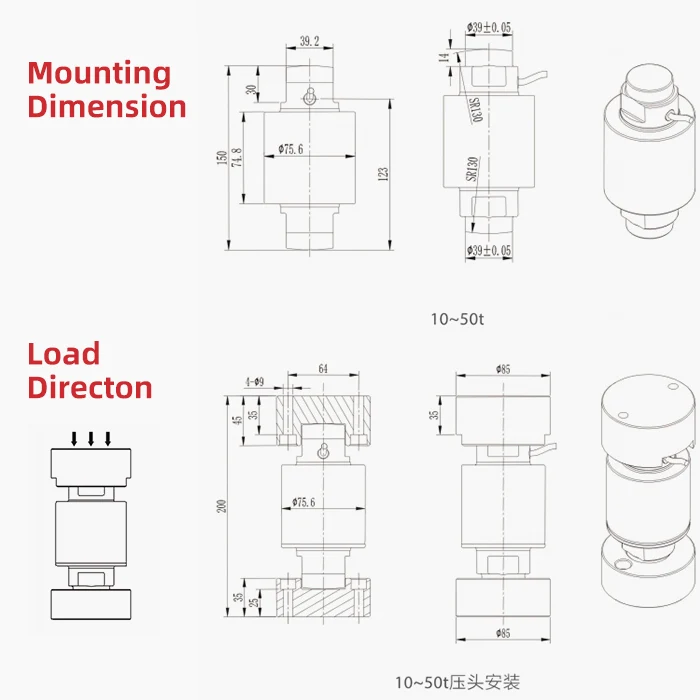

- Mounting Dimension -
- Load Direction -

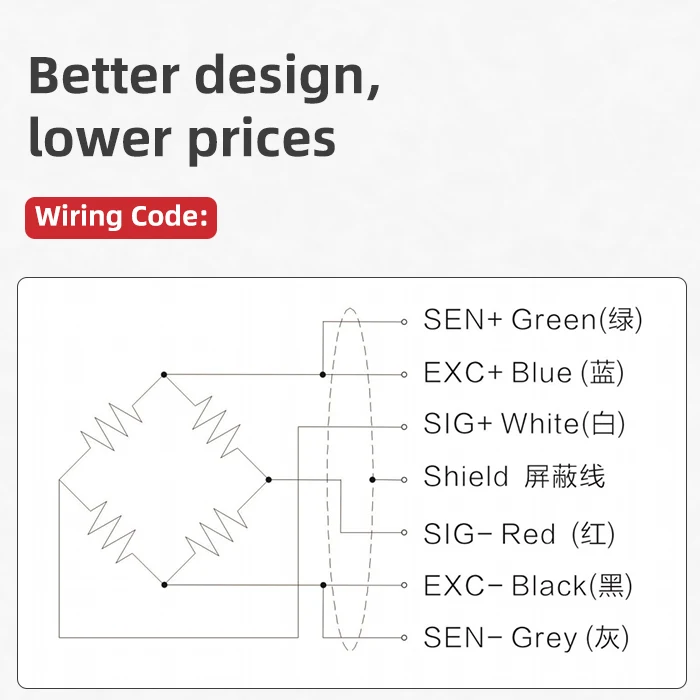

- Wiring Code -
