Характеристики
Product Description
LINEAR IRRIGATION/LATERAL MOVE IRRIGATION, also known as lateral move irrigation.The moving track of linear irrigation is parallel, which means all the spans and center point move back and forth across the field in parallel. The water will be supplied from the center point to spray uniformly into the field through the sprinkler. Gengze supplies two options: Two-wheel linear irrigation and Four-wheel linear irrigation.
LATERAL MOVE IRRIGATION | ||
Main pipe diameter | 6-5/8'' | |
Cantilever pipe diameter | 5-9/16'' | |
Pipe length | 22 feet/one, (6.7m) | |
Standard span | 54.5m (8 pipes) and 48m (7 pipes) | |
Main Pipe Flange thickness | 10mm,Flange and pipe adopt double welded technology | |
Working voltage | 460--380V/50--60HZ | |
Power supply mode | diesel generator and the local power company provide | |
Tire type | 14.9x24,vacuum irrigation tire | |
Motor power | 0.75~1.5 horse power | |
Motor speed reducer | output speed of electric transmission gearbox:28~86RPM | |
Tire speed reducer | the drive ratio is 50:1(American) | |
Irrigation intensity | 5-50mm(within the range is adjustable) | |
Irrigation uniformity | ≥90% | |
Climbing capacity | ≤25% | |
Span body tower structure | "V" model tower | |
Sprayer | USA N D3000; selective configuration: USA N R3000 | |
Irrigation intake pressure | 0.20--0.35mpa | |
Truss height | 3.2m | |
Sprayer spacing | 2.2-4m( the quantity :2-3 sprayer/water pipe) | |
Main cable | 4*4mm²+6*1.5mm²(resist ultra violet and aging) | |
Main pipe of water supply | Adopt ground buried,standard is more than 6 inches | |
The end | LED working status instruction light | |
Irrigation intake | 2 water inlet in the center of the machine head, quick pipe joint structure | |

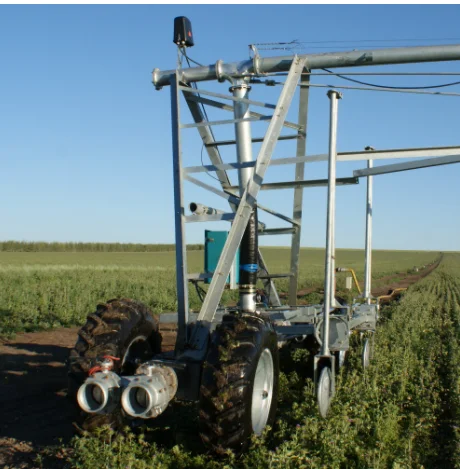

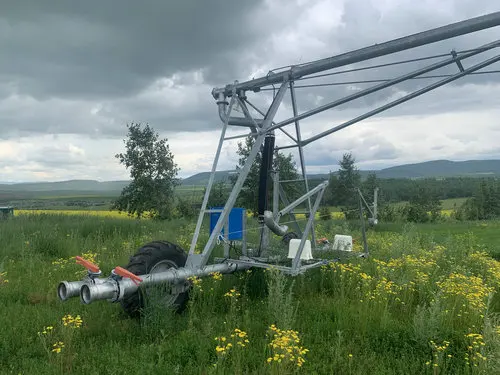

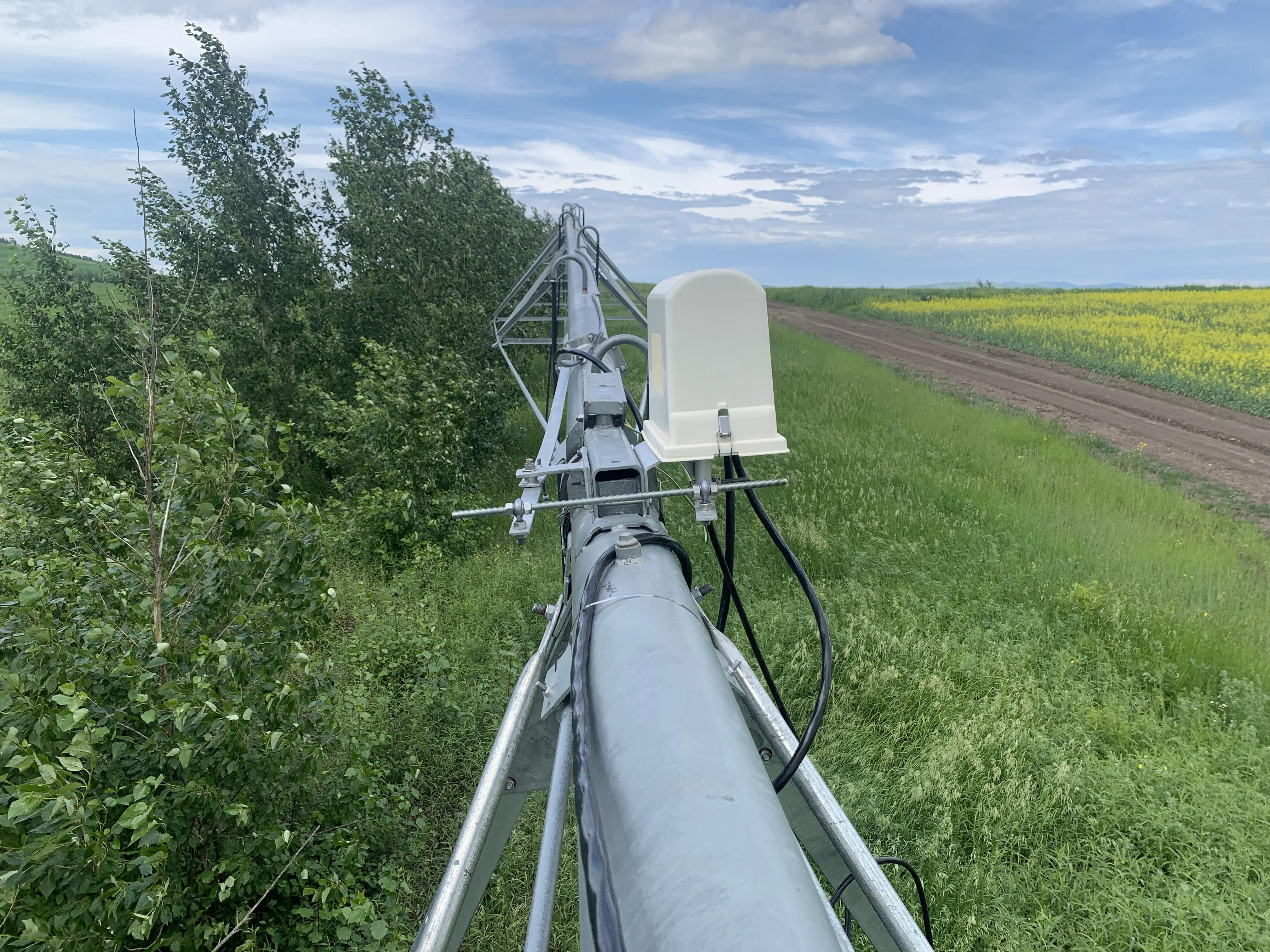

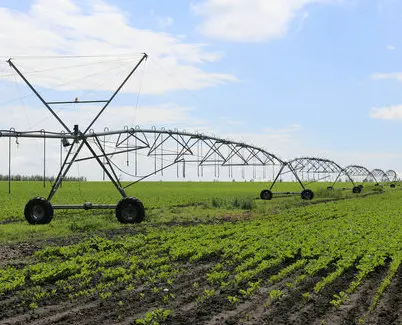

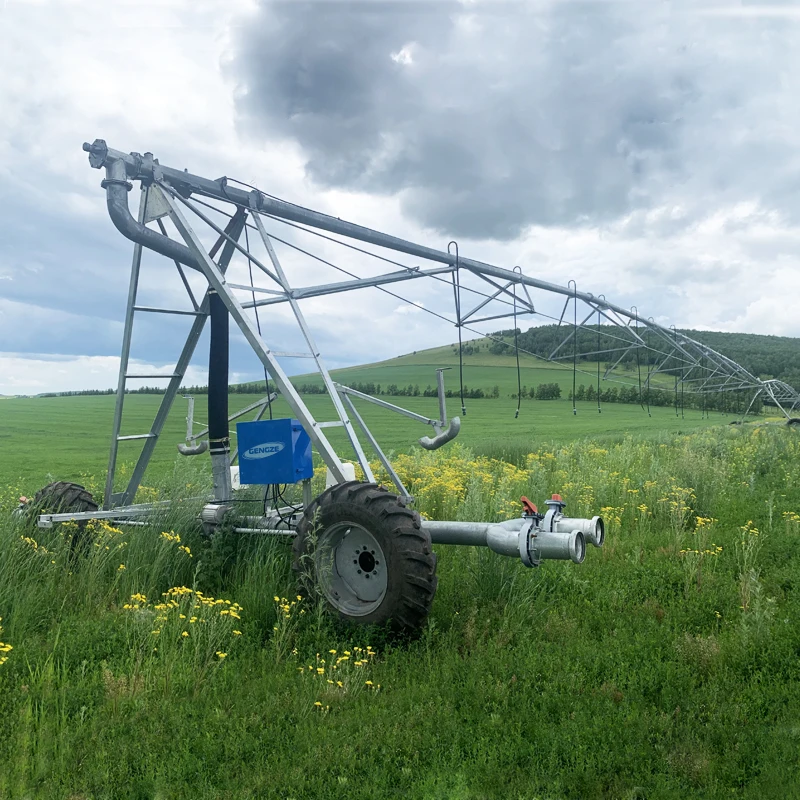

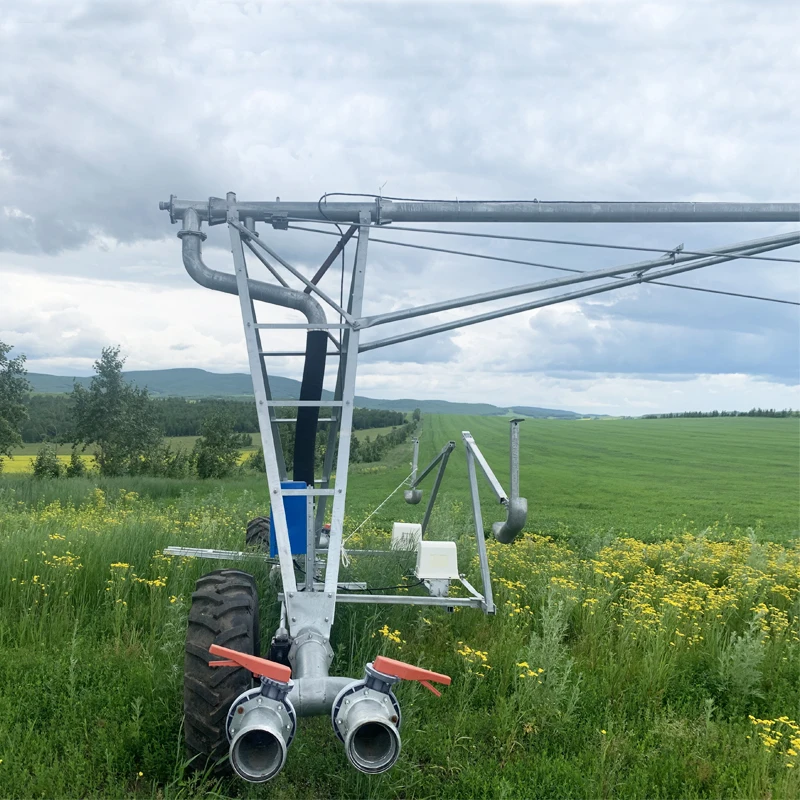

Detailed Images
