Машина для формовки металлических гвоздиков и гусеничных валков Из

Машина для формовки металлических гвоздиков и гусеничных валков Из

Категория: Steel Frame & Purlin Machines >>>
Поставщик: Botou,Kaiyite,Cold,Bending,Machinery,Co.,Ltd.

Цена:9 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	11305.29 $*	11870.37 $*
Aug-16-2025	11210.8 $*	11771.31 $*
Jul-16-2025	9405.46 $*	9875.57 $*
Jun-16-2025	11020.56 $*	11571.12 $*
May-16-2025	9595.96 $*	10075.4 $*
Apr-16-2025	10830.55 $*	11372.74 $*
Mar-16-2025	10735.93 $*	11272.53 $*
Feb-16-2025	10640.51 $*	11172.3 $*
Jan-16-2025	10545.85 $*	11072.27 $*

Характеристики

Related Products

Product Description

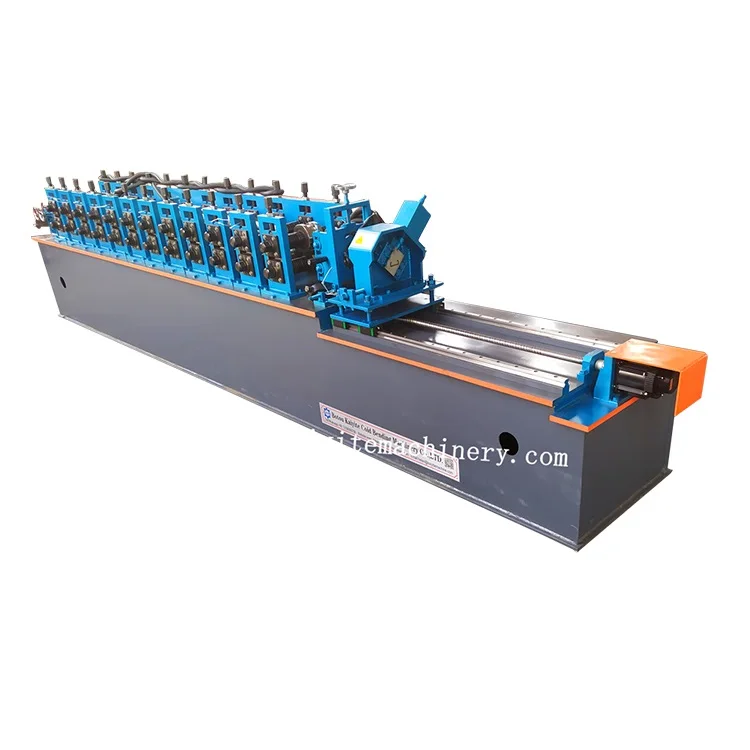

_{This is Drywall Partition Galvanized Stud and Track Roll Forming Machine Manufacturer , can make stud and track , omega , angle ,ceiling profiles . Customer only need to provide us the section drawing , we can design accordingly .}

Decoiler→Manual prectting→Material Guiding→Roll forming M/C→Hydraulic System→Post Cutting→Exit Rack

1	Row Material	Type	Colored steel plate, galvanized board, aluminum plate
				Feeding width	Accroding to customer’s requirement
				Thickness	0.4-0.7 mm
2	Main Body	Roller station	12 Stations
				Diameter of shaft	50mm
				Shaft material	45# Forged Steel, heat treatment and polishing
				Roller material	45# Forged Steel, heat treatment and polishing
				Frame	Whole set of square pipe
				Wall panel	Column type
				Capacity	30-40 m/min
				Size (LWH)	About 550012501510mm
				Weight	About 3.0 Tons
				Material of blade	Cr12
3	Power	Motor power	5.5 kw
				Hydraulic pump	4 kw
				Servo power	1.5 kw
				Voltage	380V 50Hz 3phases or Customerizated
				Driving way	By Gear
4	PLC Control System	Operation Type	Manual and Automatic
				Language	English and Chinese
				Brand	Delta Brand ( with touch screen )
				Transducer	Delta Brand
5	Cutting device	Cutting type	Hydraulic tracking type ( no stop cutting )
				Material of blade	Cr12, quenching treatment;
				Length Cutting Tolerance	±0.1mm

Details Images

uncoiler

· Loading capacity ： 5T

· Inner diameter ：470-530mm

· Steel coil width ：914, 1000, 1220, 1250 mm.（According to your actual drawing.）

· Working speed ：0-15m/min（adjustable）

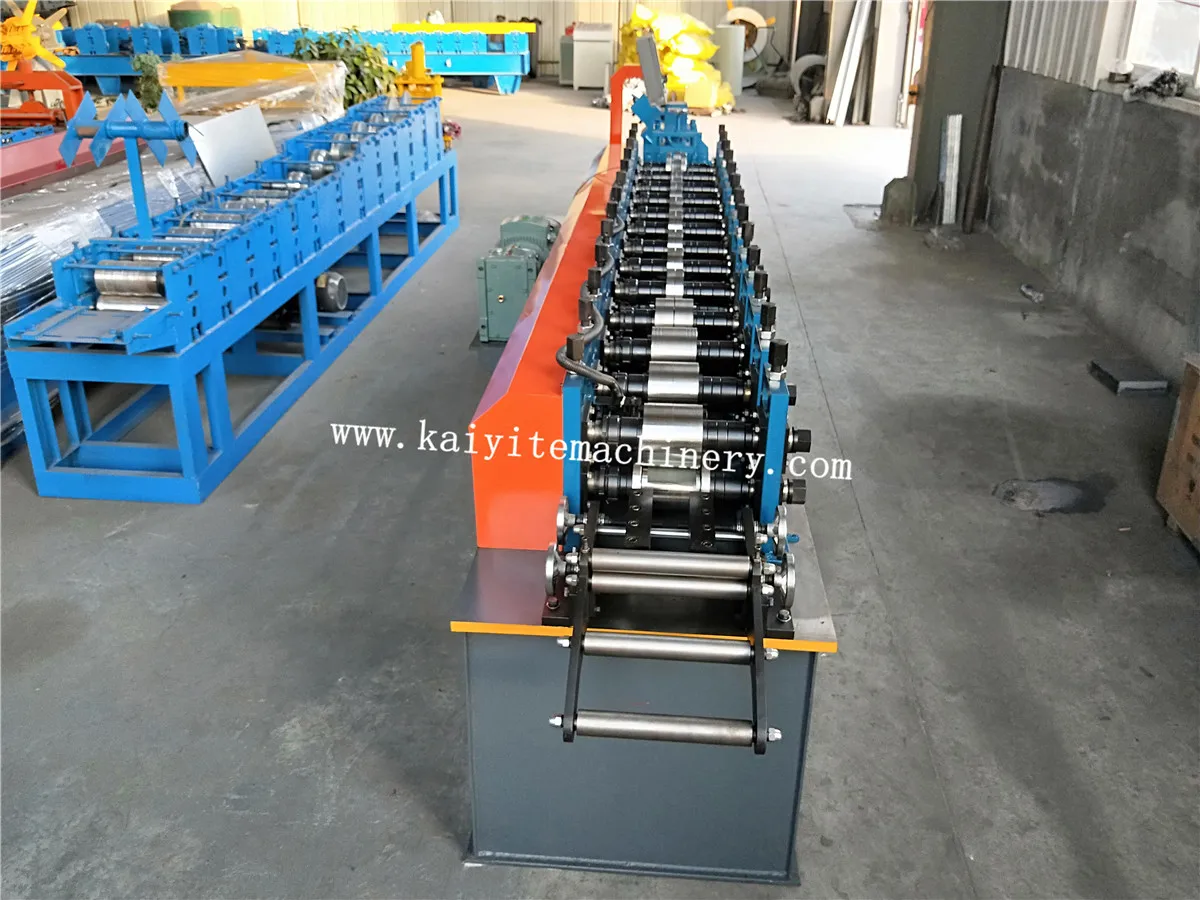

feeding table

· It is used to control the width and position of the steel sheet.

· The sheet is guided into the machine with the correct position to make sure the panel is neat and parallel.

mainframe

· Material ：350 H steel

· Feature ：more table, no shaking

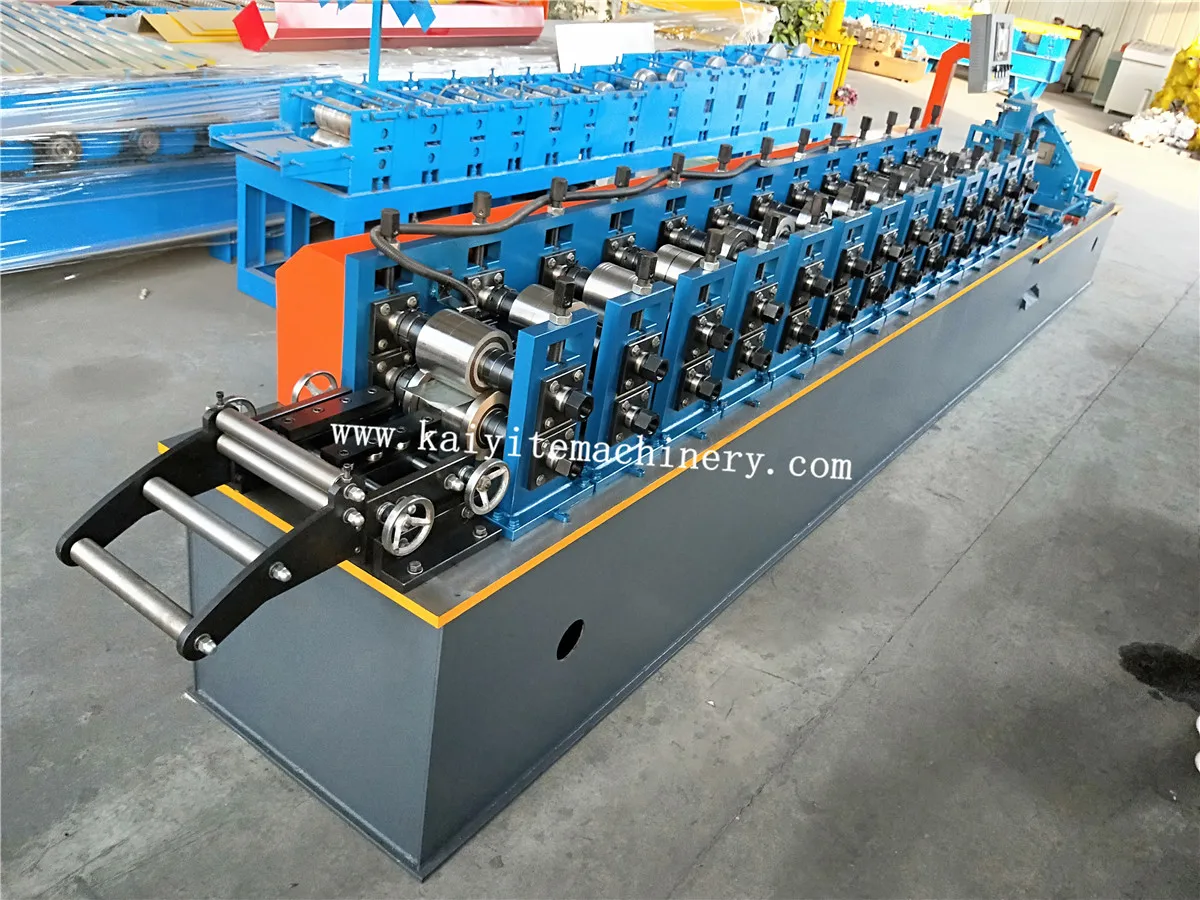

forming rollers

· Material：High grade 45# steel.

· Roller stations：11-16 stations.
（According to your actual drawing.)

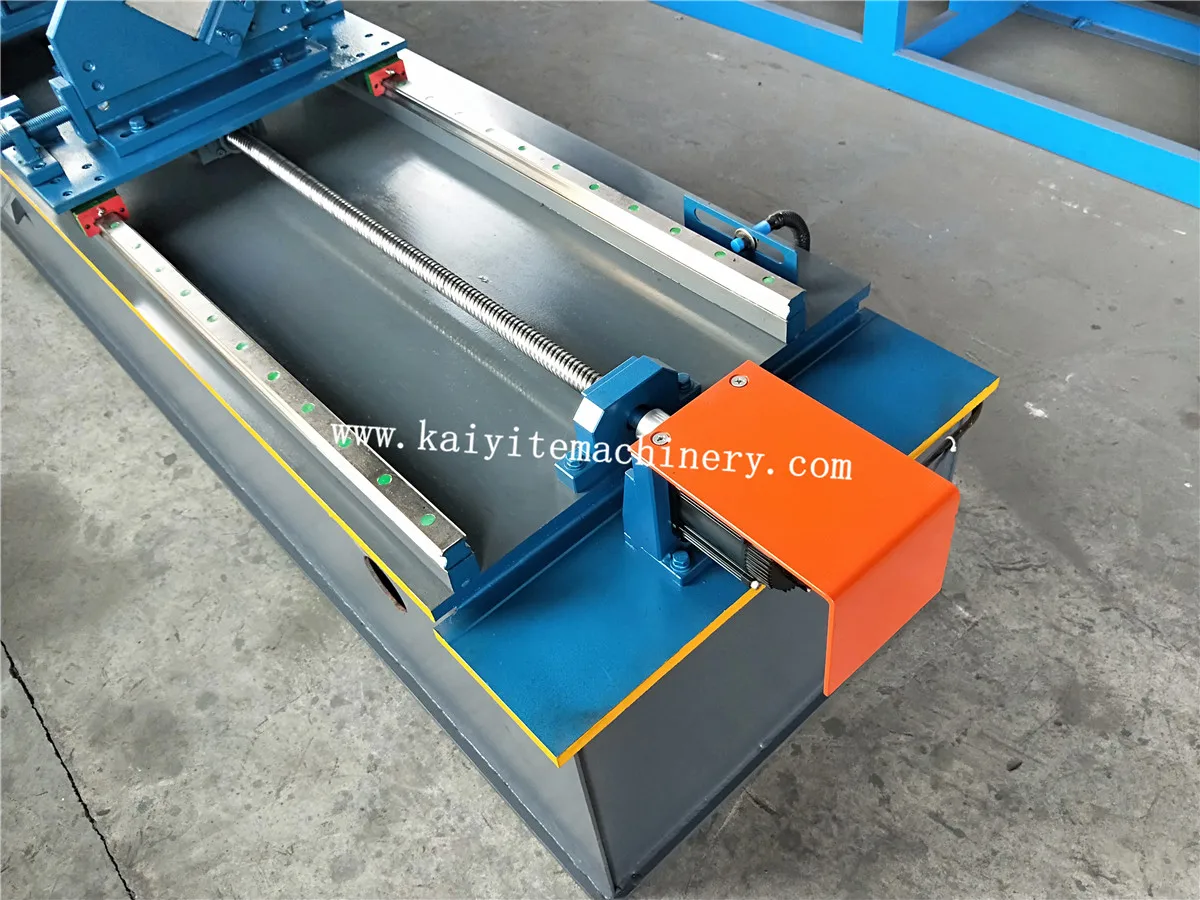

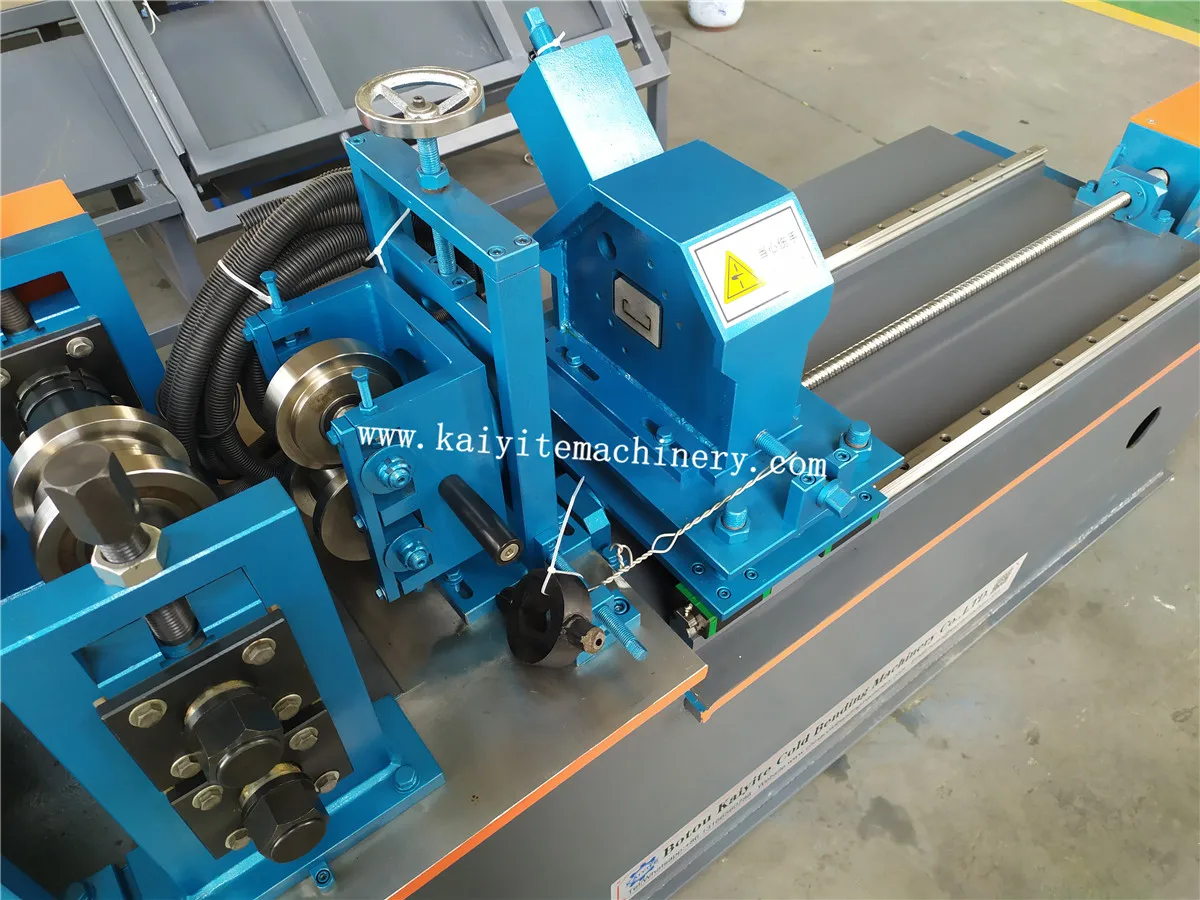

cutting system

· Material of blade ：Cr12MOV（much better than normal Cr12 material）

· Hydraulic power ：3 KW

control cabinet

· Suitable power ：380V, 50Hz, 3phase
（or according to your need.）

· Feature：The whole process is automatically controlled by the computer.
In this way, you can ensure accuracy and easy work.

After Sales Service

1. a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train yourworkers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2 .a.We provide 5 years free warranty and free technical support for the whole life of any machine
b.24 hours technical support by email or calling

Company Introduction

Our Services & Strength

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

FAQ

SQ1: Are you a manufacturer?
A1:Yes, we are professional manufacturer of the roll forming machine
Q2. What are the main key points for selecting right machines?
A2: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price
not the final point.
Good quality is for long-term business cooperation.
Q3. Can you provide OEM service for roll forming machine?
A3: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q4. How about the after-sale service?
A4: We provide 5 years free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.
Q5:I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
A5: If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food
Salary of 80 -100 USD per day per person (from departure from our factory, until we are back to our factory). You also need to
take care of his safety.
Q6: I receive a lot of quotations, they are big range, How could i choose?
A6: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for
contacting with me.
Q7: I have not whatsapp and skype, how could I contact with you?
A7: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.
Q8. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A8: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
When you arrive our station, we will arrange to pick up you there!
