Лидер продаж пневматический высокочастотный электромагнитный клапан с двойным однорычажным управлением серии
- Категория: Электромагнитные клапаны >>>
- Поставщик: Ningbo,Vpc,Pneumatic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.18 $* | 0.25 $* |
| Aug-15-2025 | 0.1 $* | 0.90 $* |
| Jul-15-2025 | 0.14 $* | 0.72 $* |
| Jun-15-2025 | 0.57 $* | 0.73 $* |
| May-15-2025 | 0.87 $* | 0.92 $* |
| Apr-15-2025 | 0.61 $* | 0.39 $* |
| Mar-15-2025 | 0.69 $* | 0.75 $* |
| Feb-15-2025 | 0.73 $* | 0.67 $* |
| Jan-15-2025 | 0.38 $* | 0.74 $* |
Характеристики

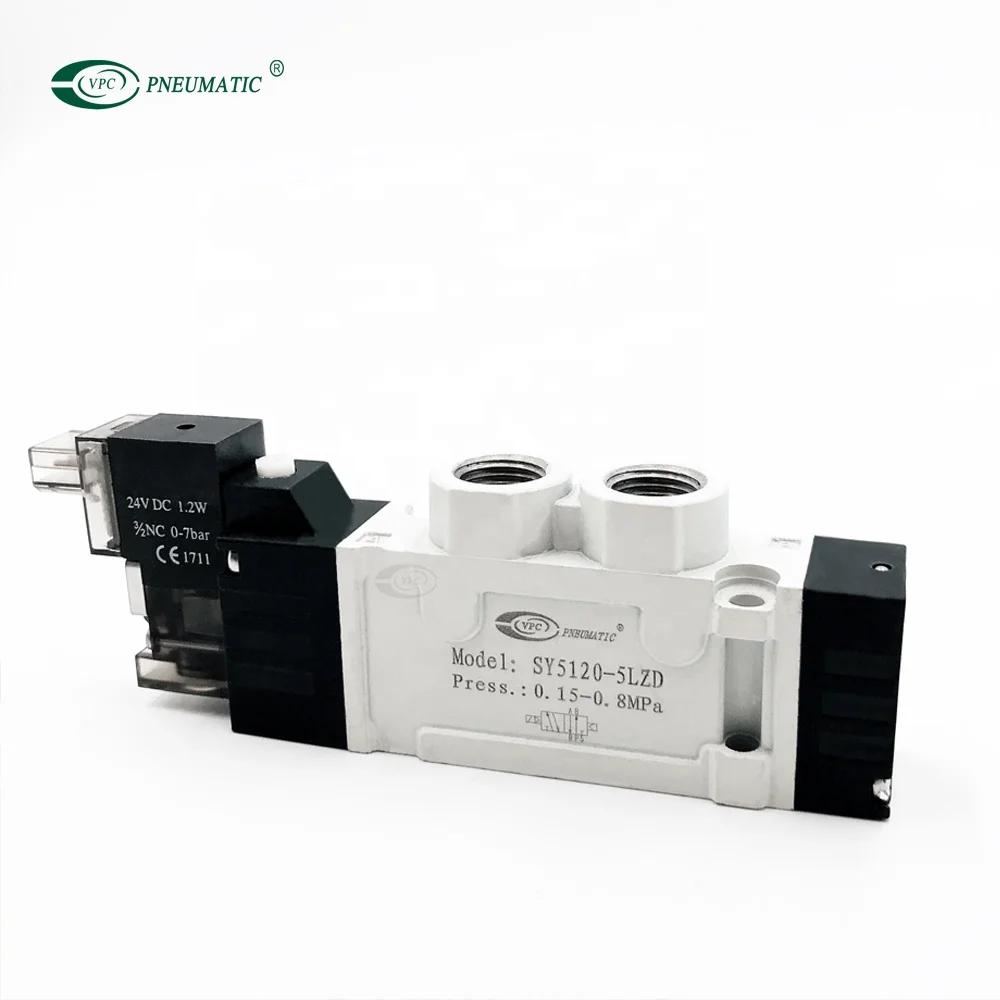

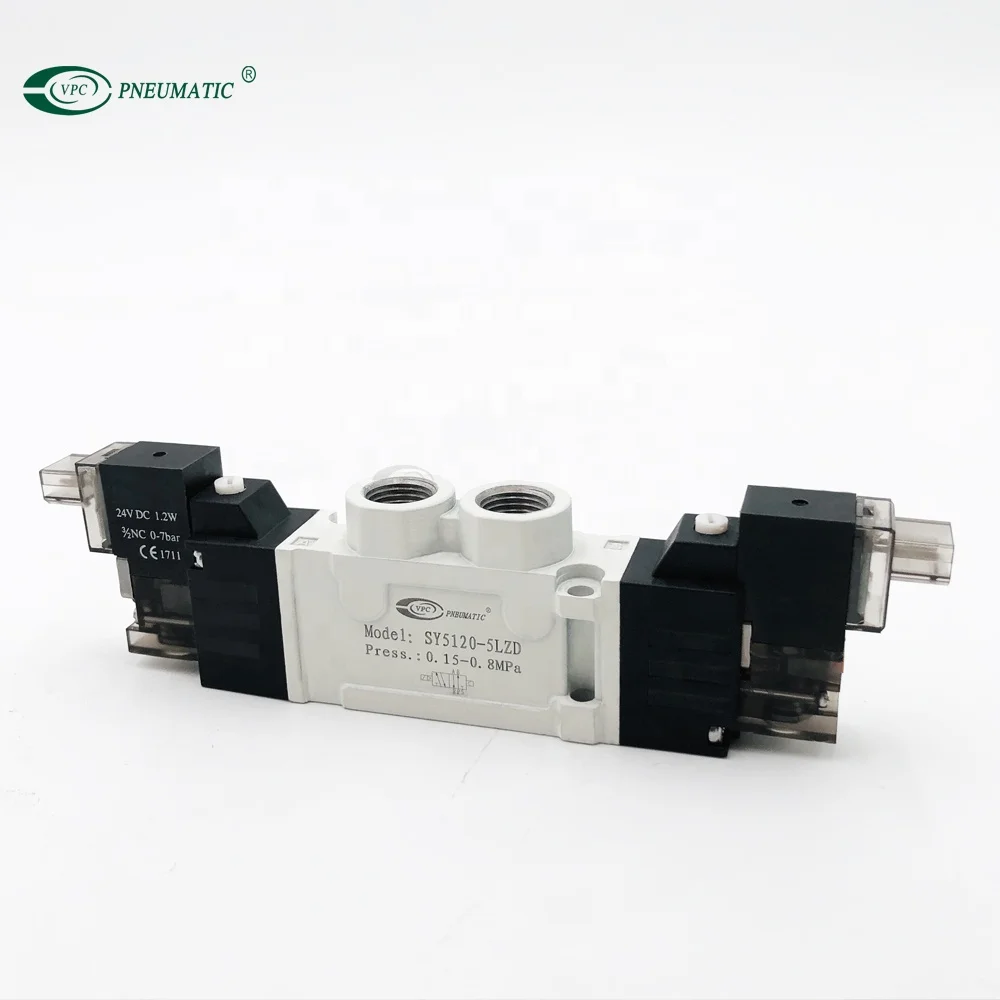

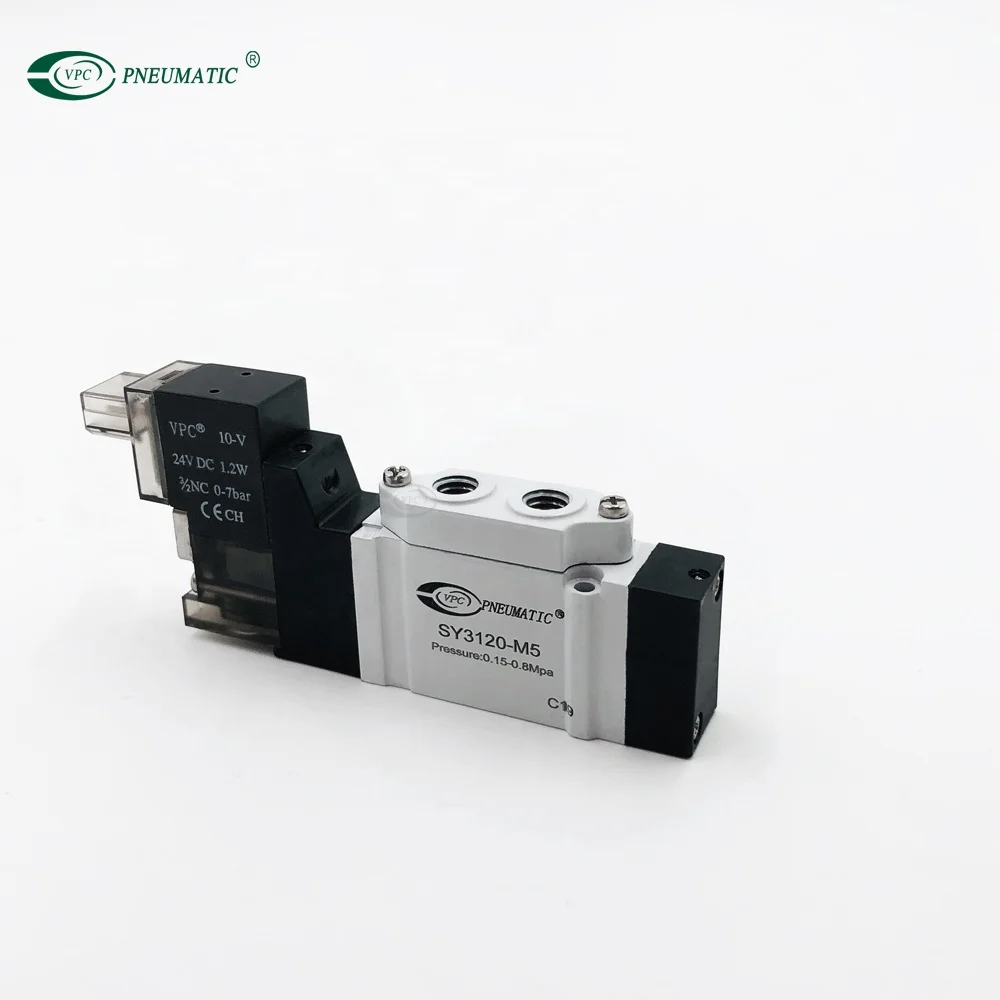

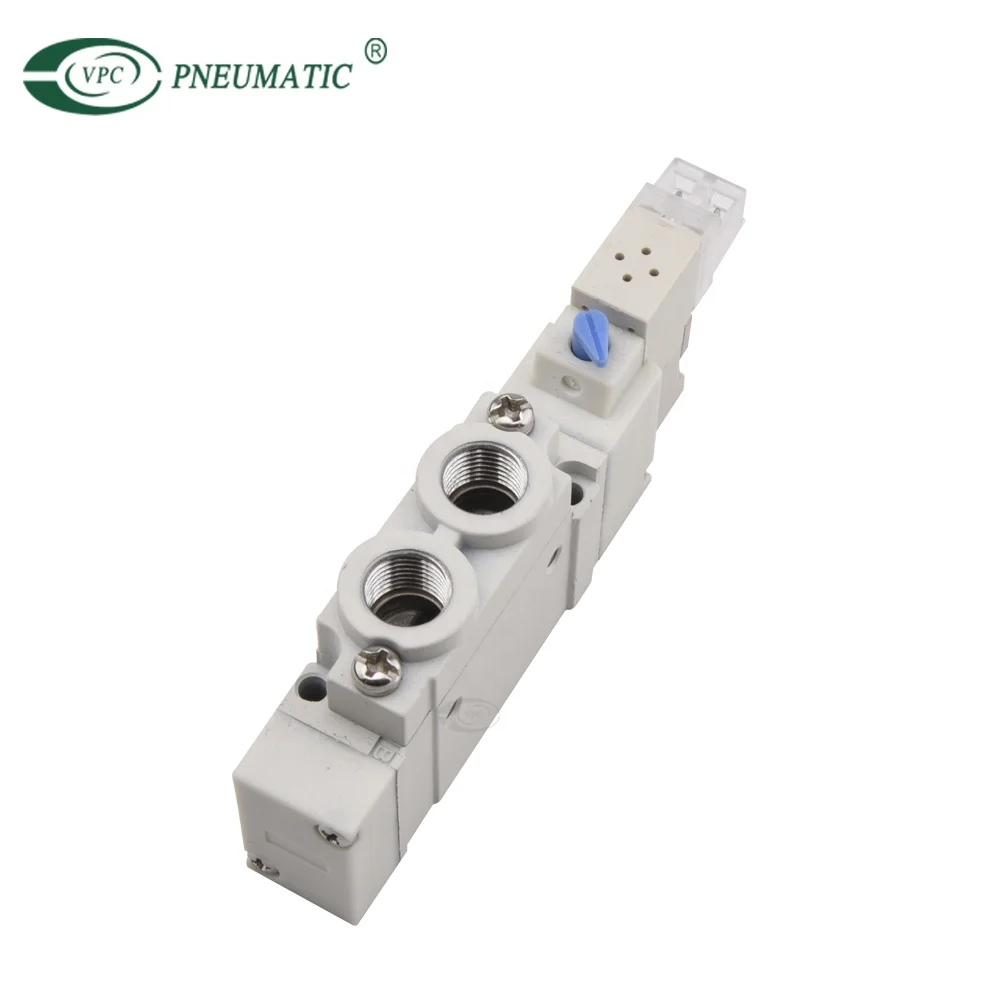

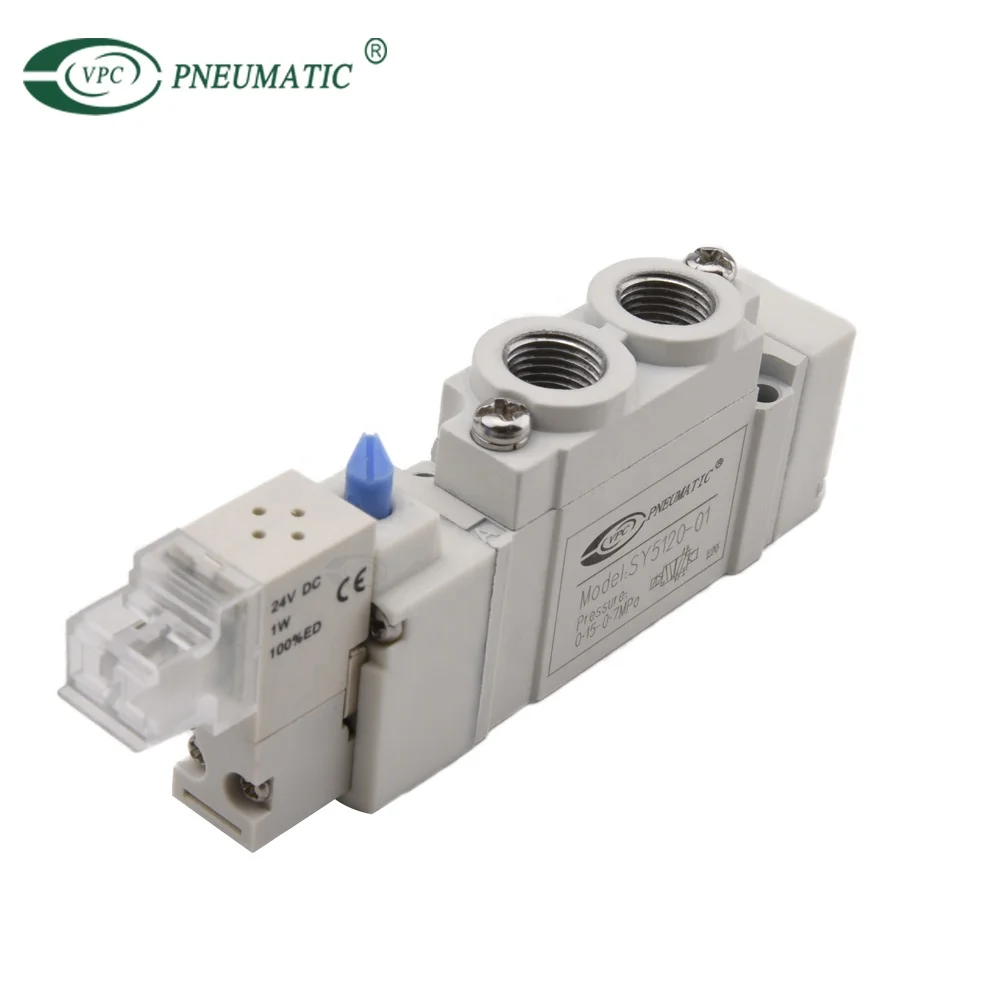

Sy Series hot sale Double Single Control pneumatic high frequency Solenoid Valve
Model | SY3120 | SY3220 | SY3320 | SY5120 | SY5220 | SY5320 | |||||
SY3420 | SY5420 | ||||||||||
SY3520 | SY5520 | ||||||||||
Working medium | Clean air(40um Filteration) | ||||||||||
Working Pressure | 0.15~0.7Mpa | 0.1~0.7Mpa | 0.2~0.7Mpa | 0.15~0.7Mpa | 0.1~0.7Mpa | 0.2~0.7Mpa | |||||
Working temperature | -10-60℃ | ||||||||||
Max operating frequency | 10HZ | 10HZ | 3HZ | 5HZ | 5HZ | 3HZ | |||||
Response time | <12ms | <12ms | <15ms | <19ms | <19ms | <32ms | |||||
Exhaust way | Centralized exhaust | ||||||||||
Lubrication | Not necessary | ||||||||||
Installation type | Free | ||||||||||
Impact resistance vibration resistance | 150/30M/S² | ||||||||||
Protective class | Ip65 | ||||||||||
Joint size | M5 | 1/8" | |||||||||
Special processing craft for the inner hole
Inner hole grinding accuracy up to ±0.005mm
No spring air reset structure design ,fast response speed，no fatigue, long life
EMS super nylon material,superior quality injection molding equipment and
ultra-precision mold imported from Germany
High-frequency pilot head
Frequency 15 Hz (15 times/s) or more
Single/Double coils are optional , can be arbitrarily matched
1.2W low power consumption,energy efficiency environmentally friendly

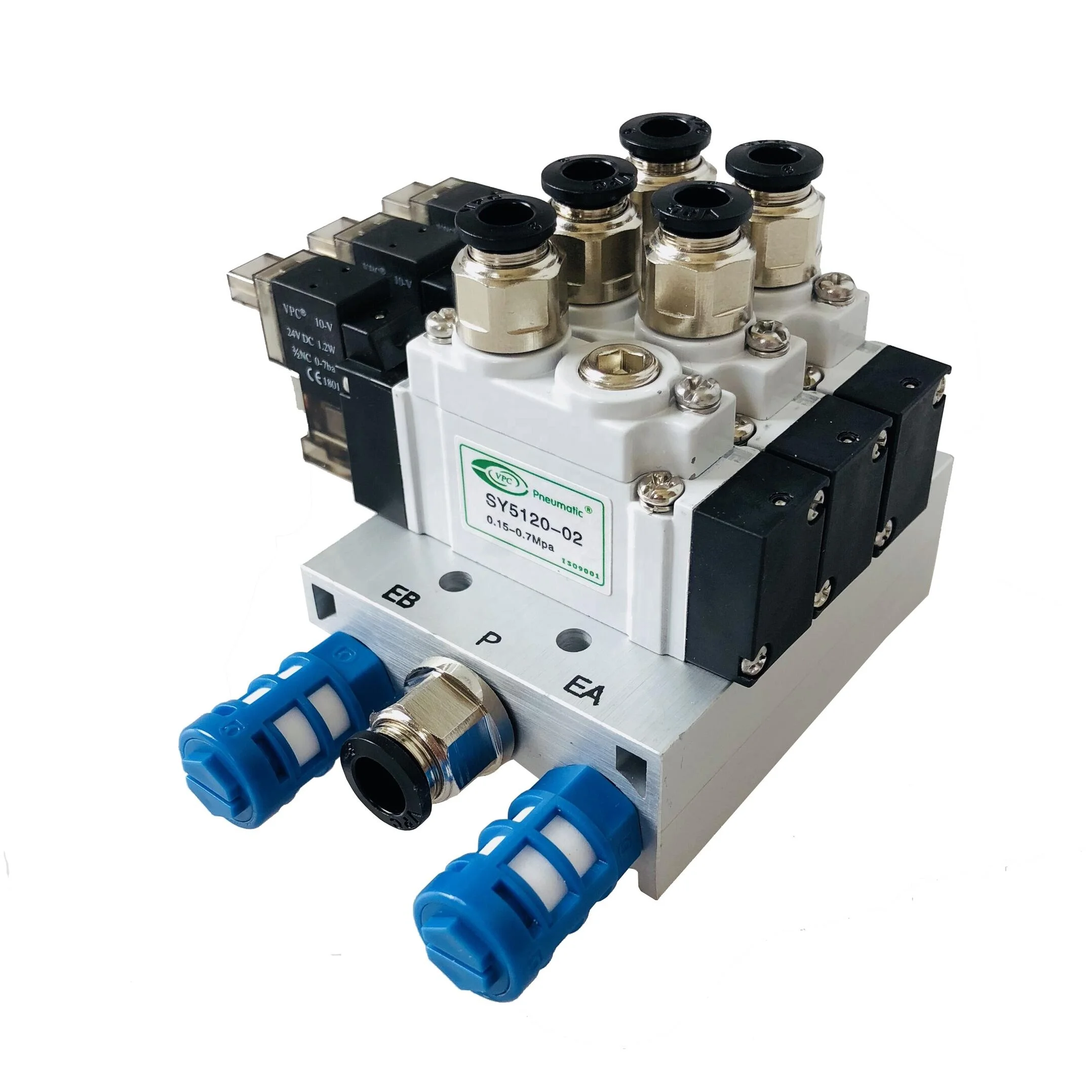

Multiple valve bases integrated
Using 0.06mm enameled wires imported from Germany
guaranteed temperature260℃,high safety performance
Pluggable wiring,convenient installation
Ordering Code SY Series Solenoid Valve
SY3 1 20 □ - M5 - DC24V
SY3→Type Code
SY3:SY3 series SY5:SY5 series
SY7:SY7 series SY9:SY9 series
SY7:SY7 series SY9:SY9 series
1→Series Code
1:Single control 2:Double control
3:Double control 3Position Center Close
4:Double control 3Position Center Exhaust
5:Double control 3Position Center Pressure
3:Double control 3Position Center Close
4:Double control 3Position Center Exhaust
5:Double control 3Position Center Pressure
□→Coil
L:Vertical Type M:Horizontal Type
G:Pin Type
L:Vertical Type M:Horizontal Type
G:Pin Type
M5→Joint Size
M5:M5X0.8 01:1/8"
DC24V→Standard Voltage
DC24V AC220V 50/60HZ
