Overview
Product Description

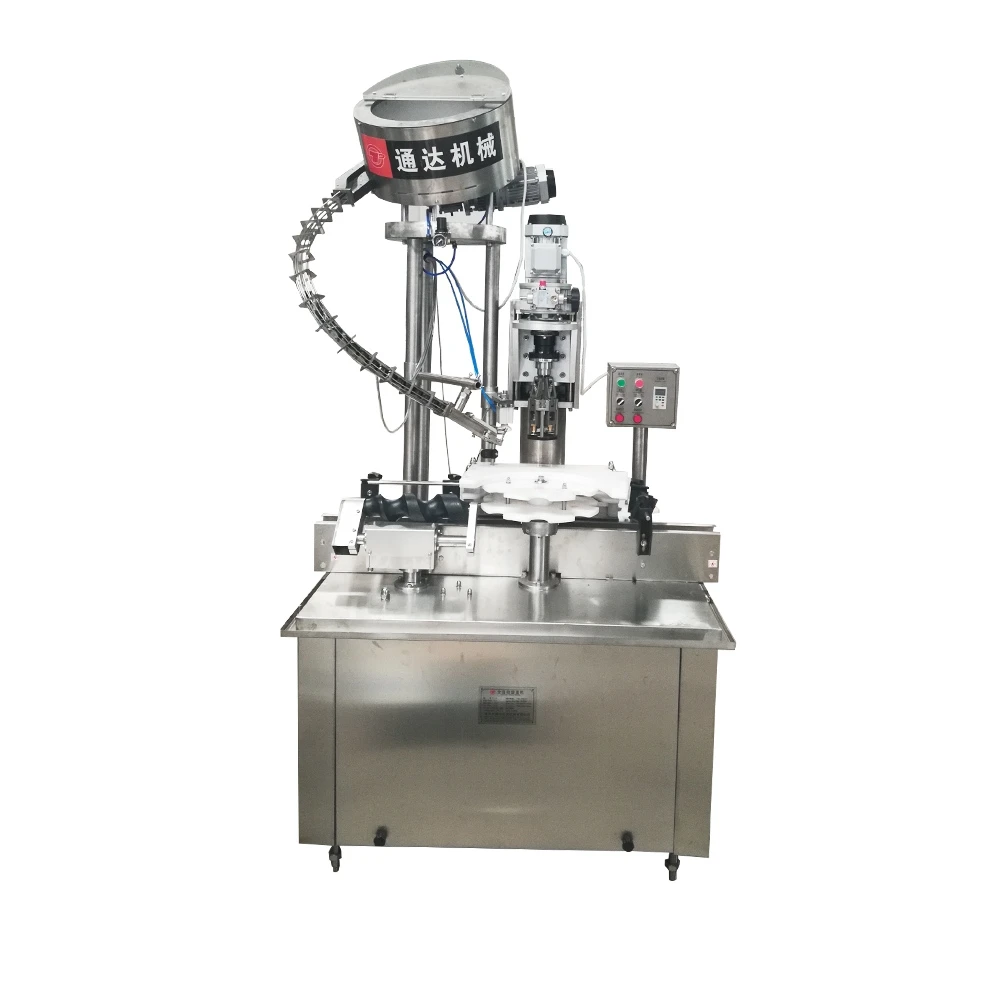

automatic anti-theft/pilfer proof/twist off aluminum cap lid/ropp capping machine
This capping machine sealer is adapt for ROPP cap,stelvin cap,sleeve closure,aluminum screw cap,lid.closure
It requires the clearance between inner diameter of bottle cap and outer diameter of bottle mouth is 0.10-0.15mm; the height from inner cushion of the bottle cap to bottle mouth is greater by 0.3-0.5mm than one of bottle mouth.
Features:
This series of capping machines are specially designed for the
sealing of twist-off aluminum anti-theft caps and bottle mouths.
Tight sealing: no gaps, no scratches, and tight bottom sealing
Wide adaptability: The capping head can choose a German flat pendulum head or a four-wheel balance lever head.
The bottle cap damage rate is small: the bottle mouth positioning device is adopted, the bottle mouth and the sealing head are
positioned more accurately, and the utilization rate of the bottle cap is improved.
High degree of automation: It is equipped with automatic lid sorting and automatic lid hanging functions, and can be equipped with
an automatic lidding device to realize fully automatic functions.
Long service life: the sealing wheel is made of special material, wear-resistant.
sealing of twist-off aluminum anti-theft caps and bottle mouths.
Tight sealing: no gaps, no scratches, and tight bottom sealing
Wide adaptability: The capping head can choose a German flat pendulum head or a four-wheel balance lever head.
The bottle cap damage rate is small: the bottle mouth positioning device is adopted, the bottle mouth and the sealing head are
positioned more accurately, and the utilization rate of the bottle cap is improved.
High degree of automation: It is equipped with automatic lid sorting and automatic lid hanging functions, and can be equipped with
an automatic lidding device to realize fully automatic functions.
Long service life: the sealing wheel is made of special material, wear-resistant.
Tel/Whatsapp/wechat:+8615621625363
email:liquidfiller@tongda-jixie.com
Grace liu
one nozzle aluminum lid closure
one nozzle aluminum caps sealing machine,above type with press/plug head,this cap with inner caps,it can be application for glass bottled oil....
4nozzles aluminum lid closure machine
the capability can reach 3000-4500bottles per hour
6heads aluminum caps sealing machine,the capability can reach 5000-6000bottles per hour
Detailed Images
aluminun lids sealing heads
The advantages are: first, the four-jaw balanced head is adopted in the structure, and the force is evenly applied during sealing; the second is the sealing function of first deforming the bottle cap according to the shape of the bottle mouth, and then rolling the thread and flanging.
hopper
storage the caps
once can put several hundreds caps,auto drop
and put caps.there are lots probes on the chute,it sense the caps lack or full.
auto drop caps or stop
chute
caps feeder aisle,the chute width and height depend on outer diameter of cap and height,
generally,difference 1mm with cap diameter.
when you have various types caps,pls tell us your every cap'outer diameter and height.
we would custom matched chute for you.
hand wheel
adjust the capping heads height,to adapt for the bottle's height
screw
the screw is nylon materials,durable,dial bottles entering into below capping heads
star wheel
the star wheel dial the bottles turing,materials:nylon,food grade
elevator
auto lift the caps into hopper,
once can put thousand caps,and convenyor belt to transfer to top.
model | output | power | adapt bottle diameter | adapt bottle mouth diameter | bottle height | dimension |
TY-A | 2000b/h | 0.75kw | 30-90mm | 20-32mm | 100-330mm | L1000*W1100*H1700mm |
HYF-4 | 4500b/h | 1.5kw | 30-90mm | 20-32mm | 100-330mm | L1300*W986*H1925mm |
HYF-6 | 6000b/h | 1.5kw | 30-90mm | 20-32mm | 100-330mm | L1500*W1000*H1925mm |
HYF-8 | 8000b/h | 2.2kw | 30-90mm | 20-32mm | 100-330mm | L1700*W1100*H2000mm |
HYF-12 | 10000-12000b/h | 3.6kw | 30-90mm | 20-32mm | 100-330mm | L2000*W1200*H2000mm |
Bottle cap sample
22mm aluminum ropp cap 28mm aluminum ropp cap 38mm aluminum lid ropp cap sleeve aluminum caps
ALUMINUM CAPS/LID IN THE FILLING LINE
the aluminum lid capping machine have seceral kinds,according to different caps need
