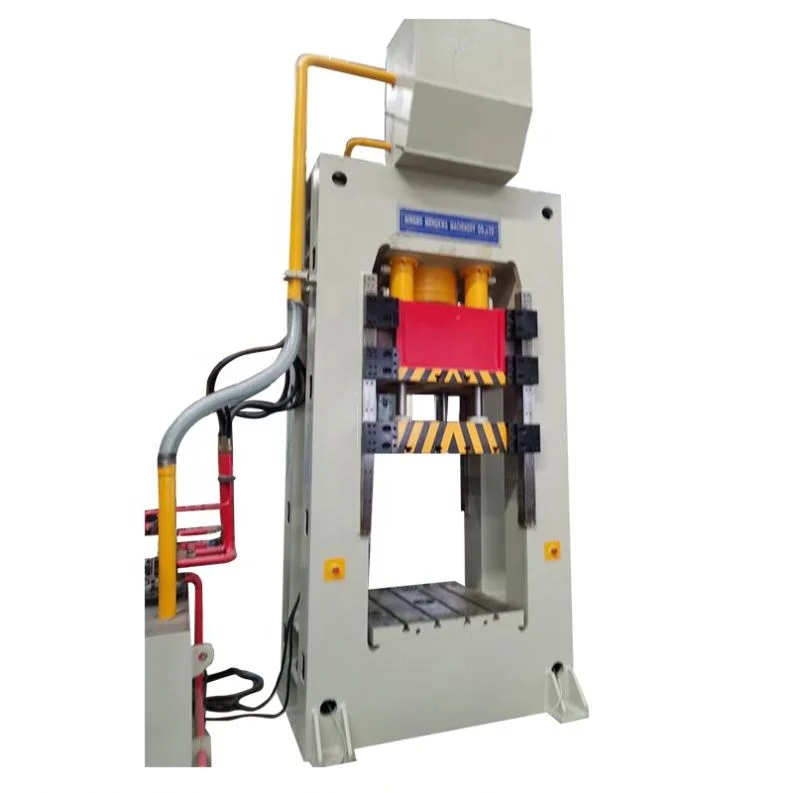

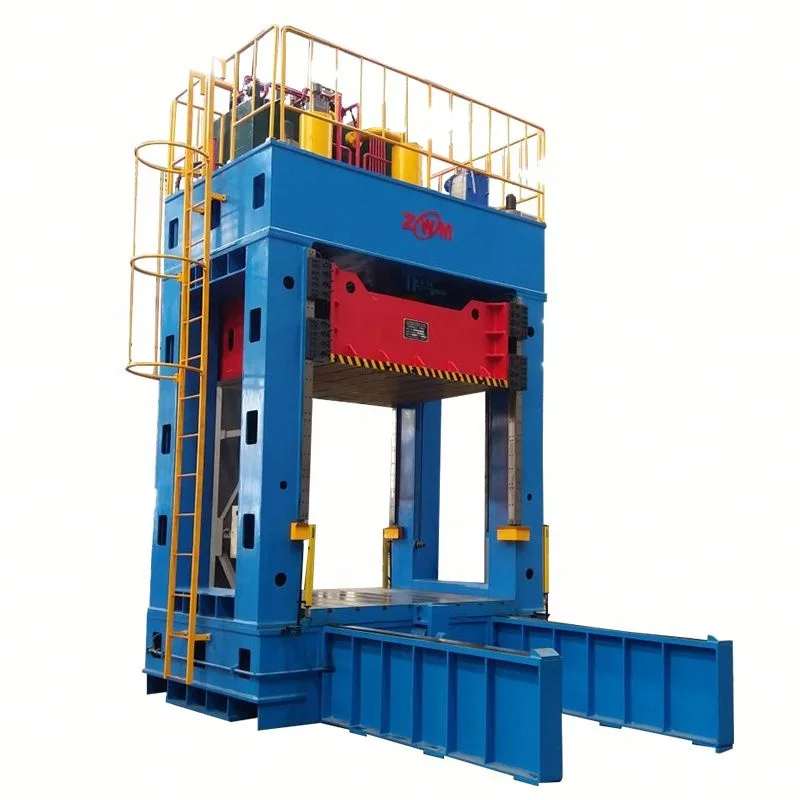

Deep drawing hydraulic press for 200 tons Hydroforming Press Machine

Feature:

Application

This machine is widely used in forging industry, for produce stamping parts, stretch steel, cutting, punching and so on.

1. Auto parts, brake pads, fuel tanks, chassis, bumpers;

2. Household appliances: washing machines, rice cookers, televisions, refrigerators, air conditioners and other parts;

3. Kitchen appliances: washing tanks, pots, stainless steel cutlery, and other various containers;

4. Others: tractors, motorcycles, aviation, and aerospace.



Technical Performance

The design is mature, stable, safe and high efficiency, machine has a high market share.

The machine passed the EU CE certification and ISO quality system certification

Manual and semi-automatic operation methods

The working pressure, travel range of slider can be adjusted according to process requirements. Two process modes for choose:

constant pressure process and constant stroke process

The slider has two speeds, fast and slow speed mode, is convenient for the operator to control the workpiece.

Sliders and tables have T –slots, easy for installation of molds.

Four-column guides ensure stable accuracy and easy maintenance .

Deep drawing hydraulic press for 200 tons Hydroforming Press Machine

Machine model:

MODEL	Nominal  force	Knock-out pressure	Max.hydraulic pressure	Slide Stroke	Daylight	Effective table		Dimension			Motor
						L-R	F-B	L-R	F-B	Height
	KN	KN	MPa	mm	mm	mm	mm	mm	mm	mm	KW
YZWK34-40	400	120	25	350	500	500	460	1800	1200	2600	4
YZWK34-63	630	190	25	400	700	560	500	2400	1400	3100	7.5
YZWK34-100A	1000	190	25	600	900	720	580	2500	1500	3150	7.5
YZWK34-100	1000	110	25	600	900	720	580	2700	1700	3400	11
YZWK34-160C	1600	400	25	700	1000	1000	800	2700	1700	3400	11
YZWK34-200	2000	400	25	700	1100	1000	900	2825	1500	3725	15
YZWK34-315	3150	630	25	800	1250	1260	1200	3235	1500	4295	18.5
YZWK34-400	4000	630	25	800	1250	1240	1200	3235	1500	4500	22
YZWK34-500	5000	1000	25	900	1500	1400	1400	4060	1800	4995	37
YZWK34-500C	5000	1000	25	900	1500	2200	1400	6500	1800	4740	37
YZWK34-630	6300	1000	25	900	1500	1500	1500	4200	2000	5600	44
YZWK34-800	8000	1600	25	900	1600	1700	1600	4800	4000	6000	60
YZWK34-1000	10000	2000	25	900	1600	1800	1700	5200	4300	6450	60
YZWK34-1250	12500	2000	25	900	1600	2000	1800	5200	4300	6450	74
YZWK34-1600	16000	2000	25	1000	1800	2400	2000	6500	4500	6500	90
YZWK34-2000	20000	2000	25	1200	2000	2500	2000	6500	4500	6800	148
YZWK34-2500	25000	4000	25	900	1800	2500	2400	6600	4500	8450	148
YZWK34-3000	30000	4000	25	1200	1800	3000	2500	8000	4600	10000	180
YZWK34-3500	35000	4000	25	1200	2500	3000	2500	8000	3500	11000	250
YZWK34-4000	40000	4000	25	900	1500	4500	2500	9500	3700	7650	350
YZWK34-5000	50000	8000	25	900	1500	4500	2500	10000	3700	7850	450
