Характеристики
Product Description
Embedded System Android9.0 IMX8 Development Board

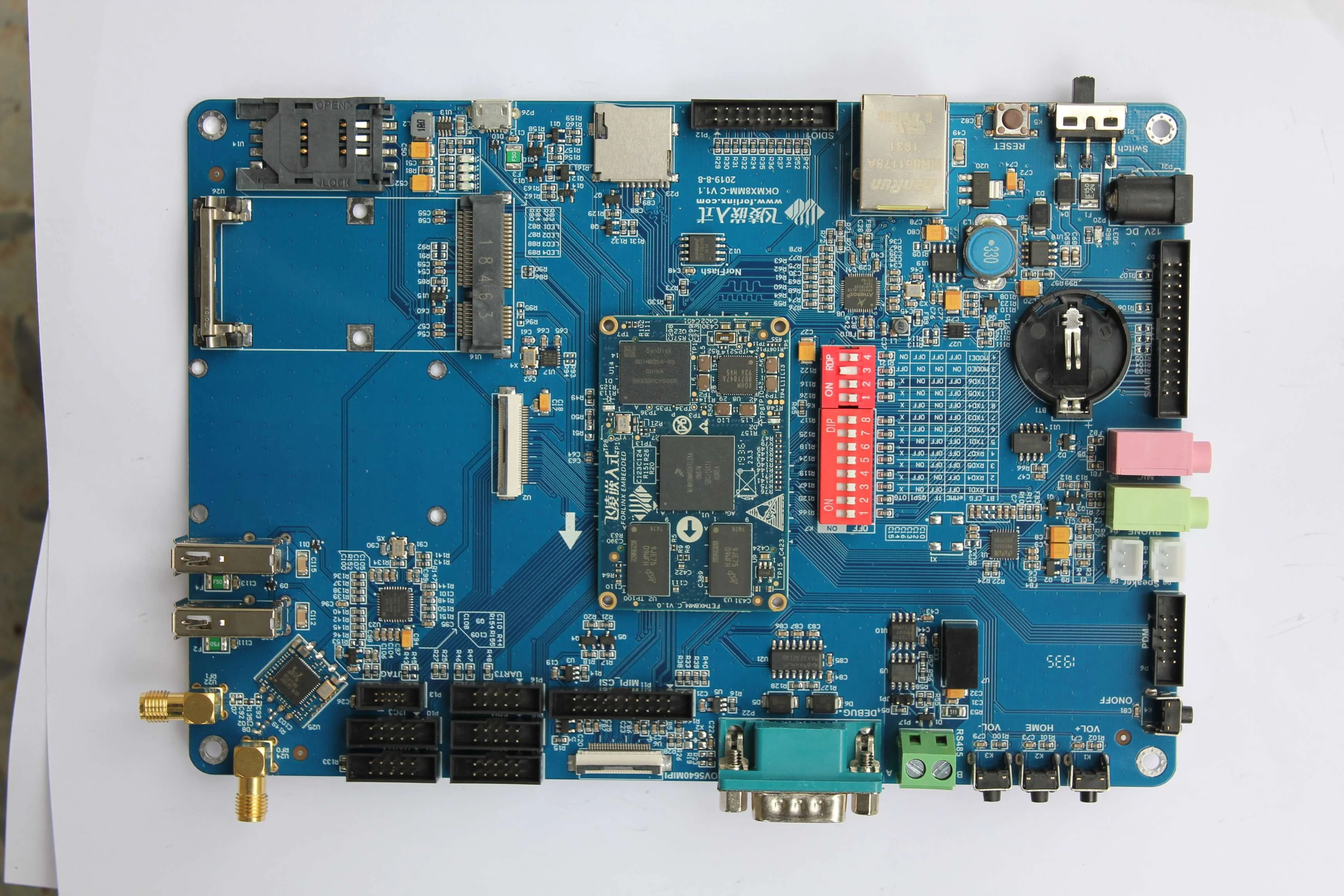

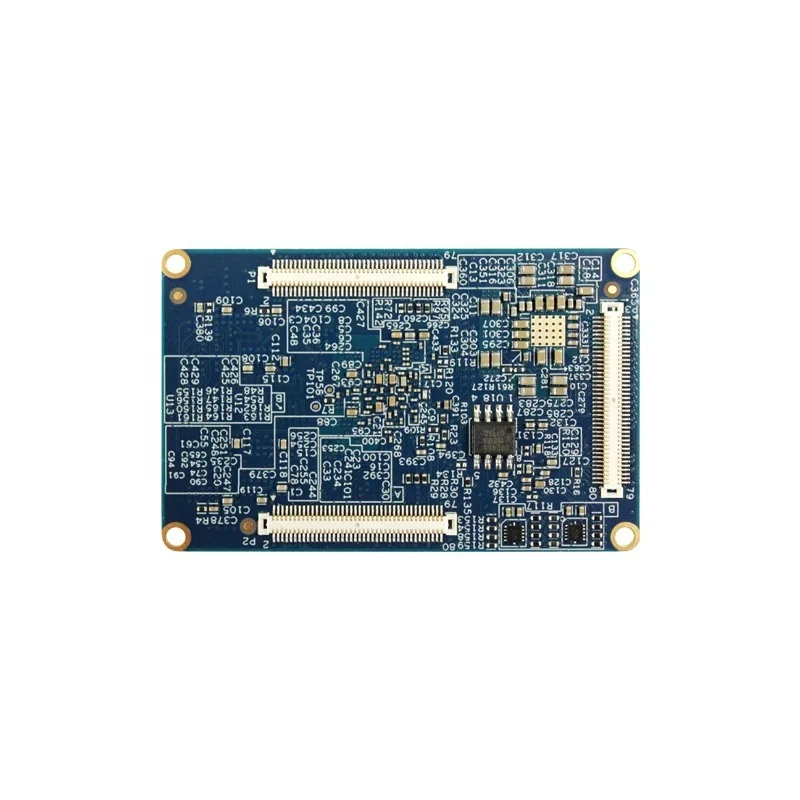

OKMX8MM-C development board designed based on NXP i.MX8M Mini quad-core and 64-bit processor with frequency up to 1.8GHz, it consists of carrier board and system on module. System on module connects to carrier board via three ultra-thin connectors, each connector has 80 pins with pitch of 0.5mm. It has on-board 2GB DDR4 RAM, can support a general Cortex-M4 processor with frequency up to 400MHz. It can support multiple audio interfaces, such as IIS, AC97, TDM, PDM and SPDIF. And also it can support multiple peripherals, such as MIPI-CSI, MIPI-DSI, USB, PCIe, UART, eCPSI, IIC and Gigabit.

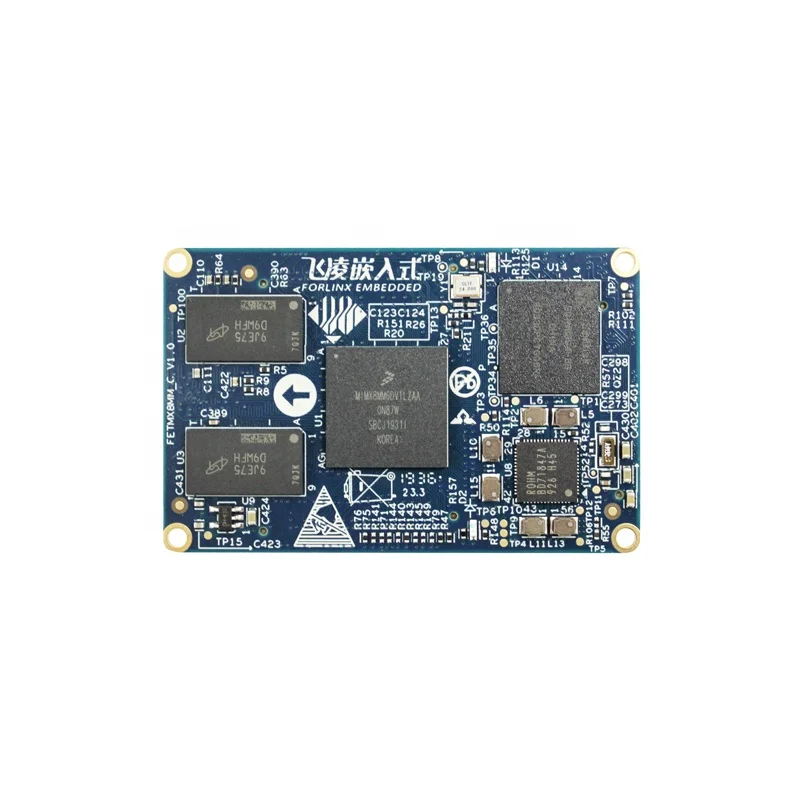

SoM FETMX8MM-C Features | ||||||
CPU | i.MX8M Mini@ 1.8GHz | Architecture | ARM Cortex-A53+ Cortex-M4 | |||
OS | Android9.0, Linux3.14.78+ QT5.10 | Dimensions | 56mm* 36mm | |||
RAM | 2GB DDR4 | Voltage Input | 5V | |||
Flash | 8GB eMMC, | Package | board-to-board connection | |||
Working Temp | 0℃~+70℃ | RH | 10%~ 90% non-condensing | |||
Peripheral | QTY | Spec. | ||||
Camera | 1 | 4-lane, up to 1.5Gbps | ||||
SD/ SDIO | ≤2 | 1.8V and 3.3V modes | ||||
USB | 2 | USB2.0 (up to 480Mbps), can be configured to OTG | ||||
SAI | ≤5 | |||||
UART | ≤4 | each can support up to 4.0Mbps | ||||
eCSPI | ≤3 | up to 52Mbit/s, can be configured to host/ slave mode | ||||
IIC | ≤4 | 320Kbps | ||||
≤1 | 10/ 100/ 1000Mbps auoto-negotiation | |||||
PWM | ≤4 | 16-bit | ||||
JTAG | supported | |||||
FlexSPI | 1 | single pad/ dual pad/ quad pad mode | ||||
Display | 1 | 4-lane MIPI, up to 1.5Gbps | ||||
PDM | ≤1 | up to 4-lane 8 channels | ||||
PCIe | 1 | PCIe2.0 | ||||
OKMX8MM-C Carrier Board Features | ||||
Peripherals | QTY | Spec. | ||
MINI-DSI | 1 | 4 data lanes, V1.01r11, resoltuion up to WQHD(1920x 1080P@60FPS, 24bpp) | ||
MIPI-CSI | 1 | 4 lanes, OV5640 | ||
Audio | 1 | 1x MIC, 1x Phone, 2x Speaker | ||
PDM | 1 | a 10-pin header with pitch of 2mm | ||
SAI | 1 | by a 26-pin header with pitch of 2mm | ||
USB Host | 2 | expanded by hub, USB2.0(up to 480Mbps) | ||
USB OTG | 1 | standard micro-USB connector, USB2.0 (up to 480Mbps) | ||
Ethernet | 1 | 10/ 100/ 1000Mbps auto-negotiation, RJ45 connector | ||
Mini PCIe | 1 | can support 4G wireless module, support PCIe2.0 single channel | ||
WIFI& BT | 1 | Model: F23BUUM13-W2 WIFI standard: IEEE 802.11b/ g/n, 2.4GHz BT: V2.1+ EDR/ BT v3.0/ BT4.0 | ||
TF Card | 1 | Compatible SD, SDHC and SDXC(UHS-1) | ||
SDIO | 1 | a 20-pin header with pitch of 2mm, 8-bit | ||
SPI | 2 | a 10-pin header wth pitch of 2mm | ||
QSPI | 1 | on-board 16MB QSPI NOR Flash | ||
PWM | 1 | for display backlight | ||
IIC | 4 | standard mode 100kbits/ s, fast mode 320kbits/ s | ||
UART | 1 | UART3: 3-wire, 3.3V, up to 4.0Mbps | ||
UART-Debug | 1 | UART2: RS232, DB9 header, default baud rate 115200 (for Cortex-A53) | ||
1 | UART4: 3.3V, by a 10-pin header with ptich of 2mm (for Cortex-M4) | |||
RS485 | 1 | isolated, up to 500kbps | ||
JTAG | 1 | |||

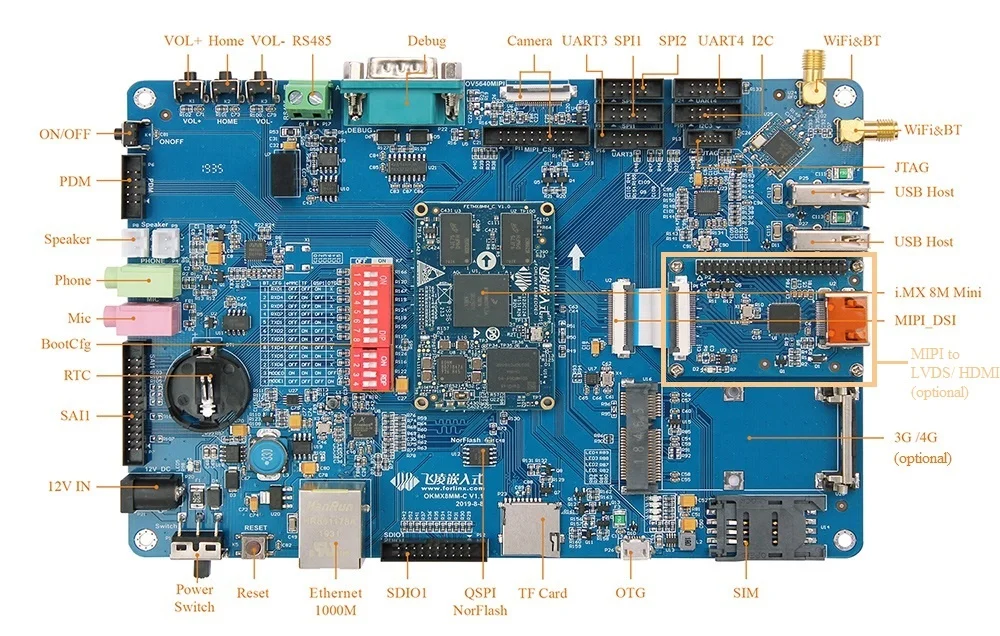

OKMX8MM-C Pin Diagram
OKMX8MM-C consists of carrier board and SoM, the board can support MIPI DSI output which can be converted to HDMI/ LVDS, MIPI to HDMI/ LVDS is an optional module.
Packing & Delivery
Accessory of a development board including power adapter, debug cable
generally, the packing will be a development board a box (23*19*9cm)
