Full Automatic Film Capacitor Winding Machine

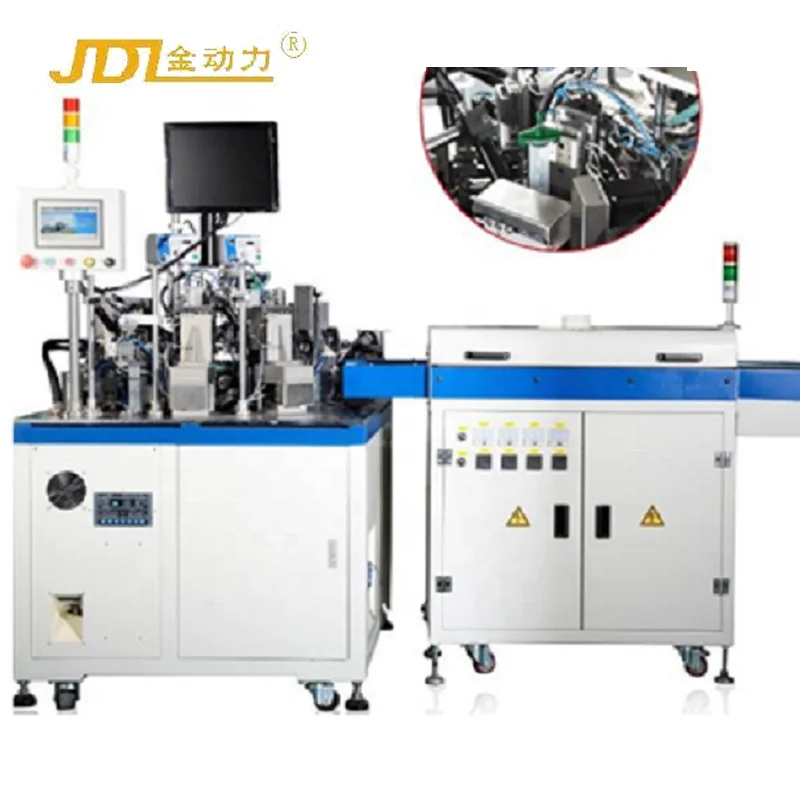

High Quality Automatic Toroidal Transformer Core Winding Machine Replace Jovil, Gorman, Ruff Winding Machine

AM-NRRX-11



Application:Be used for winding,gluing and baking of NR20-NR80 series inductor products.

Performance and Parameters:

Applicable product:NR20-NR80 series inductance core.

Applicable wire diameter:0.06mm-0.25mm

Feeding mode:vibrating disc automatic feeding.

Winding mode:single axle winding

The rotation rate of single axle:Max. 4000 rpm.

Number of coil:can be set freely

Work turn of partition disk:counter-clockwise(sixteen station)

Machine capacity:1.2-1.8KPCS/H

Operation control way:Imported PLC control is adopted.The man-machine interface is intuitionistic ,simple and convenient and can meet the demand of NC and humanity.

Working environment:-5℃-50℃(there is no corrosive and harmful gas and flying dust etc severe environment)

Machine size :L2500*W1200*H1600mm

The wight of machine:around 500KG(including tunnel furnace)

Power supply:single phase AC220V and 50HZ

Air supply:0.5-0.7Mpa

Power:9KW(including baking tunnel furnace)



Machine features:

1.HD camera real-time monitors spot welding and the effect of gluing and ensures the excellent quality of product.

2.During the time of baking,temperature can be set freely with automatic constant temperature and temperature compensation functions.Over temperature alarm is set to ensure the percent of pass of product.

Details:
