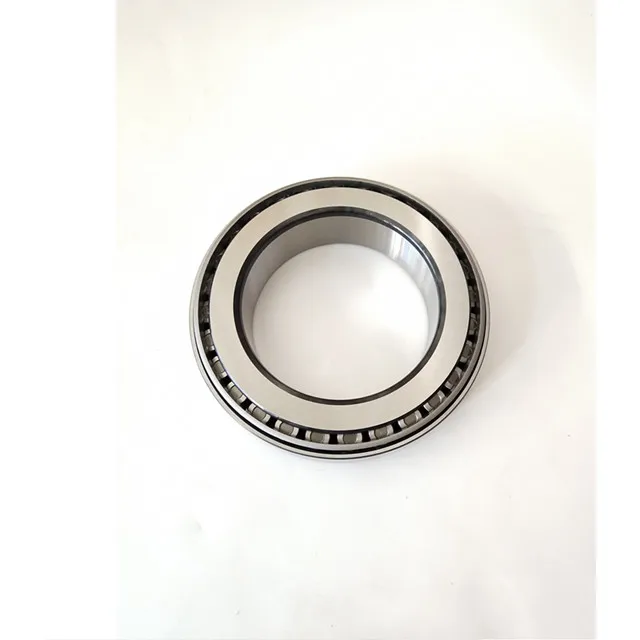

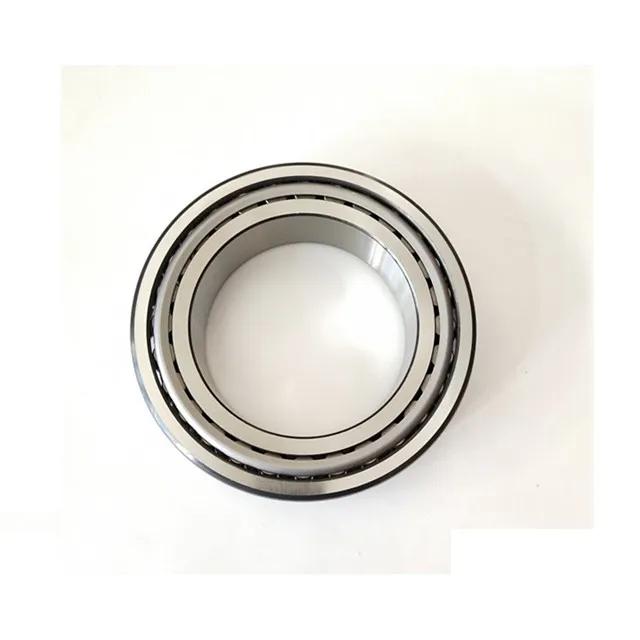

Oem автозапчасти подшипника редуктора R60-44 60x90x12 5 автомобиля использованы высокоскоростные конический роликовый
- Категория: Конический роликовый подшипник >>>
- Поставщик: Shandong,Bohong,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4.54 $* | 4.5 $* |
| Jul-16-2025 | 3.46 $* | 3.10 $* |
| Jun-16-2025 | 4.83 $* | 4.11 $* |
| May-16-2025 | 4.20 $* | 4.75 $* |
| Apr-16-2025 | 3.86 $* | 3.49 $* |
| Mar-16-2025 | 4.86 $* | 4.3 $* |
| Feb-16-2025 | 4.75 $* | 4.73 $* |
| Jan-16-2025 | 4.14 $* | 4.54 $* |
Характеристики
oem auto parts gearbox bearing R60-44 60x90x12.5 car used high speed tapered roller bearing
Product Description
Tapered roller bearings consist of four interdependent components: the cone (inner ring), the cup (outer ring), the tapered rollers (rolling elements) and the cage (roller retainer). Tapered roller bearings are uniquely designed to manage both thrust and radial loads between a rotating and non-rotating member. The steeper the cup angle, the greater the ability of the bearing to handle thrust loads.

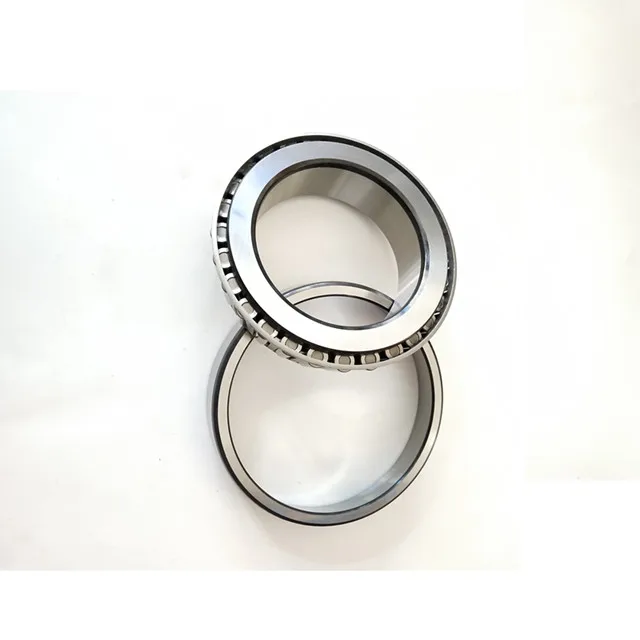

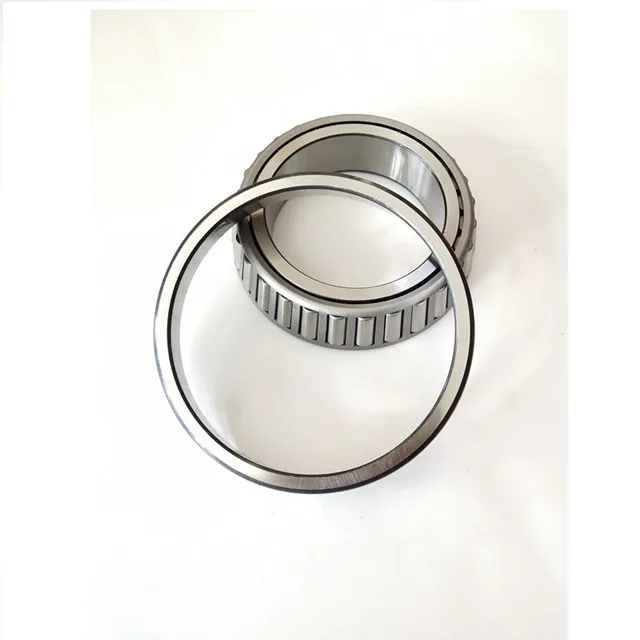

This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.
tapered roller bearing fit industries:
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.
tapered roller bearing benefits:
Enhanced performance in demanding applications.
tapered roller bearing catalogue
| Bearing | Specification | Rated Load(KN) | Speed(r/min) | Weight | ||||
| No. | d(mm) | D(mm) | W(mm) | Cr(N) | Cor(N) | Grease | Oil | kg |
| 30202 | 15 | 35 | 11.75 | 15.8 | 14.4 | 22000 | 28000 | 0.053 |
| 30203 | 17 | 40 | 13.25 | 21.2 | 21.3 | 19000 | 27000 | 0.075 |
| 30204 | 20 | 47 | 15.25 | 28.2 | 30.6 | 22000 | 28000 | 0.126 |
| 30205 | 25 | 52 | 16.25 | 29.4 | 22.54 | 20000 | 25000 | 0.157 |
| 30206 | 30 | 62 | 17.25 | 45.4 | 50.5 | 18000 | 24000 | 0.231 |
| 30207 | 35 | 72 | 18.25 | 56.8 | 63.5 | 20000 | 25000 | 0.331 |
| 30208 | 40 | 80 | 19.75 | 63 | 74 | 17000 | 22000 | 0.422 |
| 30209 | 45 | 85 | 20.75 | 71.3 | 83.8 | 16000 | 22000 | 0.474 |
| 30210 | 50 | 90 | 21.75 | 73.3 | 92.1 | 17000 | 22000 | 0.53 |
| 30211 | 55 | 100 | 22.75 | 94.6 | 112.8 | 15000 | 20000 | 0.712 |
| 30212 | 60 | 110 | 23.75 | 103.3 | 130 | 14000 | 19000 | 0.904 |
| 30213 | 65 | 120 | 24.75 | 120.6 | 152.6 | 15000 | 20000 | 1.13 |
| 30214 | 70 | 125 | 26.25 | 138.3 | 173.7 | 13000 | 18000 | 1.261 |
| 30215 | 75 | 130 | 27.25 | 138.4 | 185.4 | 12000 | 16000 | 1.36 |
| 30216 | 80 | 140 | 28.25 | 167.7 | 212.9 | 13000 | 18000 | 1.675 |
| 30217 | 85 | 150 | 30.5 | 177.6 | 236.8 | 11000 | 16000 | 2.06 |
