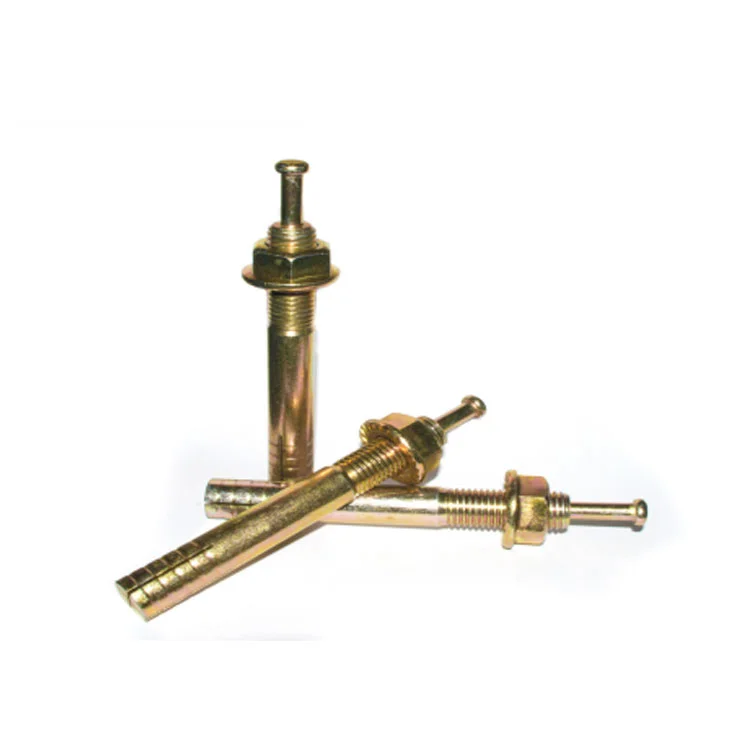

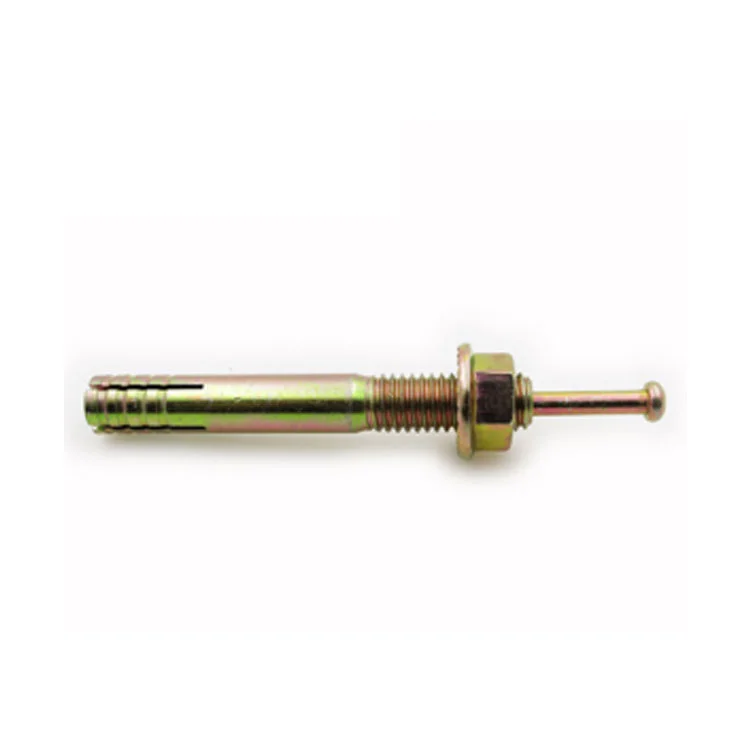

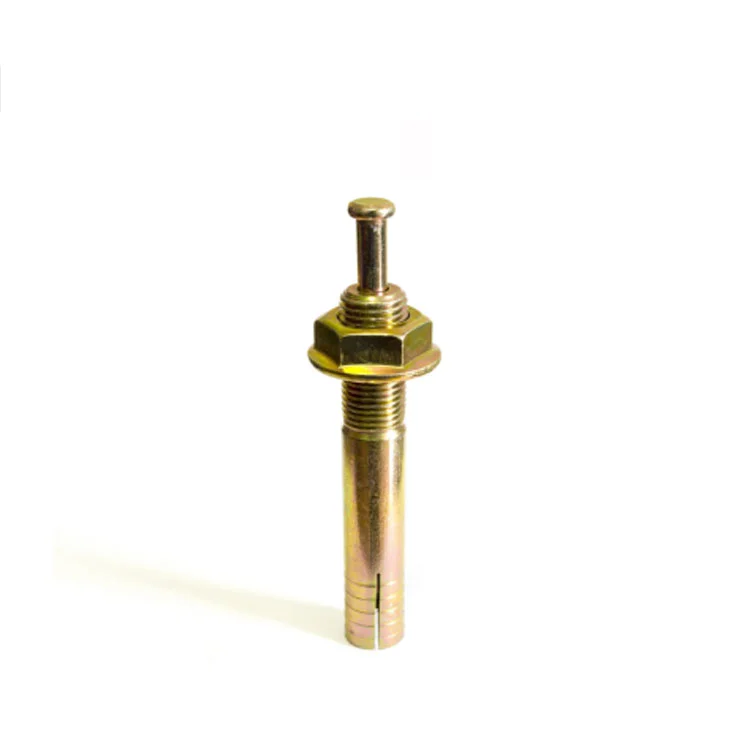

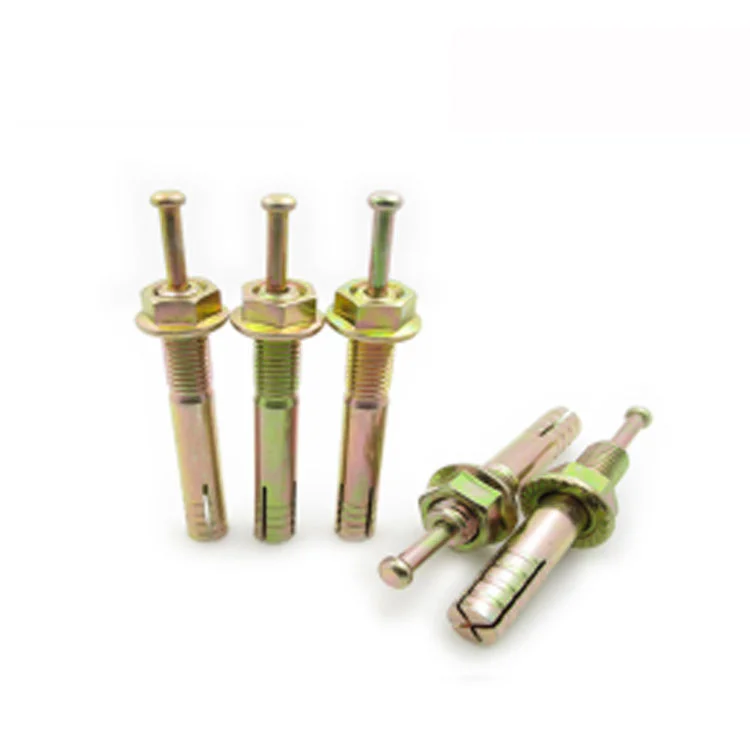

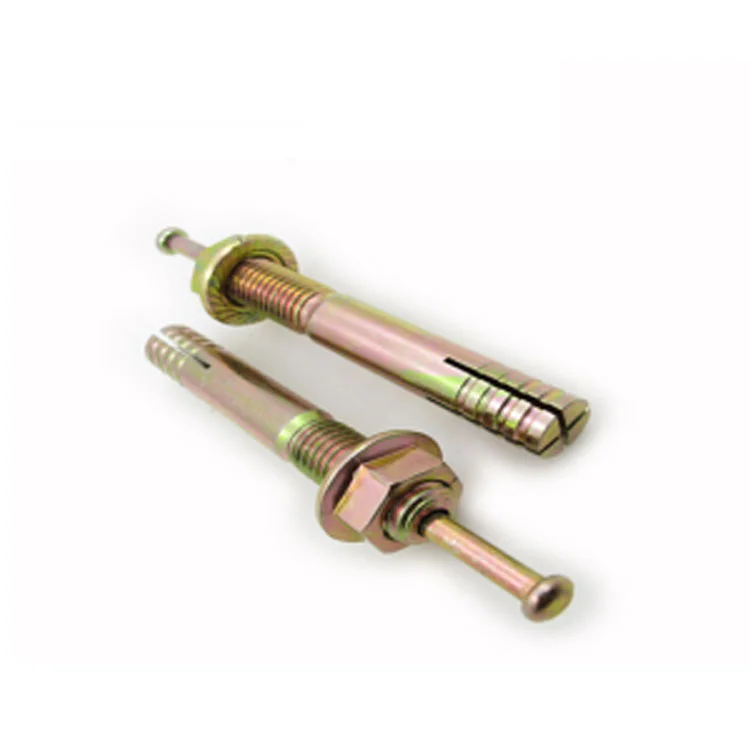

Желтая цинковая металлическая Тяжелая анкерная установка анкерный болт с

Описание и отзывы

Трекер стоимости

Характеристики

  Shanghai Rock Industry Development Co., Ltd.We are a professional hardware parts OEM manufacturer, we mainly provide customized services, according to your drawings to produce the corresponding products, our price is very favorable, waiting for your inquiry.

Items	Description		Picture
Material	Carbon steel, Stainless Steel, Alloy Steel, etc.
Surface treatment	Zinc Plated, yellow zinc, Nickel, Chrome, etc.
Size	40-300MM
Standard	Din or according to customer
Used	Curtain Wall, Buildings, Highway, Bridge, etc

Welcoming send us an inquiry with your dimensions. We provide 24hours*7days service.      Click here for more information!

D	M8	M10	M12	M14	M16	M18	M20
d	12	14	16	18	22	25	25

Technical parameters

Epoxy Size	Thread Rod Size	Hole diameter(mm)	Hole depth(mm)	Max anchoring thickness(mm)
M8	M8*110	10	80	13
M10	M10*130	12	90	20
M12	M12*160	14	110	25
M16	M16*190	18	125	35
M20	M20*260	22	170	65



Size	Design Tension	Destroy Tension	Design Shear	Ultimate Shear
M8	7.4	19	7.7	11.4
M10	12.8	30.2	12.6	18.1
M12	14.5	43.8	18.3	26.3
M16	28.9	70.9	34.6	49
M20	52.4	127.4	53.5	76.4

Process forging, strict control
High quality raw materials processing
high plasticity good fatigue resistance
