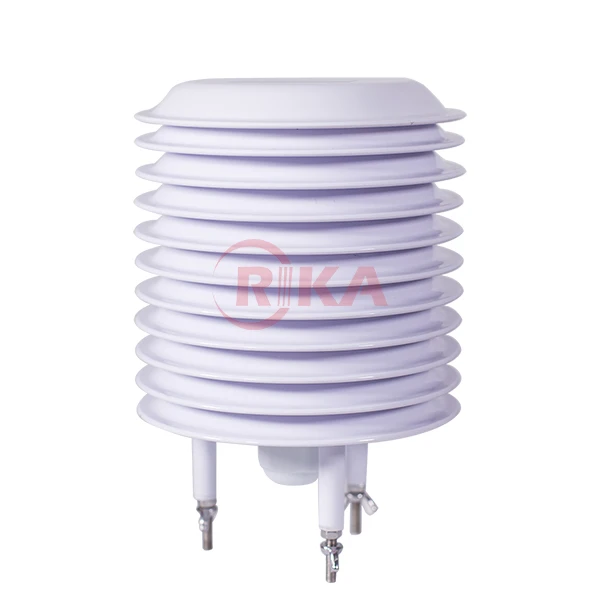

RIKA RK95-01 4-20 Plates ABS Solar UV Radiation Protection Shield for Temperature Humidity Sensor Shielding
Product Description
The Multi-Plate Radiation Shield protects temperature,relative humidity or barometric pressure sensors from error-producing solar radiation and precipitation. This shield relies on a combination of plate geometry, material and natural ventilation to provide effective shielding. The radiation shield reflect sunlight from any direction, prevent sun direct radiation and reflection on the ground to the sensor radiation, to protect the instrument from the effects of strong winds, rain, snow, etc.Freely through the air, making instrument work in ventilated environment, to ensure the accuracy of measured data.Products with high reflectivity and low thermal conductivity, resistance to ultraviolet ray function, can be used in extreme weather conditions.
Installation Tips
- Good air circulation around shield
- Away from large masses (asphalt, masts, solar panels) especially metal items
- Away from exhaust vents,electrical machinery and motors
- Away from standing water, water fountains and sprinklers
Specifications:
Specifications | |
Number of plates | (6 plates)4 -20 plates optional,typ.:11,14,19 |
Color | White |
Material | Anti-radiation ABS engineering plastics & Stainless steel screw |
Operating temperature | -40℃-+75℃ |
Dimension | Inner diameter:62mm,Outer diameter:140mm/180mm Height:180mm(11 plates),220mm(14 plates),280mm(19 plates) |

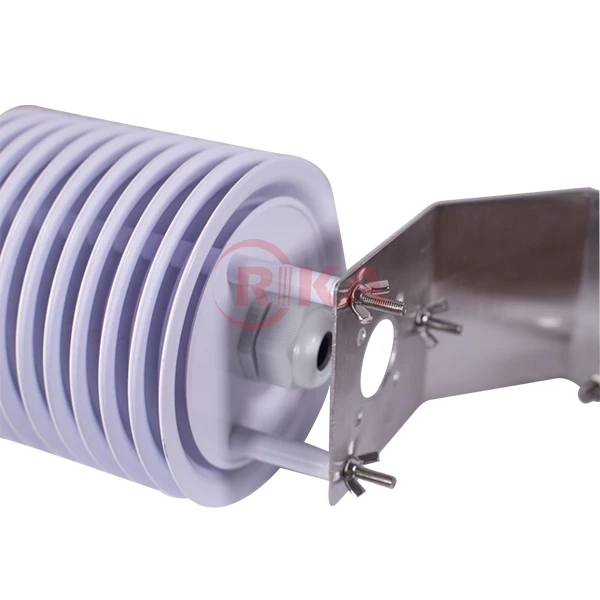

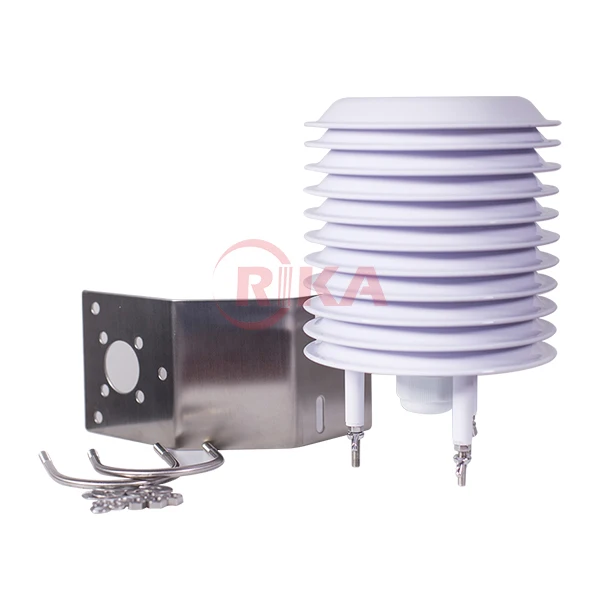

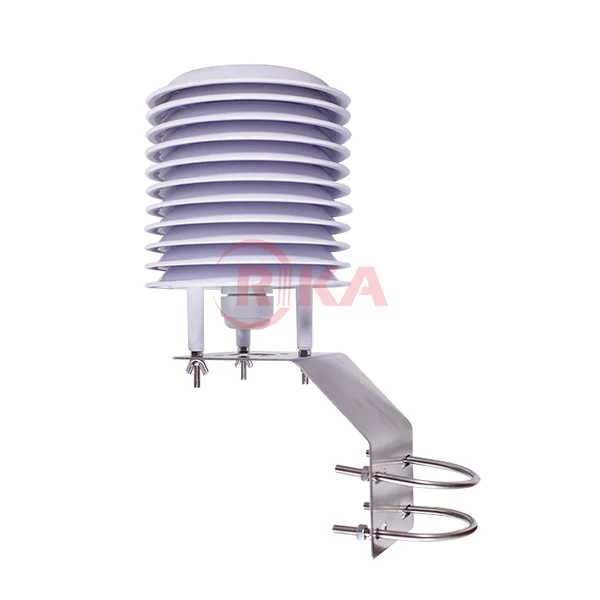

Optional accessories | Metal bracket(304SS),Embrace hoop screw(304SS) |
Details show
In order to recommend proper products to you, please tell meyour information below:
1. How many plates you need ? -- The standard plates is 11plates, 4-20plates optional
2. Do you need the mounting bracket ?-- It is optional, the mountng bracket is made of 304SS

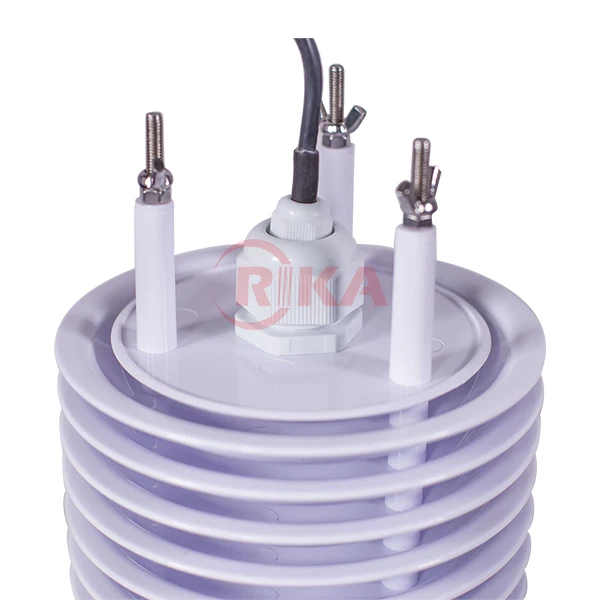

3. What connector you need ? -- The standard connector is PG7, please confirm it according to your sensor's diameter.
4. Quantity?
5. Price items: CIF or Exw or FOB ? -- If CIF please tell us your detail shipping address for freight calulation.
6. Your complete company name,address, post code,contact person, tele, fax etc.
