Рок-погрузчик Mucking в сочетании с шаттболом на
- Категория: Другие фермы для майнинга >>>
- Поставщик: Shandong,Hekuang,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 29750.48 $* | 31238.10 $* |
| Aug-16-2025 | 29500.89 $* | 30975.85 $* |
| Jul-16-2025 | 24750.47 $* | 25988.30 $* |
| Jun-16-2025 | 29000.94 $* | 30450.53 $* |
| May-16-2025 | 25250.1 $* | 26513.48 $* |
| Apr-16-2025 | 28500.75 $* | 29925.94 $* |
| Mar-16-2025 | 28250.21 $* | 29663.39 $* |
| Feb-16-2025 | 28000.19 $* | 29400.78 $* |
| Jan-16-2025 | 27750.55 $* | 29138.58 $* |
Характеристики
Product Description

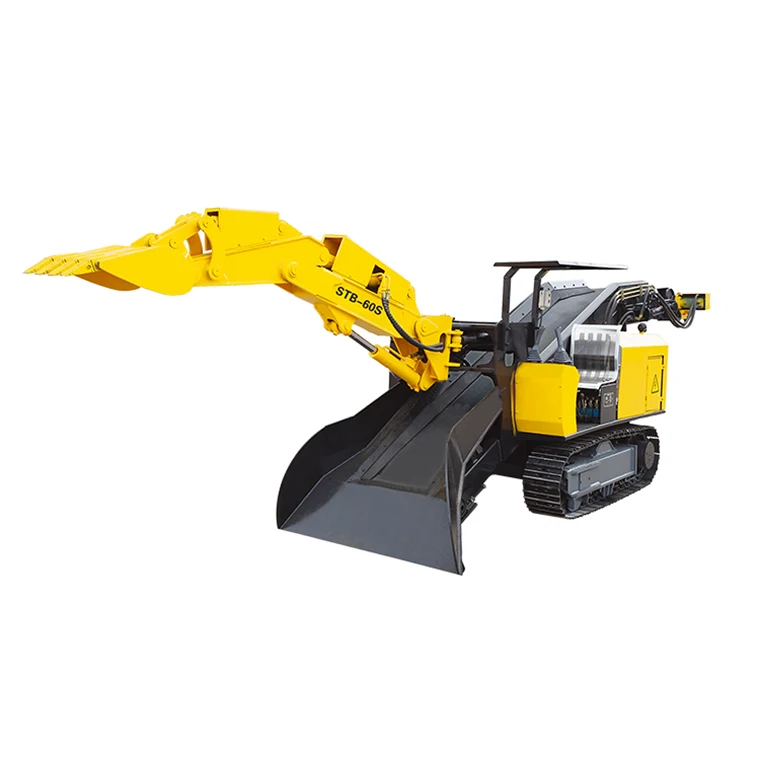

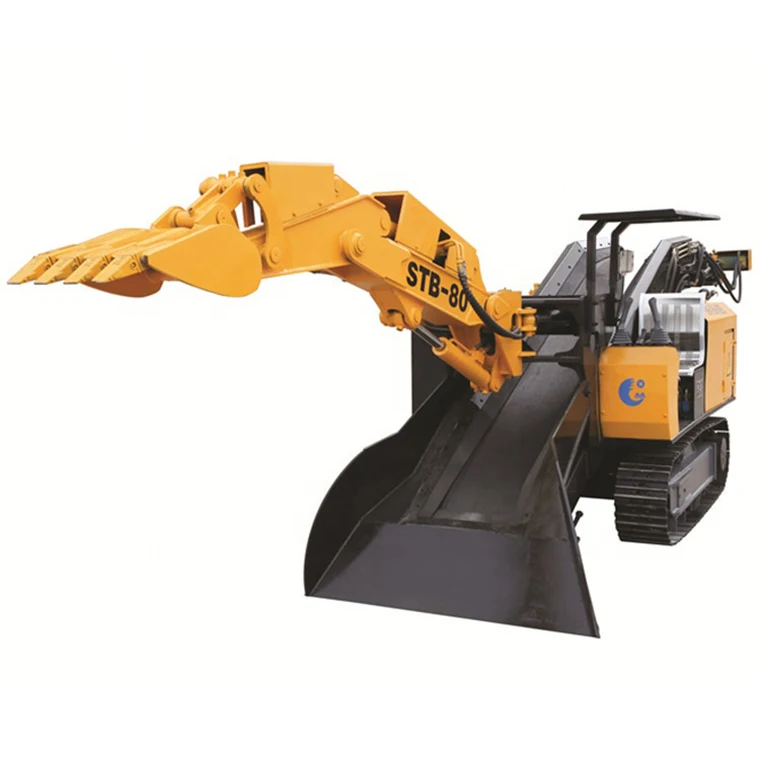

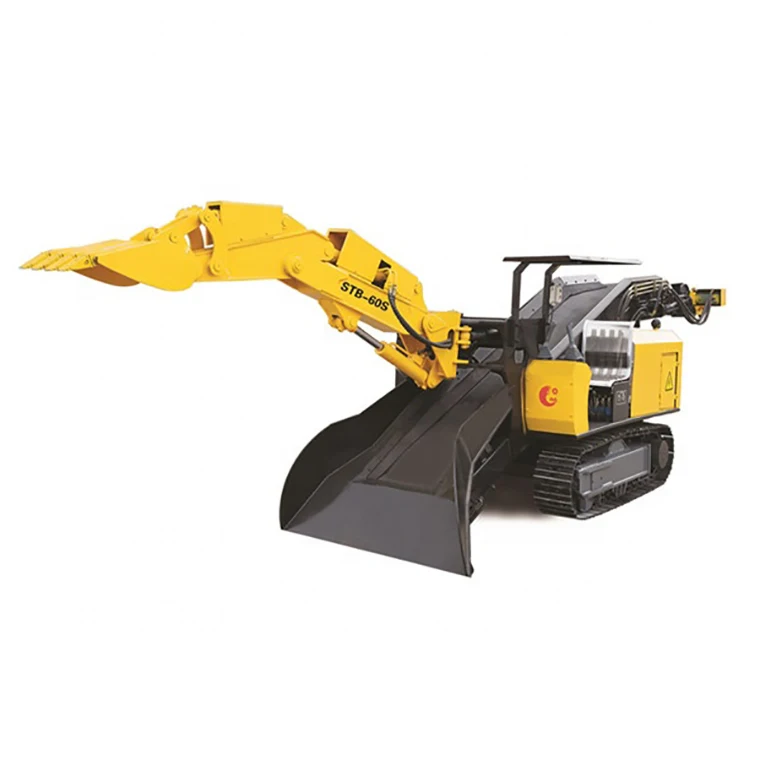

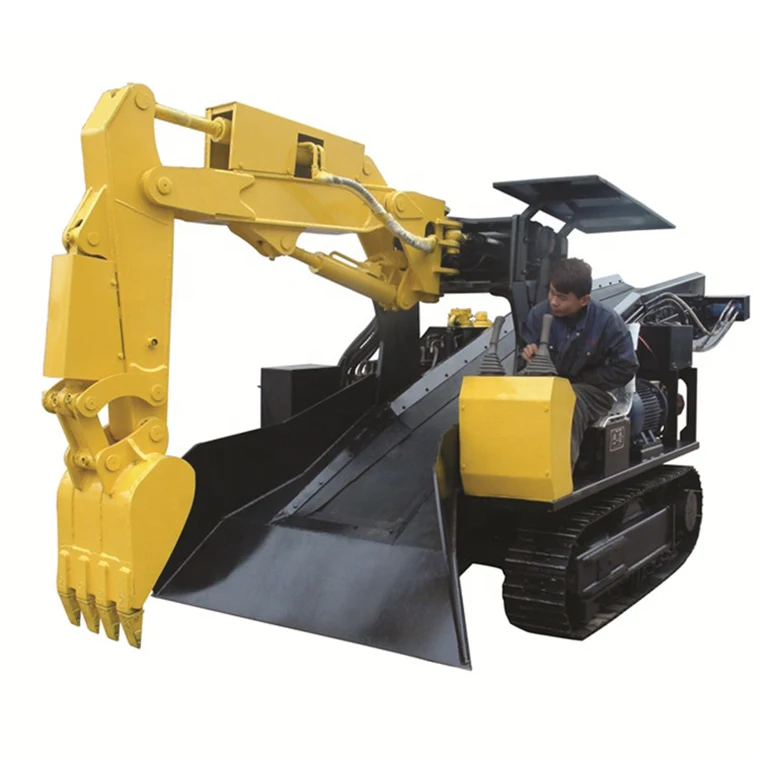

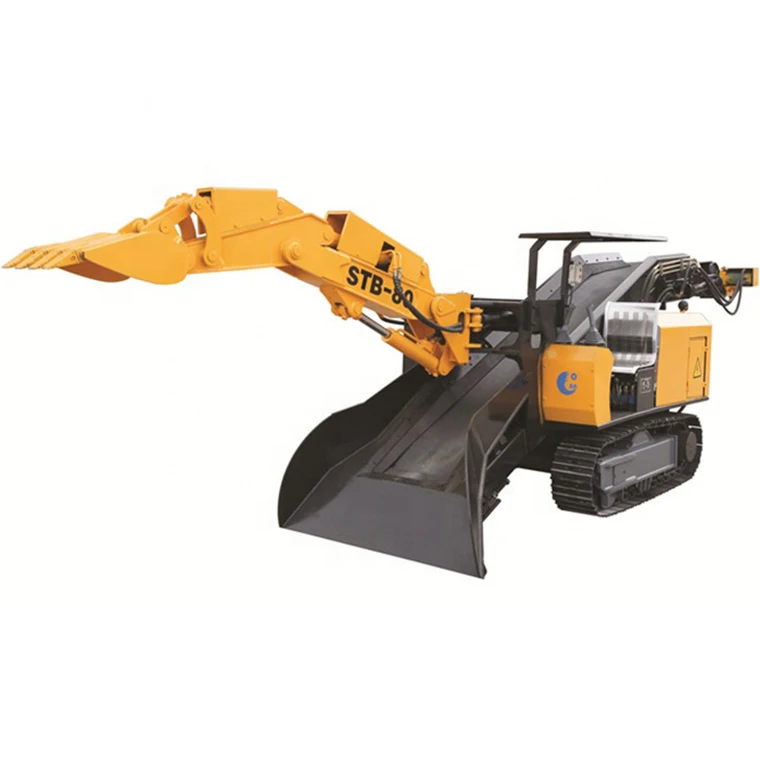

Mucking Rock loader Combined with Shuttle Car on Wheel
STB-60S crawler belt conveyor type mucking machine is a kind of high efficiency continuous production mining equipment, mainly used for narrow space mining operations, such as metal mines, non-metallic mines, water diversion tunnel, etc. Its function is collect the gravel soil of each project,transport and load. the machine is driven by the crawler. It has a large driving force and a wide range of extraction. The whole section is loaded with rock without leaving a dead corner. It does not need manual cleaning the working surface. This machine adopts hydraulic pilot operation, which is easy and convenient to operate, reliable in performance, has seats, and has a driving shed, which greatly reduces the labor intensity of workers, work easy, accurate in positioning, fast in conveying speed, has characters as safe,reliable, environmentally efficient, and manpower saving,etc. it is fully ergonomic. Its power can be divided into motor and diesel type.
Widely Slag Range And Big Force Crawler Mucking Loader For Mining Tunnel coal muck shovel loader
| TYPE | STB-60S | STB-80S |
| WEIGHT(T) | 7.8 | 8.6 |
| DIMENSION(L*W*H) | 5000*1650*1750 | 5200*1600*1800 |
| LOADING CAPACITY(M3/H) | 60 | 80 |
| MIN.TURNING RADIUS(MM) | 5500 | 5500 |
| GRADIENT(°) | ≤20 | ≤30 |
| TRAVELING SPEED(M/MIN) | 2-4.5 | 2.1-3.8 |
| GROUND CLEARANCE(MM) | 200 | 230 |
| NOMINAL WORKING PRESSURE(MPA) | 20 | 25 |
| MOTOR POWER(KW) | 22 | 30/37 |
| MAX.MATERIALS SIZE(L*W*H) | 680*580*500 | 650*700*650 |
| APPLICABLE SECTION(W*H)M | ≥2.0*2.0 | ≥2.2*2.2/2.6*2.6 |
FAQ
Q: What is the delivery time ?
A: Normally the leadtime is 10 days after receipt of the deposit.
Q: What is the Payment terms ?
A: TT Or L/C.
Q: What is the warranty of the products ?
A: One year.
Q: Are you manufacturer or trading company ?
A: We are manufacturer,not dealer.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you customize the products as per request ?
A: Yes,we can customize your products.
Q: Where is the products are used?
A: The products are used for mining in the tunnel of coal mine or metal mine or non-metal mine.
Q: What is the drive mode of your products ?
A: The products drive mode is electric drive.
Q: Can the products be installed dual power –diesel engine and electric power ?
A: Yes,we can make the products with diesel engine and electric power
.
Q: What is the usage of the products ?
A: The products are multiple function integrating walking, digging,collecting,conveying,discharge.
