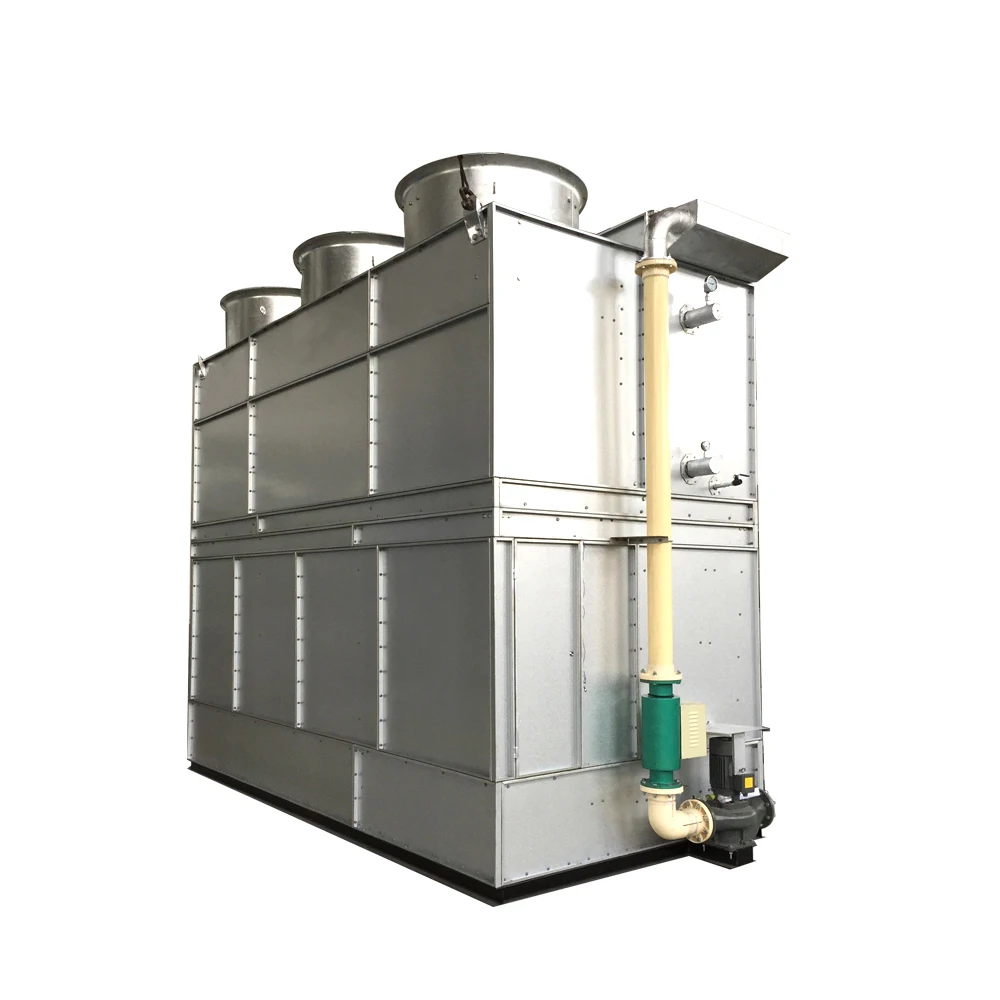

Китайский Испарительный конденсатор аммиака NH3

Китайский Испарительный конденсатор аммиака NH3

Категория: Cooling Tower >>>
Поставщик: Yantai,Grand,Machinery,Engineering,Co.,Ltd.

Цена:7 000,00 $ - 7 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	8330.9 $*	8747.12 $*
Aug-19-2025	8260.28 $*	8673.89 $*
Jul-19-2025	6930.69 $*	7277.3 $*
Jun-19-2025	8120.84 $*	8526.17 $*
May-19-2025	7070.63 $*	7424.78 $*
Apr-19-2025	7980.71 $*	8379.24 $*
Mar-19-2025	7910.15 $*	8306.22 $*
Feb-19-2025	7840.52 $*	8232.89 $*
Jan-19-2025	7770.78 $*	8159.15 $*

Характеристики

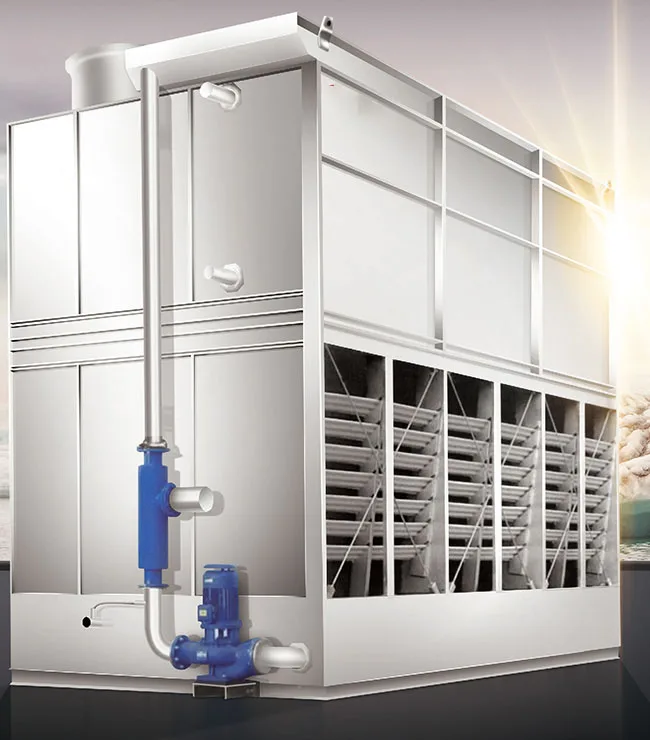

Product Description

Conception and Application

Evaporative condenser is one of the main heat exchange equipment in refrigerating system, its major task to cool the high temperature that compressor discharged and super heated stream to be liquid refrigerant.

Evaporative condenser is applied widely in the bellowing industry:
Business refrigerating system: food processing, logistics fruit and vegetable storage, dairy and drink. brewing and ferment, etc.

Industry refrigerating system: petrochemical processing, paper making and metallurgy, pharmacy, water and electrical power, coal and mining, etc.

Features of products

Evaporative condenser is a combination of condenser, cooling tower, water pump and water tank which has compact structure Compared with the old condensing system. because of the installation and the roof does not take up valuable land resources And easy installation, short time and less cost at the same time Thus. In terms of initial investment,evaporative condenser costs less than the old condensing system.

Old condensing system doesn't have any corrosion prevention. Due to main parts of the evaporative condenser are all hot dip galvanizing,the probation period is much longer than the old condensing system.

*High reliability, ensure long time failure-free operation
*High heat exchanging efficiency and performance
*High efficiency of water filtration and economize on water source
*High standard materials and strong anti- corrosion
*Rational distribution of air and water flow, low power consumption
*Low noise meet environmental requirements
*Low management cost,convenient installation and maintaining
*Flexible arrangement and special design for clients

Detailed Images

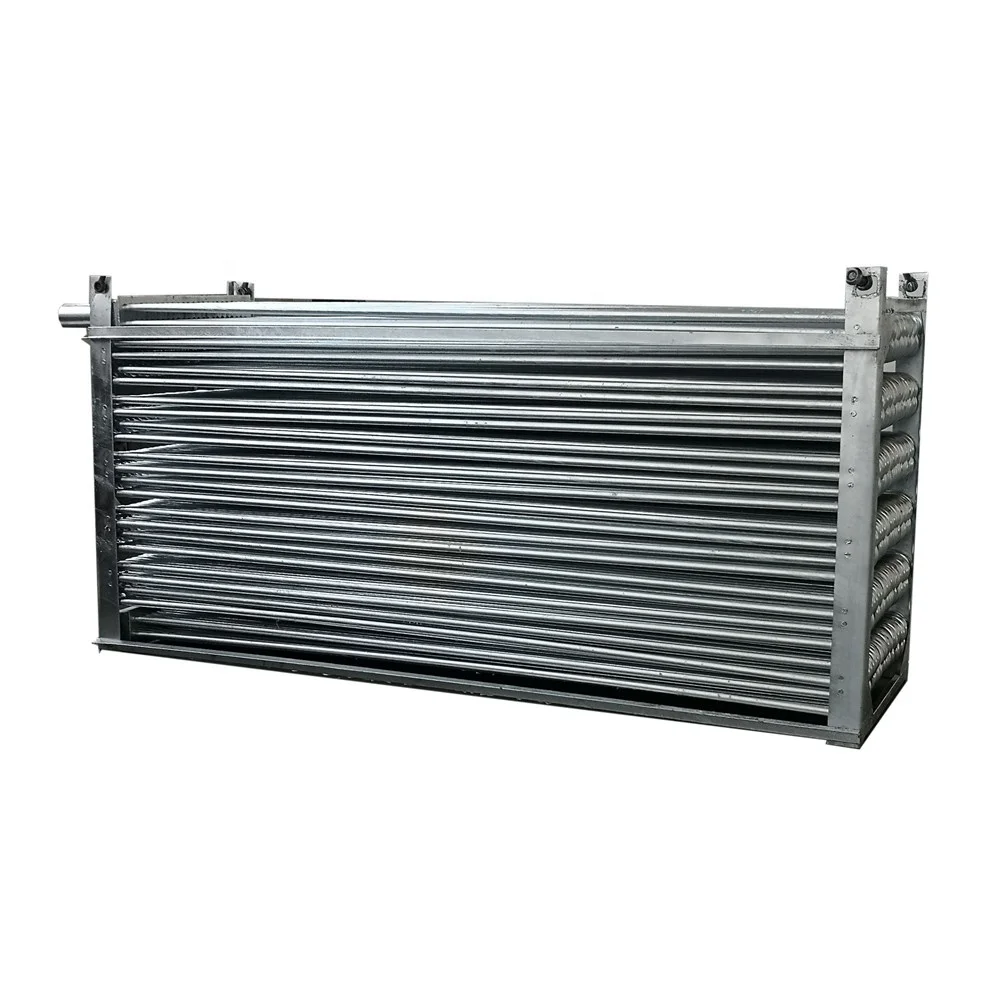

Condensing coil

Condensing coil is made of high quality 25mm seamless steel tube or 26.7 mm elliptic type high frequency welding pipe. Design pressure is 1.97 Mpa, after the coil welded,assembled and hot-dipped in zinc, it is subjected to 2.5MPa air tightness test three times in water to ensure no leakage. After assembling, the whole body was treated with ultra-thick hot dip zinc. The coils are inclined along the refrigerant flow to facilitate liquid delivery and the coil pressure drop can be reduced.

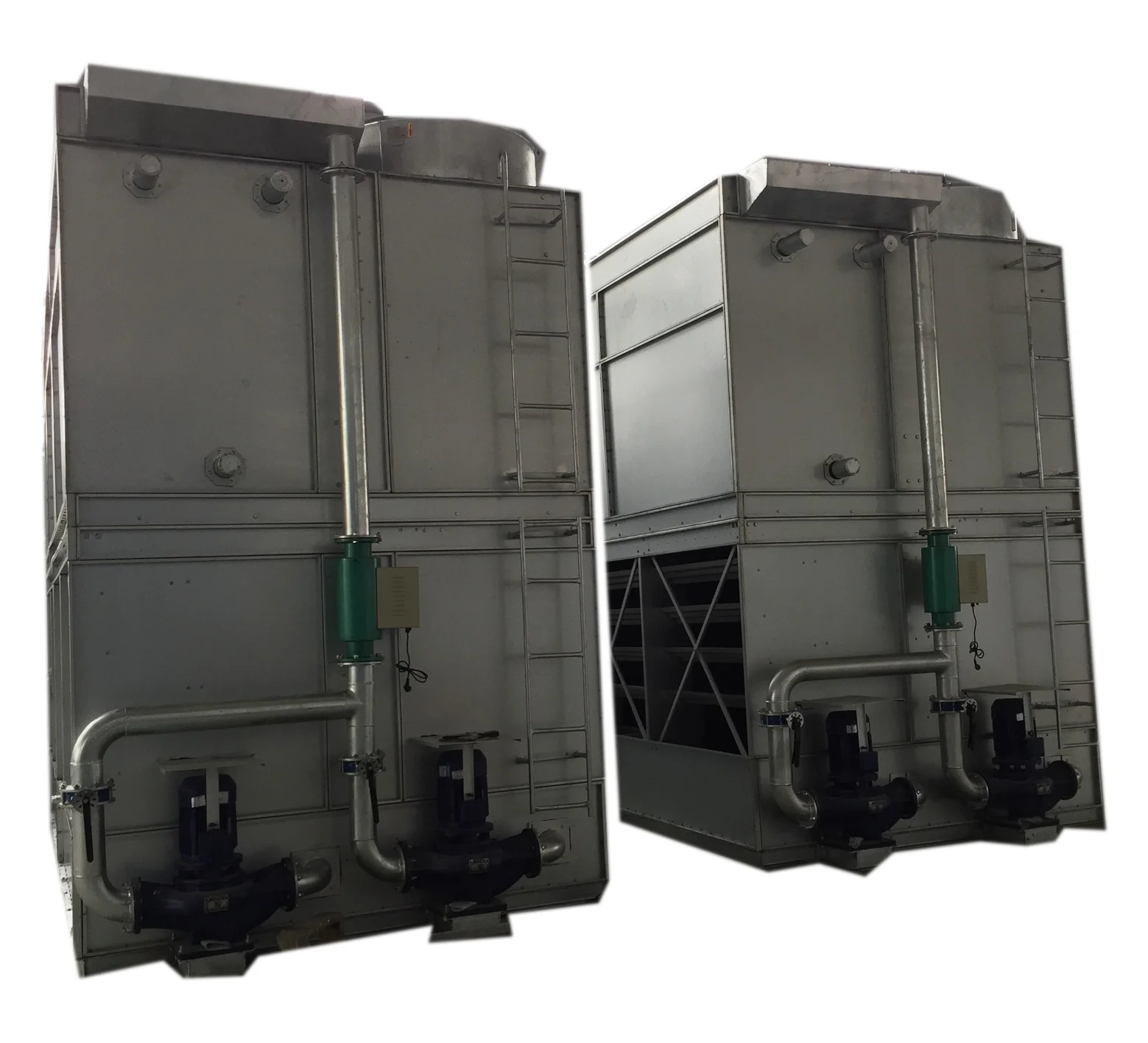

Circulation pump

The evaporation condenser cover use imported aluminium zinc plate or SS304,SS316. The imported aluminum zinc plate is one of the most corrosion-resistant galvanized sheets. It has a service life 3-6 times than ordinary galvanized sheet, and it has strong thermal resistance, excellent heat resistance , beautiful appearance and other advantages.

Axial flow fan

Our product adopt special axial fan with aluminum alloy blade. The structure design of tilting type wind page, streamline inlet air duct, no pulley drive, and adopts the fully enclosed self-cooled low noise special motor. It has the advantage of small size,light weight, good start-up performance,reliable operation and durability.

PVC filler heat exchange layer

The specially designed PVC honey comb cross-flow packing and the shortcut cross -wind structure can maximize the
heat exchange between water and air and improve the water cooling effect. It has the advantage of good fire resistance, small drag coefficient, anti-aging, and hard to deform.

Advanced water distribution system

The cooling water sprinkler system use a large flow of anti-blocking basket type water spray to ensure the continuous and uniform spraying of water on the coil assembly, in the role of the wind maximum coverage of the coil surface, so that water, air and refrigerant can have fully heat exchange, improving the heat transfer effect. The nozzle is buckled on the spray branch pipe, which can be easily disassembled when cleaning the nozzle and spray branch pipe.

Removable dehydrator

Evaporation condenser original removable dehydrator is made of corrosion-resistant PVC material. Its structure makes the air flow direction change can effectively remove the moisture from the coil, so that the water drift rate reaches 0.001 %. When the water eliminator or packing is cleaned, the eliminator can be removed easily.

Technical Parameters

Outline Drawing of Evaporative Condenser

Single room

Double rooms

Three rooms

Four rooms

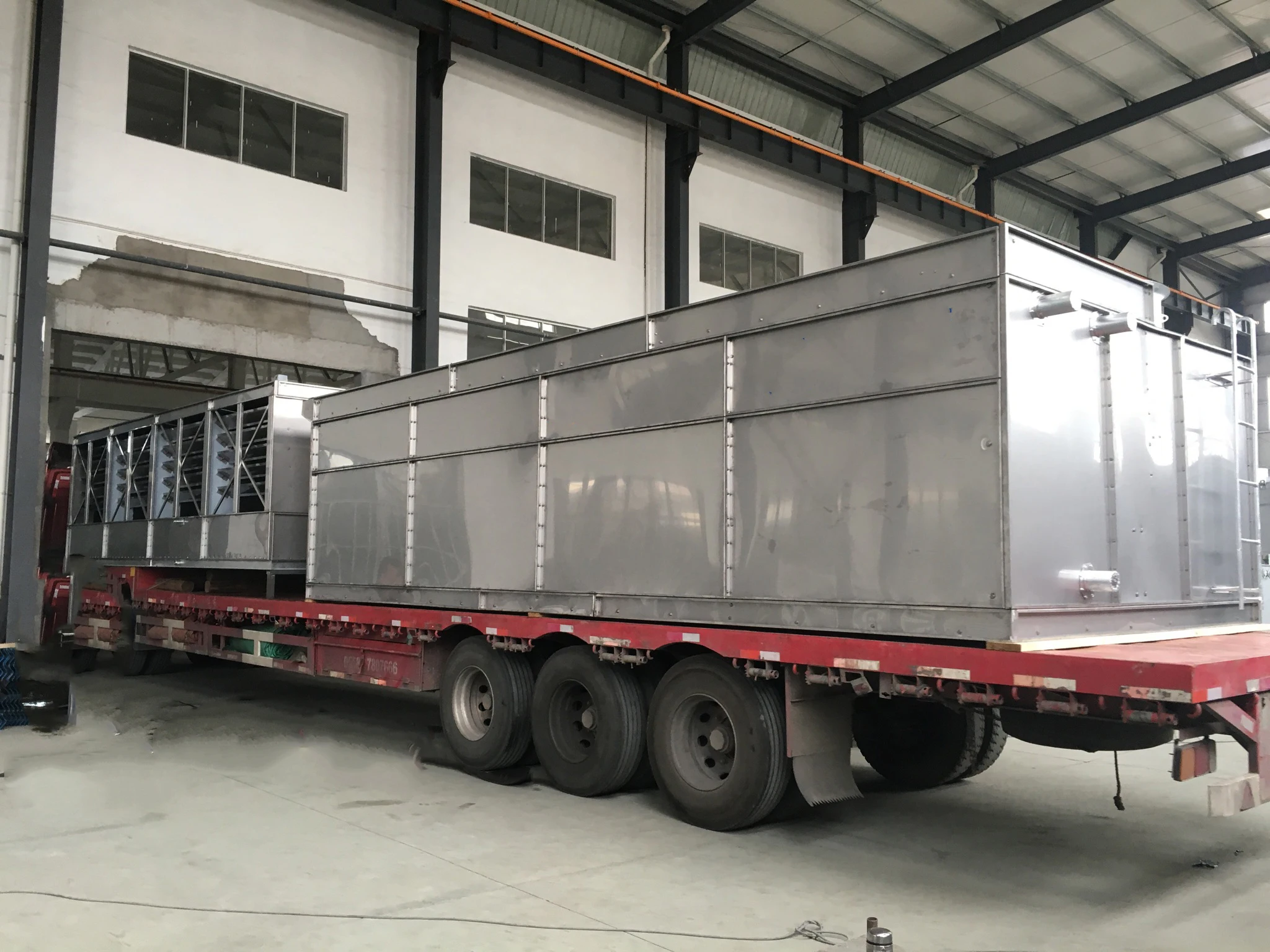

Packing&Shipping

In node

Company Introduction

Yantai Grand Machinery Engineering Co.. Ltd is located in Yantai city. We are a consulting and engineering company with main business line of industry refrigeration products.

Grand is professional on industrial refrigeration, freezing, cold storage. we offer solutions and advanced refrigeration equipment for all kinds of food processing,cooling,freezing and deep freezing project.

Our company has professional engineers who have been working in refrigeration field for many years. we could make the most cost-effective solution for our customer according to the actual situation of customer. And we cooperated with many famous brand such as Bitzer, Kobeclo, Danfoss, Mycom, Snowkey,Yantai moon, Kingspan, PFI door etc.

Our company relies on the Chinese Academy of Sciences, cooperated with University in cold room control system, structure design and refrigeration system optimization. We are willing to become one of your partners with our
high performance products, excellent quality and perfect after-sale service.

Certifications

FAQ

1 Q:Can you do OEM or produce the product in our design?
A:Yes

2 Q:Do you accept sample order?
A:Yes,but the sample is on your charge

3 Q: What is your warranty?
A: We can assure you one year against manufacturing defect.

4 Q: :What' s your normal delivery time?
A: 10-25 days against down payment (exclude the official holiday)

5 Q:How about after-sales?
A:We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.
