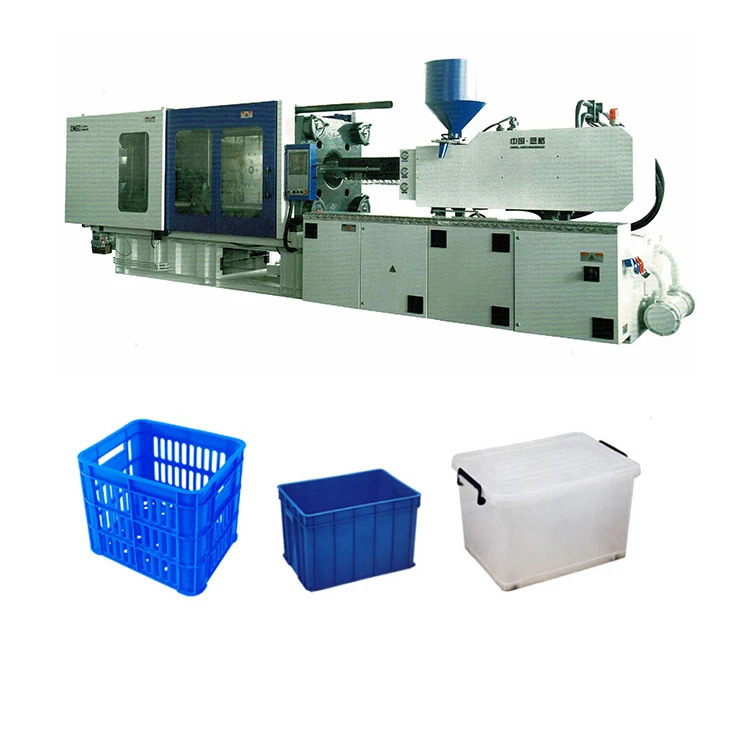

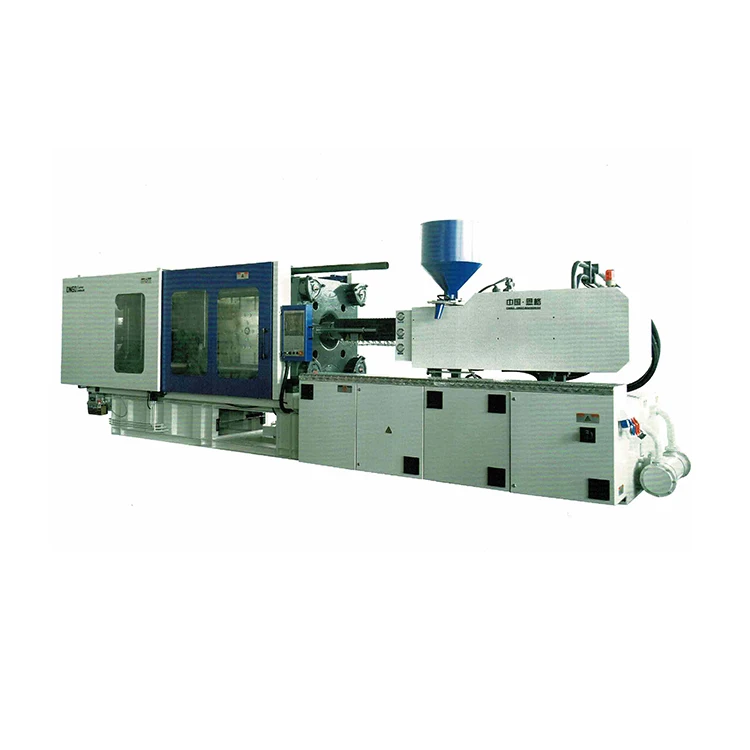

Формовочная машина ONGO для фруктовых коробок на 400 тонн горизонтальная формовочная Benchtop литья под
- Категория: Injection Molding Machines >>>
- Поставщик: Yiwu,Haipeng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.50 $* | 0.42 $* |
| Aug-16-2025 | 0.99 $* | 0.22 $* |
| Jul-16-2025 | 0.66 $* | 0.81 $* |
| Jun-16-2025 | 0.62 $* | 0.58 $* |
| May-16-2025 | 0.47 $* | 0.69 $* |
| Apr-16-2025 | 0.76 $* | 0.47 $* |
| Mar-16-2025 | 0.41 $* | 0.53 $* |
| Feb-16-2025 | 0.9 $* | 0.41 $* |
| Jan-16-2025 | 0.86 $* | 0.40 $* |
Характеристики
Buying Guides
Product Description

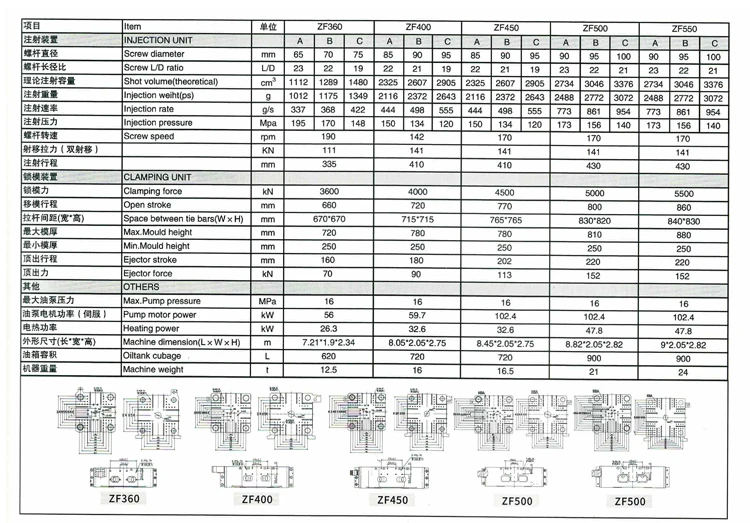

| ITEM | Unit | ZF400 | ||
| INJECTION UNIT | ||||
| Screw Diameter | mm | 85 | 90 | 95 |
| Screw L/D Ratio | L/D | 22 | 21 | 19 |
| Shot Volume(Theoretical) | cm^3 | 2325 | 2607 | 2905 |
| Injection Weight(Ps) | g | 2116 | 2372 | 2643 |
| Injection Rate | g/s | 444 | 498 | 555 |
| Injection Pressure | MPa | 150 | 134 | 120 |
| Screw Speed | rpm | 142 | ||
| Projection Pull (Double Projection) | KN | 141 | ||
| Injection stroke | mm | 410 | ||
| CLAMPING UNIT | ||||
| Clamping Force | kN | 4000 | ||
| Open Stroke | mm | 720 | ||
| Space Between Tie Bars(W*H) | mm | 715*715 | ||
| Max.Mould Height | mm | 780 | ||
| Min.Mould Height | mm | 250 | ||
| Ejector Stroke | mm | 180 | ||
| Ejector Force | kN | 90 | ||
| OTHERS | ||||
| Max.Pump Pressure | MPa | 16 | ||
| Pump Motor Power | Kw | 59.7 | ||
| Heating Power | Kw | 32.6 | ||
| Machine Dimension(L*W*H) | M | 8.05*2.05*2.75 | ||
| Oiltank Cubage | L | 720 | ||
| 000000Machine Weight | T | 16 | ||
