KSRCS-502 максимального медленного роста и 50-тонный гидравлический
- Категория: Гидравлические инструменты >>>
- Поставщик: Taizhou,Kashon,Power,Equipment,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 190.28 $* | 200.38 $* |
| Aug-15-2025 | 189.58 $* | 198.73 $* |
| Jul-15-2025 | 158.23 $* | 166.23 $* |
| Jun-15-2025 | 186.51 $* | 195.22 $* |
| May-15-2025 | 162.42 $* | 170.1 $* |
| Apr-15-2025 | 182.96 $* | 191.0 $* |
| Mar-15-2025 | 181.28 $* | 190.68 $* |
| Feb-15-2025 | 179.98 $* | 188.40 $* |
| Jan-15-2025 | 178.12 $* | 187.52 $* |
Характеристики
Product

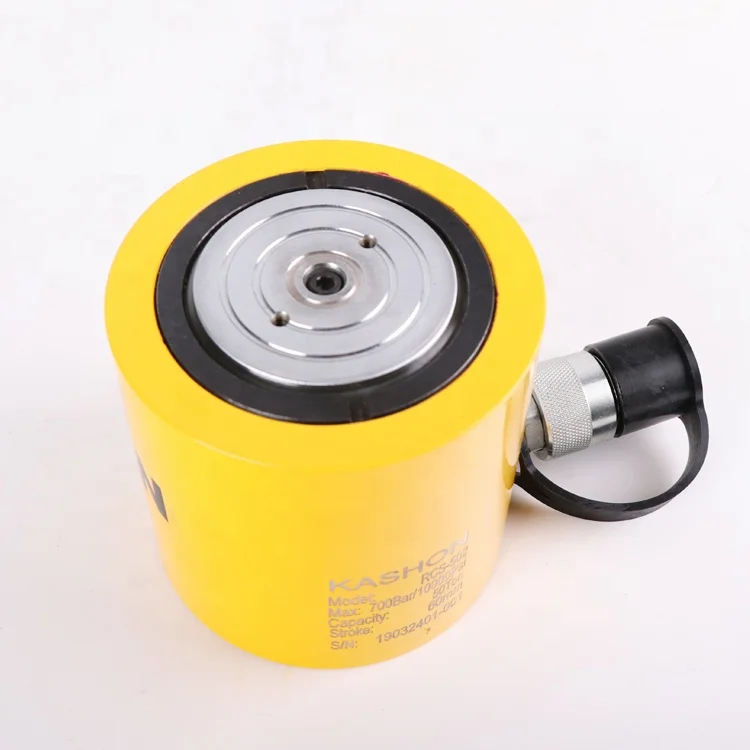

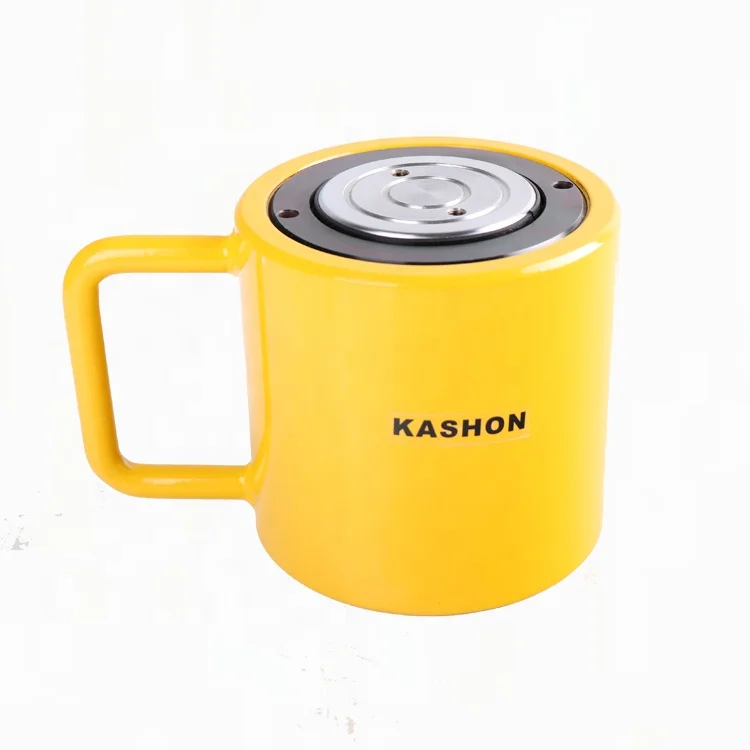

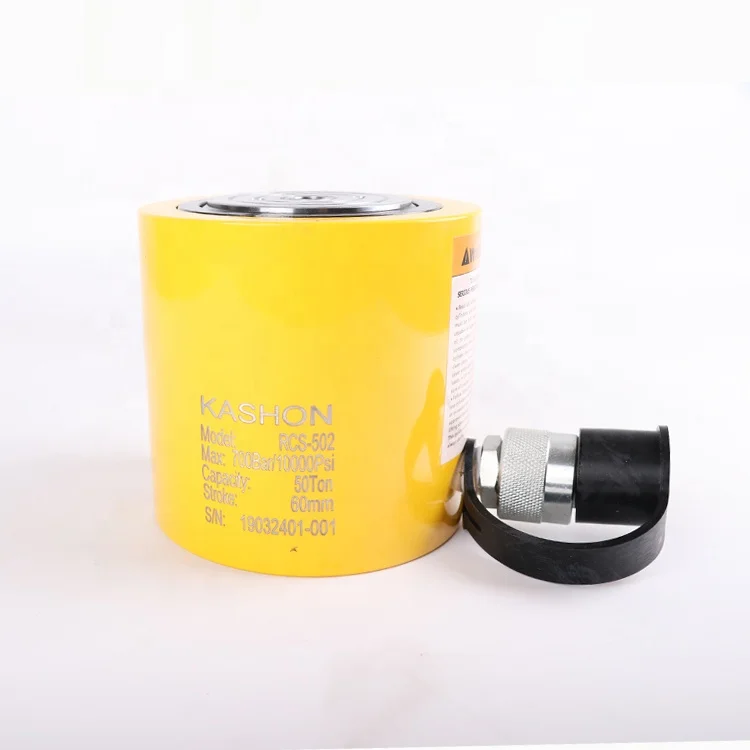

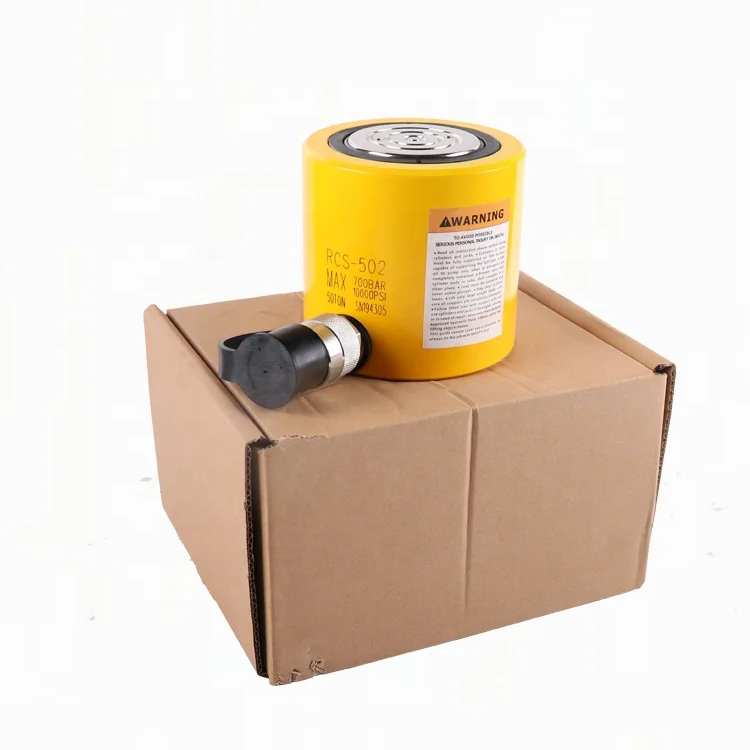

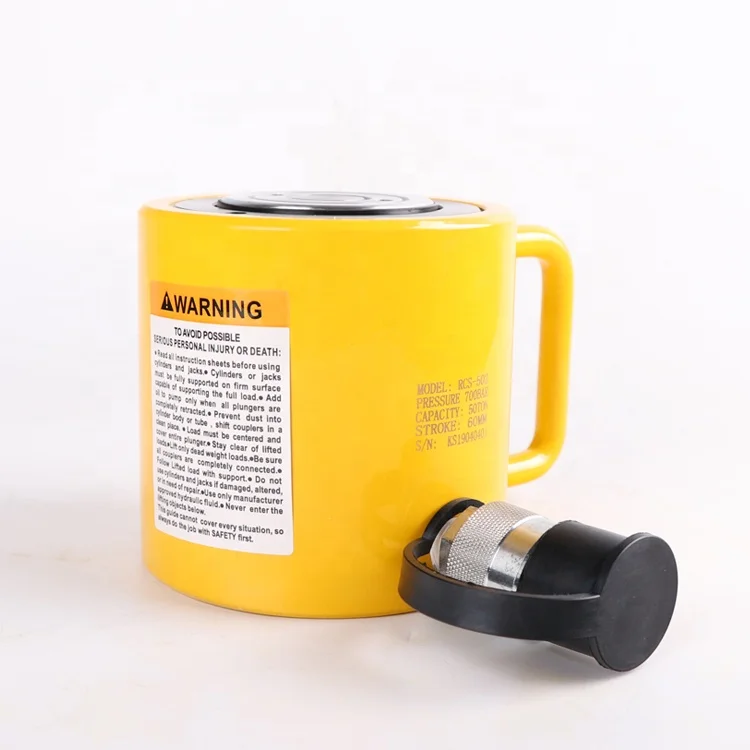

KSRCS-502 Low Height 50 ton Hydraulic Cylinder 2.38" in stroke
Product Description
Max working pressure: 700 bar.
Single acting cylinders with heavy duty return springs and are designed to be used in all orientations.
Light weight, low profile design for use in confined spaces.
Coated with corrosive resistant baked enamel.
Steel cylinder piston rods are hard chrome plated with bronze plating available on request.
Saddles are not required due to grooved cylinder piston rod ends.
The stop ring avoids the piston rod over-reaching and enables maximum cylinder extension.
Parameters
| Model | Capacity (ton) | Max. Working Pressure | Closed Height A (mm) | Stroke (mm) | Effective Area (cm2) | Oil Capacity (cm³) | Extended Height B | Outside Diameter D | Weight (kgs) |
| KSRCS-502 | 50 | 70 | 122 | 60 | 62.1 | 373 | 182 | 124 | 10.9 |
Company Information
Kashon Equipment has been in hydraulic tools industry since 2002. mainly export:
Hydraulic cylinder/jacks/rams (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe “service” is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
