Industrial filter press price

Product Description

High Pressure Program Controlled Filter Press applied international advanced TPE diaphragm technology. Enduable, stable, universalizable and widely used in various industries. Materials squeezing by water pressure or compressed air, the pressure could up to 0.8-2.0 MPa.

Variable filter chamber technology is widely applied on solid-liquid separation to reduce the water content of material and extremely improve the production efficiency of chemical, pharmacy, mining industries.

Industrial filter press machine price

1. The structure chart of industrial filter press machine:

The hydraulic pressing mechanism of the filter press is composed of a hydraulic station, an oil cylinder, a piston rod, and a haffland card hydraulic station connected by the piston rod and the pressing plate.Motor, oil pump, relief valve ( adjusting pressure ) reversing valve, pressure gauge, oil circuit, oil tank. Industrial filter press machine price

2. The working principle of industrial filter press machine:

Filtration: The way the filtrate flows, the clear stream filtration and the dark stream filtration. Open stream filtration, the outlet holes under each filter panel are provided with a nozzle which flows intuitively from the nozzle. Underflow filtration, each filter plate is provided with an outlet channel hole, and the outlet holes of several filter plates are connected into a outlet channel, which is discharged by a pipe connected with the outlet hole under the thrust plate.

Industrial filter press machine price

Detailed Images

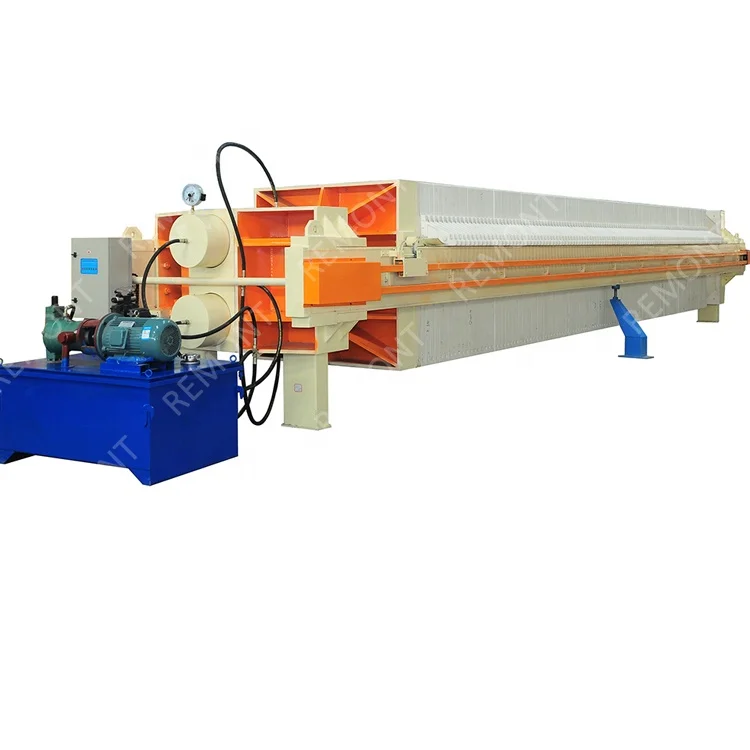

fitler press (2) Filter press

Application

Wide applicability of industrial filter press machine:

Used in tailings, machine sand, kaolin, river silt, metallurgy, chemical, environmental protection, food, pharmaceutical, textile printing and dyeing, profile manufacturing, wine making and other industries.

Industrial filter press machine price

The specification

Model	Fliter Area(m2)	Plate Size(mm)	Cake Thickness	Filter Chamber Volume	Plate No.	Motor Power
XAZ30/870-30U	30	870870/ 800800	30mm	460L	23 pcs	2.2 kw
XAZ40/870-30U	40			595L	30 pcs
XAZ50/870-30U	50			748L	38 pcs
XAZ60/870-30U	60			902L	46 pcs
XAZ70/870-30U	70			1056L	54 pcs
XAZ80/870-30U	80			1210L	62 pcs
XAZ50/1000-30U	50	1000*1000		736L	28 pcs	4.0 kw
XAZ60/1000-30U	60			889L	34 pcs
XAZ70/1000-30U	70			1041L	40 pcs
XAZ80/1000-30U	80			1193L	46 pcs
XAZ100/1000-30U	100			1475L	57 pcs
XAZ120/1000-30U	120			1777L	69 pcs
We are able to supply 2000 square meters of filter press if necessary contact us to custom. How you can get the right Model? Please tell me. Raw material: ? Capacity: L/h? Solid content: ?
