OVERVIEW

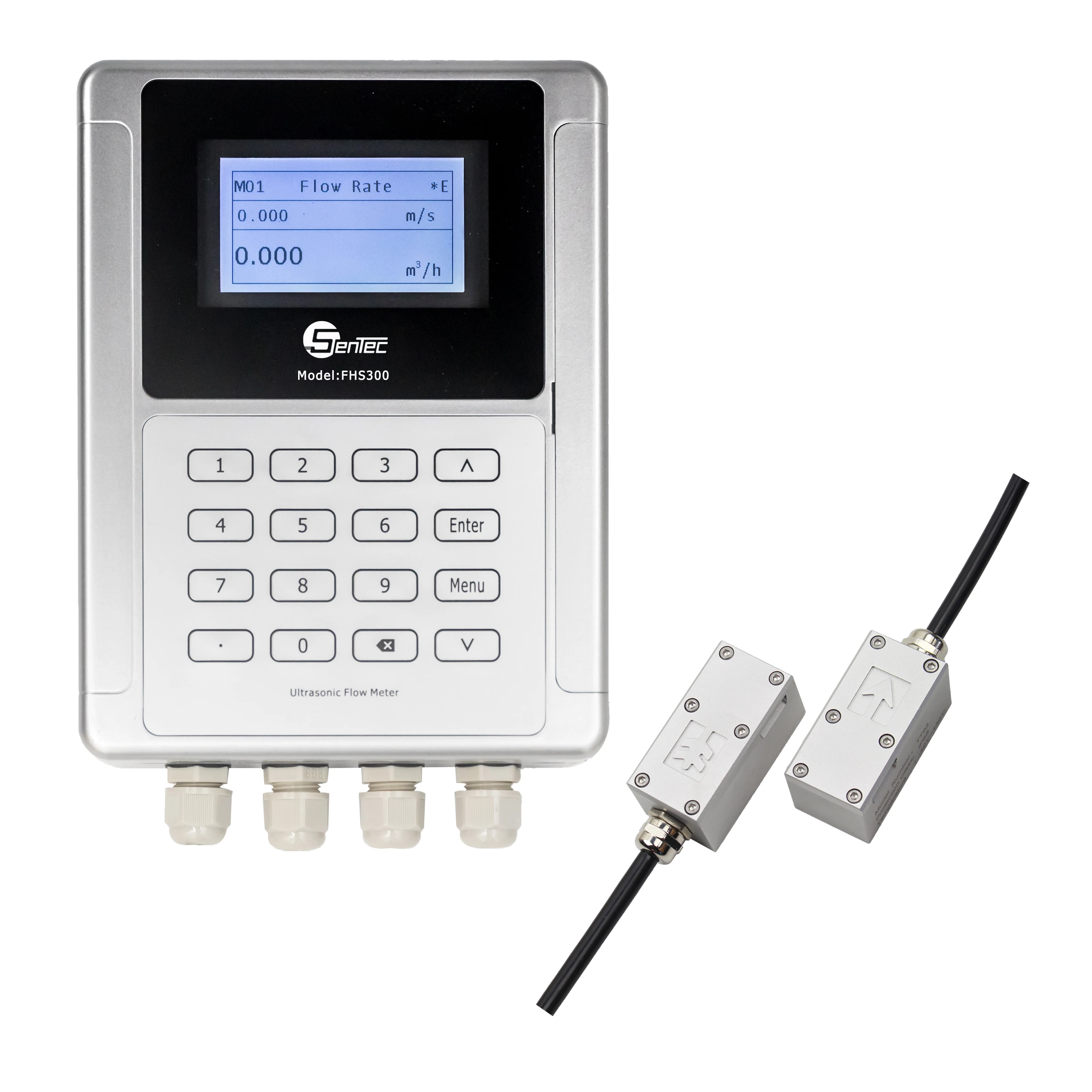

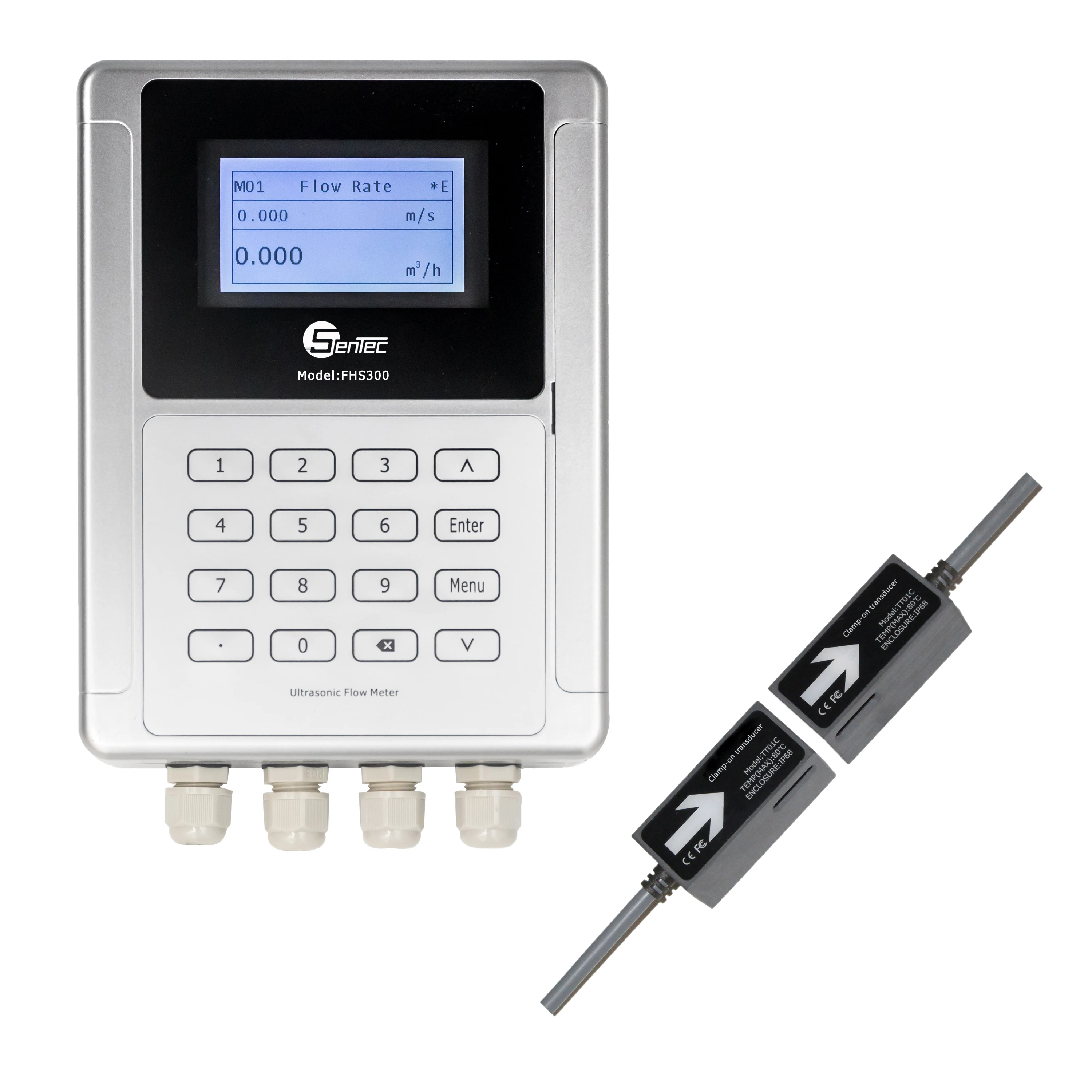

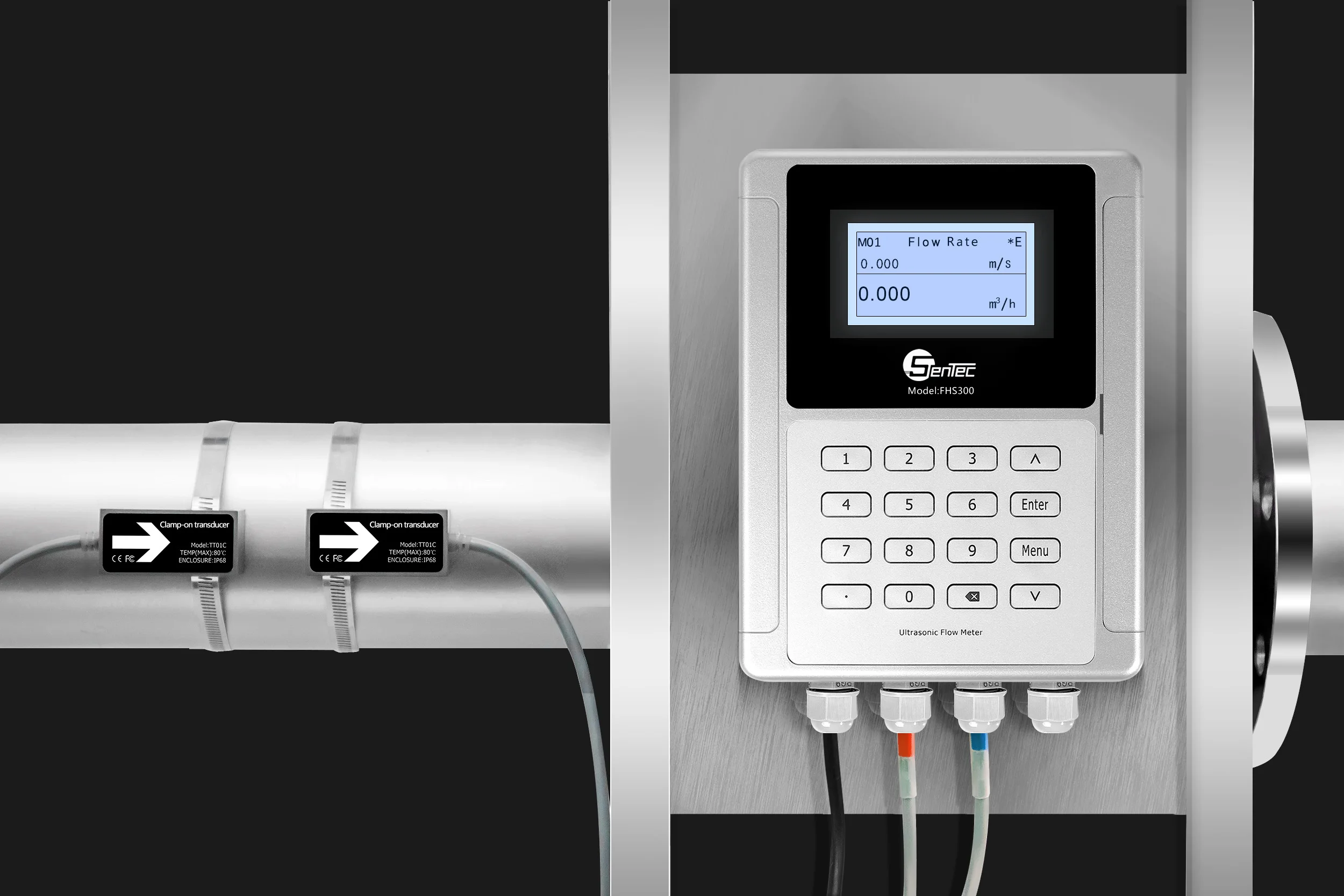

FHS300 is based on the original imported FPGA integrated circuit from America’s Intel corporation. Its algorithm belongs to combination of threshold comparison gate circuit delay method and high-speed ADC correlation method. The main advantage is reflected in clamp-on ultrasonic flow meter. It is different from other 99% domestic clamp-on ultrasonic flow meters which are using the outdated capacitor charging algorithm or using algorithm of either comparison or correlation alone. So, our FHS300 belongs to high-end transit-time ultrasonic flow meter. Its measuring frequency can be more than 300 times per second (domestic other 99% clamp-on ultrasonic flow meters are less than 50 times per second, or even just once per second). Its accuracy is strictly controlled to be better than 1.0%. Moreover, its tolerance rate to bubbles in the measured pipe has been greatly improved, and the maximum tolerance time for continuous bubbles or impurities is 5 seconds.




SPECIFICATION
Performance
Flow range
±0.09ft/s ~ ±39ft/s (±0.03m/s ~ ±12m/s)
Accuracy
±1% of measured value
Repeatability
0.2% of measured value
Linearity
±1%
Pipe size
DN25mm~DN1200mm(A pair of sensors)
Function
0 – 20000 cP
Outputs
Analog output: 4~20mA, max load 750Ω.
Pulse output: 0~10KHz
Communication
RS232/RS485 Modbus
Power supply
10~36VDC/AC90~245V
Display
240*128 backlit LCD
Temperature
Transmitter: -14℉~140℉(-20℃~60℃)
Transducer: -40℉~176℉(-40℃~80℃,TT01)
Transducer: -40℉~266℉(-40℃~130℃,TT03)
Transducer: -40℉~356℉(-40℃~180℃,TT02H)
Humidity
Up to 99% RH,non-condensing
Physical
Transmitter
PC+ABS,IP65
Transducer
Encapsulated design,IP68
Double-shielded transducer cable
Standard/maximum cable length:30ft/1000ft(9m/300m)


Details Images










SENTEC concentrates on the research and innovation of the sensing technology and keeps developing the high-quality and advanced solutions from the accumulated sensor experiences over last two decades. For decades, SENTEC quality guaranteed products insist strictly manufactured in accordance with ISO, CE directive and fully RoHS compliant. On the basis of large-scaled production factories and international excellent devices, SENTEC inspections, tests and calibrations are well recognized throughout the world with experienced OEM service.






Certifications




Feedback




Packing&Shipping




Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.
DN25mm~DN1200mm Sewage Water Corrosive Liquid Insertion Type clamp on Ultrasonic Flow Meter
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory.
DN25mm~DN1200mm Sewage Water Corrosive Liquid Insertion Type clamp on Ultrasonic Flow Meter
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
DN25mm~DN1200mm Sewage Water Corrosive Liquid Insertion Type clamp on Ultrasonic Flow Meter
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you
DN25mm~DN1200mm Sewage Water Corrosive Liquid Insertion Type clamp on Ultrasonic Flow Meter
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
DN25mm~DN1200mm Sewage Water Corrosive Liquid Insertion Type clamp on Ultrasonic Flow Meter
Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance
DN25mm~DN1200mm Sewage Water Corrosive Liquid Insertion Type clamp on Ultrasonic Flow Meter
Q: How to contact you?
A: Email: sales03(@)cdsentec.com, Tel/wechat/whatsapp: +86 18848452889


The specific price is subject to the parameters, please contact us for the quotation
