Повышающий источник питания с преобразователем 6 вольт до 12 5 А 60
- Категория: Power Supplies >>>
- Поставщик: Guangzhou,Idealplusing,Information,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 7.24 $* | 7.73 $* |
| Aug-18-2025 | 7.92 $* | 7.1 $* |
| Jul-18-2025 | 6.6 $* | 6.2 $* |
| Jun-18-2025 | 7.36 $* | 7.56 $* |
| May-18-2025 | 6.6 $* | 6.58 $* |
| Apr-18-2025 | 7.36 $* | 7.30 $* |
| Mar-18-2025 | 7.6 $* | 7.25 $* |
| Feb-18-2025 | 7.33 $* | 7.9 $* |
| Jan-18-2025 | 7.0 $* | 7.19 $* |
Характеристики

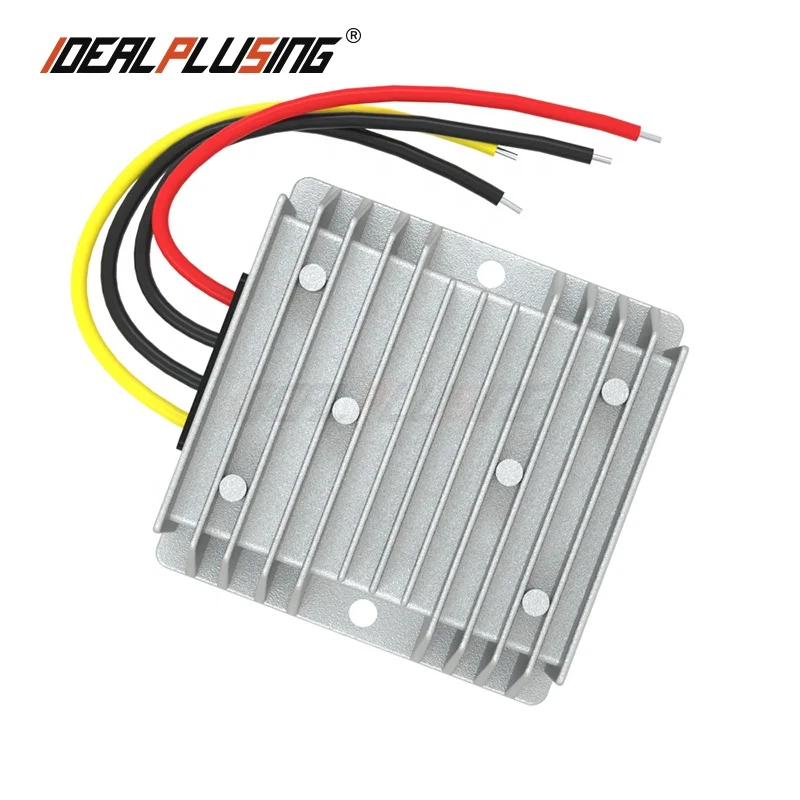

6 volt to 12 volt 5a 60w converter step up power supply
Features
1. 100% full power & stable current output.
2. 100% Imported components.
3. Wide input voltage from 5~11VDC.
4. 100% waterproof & anti-shock protection, Ultra compact size, light weight.
5. Industry grade 6 volt to 12 volt converter step up, efficiency up to 96%.
6. Certificates: CE/RoHS.
7. Waterproof level: IP68.
8. Aluminum shell, epoxy potting, Cooling by free air convection.
9. Protections: Over-current, Over-voltage, Over-temperature.
10. Over-load and Short-circuit, Auto-recovery when device is back to normal operating.
11. Non-Isolated Module.
12. 1 year warranty, lifetime up to 100,000 hours.
13. Constant Voltage Design.
Dimension&attribute
| Parameter of 6 volt to 12 volt converter step up | |
| Brand | IDEALPLUSING |
| Product Name | 6 volt to 12 volt converter step up |
| Type | Non-Isolate |
| Model | IPS-DTD6S125 |
| INPUT | |
| Input rated voltage | 6VDC |
| Input voltage range | 5~11VDC |
| OUTPUT | |
| Conversion Efficiency | 96% |
| Output voltage | 12VDC |
| Output current | 5A |
| Output rated power | 60W |
| Output peak power | 125% |
| OTHERS | |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 50mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP65 |
| Protections | Over-load,Over-current,Over-temperature,Short-circuit, Over-voltage optional |
| Machine size | 74*74*32MM) |
| NW | 300G |
| Cooling way | Free air convection |
| Certifications | CE, RoHS |
| Customize | Support |
| Sampel order | Support |
| OEM & ODM | Support |
| Package | White & colorful package optinal |
Customization scope
Type | Model/ Series | Voltage convert | Output Current |
Boost | IPS-DTD5S12** | 5v to 12v | 1/2/3/5/8/10A |
IPS-DTD12S13.8** | 12v to 13.8v | 1/2/3/5/8/10/18A | |
IPS-DTD12S15** | 12v to 15v | 1/2/3/5/8/10/15A | |
IPS-DTD12S19** | 12v to 19v | 5/8/10/15/20A | |
IPS-DTD12S24** | 12v to 24v | 1/2/3/5/8/10/15/20/25/30/40A | |
IPS-DTD12S28 | 12v to 28v | 3/5/8/10/15/20/25/30/40A | |
IPS-DTD12S32/36** | 12v to 32v/36v | 1/2/3/5/6/10/12/15/20/30A | |
IPS-DTD12S48** | 12v to 48v | 1/2/3/4/5/8/10/15/20A | |
IPS-DTD24S48** | 24v to 48v | 3/5/10/20/32/42A | |
Buck | IPS-DTD1224S3.3-9** | 12v/24v to 3.3-9v | 1/2/3/5/10/15/20/30/50/60A |
IPS-DTD24S12** | 24v to 12v | 1/2/3/5/8/10/15/20/30/40/50/60/85A | |
IPS-DTD3648S5** | 36v/48v to 5v | 3/5/6/8/10/12/15/20/25A | |
IPS-DTD3648S12** | 36v/48v to 12v | 5/10/15/20/25A | |
IPS-DTD3648S24** | 36v/48v to 24v | 5/8/10/12/15/18/20A | |
IPS-DTD48S36** | 48v to 36v | 5/10A | |
IPS-DTD60S5** | 60v to 5v | 5/10/15/20A | |
IPS-DTD60S12** | 60v to 12v | 5/8/10/12/15/20A | |
IPS-DTD60S24** | 60v to 24v | 5/10/15A | |
IPS-DTD60S36** | 60v to 36v | 3/5/8/10/15A | |
Auto Buck and Boost | IPS-DTD12S12 | 12v to 12v | 1/2/3/4/6/8/10/12A |
IPS-DTD12S13.8 | 12v to 13.8v | 3/5/10A | |
IPS-DTD24S24 | 24v to 24v | 1/2/3/5/8/10A |
Further information request for 6 volt to 12 volt converter step up, please contact with IDEALPLUSING Sale team.
RFQ
Q1. Can I have a sample order of 6vdc to 6 volt to 12 volt converter step up?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q2. What about the lead time?
A: Most of model in the stock , sample lead time after receive payment 1-3 working days
Q3. Do you have any MOQ limit?
A: Low MOQ, 5 pieces for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print buyer logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 1-year warranty for all power supply.
