TR-F120/180 SERIES PALLETIZING ROBOT AND ROBOT SYSTEM

Product Specification

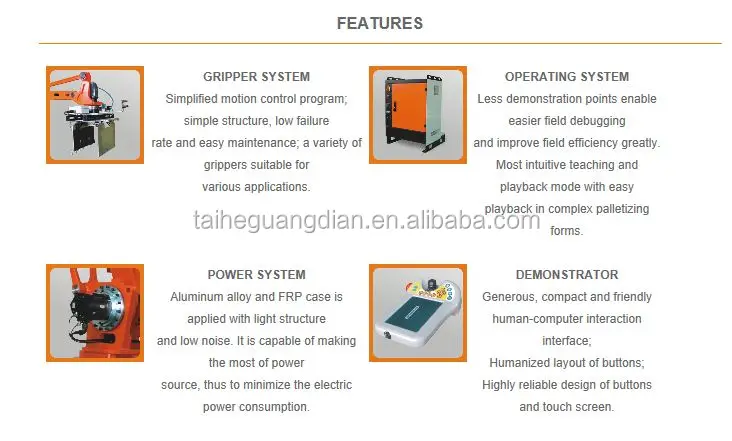

Function characteristics
1. Simple and friendly man-machine touch screen controller, easy use
2. smooth beat,quick speed,high accuracy, simplify control system
3. Simple structure, low failure rate and convenient maintenance
4. light structure ,low noise,low energy consumption
5. customized vision system
6. Only need a little floor space, floor utilization ratio is high
7. Flexible use method, can most handle multiply production lines
8. Manipulator finger style\\so can work in a variety of a variety of allplications

9. Manipulator arm Lightsome strong, energy conservation and environmental protection

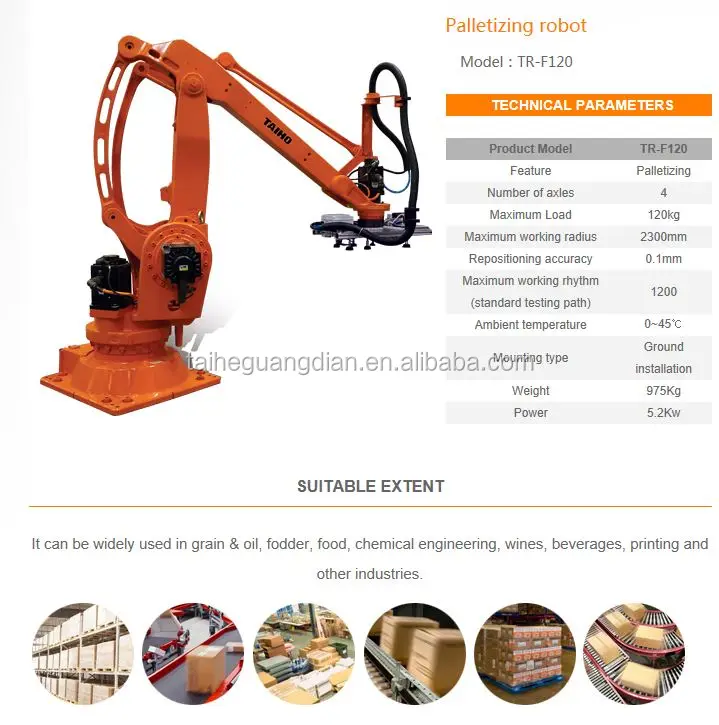

Technical parameters

Model	TR-F120	TR-F180A
Function	pllatizing ,stacking and handing,loading and unloading
Axis number	4 Axis

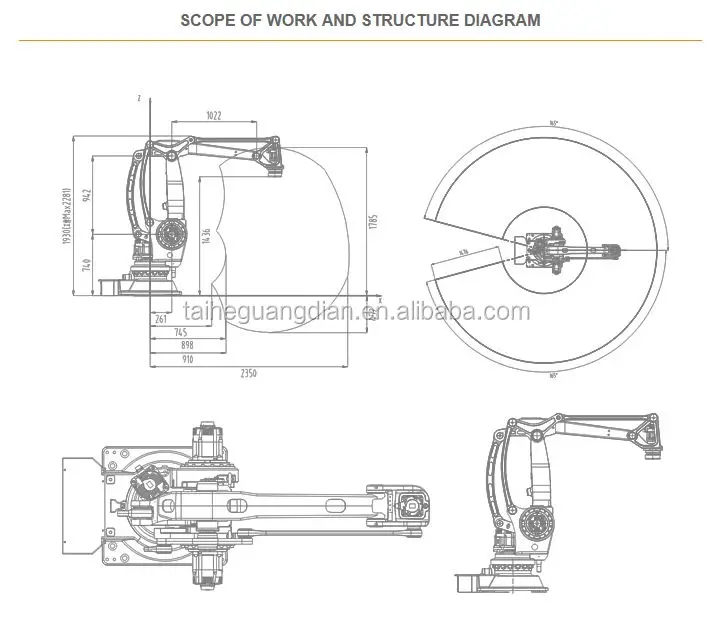

Max working radius	2350mm	3100mm
Max load	120kg	180kg
Range of motion	J1 ±165°	J1 ±165°
	J2 +85°to -40°	J2 +85°to -40°
	J3 +120°to -20°	J3 +120°to -20°
	J4 ±300°	J4 ±300°
Machine tongs	pallet, finger, sucker and so on
Positoning accuracy	±0.1mm	±0.1mm
Robot quality	925kg	1350kg
Installation method	Ground installation	Ground installation
Compressed Air	0.5Mpa	0.5Mpa
Installation conditions	Ambient tem: 0~45°	Ambient tem: 0~45°
	Ambient humidity: 20%-75% RH	Ambient humidity: 20%-75% RH

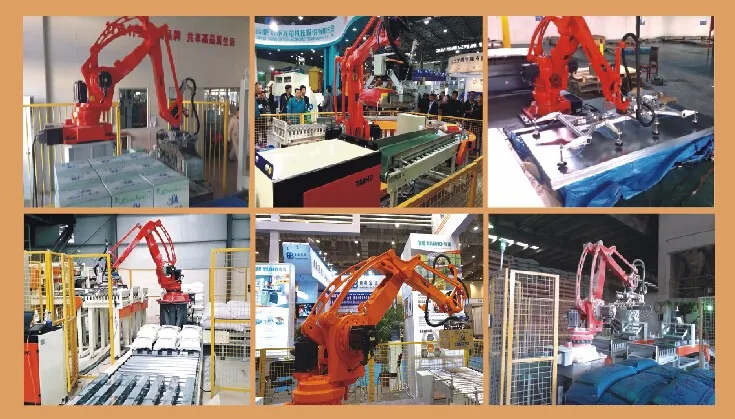

Product Show























Our Service

1.We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.

2. OEM, Customized can be all accepted.

3. Contact us any time when you feel free.



FAQ

Q: Can your machine be customized ?

A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design&technical team. We can design and manufacture as per your requirements.



Q: How to get an accurate quotation ?

A: Please provide us the detail of the workpiece such as drawing and dimensions.



Q: What’s the shipping cost from China to your country ?

A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address with code. We have reliable shipping agent to ensure the safe, convenient and timely delivery.



Q: Payment terms, MOQ, warranty, Trade Terms

A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery.

Minimum order quantity: 1 set, FOB Shanghai

Delivery time: about 20-30 working days after receipt of formal order and 30% deposit.

Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype,

Email etc. You can contact us any time, if urgently, please call us.



Q: what’s the package ?

A: All goods are packed in wooden box



Q: Do you offer Installation&debugging?

A: Our engineers are available to service machinery overseas to help customers to solve machine problems.



Q: what’s policy for guarantee and broken parts ?

A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.







Welcome to visit our factory!
