Конический винтовой цилиндр для
- Категория: Plastic & Rubber Machinery Parts >>>
- Поставщик: Zhoushan,Sanco,Plastic,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.60 $* | 0.32 $* |
| Aug-17-2025 | 0.65 $* | 0.9 $* |
| Jul-17-2025 | 0.24 $* | 0.43 $* |
| Jun-17-2025 | 0.47 $* | 0.3 $* |
| May-17-2025 | 0.72 $* | 0.42 $* |
| Apr-17-2025 | 0.40 $* | 0.99 $* |
| Mar-17-2025 | 0.19 $* | 0.27 $* |
| Feb-17-2025 | 0.75 $* | 0.77 $* |
| Jan-17-2025 | 0.49 $* | 0.64 $* |
Характеристики
Why Choose Us
1.SANCO only supply competitive advantage products!
2.Full refund or Free replacement in case of bad quality or late delivery!
3.SANCO are focus on service for solution, not only supply screw barrel parts!
4.Quality is our culture, with us your money in safe your business in safe!!!
5.SANCO is the 2019 year the most welcomed Alibaba gold supplier!!!
2.Full refund or Free replacement in case of bad quality or late delivery!
3.SANCO are focus on service for solution, not only supply screw barrel parts!
4.Quality is our culture, with us your money in safe your business in safe!!!
5.SANCO is the 2019 year the most welcomed Alibaba gold supplier!!!
6. SANCO is vertified gold supplier by TUV&ALIBABA!
Product Description

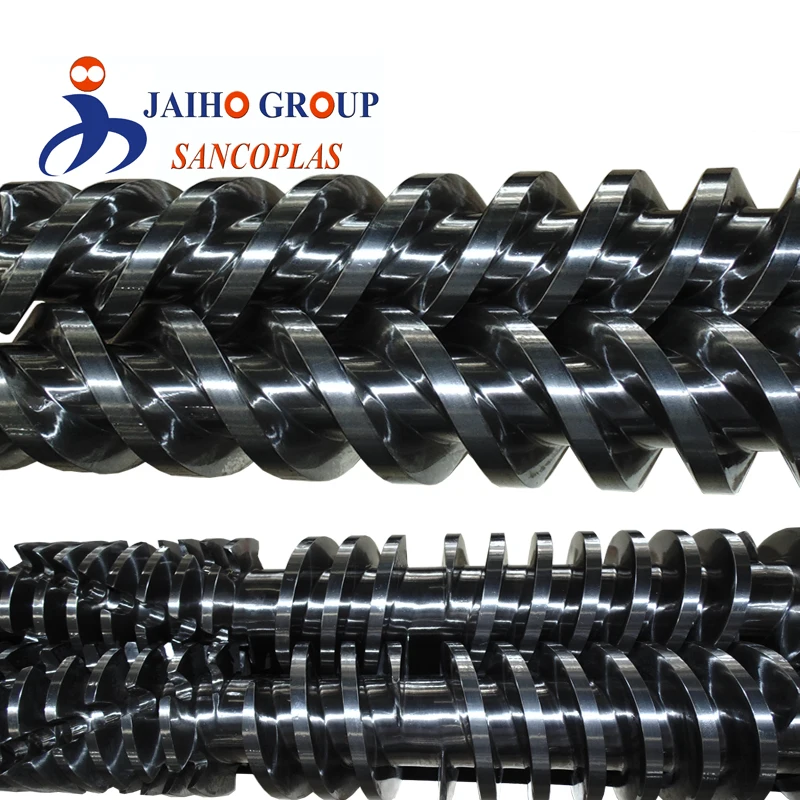

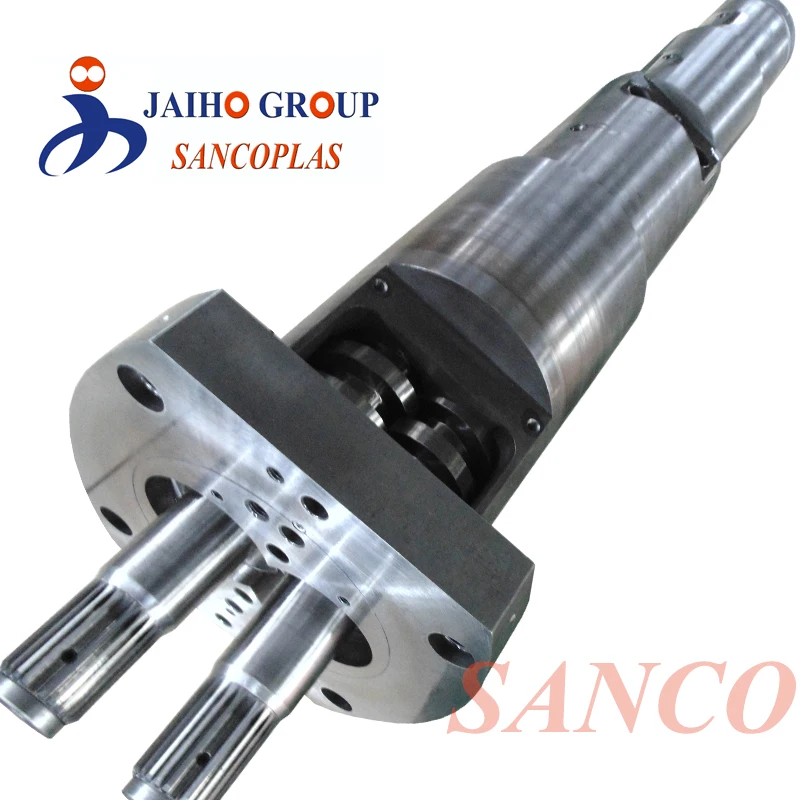

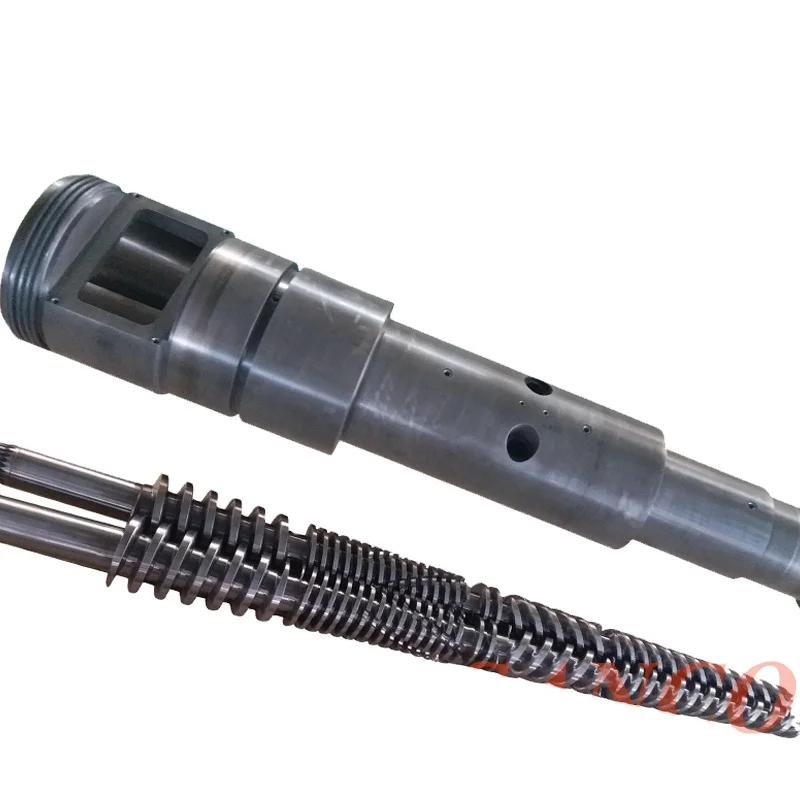

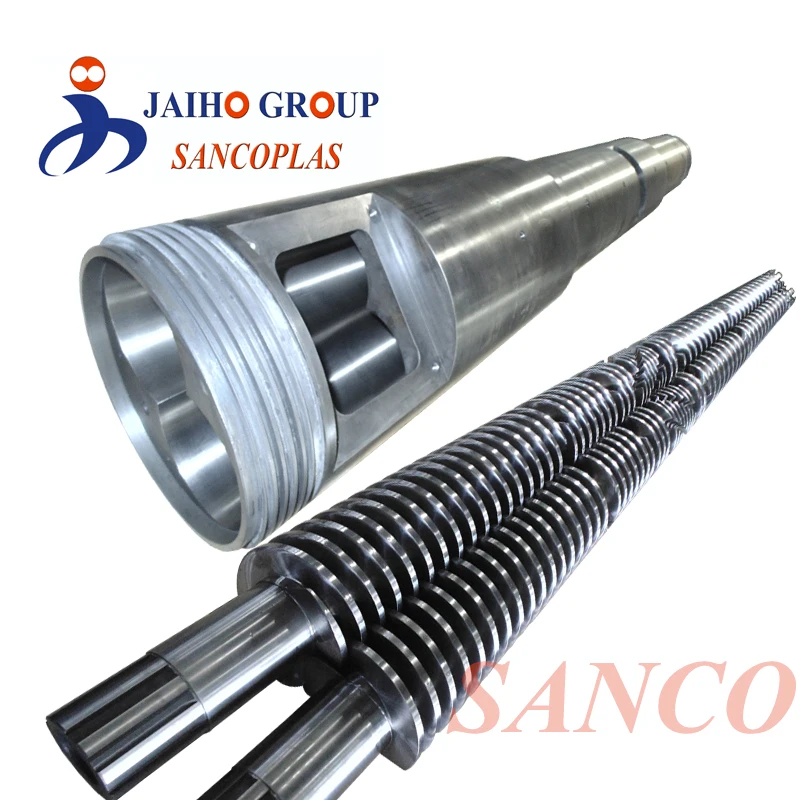

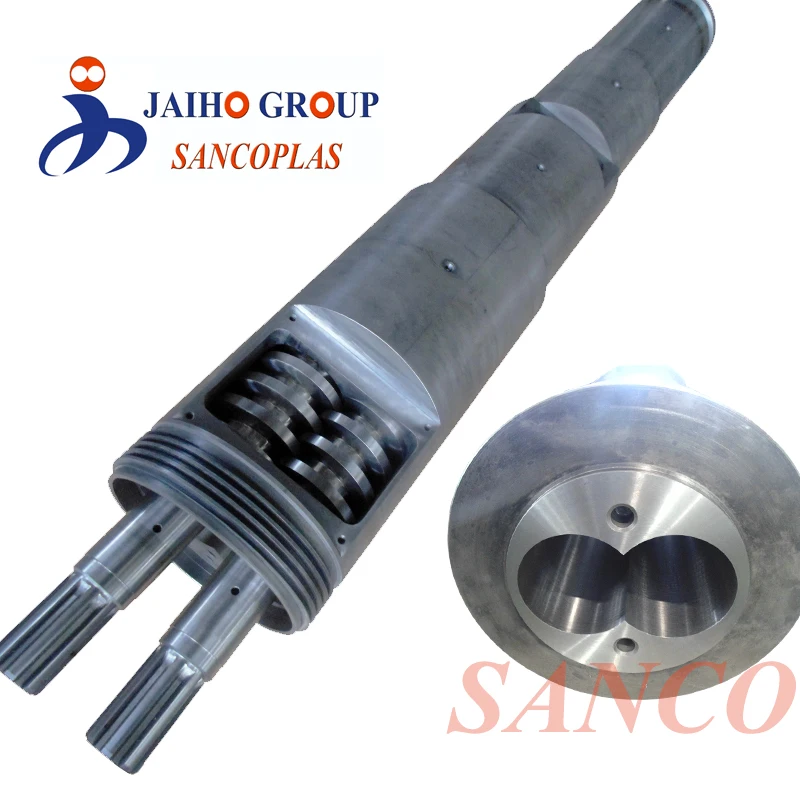

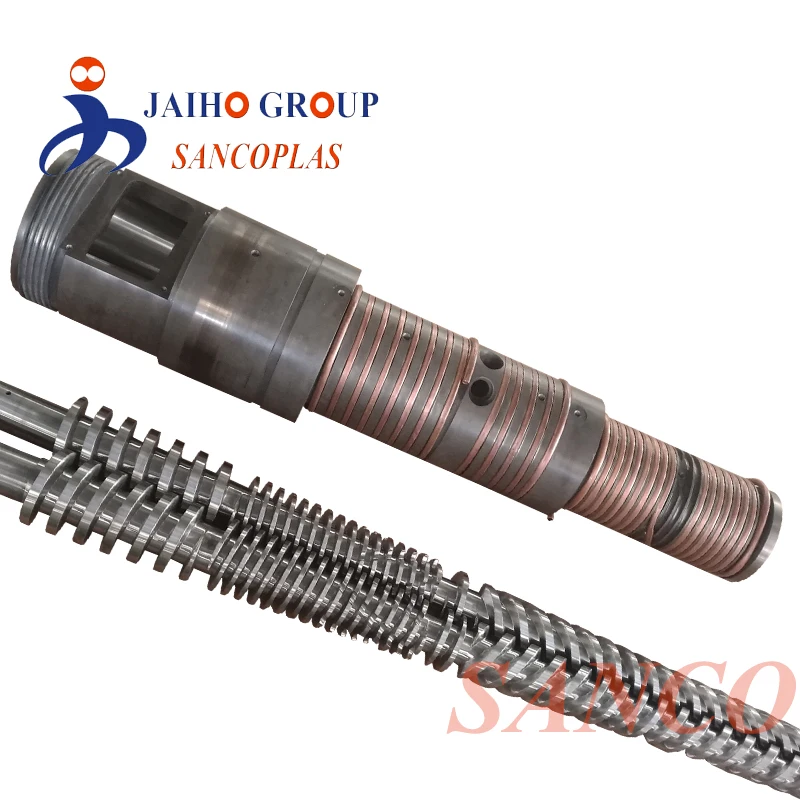

Our various type extruder conical twin screw barrel for different plastic raw material /domestic/foreign brand extruder machines.We also supply for domestic plastic machinery company
-DIRECT MANUFACTURE OF SCREW BARREL
-DESIGN AND PRODUCING SCREW BARREL FOR MORE THAN 15 YEARS
-LONG LIFE TIME AND 1YEAR GUARANTEE
We have regular model screw barrel for below famous extruder.
-DIRECT MANUFACTURE OF SCREW BARREL
-DESIGN AND PRODUCING SCREW BARREL FOR MORE THAN 15 YEARS
-LONG LIFE TIME AND 1YEAR GUARANTEE
We have regular model screw barrel for below famous extruder.
The most common types of conical twin screw barrel extruder | ||||||
types of screw (d/D) | length of work(mm) | quantity ofextruder(kg/h) | speed of screw rotate(rpm) | |||
Φ35/77 | 810 | 40-70 | 5~50 | |||
Φ45/99 | 990 | 50-80 | 5~45 | |||
Φ51/105 | 1070 | 100-150 | 4~45 | |||
Φ51/105 | 1220 | 100-150 | 4~45 | |||
Φ55/110 | 1220 | 120-180 | 4~40 | |||
Φ60/125 | 1320 | 150-200 | 4~40 | |||
Φ65/120 | 1440 | 200-250 | 4~40 | |||
Φ65/132 | 1440 | 200-250 | 4~40 | |||
Φ70/140 | 1460 | 220-300 | 4~40 | |||
Φ75/150 | 1480 | 250-320 | 4~35 | |||
Φ80/143 | 1660 | 300-360 | 4~35 | |||
Φ80/156 | 1800 | 300-360 | 4~35 | |||
Φ90/184 | 2000 | 400-500 | 3~35 | |||
The most common types of parallel twin screw barrel extruder | ||||||||||||
D35/5 | D45/2 | D50/2 | D60/2 | D65/2 | D70/2 | D72/2 | ||||||
D75/2 | D80/2 | D85/2 | D90/2 | D93/2 | D100/2 | D105/2 | ||||||
D110/2 | D115/2 | D120/2 | D125/2 | D130/2 | D140/2 | D150/2 | ||||||
D160/2 | D170/2 | D180/2 | D190/2 | D200/2 | D200/2 | D250/2 | ||||||
Conical Twin Screw Application
1)PVC pipe extrusion line;
2)PVC sheet extrusion line;
3)PVC profile extrusion line
4)WPC extrusion line;
5)PVC granulation/recycling line;
6)PVC foaming board production line;
The material can be new or recycle, the material can compound calcium power 5%-300%.
2)PVC sheet extrusion line;
3)PVC profile extrusion line
4)WPC extrusion line;
5)PVC granulation/recycling line;
6)PVC foaming board production line;
The material can be new or recycle, the material can compound calcium power 5%-300%.
Bimetallic Treatment of Screw
The bimetallic screw for extruder twin screw is a kind of screw spray welding a 2~3mm-thick alloy coat on the screw flight of output area for the screw . The Bimetallic treatment has excellent corrosion resistance, abrasion resistance and high working temperature. And its useful service life is greatly improved contrast to the common nitrided screw.
PTA Machine
The bimetallic treatment of our screw by the PTA machine. It is a advance equipment which has not been broadly used in bimetallic treatment. Compare to the manual process the advantage is better temperature stability, dense structure and uniform thickness and not liable to crack.
Customized Design
We can design the screw construction for you according to your finished products. Our factory have more than 15 years experience in producing screw barrel.
Bimetallic Treatment of Barrel Type A
SKD11/SKD61 whole length bimetallic sleeve/pipe insert into the barrel by jack The thickness of the bimetallic sleeve 8~10mm, which has excellent corrosion resistance, abrasion resistance and high working temperature. And its useful service life is greatly improved contrast to the common nitrided barrel. Bimetal has more obvious advantages when processing high calcium carbonate powder PVC mixture to enhance the abrasion life.
Bimetallic Treatment of Barrel Type B
Another bimetallic barrel is machining the grooves at output section of the barrel then spraying the alloy powder on the groove. The length is about 400-500mm.
Detail Specification
Base Material | 1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JIS SKD-11) ; 3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI 4140) |
Bimetallic Alloy Materials | 1)Fe-based alloy 2)Ni-based alloy/Deloro alloy 3)Co-based alloy 4)NiCo-based alloy 5)Tungsten carbide/Wolfram carbide |
Surface Treatment | Heat Treatment High Frequency Treatment Nitriding treatment(120 Hours): Depth of Nitrided Layer: 0.5-0.8 mm Hardness of Nitrided Layer: 900-1020Hv (HRC56°-65°) Hard Chrome Plating treatment: Thickness of Hard Chrome Plating Layer: 0.05-0.10mm Hardness of Hard Chrome Plating Layer: ≥950HV Nickel alloy plating.treatment: Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy) Bimetallic Screw: Plasma Alloy Coating SprayingDepth of Bimetallic Layer: >2mm Hardness of Bimetallic Layer: HRC55°-72° Spraying corrosion wear-resisting dual metal layers |
Basic information | Roughness of the surface:Ra0.4um Linearity of the screw: ≤0.015mm Linear axis limit: ≤0.02mm Hardness after Hardening & Tempering: HB240-280 Fragility of Nitration:≤Two class |
Material Application | 1)General Plastics 2)ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc 3)PA + GF(Glass Fiber) 4)Flame-resistant Reinforced Plastics 5)Modified Engineering Plastics 6)All kinds of Mixed Recycled Material(in Scrap or Granule), PVC + 30% CaCo3, etc |
Our Services
In today’s competitive market, making a PVC or other extruder product at maximum productivity levels and the lowest possible costis paramount in growing your business, increasing profits and meeting your overall business objectives.
For over one decades SANCO has been a leading supplier in machine components for the Plastic, Food and Rubber industry. FliteTechnology has earned the reputation as an innovator and industry leader in the manufacturing of precision single and twin feed screws and barrels. Whether it's new, rebuilding, designing or repair, you can be confident our service, quality and performancewill be unsurpassed.
We also offer very aggressive competitive pricing. Pick up and delivery service is available as well as reverse engineering forexisting worn out parts.
We are focus on service for solution, not only supply screw barrel.
Company Information
Our new workshop 12000SQM, Totally have 5 engineers team, and 50 good experinced employee, registered capital 8 billion USD. weare also German technical cooperation with 20% share.
We are foucs on each process to make sure each conical twin screw barrels is qualified according to Germany technical requirement.
We will check each parameters for finished parts to make sure all qualified according to Germany technical requirements
We have own heat treatment furnace and nitriding furnace to make customer hardness requirement, also we do the bimetallic/allloy
screw barrel by spraying and centrifugal casting process.
Oversea Service
We have Professional engineer team to do Oversea Service for Technical Support and Measuring.
Product packaging&shipping
1. Be brushed anti-corrosive oil on conical twin screw barrels.
2. Packed with film.
3. Packed in the wooden for conical twin screw barrels
2. Packed with film.
3. Packed in the wooden for conical twin screw barrels
Exhibition
FAQ
1. Q: How about SANCO?
R:10 years experienced, Germany Technical invested since 2002, leading screw barrel manufacturer in China.2. Q:What's SANCO capacity
R:Passed ISO 9001:2008, Our workshop 12000SQM, 5 Enginners team, 50 good experienced employee, All CNC computer control screwprocessing, 1000sets screw barrel capacity per month.
3. Q:What's the delivery time
R:for regular size, we have finished stock and semi-finished stock, 2weeks max enoughfor customized, normally 3~4weeks.
4. Q:How about SANCO screw barrel quality and price
R:Germany Technical invested, top quality in China with competitive price and globle after-sale service
5. Q:How to make sure the screw suitable for my extruder?
R:Let's know what size you want and we can check it with our drawing.We have lots of BEX,KMD,CMT,AMUT,
Weber,Haitian,ChenHsong,ChenDe,Tedric,JSW, ect. If your extruder is made in China,it's easy to get the original drawing.Anyway,Our engineer can measure in your factory, his English is good,so cost is saved.
6. Q:what's the life time and guarantee buy from SANCO screw barrel?
R:3~5years life time for nitriding ones and bimtallic ones will be longer One year min. Guarantee
Weber,Haitian,ChenHsong,ChenDe,Tedric,JSW, ect. If your extruder is made in China,it's easy to get the original drawing.Anyway,Our engineer can measure in your factory, his English is good,so cost is saved.
6. Q:what's the life time and guarantee buy from SANCO screw barrel?
R:3~5years life time for nitriding ones and bimtallic ones will be longer One year min. Guarantee
7. Q:Where is SANCO factory and how to reach there?
R:At Cengangzhen,Dinghai,Zhoushan City,Zhejiang Province. It's near Shanghai City and Ningbo City,If you want to visit us,we canpick up you there.
8. Q:How to contact with you
R:just reply to me below if have any question.
