Хорошее качество подключение к Интернету RJ45 разъем
- Категория: Разъемы и аксессуары >>>
- Поставщик: Huizhou,Magtop,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.98 $* | 0.65 $* |
| Aug-16-2025 | 0.43 $* | 0.83 $* |
| Jul-16-2025 | 0.63 $* | 0.78 $* |
| Jun-16-2025 | 0.75 $* | 0.84 $* |
| May-16-2025 | 0.65 $* | 0.10 $* |
| Apr-16-2025 | 0.88 $* | 0.41 $* |
| Mar-16-2025 | 0.86 $* | 0.0 $* |
| Feb-16-2025 | 0.75 $* | 0.24 $* |
| Jan-16-2025 | 0.41 $* | 0.84 $* |
Характеристики
Products Description
Description:

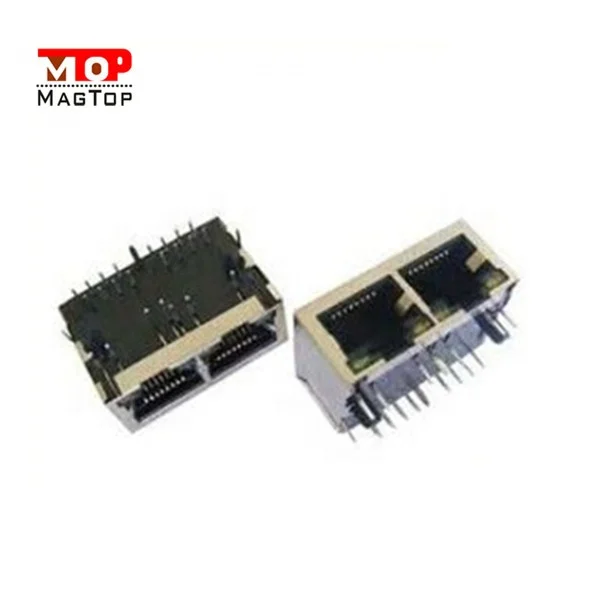

10/100/1000Base-TX RJ45 Multi port (1x2) Tab-Down without LEDs
Integrated magnetics connector (ICM), designed to support applications, Such
as SOHO (ADSL MODEMS), LAN-on Motherboard (LOM)，Hub and Switches.
Integrated magnetics connector (ICM), designed to support applications, Such
as SOHO (ADSL MODEMS), LAN-on Motherboard (LOM)，Hub and Switches.
Features and Benefits:
1. Multi port (1X2) Tab-DOWN Rj45 with internal magnetics.
2. RoHS-6 peak wave solder temperature rating 260 °C.
3. Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
4. Internal magnetics are 100% electrically tested for HI-POT and functionality.
Electrical Performance Summary:
1 Meets or exceeds IEEE 802.3 standard for 1000Base-T.
2 350 uH minimum OCL with 8 mA bias current.
3 High performance for maximum EMI suppression.
4 Minimum 1500 Vrms isolation per IEEE 802.3 requirement.
5 Operating temperature range: 0°C to +709C.
2 350 uH minimum OCL with 8 mA bias current.
3 High performance for maximum EMI suppression.
4 Minimum 1500 Vrms isolation per IEEE 802.3 requirement.
5 Operating temperature range: 0°C to +709C.
6 Storage temperature range: -40°C to +85°C.
Material Specifications:
* Insert: Plastic: Reinforced FR PA66-B30 UL94V-0.
Contact Area: Phosphor Bronze, 15U Gold Plated over Nickel.
PCB Terminal: Phosphor Bronze, Tail-Tin over Nickel
* Housing: Reinforced FR PA66-B30UL94V-0.
* Metal Shell: Copper Alloy, Nickel Plated
* Case: Phenolic,UL94V-0 Black.
* Housing: Reinforced FR PA66-B30UL94V-0.
* Metal Shell: Copper Alloy, Nickel Plated
* Case: Phenolic,UL94V-0 Black.
Specification Details
1. Inductance: | 350 uH MIN @ 100KHZ, 0.1Vrms, 8 mA DC Bias |
2. Turns Ratio: | P2-1 : J1-2 = 1CT:1CT +/-3% P4-3 : J3-6 = 1CT:1CT +/-3% P6-5 : J4-5 = 1CT:1CT +/-3% P8-7 : J7-8 = 1CT:1CT +/-3% |
3. Insertion Loss: | 1~100MHZ -1.0 dB MAX. |
4. Return Loss: | 1 ~ 10 MHZ - 20dB MIN. Load 100 OHMS 10 ~30 MHZ -16dB MIN. Load 100 OHMS 30~ 60 MHZ -12 dB MIN. Load 100 OHMS 60~ 80 MHZ -10 dB MIN. Load 100 OHMS |
5. Common mode Rejection: | 1 ~ 50 MHZ -40 dB MIN. 50~100MHZ -20 dB MIN. |
6. Cross Talk: | 1~ 100MHZ - 27dB MIN. |
7. Hi-Pot Test: | 1 500Vrms 60sec. @ PCB Side to Cable Side |
Related Products
Company Profile
Why Choose Us
Exhibition and Certifications
Packaging and Shipping
FAQ
Q1. Are you trading company or manufacturer?
A: We are factory.
Q2. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock, or it is 15-20 days after your order, if the goods are not in stock, it is
according to quantity.
Q3. Your magnetic rubber inductance is better?
A: Yes, rubber magnetic inductance is ferrite magnetic core, a coil around, after coating a layer of glue, have good shielding
effect, it is not easy to produce noise,
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5. How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them.
If you have any other questions please contact with us or leave a message, we will reply you ASAP.
A: We are factory.
Q2. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock, or it is 15-20 days after your order, if the goods are not in stock, it is
according to quantity.
Q3. Your magnetic rubber inductance is better?
A: Yes, rubber magnetic inductance is ferrite magnetic core, a coil around, after coating a layer of glue, have good shielding
effect, it is not easy to produce noise,
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5. How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them.
If you have any other questions please contact with us or leave a message, we will reply you ASAP.
