Коническая втулка 1210 2517 3020

Категория: Bushings >>>
Поставщик: Xinlong,Machinery,And,Equipment,(Zhengzhou),Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.20 $*	0.60 $*
Aug-16-2025	0.65 $*	0.31 $*
Jul-16-2025	0.14 $*	0.39 $*
Jun-16-2025	0.23 $*	0.41 $*
May-16-2025	0.75 $*	0.24 $*
Apr-16-2025	0.88 $*	0.76 $*
Mar-16-2025	0.89 $*	0.48 $*
Feb-16-2025	0.56 $*	0.51 $*
Jan-16-2025	0.66 $*	0.73 $*

Характеристики

Product Description

1008 - 5050 Size Taper Bush

1. Taper bushes form the most convenient and cost effective method of fixing components to a Mating shaft, without the need for any machining process.
2. Size ranges from 1008 to 120100,more information,please contact us.
3. Easy to install and remove.
4. Shallow keyway is available.

Taper Bush Size	A	B	D	Screw Dimension
1008	1.386	7/8	1-21/64	1/4 X1/2
1108	1.511	7/8	1-29/64	1/4 X1/2
1210	1-7/8	1	1-3/4	3/8 X5/8
1215	1-7/8	1-1/2	1-3/4	3/8 X5/8
1310	2	1	1-7/8	3/8 X5/8
1610	2-1/4	1	2-1/8	3/8 X5/8
1615	2-1/4	1-1/2	2-1/8	3/8 X5/8
2012	2-3/4	1-1/4	2-5/8	7/16 X7/8
2017	2-3/4	1-3/4	2-5/8	7/16 X7/8
2517	3-3/8	1-3/4	3-1/4	1/2X1
2525	3-3/8	2-1/2	3-1/4	1/2X1
3020	4-1/4	2	4	5/8X11/4
3030	4-1/4	3	4	5/8X11/4
3525	5	2-1/2	4.83	1/2X11/2
3535	5	31/2	4.83	1/2X11/2
4030	5-3/4	3	5.54	5/8X13/4
4040	5-3/4	4	5.54	5/8X13/4
4535	6-3/8	3-1/2	6.13	3/4X2
4545	6-3/8	4-1/2	6.13	3/4X2
5040	7	4	6.72	7/8 X2 1/4
5050	7	5	6.72	7/8 X2 1/4

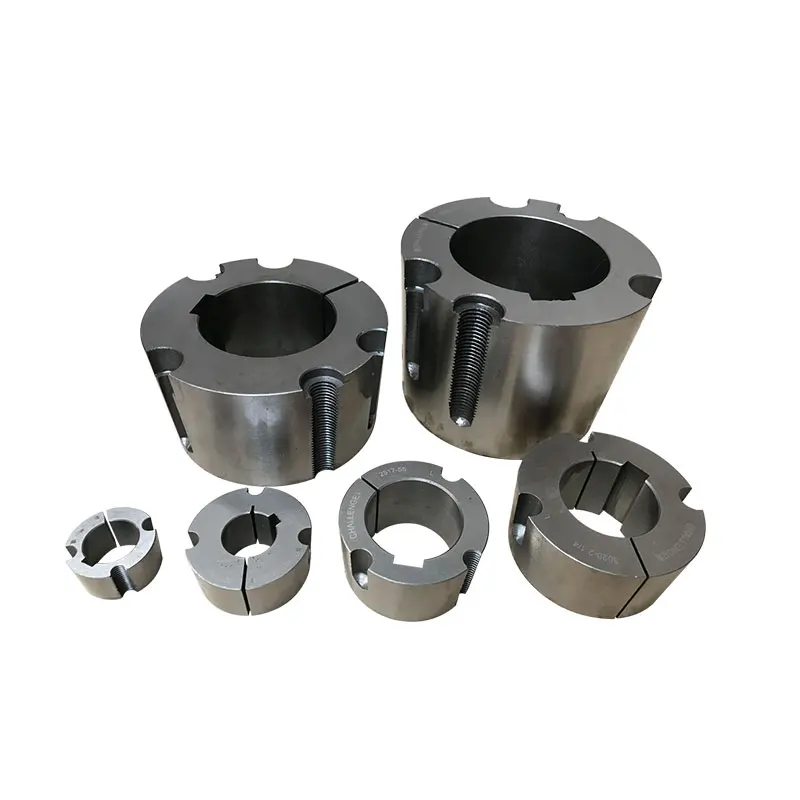

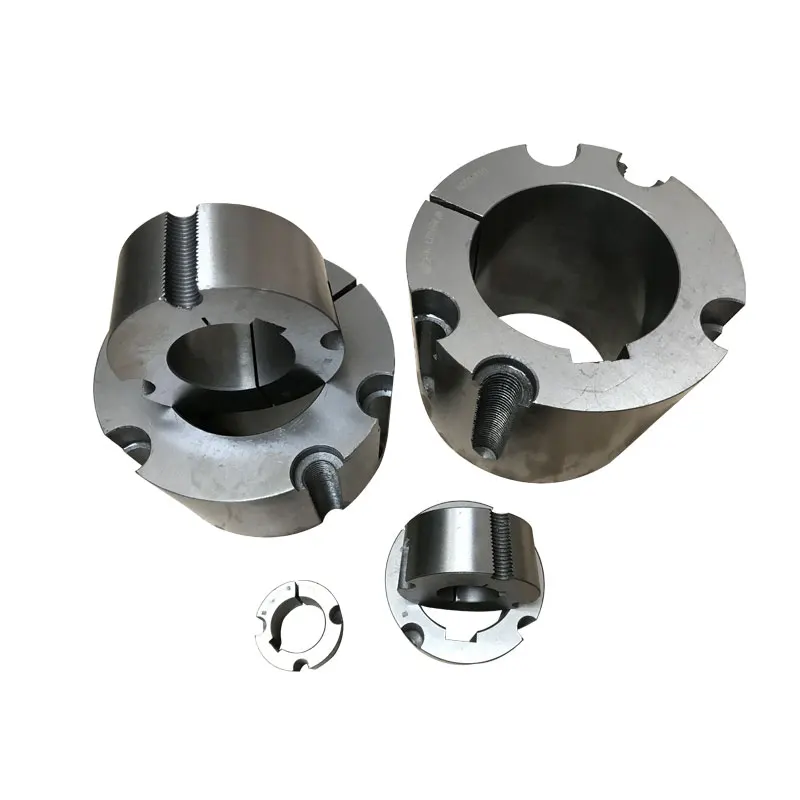

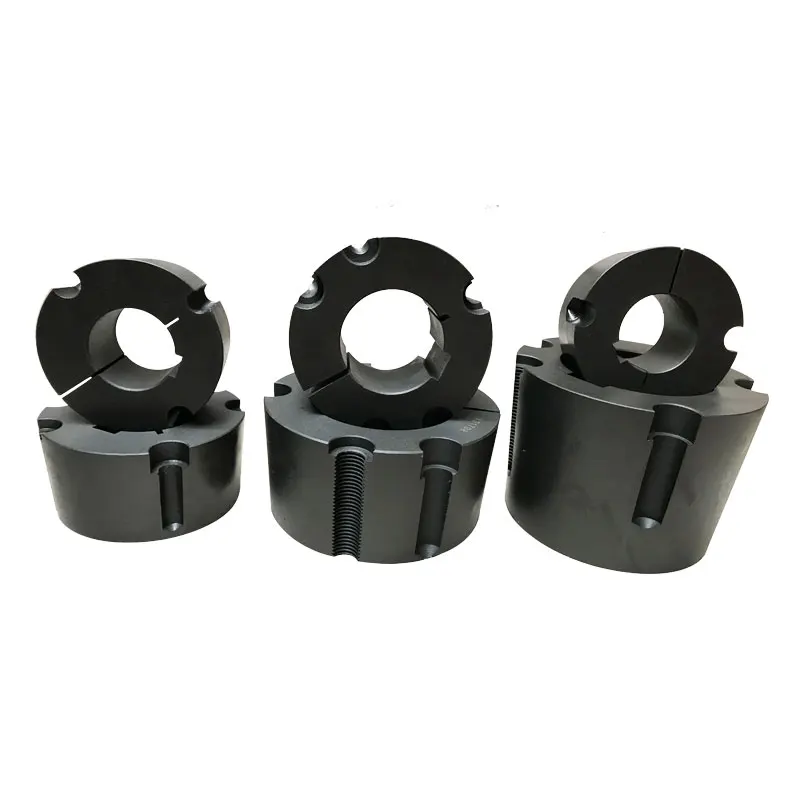

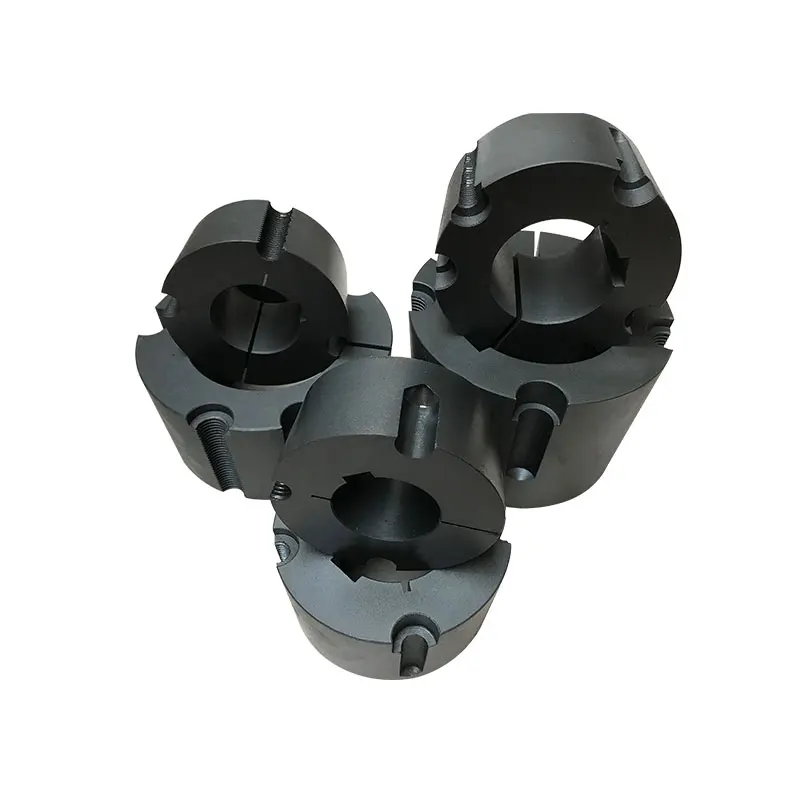

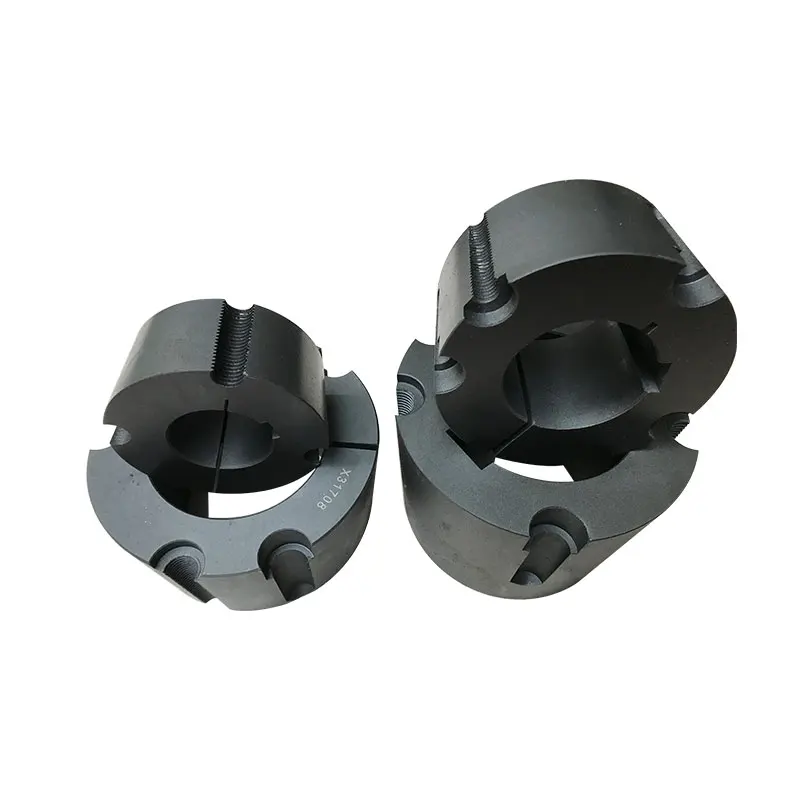

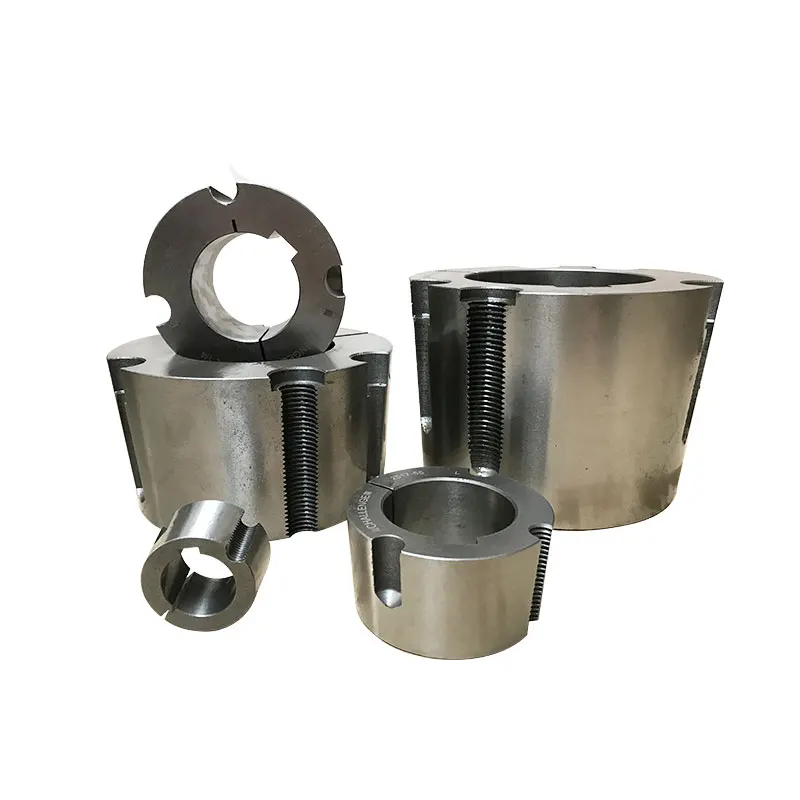

Detailed Images

About Us

XINLONG MACHINERY &EQUIPMENT CO.,LTD

Our products are produced according to to ISO standard.European & American standards.Our output of pulleys is more than 1 million PCS per year and taper bushes around 1 million PCS per year. Also we can produce various special transmission parts according to the customers` drawings.Our products are very popular in Europe. American.Japan and other countries.The turnover oflast year is over RMB 60 millio.
We own efficient and flexible management system, advance equipment and technology,perfect system for quality control. We offer products with good quality and reasonable prices.
