Shacman Бетономешалка для продажи 8X4 15m3 20m3

Категория: Concrete Truck >>>
Поставщик: Maxizm,Construction,Machinery,(Qingdao),Co.,Ltd.

Цена:62 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	74375.39 $*	78094.12 $*
Aug-16-2025	73750.74 $*	77438.85 $*
Jul-16-2025	61875.29 $*	64969.80 $*
Jun-16-2025	72500.31 $*	76125.56 $*
May-16-2025	63125.6 $*	66281.2 $*
Apr-16-2025	71250.39 $*	74813.0 $*
Mar-16-2025	70625.54 $*	74156.98 $*
Feb-16-2025	70000.45 $*	73500.69 $*
Jan-16-2025	69375.52 $*	72844.49 $*

Характеристики

Product Description

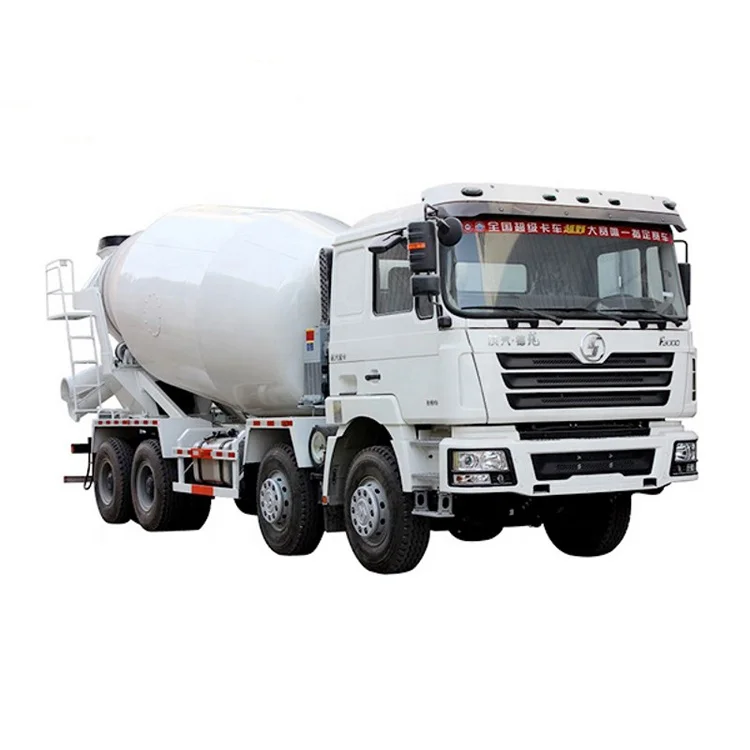

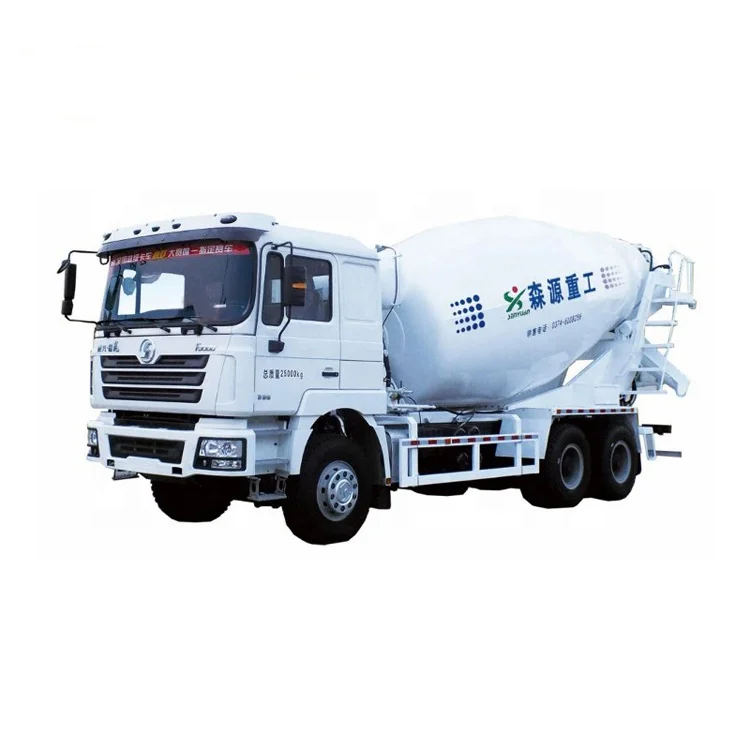

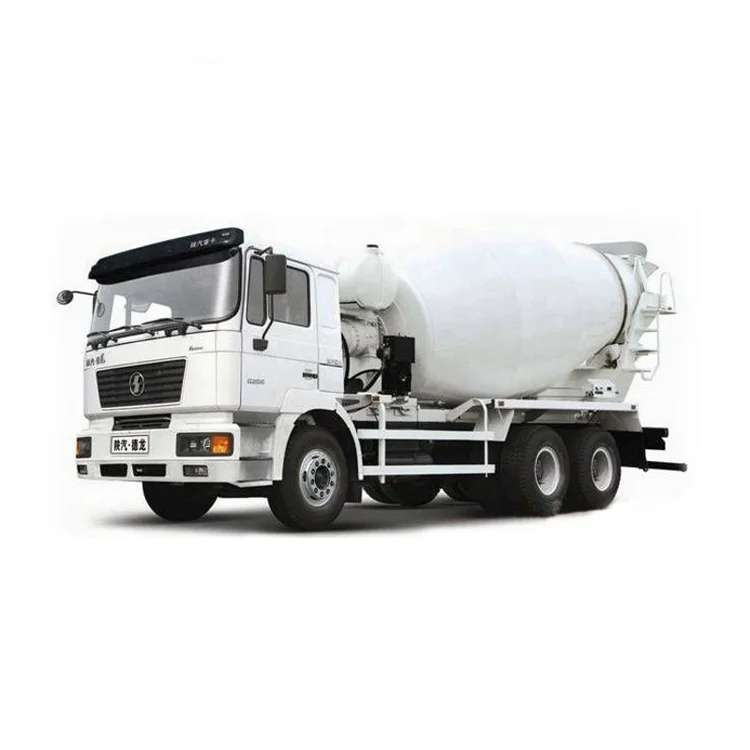

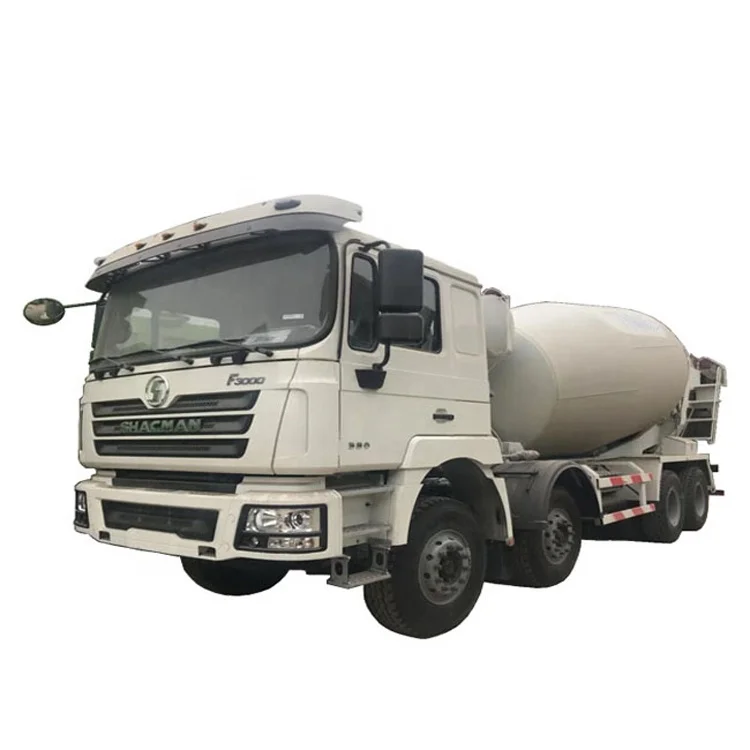

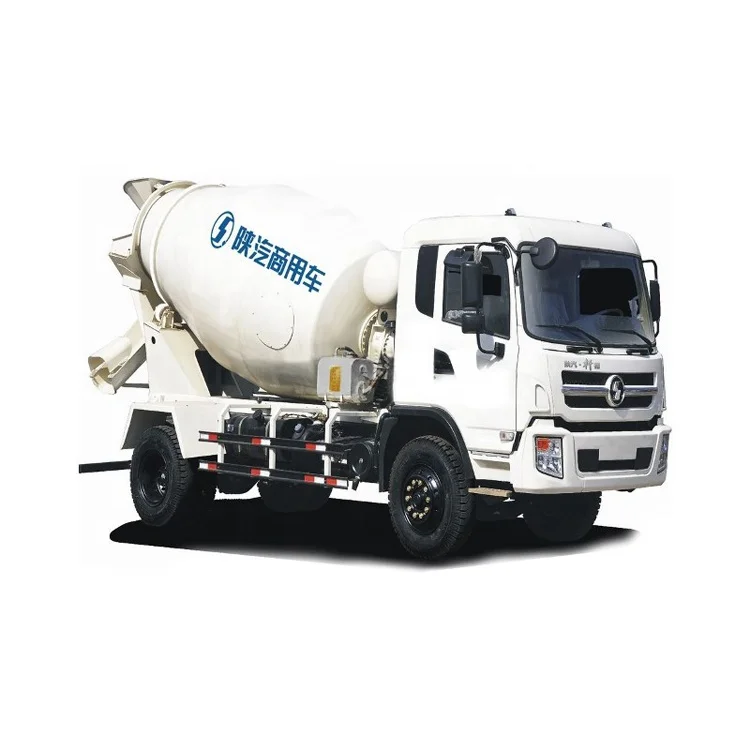

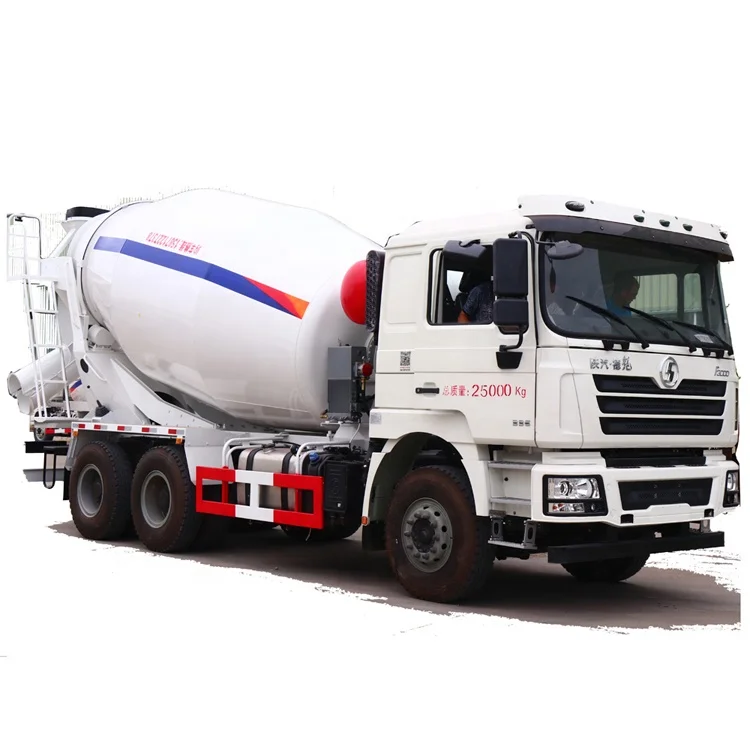

SHACMAN Mixer Trucks 12-20m³

• Double Logarithmic Variable Pitch Helical Mixer Blade: which enables higher charing and discharging speed and even mixing, eliminates segregation of concrete and is suitable for the transportation of both dry and wet materials.
• New T-shape Blade technology. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance.
• The geometric capacity of the agitator drum is very large and the filling rate is low, thus guaranteeing more mixing space. The small inclined angle and low center of gravity help reducing the possibility of turning-over of the truck.
• Closed loop hydraulic system and constant hydraulic oil temperature controller. Key hydraulic accessories including: Hydraulic plunger pump, adjuster mechanism with servo, hydraulic motor, and planetary reducer, all of which are manufactured in world-known brands with stable and reliable performances.
• Pneumatic Water Supply System: The pressure is provided by the air tank on the chassis with pressure protection devices. The pressure is provided by the air tank on the chassis with pressure protection devices. The water inlet connector fits for both normal water pipe and fire fitting.
• Multi-outlet washing design of which the cleaning requirements are met with the three fixed pipes for washing the agitator drum, charging hopper and discharging hopper respectively, and another flexible water outlet.
• Three-point operation system: One in the cab to allow control of the agitator drum, to turn forward and reverse, and to perform the “feed”, “discharging”, “agitate” and “stop” functions. Two at the rear with one operation handle at each side to perform “charge”, “accelerate”, “discharge”, “agitate” and “stop”, all of which are interlocke

Performance Parameters

Model	SX5254GJBJR404 6x4 mixer truck 336HP LHD
Cabin	Metal bumpers, single sleeper, built-in air conditioning, adjustable steering wheel.
Engine	Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
		MAX Horse power:			336HP/247KW
		Displacement(L):			11.596liter
		Max torque:			1350N.m
		Bore/stoke:			126mm/155mm
		Fuel consumption			196g/kw.h
		Engine overall dimension			1566x582x1024mm
		Fuel Type			Diesel
		Emission standard			Euro II
		Weight			905kg
Gear box	Brand			Fast-gear
		maximum torque			1600N.m
		Oil capacity			14.5L
		Rated speed			2600rpm
		Weight			270kg
		Model:			12JS160, mechanism, manual
		Speed:			12Speed, 2r2reverse
Axle(front/rear)
Front axle	7.5 ton MAN steering axle
Rear axle	13 ton STR bipolar axle
Steering	Driver sit at the left hand side
Electric Equipment
Tyre			10+1 spare tyre with rim
				11.00-20 radial tyre
Leaf spring type			Front/Rear			9/12,10/12
Overall dimension(mm)							9345x2495x3774(Length x width x height)
Mixer Ball Drum:							Capacity 6- 20 m3 Material 16Mn, 5mm high-quality wear-resisting manganese alloy steel.
Wheelbase	3800+1350(mm)
Truck	Front/Rear					1850/1850
		Approach/Departure angle					20/19
		Front /Rear overhang					1525/2470
		Max speed					77km/h
		Total Mass					25000kg
		Kerb weight					13700kg
