Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
Новый стиль горизонтальный гидравлический шланг обжимной станок в
- Категория: Оборудование для производства резиновых изделий >>>
- Поставщик: Henan,Chengyitong,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5117.37 $* | 5373.10 $* |
| Aug-16-2025 | 5074.10 $* | 5328.24 $* |
| Jul-16-2025 | 4257.23 $* | 4470.54 $* |
| Jun-16-2025 | 4988.23 $* | 5237.45 $* |
| May-16-2025 | 4343.87 $* | 4560.59 $* |
| Apr-16-2025 | 4902.38 $* | 5147.34 $* |
| Mar-16-2025 | 4859.85 $* | 5102.65 $* |
| Feb-16-2025 | 4816.54 $* | 5057.43 $* |
| Jan-16-2025 | 4773.0 $* | 5012.50 $* |
Характеристики

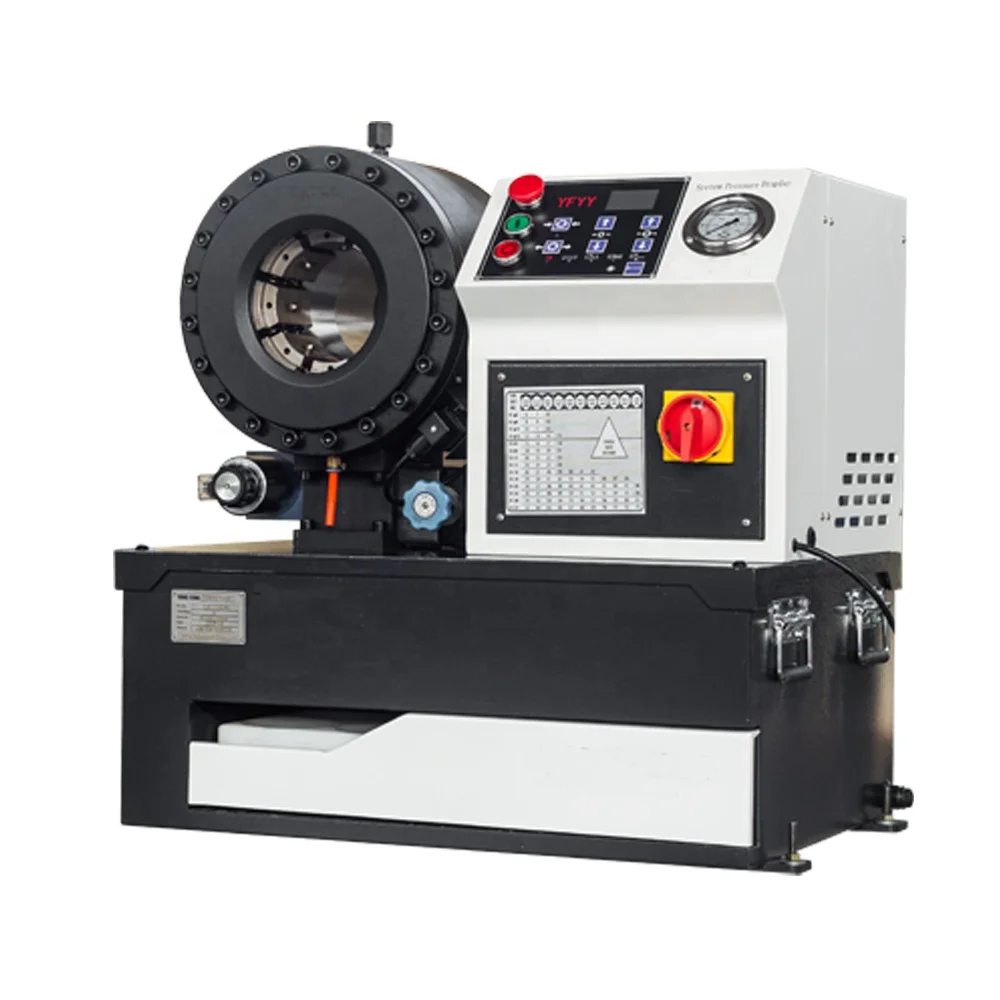

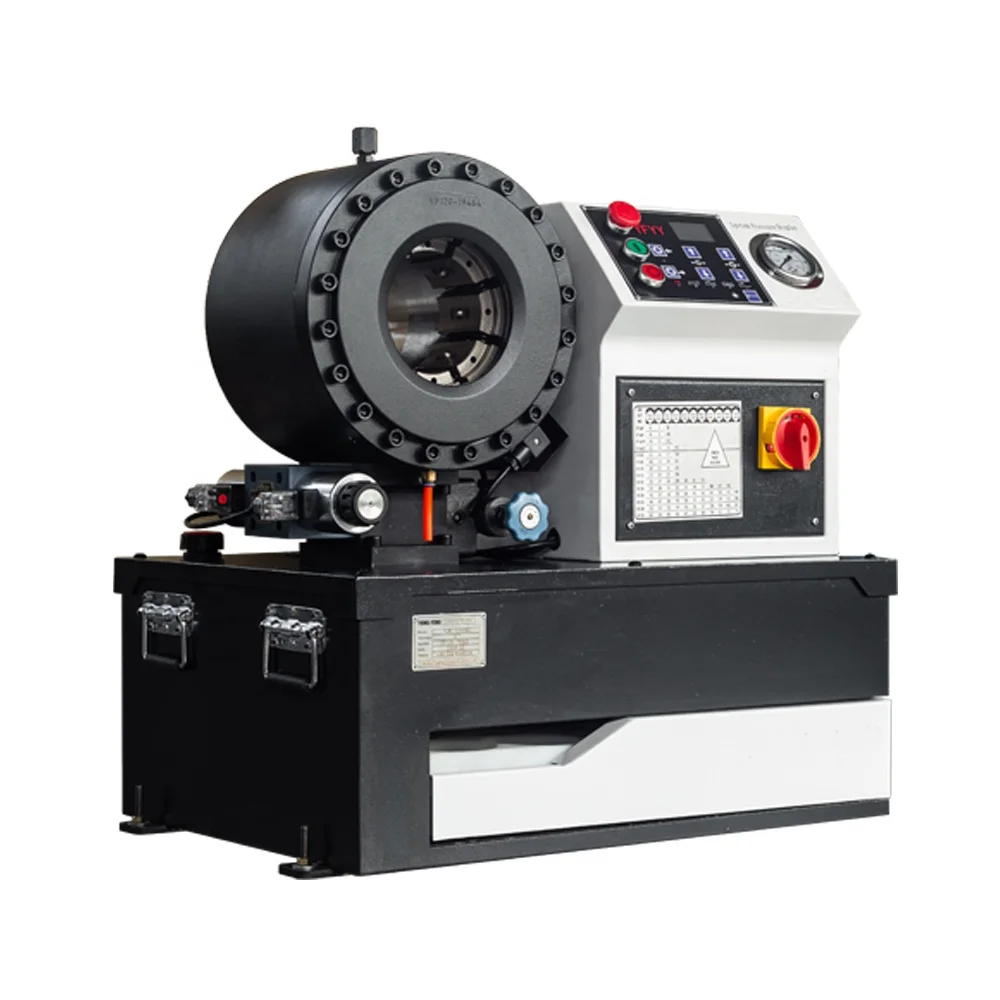

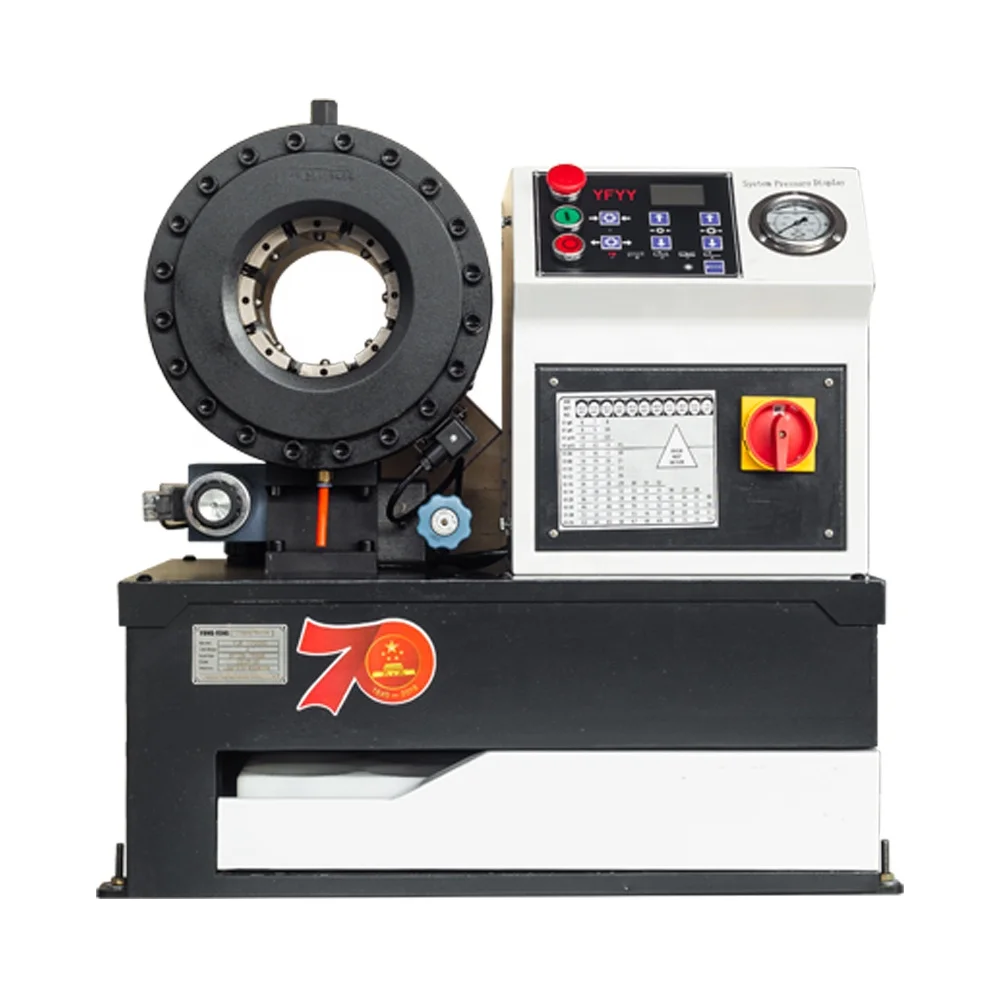

New style horizontal hydraulic hose crimping machine in china
Product Description
New style horizontal hydraulic hose crimping machine in china is perfect for production crimping in the hardest environment all around the world. The traditional strong design is ideal for extreme working conditions such as in mines or tropical sites.
Custom crimping device hydraulic hose crimpers is very easy to operate and offer affordable crimping in service operations. The compact design of F3 means it is easily movable to anywhere.
Specification of New style horizontal hydraulic hose crimping machine in china
| H.C. material | Forge Steel |
| Crimping range | 3-80mm(1/8"-3 1/16") |
Max. Hydraulic hose | 2",4SP(ID51mm) |
| Max. Opening | +25mm(1") |
| Opening without dies | 118mm( 4 5/8") |
| Accessible Diameter | 118mm( 4 5/8") |
| Master Die Length | 80mm(3 1/16") |
| System Pressure | 31.5Mpa |
| Max. Crimping Force | 2000KN(200T) |
| Motor Power | 4kw |
| Standard Voltage | 110V-480V |
| Control | Digital |
| Noise Level | 60dBA |
| Weight | 260KG |
| LxWXH | 650*500*730mm |
Specification of dies
| Dies No. | Range | D | L |
| F32/03 | 3.0-5.0 | 3 | 35 |
| F32/06 | 6.0-7.0 | 6 | 35 |
| F32/08 | 8.0-9.0 | 8 | 35 |
| F32/10 | 10.0-11.0 | 10 | 35 |
| F32/12 | 12.0-14.0 | 12 | 35 |
| F32/15 | 15.0-17.0 | 15 | 45 |
| F32/18 | 18.0-20.0 | 18 | 45 |
| F32/20 | 20.0-22.0 | 20 | 45 |
| F32/23 | 23.0-25.0 | 23 | 50 |
| F32/26 | 26.0-28.0 | 26 | 65 |
| F32/29 | 29.0-35.0 | 29 | 65 |
| F32/36 | 36.0-45.0 | 36 | 80 |
| F32/46 | 46.0-55.0 | 46 | 80 |
| F32/51 | 51.0-61.0 | 51 | 80 |
| F32/63 | 63.0-70.0 | 63 | 80 |
| F32/70 | 70.0-80.0 | 70 | 80 |
Note: 1.Special dies requirements can be available. 2.Standard Dies are 10sets. If more than 10sets, price will be increased. | |||
FAQ
1. Do you have one machine which crimp 2inch, 6 wire hose?
Yes, we have. Please send inquiry to us and I will send you details. You can also check CYT-F51X and it can crimp 2" 6SP hose.
2.How do I make payment to your company ?
Firstly, after everything is ok and I will send you PI for your confirmation. Then I will draw Alibaba Trade Assurance Order to you.
Secondly, you can make payment to our company account directly.
3. What will be included in the box ?
Standard Accessories:
One machine
14sets of standard dies
Dies drawer
Spare parts packet
Optional Accessories :
Dies base and power QC control
Customized dies
Manual QC tool
