Б/у машина для резки и полировки
- Категория: Оборудование для камней >>>
- Поставщик: Laizhou,Dechen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.49 $* | 0.62 $* |
| Aug-16-2025 | 0.31 $* | 0.29 $* |
| Jul-16-2025 | 0.42 $* | 0.94 $* |
| Jun-16-2025 | 0.85 $* | 0.12 $* |
| May-16-2025 | 0.68 $* | 0.14 $* |
| Apr-16-2025 | 0.59 $* | 0.77 $* |
| Mar-16-2025 | 0.89 $* | 0.18 $* |
| Feb-16-2025 | 0.6 $* | 0.81 $* |
| Jan-16-2025 | 0.51 $* | 0.34 $* |
Характеристики
used granite stone cutting and polishing machine
One stop shopping, Dechen Machinery produces mining equipment, stone processing equipment, to provide customers with a complete stone processing plant design, provide complete after-sales service.
Product Description

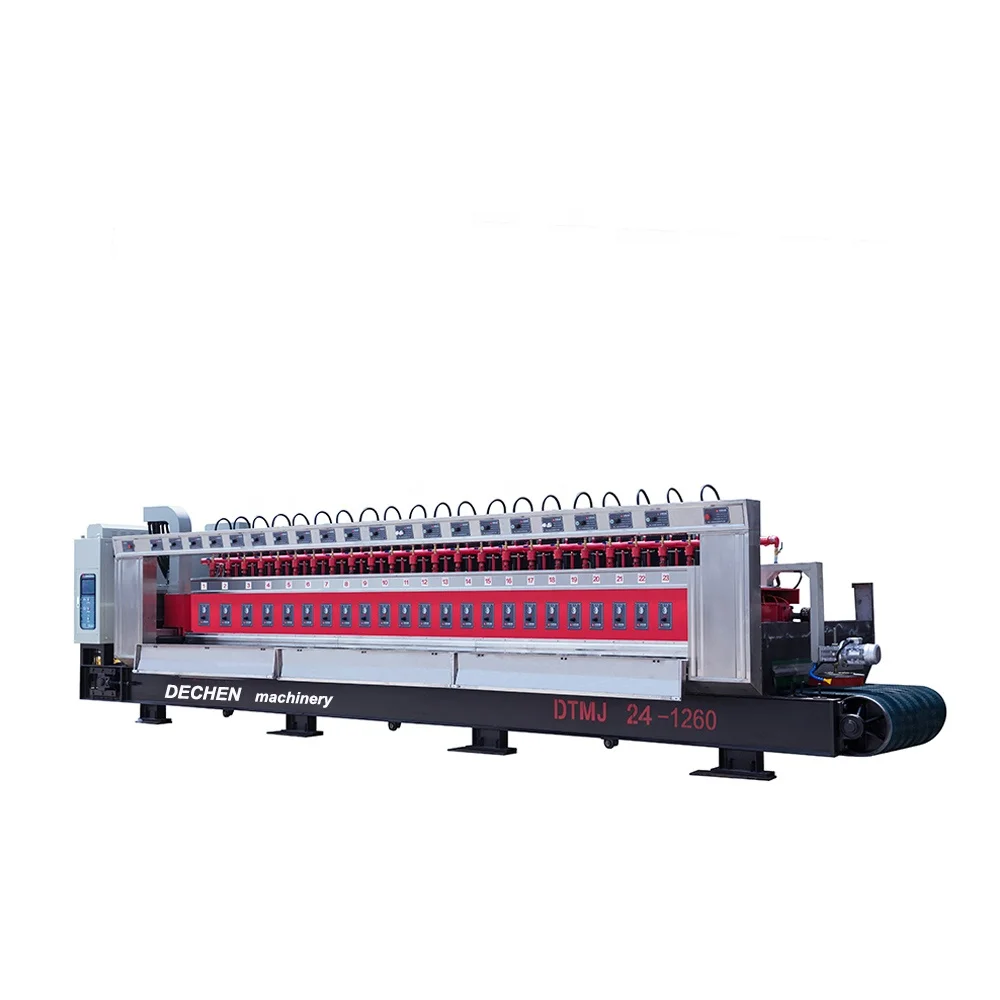

1) The DTMJ-16/20/24-1000/1260 multi-heads automatic continuous polishing machine adopts high quality steel,where the peneumatic part adopt YADEKE products from Taiwan to reserve a compact structure and steady performance so as to improve the processing efficicency.

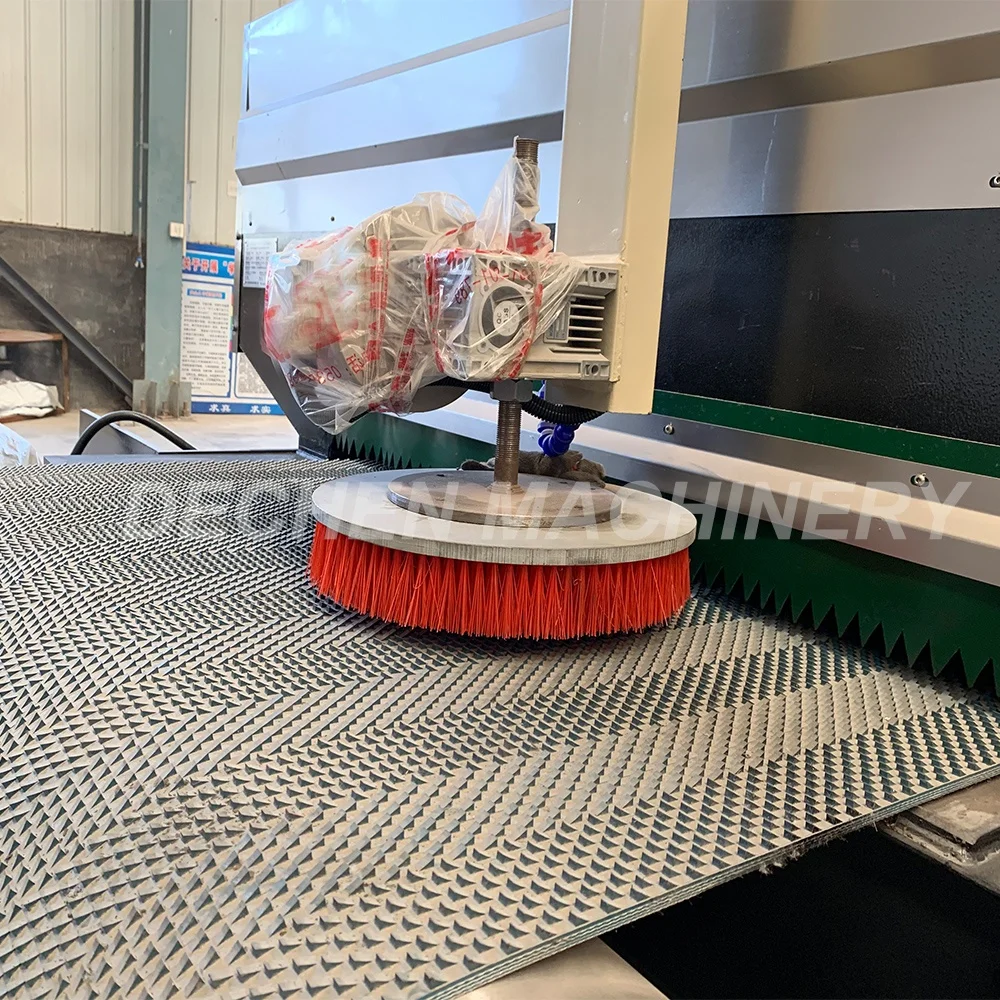

2) With new elastic grining head made of special resin for grinding,the machine is special for polishing granite plate,for it ensure a more comprehensive polishing and higher efficiency as well as reduce grinding materials consumption.
3) The PLC programmable system has many functions. The intelligen control is available for operator with LCD touch screen to interact with machine.
4) The prouct is reasonably structure to decrease the grinding time,to improve productivity by 15% and to decrease electricity waste by 15%.
5) The velocity of conveyor belt,swing velocity of cross spreader,lifting air cylinder pressure are adjuste by customer according to their plate material quality and customer demand.
6) In addition,the accessories of DTMJ-16/20/24-1000/1260 Multi-heads automatic continuous grinding machine can be chosen by customers demands.
Technical Parameters:
Type | DTQD-16-1000 | DTQD-16-1260 | DTQD-20-1260 | DTQD-24-1260 |
Number of polishing head | 16 | 20 | 24 | |
Veolcity of conveyor belt | 0-3.5m/min | |||
Swing velocity of cross spreader | 0-48m/min | |||
Thickness of processing | 10-50mm | |||
Water consumption | 15-20m³/h | |||
Max. Width of polishing plate | 1000mm | 1260mm | ||
Main motor power |
| 7.5/10KW | ||
Total power | 95KW | 134KW | 167KW | 202KW |
Dimension(L*W*H) | 6900*3100*2400 | 8100*3100*2400 | 9300*3100*2400 | 9300*3100*2400 |
Feature
1) Using PLC electrical system and LCD screen menu offer intelligent control. Friendly human-machine interface via LCD to achieve fully auto computerized control.
2)Equipped with resin disc special elastic polishing heads, polishing more comprehensively, motr efficiently, lower abrasive wearing and power consumption.
3) Automatically detect the slab profile by laser scanning device.
4) Adopting central automatic lubrication system, having all moving parts and bearings to get a good lubricating effect and longer life.
5)Superior material, reasonable structure, completed processing technique, stable performance, high efficiency and energy saving.
6) Sensitive collision avoidance of polishing head.
Accessories
1. We choose the top Accessories to make sure the machine is strong and durable.
2. Our core components adopt premium brands and materials to extend the use of machines.
Application
This machine adopts the structure of gantry type, good rigidity, conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate, make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.
We also have the single arm slab vacuum lifter,which can load and unload plates quickly and save 2-3 people.
One stop shopping, Dechen Machinery produces mining equipment, stone processing equipment, to provide customers with a complete stone processing plant design, provide complete after-sales service.More Information, Click Here!
Company Information
Laizhou Dechen Machinery Technology Co., Ltd is a large-scale comprehensive enterprise engaged in stone machinery with R&D, manufacture, sales and service.
The Company is located in Xiaqiu Town Laizhou City, the largest stone material base in Northern China.
Dechen stone machinery is the brand product in China’s stone industry. we export our products to the southeast Asia, Africa, South America and other dozens of countries, getting highly praise from our customers overseas it relys on the high quality, exquisite technology and perfect service system.
Packaging & Shipping
1.After the package is qualified and complete, we will use the international standard export and the customer's requirements to ensure the transport of the products.
2.We can offer different delivery terms for different quantities. (sea,express, etc.) and according to customer requirements on time delivery.
Our Services
1) Professional OEM service: motor power,color and sizes can be customized according to customer's special requirement.
2) Strong quality control: We use high quality materials and strict quality control system. Our QC department consistently operates throughout the whole product process according to related standards.
3) Competitive price and delivery in time: We are exporter based on manufacturer. so that we can control the cost and the delivery time.
4) More professional export work: Well-trained & experienced staff are ready to provide you good service from consultation to after sales service.
5)MOQ: One set Order accept.
6) Design: More than 20 different types of products can be supplied to you.
7) Inspection: You can inspect the shipment by third party before shipping out.
8) Refund Money: Refund money within 7 days in case of bad quality.
FAQ
1)Q: About MOQ
A: As customers’ options.
2)Q: About customization
A: ODM/OEM business partner will be warmly welcome.
3)Q: About price
A: Price is based on QTY, payment terms, time of delivery.
4)Q: How to request machine?
A: you just tell us.
5)Q: When you ship my order ?
A: Normally 15-20days after receiving final payment, but it can be negotiated if customers need urgently.
6)Q: How can you guarantee the production quality ?
A: We have strictly quality control system in our production process. All products must be double checked during every manufacturing process. Requirement of customers and quality of products will be full guaranteed.
7)Q: After I buy the machine, how I can install and operate it ?
A: We strongly suggest customer to ask our engineer to come to help you to install the machines, teach your operator how to operate and maintain the machines.
8)Q: Other problems ?
A:If you have any other questions, we have professional senior account managers who can provide services for you at any time. Click the business card below to communicate and solve your problems in time.
Send your inquiry Details in the Below for more information click "Send" Now!
