220 В Вибрационный двигатель для машины
US $22.00-$45.00
408 умная электроника ~ DC микро Вибрационный Мотор сотовый телефон вибратор без
- Категория: Vibration Motor >>>
- Поставщик: Yichang,Wingfong,Industry,&,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.56 $* | 0.54 $* |
| Aug-20-2025 | 0.62 $* | 0.46 $* |
| Jul-20-2025 | 0.10 $* | 0.75 $* |
| Jun-20-2025 | 0.86 $* | 0.27 $* |
| May-20-2025 | 0.97 $* | 0.19 $* |
| Apr-20-2025 | 0.78 $* | 0.11 $* |
| Mar-20-2025 | 0.93 $* | 0.75 $* |
| Feb-20-2025 | 0.87 $* | 0.71 $* |
| Jan-20-2025 | 0.60 $* | 0.19 $* |
Характеристики
Product Description

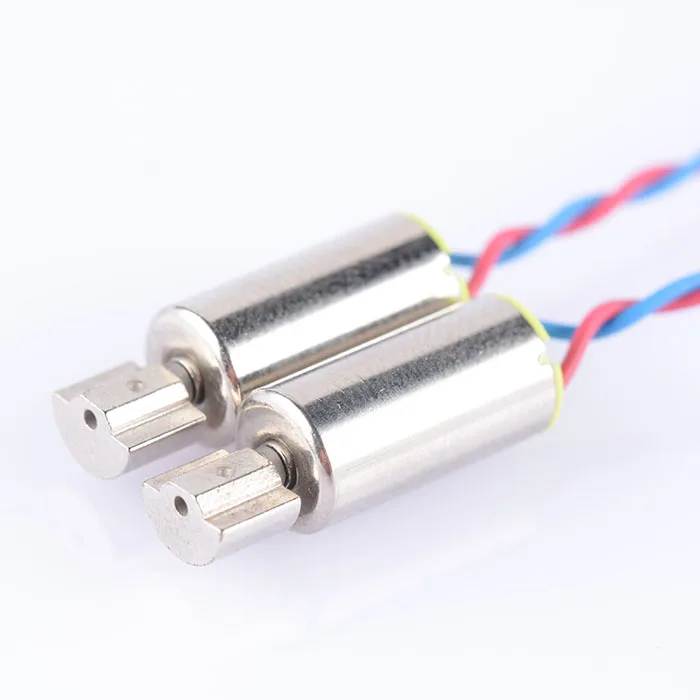

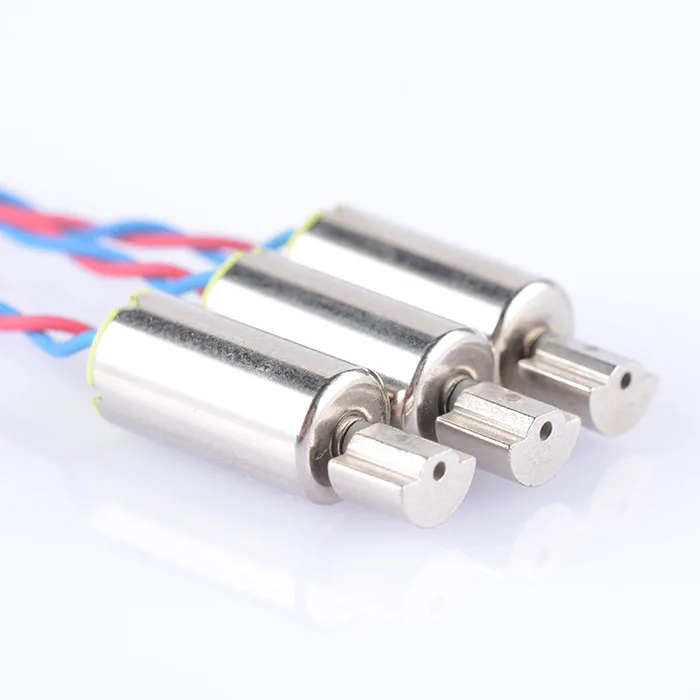

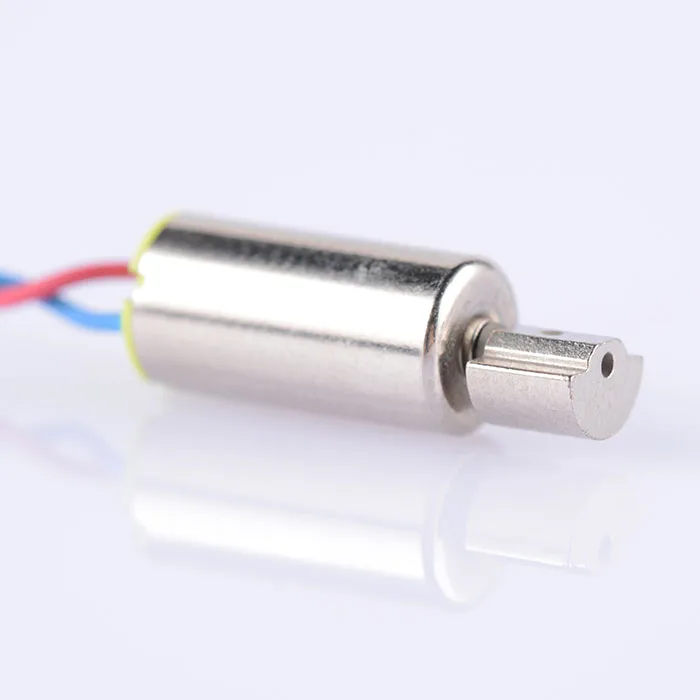

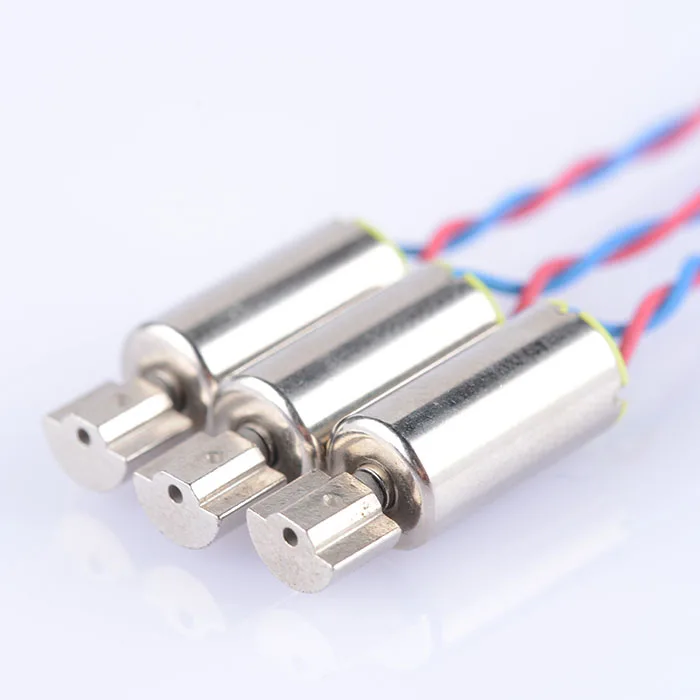

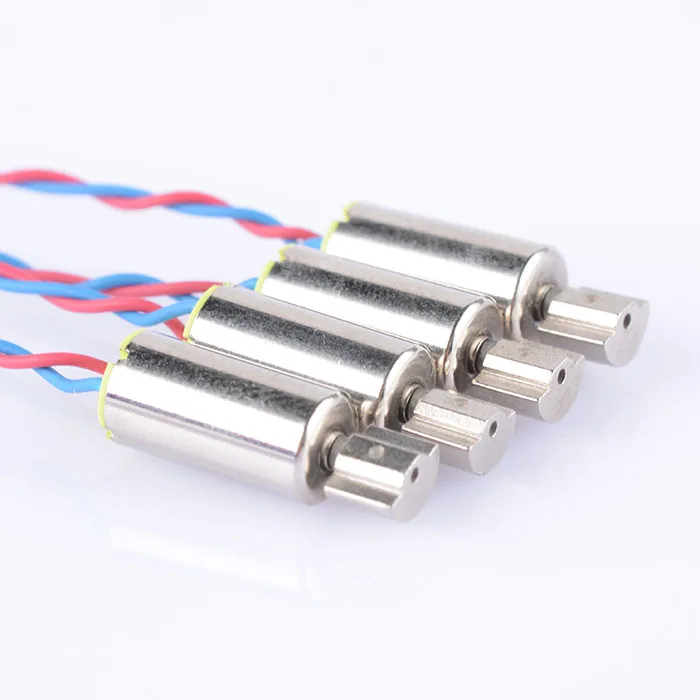

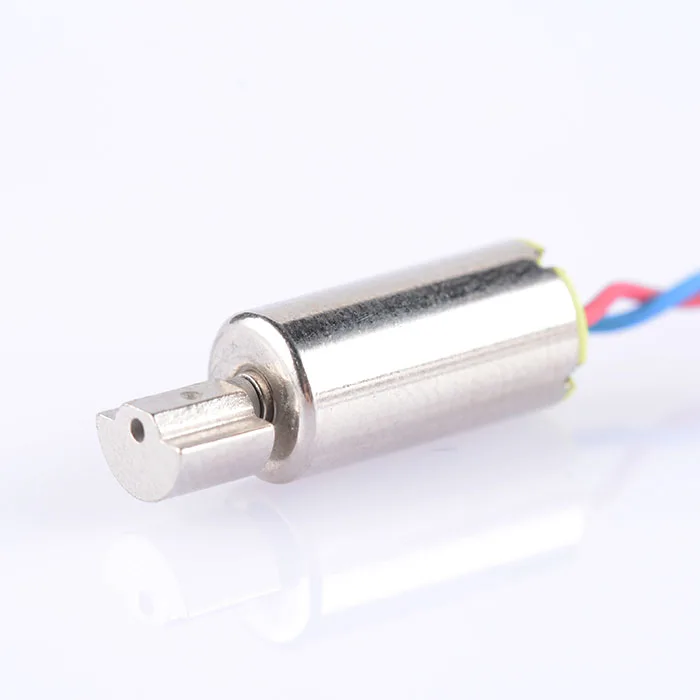

Vibrating motor
408 hollow cup vibrate motor
Diameter: 4mm
Body length: 18.5mm
R2.2mm*L2mm
wire length: customized
Size Information
Product mechanical parametersProduct mechanical parameters
№ | Item | Specifications | Remark |
1 | Model Number | JMM-1021 | |
2 | Rated Voltage | 3V DC | |
3 | The use of Voltage range | 1~ 4.5V DC | |
4 | Rotation Direction | CW/CCW | |
5 | Rated Current | 80mA Max | |
6 | Rated speed | 15000rpm | Under the rated voltage motor operates on load |
7 | Stall Current | 100mA Max | |
8 | Starting Voltage | 1.0V DC | In any one position, voltage slowly rises |
9 | The use of temperature range | -10℃～60℃≤60%RH | |
10 | Terminal Resistance | 29 ± 5%Ω | Measure between two terminals |
11 | Insulation Resistance | 10MΩ | Ohmmeter, measure between the wires and the shell |
12 | Appearance | The machine no damage and rusting | |
13 | Weight | About 0.6g | |
14 | Clearance between shafts | 0.10～0.20mm |
Detailed Images
We can customize according to customer's need, but need to provide detailed specification.
Related Products
Packing&Shipping
We can supply :
SF express: 1-5 working days
DHL:5-7 working days
FedEx: 5-7 working days
EMS:It deponds on where you want to shipping
We can also what you need
Company Introduction
Yichang Wingfong Industry & Trade Co.,Ltd
Our company is located in Yichang District, China (Hubei) Free Trade Zone. We provides reliable micro motors and other electric products. These motors are widely used in various electirctools,massergers,adult and robotic products.The company gets rapid development and be familiar with the market needs.Our mission is to provide high quality products and efficient services.
Our company is located in Yichang District, China (Hubei) Free Trade Zone. We provides reliable micro motors and other electric products. These motors are widely used in various electirctools,massergers,adult and robotic products.The company gets rapid development and be familiar with the market needs.Our mission is to provide high quality products and efficient services.
FAQ
Title goes here.
Q:Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, but normally sample is not for free (sample fee is charged varying from 3usd/pc -40 usd/pc). And the sample making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor should be about 25days more or less. Additional, there will be about extra 2-3 days for the delivery time, and the shipping cost is not for free too.
Q: Are these motor's parameter from the above list can be modified ?
A: Yes, motor's parameter can be customized. We can modify the motor's working voltage, rated speed, torque etc, and motor's shaft dime- nsion can be modified too. We are pleased to make those modification, the more details you provide, the more fluent our cooperation will be.
Q: What parameter should I provide before the sample making ?
A: Good question. Normally we need to know the Nominal Voltage, Free-load Speed, On-load Torque, On-load Speed, Rotation Direction, Shaft Diameter and Length. If there is other special requirement, please let us know in advance, such as working current limits, EMC limits, noise limits, expected lifetime and shaft process(D-shape, multy-knurls, mounting holes etc).
Q: Sometimes I don't know the exact required parameter, how should I choose a suitable model ?
A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will be
this model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor's
expected lifetime ? etc. Then we can a make full assessment according to that.
Q: Is there any Testing Report or Motor Specification when I get the sample ?
A: Yes, we can provide the Testing Report and Specification after the sample is ready. We will send a PDF file to you. By the way, Motor Specification will be available 3-5days later after sample is ready.
A: Yes, we can make samples, but normally sample is not for free (sample fee is charged varying from 3usd/pc -40 usd/pc). And the sample making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor should be about 25days more or less. Additional, there will be about extra 2-3 days for the delivery time, and the shipping cost is not for free too.
Q: Are these motor's parameter from the above list can be modified ?
A: Yes, motor's parameter can be customized. We can modify the motor's working voltage, rated speed, torque etc, and motor's shaft dime- nsion can be modified too. We are pleased to make those modification, the more details you provide, the more fluent our cooperation will be.
Q: What parameter should I provide before the sample making ?
A: Good question. Normally we need to know the Nominal Voltage, Free-load Speed, On-load Torque, On-load Speed, Rotation Direction, Shaft Diameter and Length. If there is other special requirement, please let us know in advance, such as working current limits, EMC limits, noise limits, expected lifetime and shaft process(D-shape, multy-knurls, mounting holes etc).
Q: Sometimes I don't know the exact required parameter, how should I choose a suitable model ?
A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will be
this model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor's
expected lifetime ? etc. Then we can a make full assessment according to that.
Q: Is there any Testing Report or Motor Specification when I get the sample ?
A: Yes, we can provide the Testing Report and Specification after the sample is ready. We will send a PDF file to you. By the way, Motor Specification will be available 3-5days later after sample is ready.
