Антивандальный водонепроницаемый сенсорный дисплей 7 дюймовый монитор с сенсорным

Антивандальный водонепроницаемый сенсорный дисплей 7 дюймовый монитор с сенсорным

Категория: Сенсорные мониторы >>>
Поставщик: Leadingtouch,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.68 $*	0.75 $*
Aug-18-2025	0.40 $*	0.31 $*
Jul-18-2025	0.52 $*	0.58 $*
Jun-18-2025	0.60 $*	0.16 $*
May-18-2025	0.96 $*	0.25 $*
Apr-18-2025	0.24 $*	0.72 $*
Mar-18-2025	0.18 $*	0.83 $*
Feb-18-2025	0.38 $*	0.81 $*
Jan-18-2025	0.64 $*	0.14 $*

Характеристики

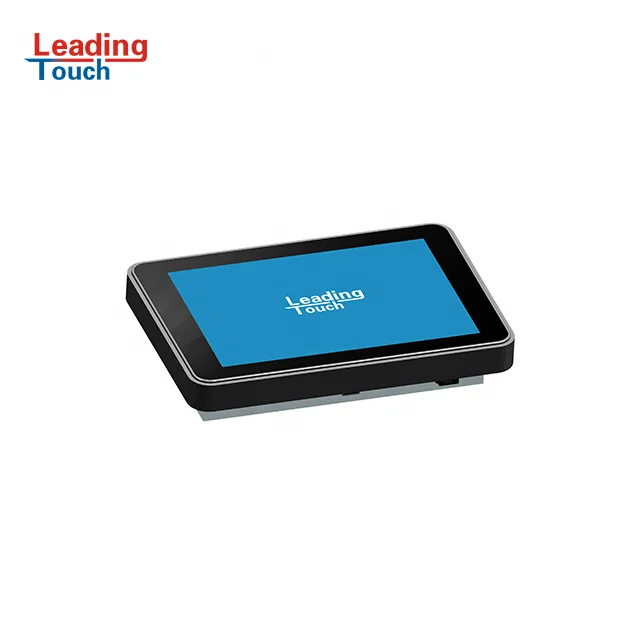

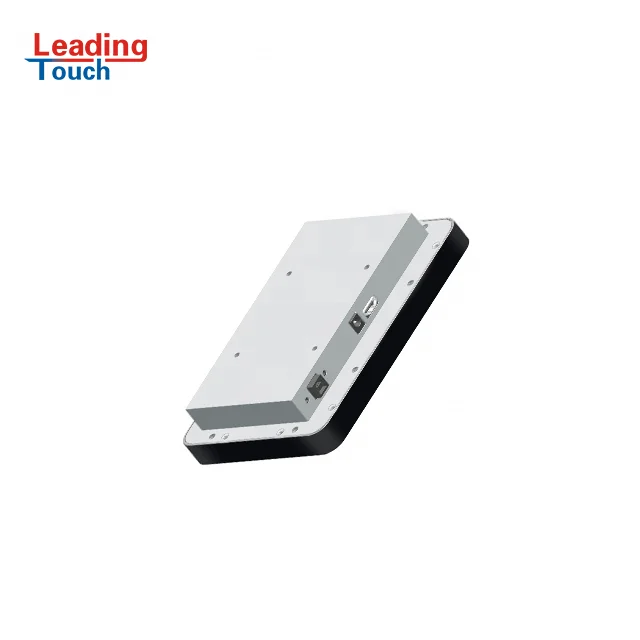

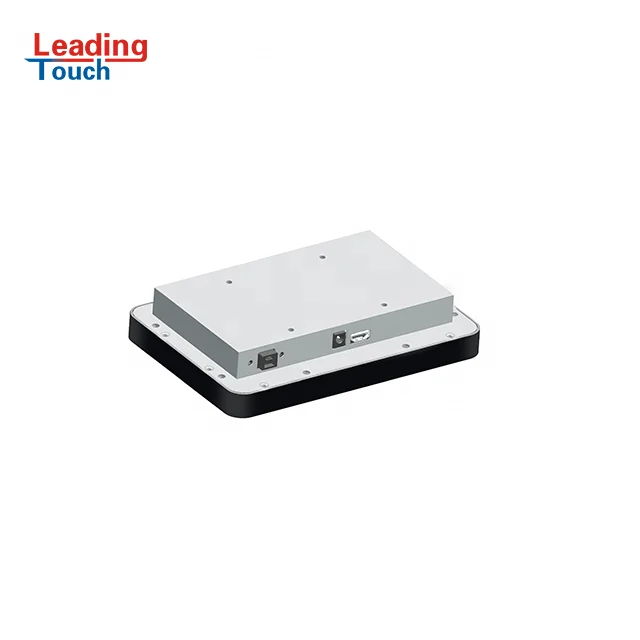

Anti-vandal Waterproof touch display 7 inch touch screen monitor for electric vehicle charging station

PCAP projected Capacitive touch screen

Product Description

TM-0702 is 7inch 10point multitouch project capacitive open frame touch monitor; cost-effective touch solution which is designed for kiosk, ATM, Gaming, Casino, Interactive digital, Industrial, Education, Transportation etc., is easily connected and integrated by user.

7” Project Capacitive Multitouch Open Frame Touch Monitor
Products Model	TM-0702-G313BL
Description	7” Multitouch Capacitive Open Frame Touch Monitor
Case/Bezel Color	Steel/Black
Display Size	7inch Active Matrix TFT LCD
Useful Screen Area	154.1mm x 92mm
Optimal Resolution	1024 x 600
Color Depth	8bit,16.7 Million colors
Brightness	400cd/m²
Contrast Ratio	800:1 (Typical)
Viewing Angle(CR≥10)	Right/Left 85º/85º Up/Down 85º/85º
Video Input Format	HDMI
Input Video Signal Connector	HDMI
On Screen Display(OSD)	Controls(back):On/Off, Menu, Left, Right, Auto
Backlight Lamp Life	50000hrs
Touch Technology	PCAP (Project Capacitive) Multitouch Touch Technology
Touch Point	Standard 10point, Max 40point(option)
Touch Response Time	3ms
Touch Resolution	32767 x 32767
Touch Port Interface	USB interface
Touch Cover_Glass	3mm Physical Tempered Anti-vandal Glass(AR,AG option) meet UL60950 IK07
Support OS	HID-Mode: Windows7/8/10, Linux, Android, Mac etc.
Mounting Options	VESA Mount 75x75 and 100x100, Four side bracket option
Power Supply	External Adapter: 100-240VAC, 50-60Hz
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range(no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension	196.5mm x 133.5mm x 38.5mm
Warranty	1 year
Agency Approvals	CCC, FCC, CE, RoHS

Details Images

10 Point Multitouch Projected Capacitive Touch screen

Customized High Brightness for outdoor Application

Anti Glass Glass optional

Full Front Bezel meet IP65 Waterproof

3MM Anti-vandal cover glass meet UL60950

Full flat, zero bezel, pure touch screen monitor appearance

VGA, DVI, HDMI Optional

Customized ports optional

Packing & Delivery

PCAP (Project Capacitive)

Open Frame Touch Monitor

Surface Acoustic Wave (SAW)

Open Frame Touch Monitor

Elo Compatible

Open Frame Touch Monitor

Certifications

Our Company

Founded in 2001, LeadingTouch, the global leader in touch technology, develops, manufactures and markets a complete line of touch screen and touch monitor products, with PCAP, SAW, Infrared, Resistive touch technology. LeadingTouch offers the largest selection of touch screen technologies and LCD touch monitors and carefully designs each product for the demanding requirements of diverse applications, such as Industrial, Medical, POS, Kiosks, Retail, Hospital, Transportation, Office Automation, and Gaming.

FAQ

Q1: What is your main size for your PCAP capacitive touch screen monitor?
A1: 7” 10.1” 10.4” 12.1” 13.3” 14” 15” 15.6” 17” 17.3” 18.5” 19” 19”W 19.5" 21.5” 22” 23” 23.8” 24” 27” 32” 43” 55” 65”
Q2: Is it waterproof? Vandal proof?
A2: Yes, the front panel is waterproof. It is anti-vandal.
Q3: Is it anti-glare?
A3: If you need anti-glare one, pls tell us before make order.
Q4: Is the monitor IPS? Do you have 2K or 4K monitor?
A4: Yes, we have IPS, 2K, 4K different type, any requirement pls contact us get confirm.
Q5: Whether LeadingTouch PCAP capacitive touch screen monitor support OEM?
A5: Yes, we support customization with size, brightness, function, appearance, resolution, etc.
Q6: What is your capacitive touch monitor application?
A6: Desktop touchmonitors, Open Frame Touchmonitors, Interactive Digital Signage, Point-of-information kiosks, Point-of-sale (POS) terminals, Gaming and lottery terminals, Self-service/Self-automation Public environments: Hotel lobbies, Office buildings, Auto dealerships, Bank, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc.
Q7: What is your payment method?
A7: T/T, Paypal, Credit card, secure payment on alibaba.
A7: T/T, Paypal, Credit card, secure payment on alibaba.
Q8: What is your guarantee period?
A8: 1 Year. If you have any requirement, pls contact us.
