Характеристики
| Smart best thermoelectric peltier generator module |
Product Description
- Features
High reliability: with the special GL structure,the reversal of polarity property of our products are 10 times better than conventional thermoelectric coolers. The reliability of coolers has been increased dramatically.
Higher temperature difference:2℃ temperature difference result in higher cooling performance and better quality.
High temperature resistance:the 230℃ high temperature solder made the products possible to be used at higher temperature.

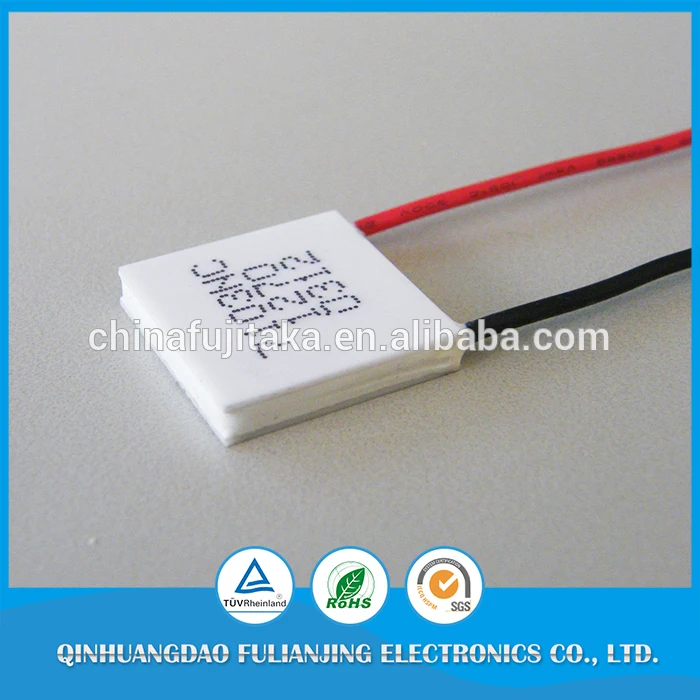

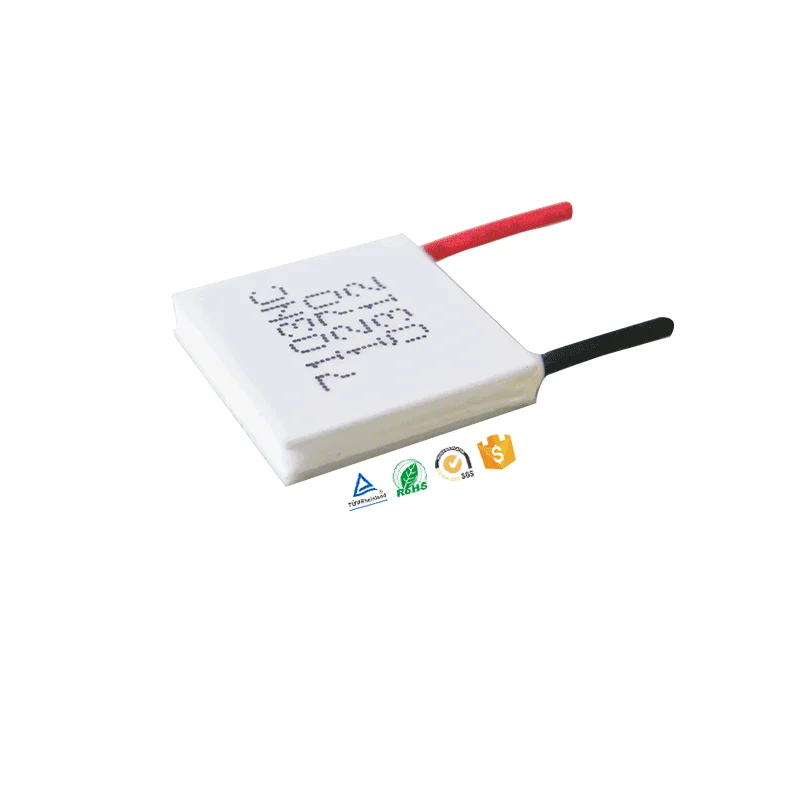

1. Product Pictures of thermoelectric peltier module
2.Product Description of thermoelectric peltier module
| Model number | Imax(A) | Vmax(V) | Tmax(℃) | Qmax(W) | Tmax(℃) | Qmax(W) | Dimensions(mm) | ||
| Th=27℃ | Th=50℃ | L | W | H | |||||
| TEC1-1703NC | 3.5 | 2.1 | 68 | 3.9 | 75 | 4.3 | 15 | 15 | 4.70 |
| TEC1-3103NC | 3.8 | 7.0 | 7.7 | 20 | 20 | ||||
| TEC1-3503NC | 4.2 | 7.9 | 8.7 | 15 | 30 | ||||
| TEC1-7103NC | 8.6 | 16.0 | 17.8 | 30 | 30 | ||||
| TEC1-12703NC | 15.4 | 29.0 | 32.0 | 40 | 40 | ||||
| TEC1-12703AC | 15.4 | 29.0 | 32.0 | 40 | 40 | ||||
| TEC1-1704NC | 4.0 | 2.1 | 68 | 4.2 | 75 | 4.6 | 15 | 15 | 4.60 |
| TEC1-3104NC | 3.8 | 7.5 | 8.3 | 20 | 20 | ||||
| TEC1-3504NC | 4.2 | 8.4 | 9.2 | 15 | 30 | ||||
| TEC1-4904NC | 5.9 | 13.5 | 15.2 | 25 | 25 | ||||
| TEC1-7104NC | 8.6 | 19.6 | 21.6 | 30 | 30 | ||||
| TEC1-12704NC | 15.4 | 32.0 | 35.2 | 40 | 40 | ||||
| TEC1-12704AC | 15.4 | 32.0 | 35.2 | 40 | 40 | ||||
| TEC1-1705NC | 5.0 | 2.1 | 68 | 5.5 | 75 | 6.1 | 15 | 15 | 4.00 |
| TEC1-3105NC | 3.8 | 10.0 | 11.1 | 20 | 20 | ||||
| TEC1-3505NC | 4.2 | 11.0 | 12.3 | 15 | 30 | ||||
| TEC1-7105NC | 8.6 | 23.0 | 25.7 | 30 | 30 | ||||
| TEC1-12705NC | 15.4 | 41.0 | 45.8 | 40 | 40 | ||||
| TEC1-1706NC | 6.0 | 2.1 | 68 | 7.1 | 75 | 7.9 | 15 | 15 | 4.00 |
| TEC1-3106NC | 3.8 | 13.0 | 14.5 | 20 | 20 | ||||
| TEC1-3506NC | 4.2 | 14.5 | 16.1 | 15 | 30 | ||||
| TEC1-7106NC | 8.6 | 29.0 | 31.4 | 30 | 30 | ||||
| TEC1-12706NC | 15.4 | 53.0 | 59.3 | 40 | 40 | ||||
| TEC1-12706AC | 15.4 | 53.0 | 59.3 | 40 | 40 | ||||
| TEC1-1707NC | 7.0 | 2.1 | 68 | 7.5 | 75 | 8.3 | 15 | 15 | 3.70 |
| TEC1-3107NC | 3.8 | 13.6 | 15.1 | 20 | 20 | ||||
| TEC1-3507NC | 4.2 | 15.4 | 17.1 | 15 | 30 | ||||
| TEC1-7107NC | 8.6 | 31.0 | 34.6 | 30 | |||||
| TEC1-12707NC | 15.4 | 55.0 | 61.5 | 40 | 40 | ||||
| TEC1-12707AC | 15.4 | 55.0 | 61.5 | 40 | 40 | ||||
| TEC1-1708NC | 8.5 | 2.1 | 68 | 10.0 | 75 | 11.1 | 15 | 15 | 3.50 |
| TEC1-3108NC | 3.8 | 18.0 | 20.1 | 20 | 20 | ||||
| TEC1-3508NC | 4.2 | 20.0 | 22.3 | 30 | 15 | ||||
| TEC1-6308NC | 7.6 | 37.4 | 41.8 | 40 | 20 | ||||
| TEC1-7108NC | 8.6 | 42.0 | 46.9 | 30 | 30 | ||||
| TEC1-12708NC | 15.4 | 75.0 | 83.9 | 40 | 40 | ||||
| TEC1-12708AC | 15.4 | 75.0 | 83.9 | 40 | 40 | ||||
| TEC1-12710AC | 10.5 | 15.4 | 68 | 93.0 | 75 | 102.0 | 40 | 40 | 3.30 |
| TEC1-12712AC | 12.5 | 15.4 | 68 | 110.0 | 75.0 | 121.0 | 40 | 40 | 3.70 |
| TEC1-12715AC | 15.0 | 15.4 | 68 | 130.0 | 75.0 | 145.0 | 50 | 50 | 4.15 |
| TEC1-19903AC | 3.5 | 24.1 | 68 | 49.0 | 75.0 | 53.0 | 40 | 40 | 4.70 |
| TEC1-19904AC | 4.0 | 24.1 | 68 | 55.7 | 75.0 | 61.2 | 40 | 40 | 4.60 |
| TEC1-19906AC | 6.0 | 24.1 | 68 | 83.5 | 75.0 | 91.9 | 40 | 40 | 4.00 |
| TEC1-19908AC | 8.5 | 24.1 | 68 | 118.0 | 75.0 | 130.0 | 40 | 40 | 3.50 |
| TEC1-19910AC | 10.5 | 24.1 | 68 | 148.0 | 75.0 | 163.0 | 40 | 40 | 3.30 |
| TEC1-19913AC | 13.0 | 24.1 | 68 | 200.0 | 75.0 | 224.0 | 40 | 40 | 3.40 |
| TES1-3102NC | 2.0 | 3.8 | 68 | 3.7 | 75 | 4.0 | 15 | 15 | 4.8 |
| TES1-7102NC | 8.6 | 8.5 | 9.4 | 20 | 20 | ||||
| TES1-12702NC | 15.4 | 15.2 | 16.9 | 30 | 30 | ||||
| TES1-12702AC | 15.4 | 15.2 | 16.9 | 30 | 30 | ||||
| TES1-3103NC | 3.0 | 3.8 | 68 | 6.5 | 75 | 7.2 | 15 | 15 | 3.9 |
| TES1-4903NC | 6.0 | 10.3 | 11.3 | 20 | 20 | ||||
| TES1-7103NC | 3.0 | 8.6 | 15.0 | 16.7 | 20 | 20 | |||
| TES1-12703NC | 15.4 | 27.0 | 30.1 | 30 | 30 | ||||
| TES1-12703AC | 15.4 | 27.0 | 30.1 | 30 | 30 | ||||
| TES1-3104NC | 3.9 | 3.8 | 68 | 8.1 | 75 | 8.8 | 15 | 15 | 3.7 |
| TES1-7104NC | 8.6 | 18.7 | 21.8 | 20 | 20 | ||||
| TES1-12704NC | 15.4 | 33.4 | 37.3 | 30 | 30 | ||||
| TES1-12704AC | 15.4 | 33.4 | 37.3 | 30 | 30 | ||||
| TES1-3106NC | 6.0 | 3.8 | 68 | 12.2 | 75 | 13.6 | 15 | 15 | 3.2 |
| TES1-7106NC | 8.6 | 27.9 | 31.2 | 20 | 20 | ||||
| TES1-12706NC | 15.4 | 50.5 | 56.5 | 30 | 30 | ||||
| TES1-12706AC | 15.4 | 50.5 | 56.5 | 30 | 30 | ||||
- Application
GAS Analyzers, Photonic and medical systems, CPU cooler and scientific instrument.
Calibration Equipment, Air Conditioner, PCR.
Wine Shelf, Infraed Sensor, Comminication base station.
