Характеристики
Product Description

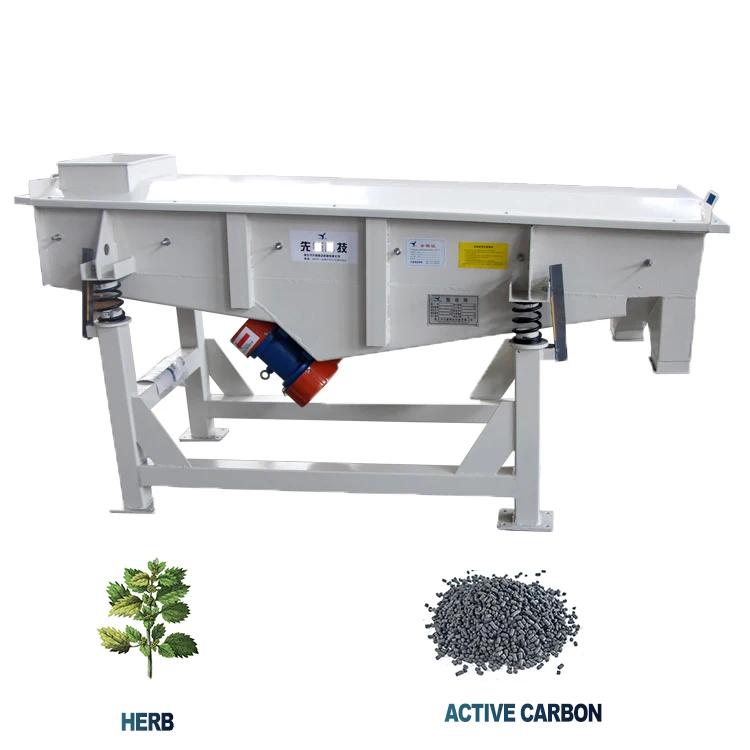

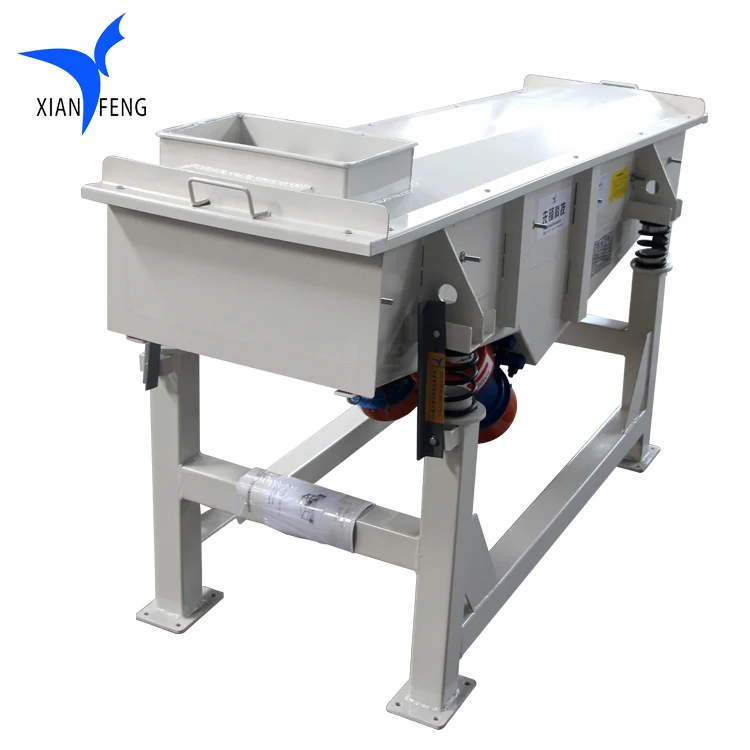

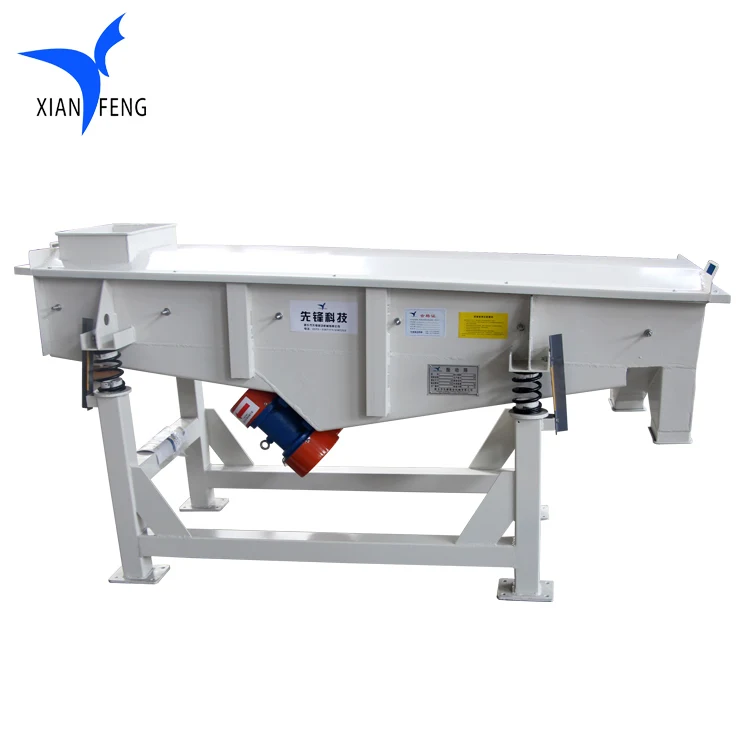

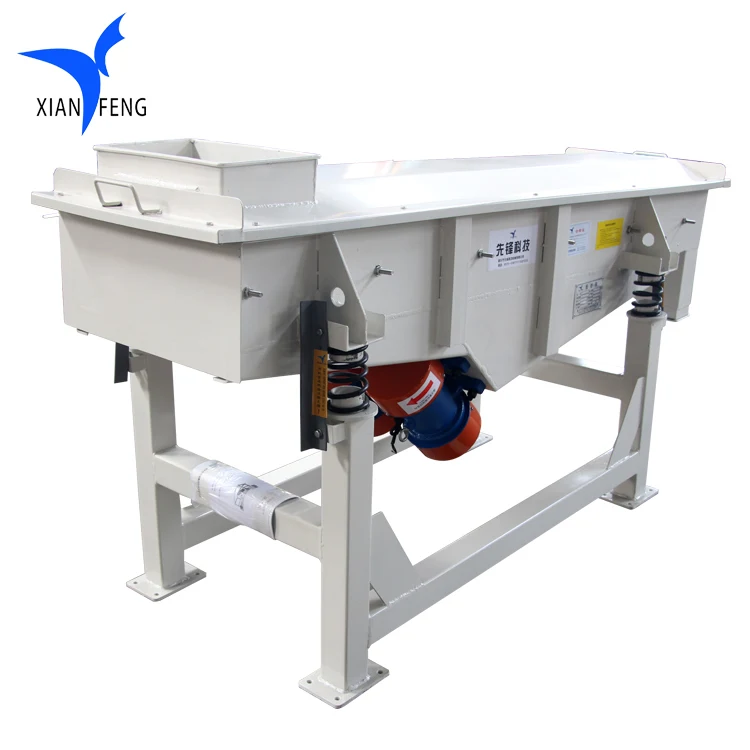

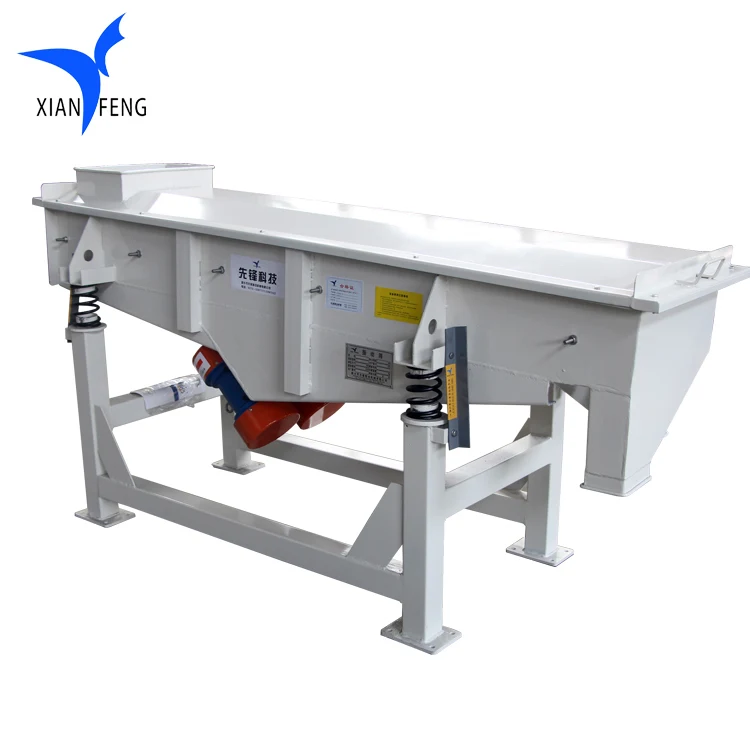

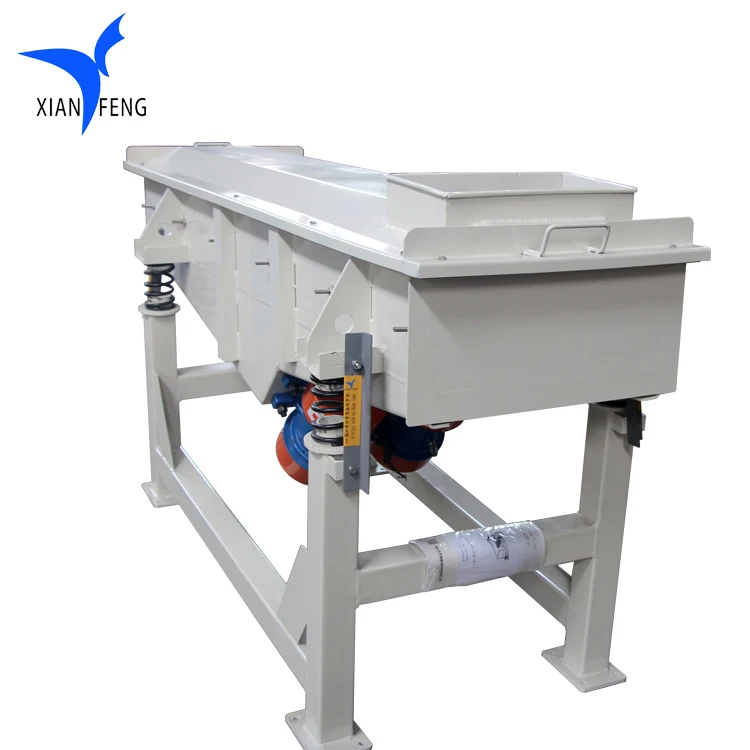

Linear vibrating screen is widely used in metallurgy, building material, chemical industry, cement, ceramic, grain and food industry, It is used to classify different levels of materials. It also can be applied in flowing line to achieve automatic operation. Linear vibrating screen adopts double vibrating motors as power source, with the specific working mode of these two motors make the materials be thrown up on the sieve and go forward in a straight line. It can be equipped with single or multi-decks to achieve different purposes like grading, removing impurity, removing dust, testing, washing selecting, dehydration, etc.
Technical Parameter
model | Overall dimensions (mm) | Material particle size | Screen surface inclination (°) | amplitude (mm) | layer(s) | power(kw) |
XFZ0520 | 500×2000 | 0.074-10 | 0°-10° | 3-8 | 1-7 | 2×(0.37-0.75) |
XFZ0525 | 500×2500 | 2×(0.37-0.75) | ||||
XFZ0530 | 500×3000 | 2×(0.55-1.1) | ||||
XFZ0535 | 500×3500 | 2×(0.55-1.1) | ||||
XFZ1020 | 1000×2000 | 2×(0.55-1.1) | ||||
XFZ1025 | 1000×2500 | 2×(1.1-1.5) | ||||
XFZ1030 | 1000×3000 | 2×(1.1-1.5) | ||||
XFZ1035 | 1000×3500 | 2×(1.5-2.2) | ||||
XFZ1040 | 1000×4000 | 2×(1.5-2.2) | ||||
XFZ1225 | 1200×2500 | 2×(1.5-2.2) | ||||
XFZ1230 | 1200×3000 | 2×(1.5-3) | ||||
XFZ1235 | 1200×3500 | 2×(1.5-3) | ||||
XFZ1530 | 1500×3000 | 2×(2.2-3) | ||||
XFZ1535 | 1500×3500 | 2×(2.2-3) | ||||
XFZ1540 | 1500×4000 | 2×(2.2-4) | ||||
The Technical data above is just parts of our standard products, if you need other model or even customized machine, please feel free contact us.
FAQ
1.How to find suitable model?
Let us know below details:
a.Required capacity, e.g. 200kg/hour.
b.Layers of screens, e.g. 2 layers.
c.Screen mesh size, or particle size. e.g. 1mm or 20 mesh.
d.Material name, water content ratio. e.g. dried flour powder.
e.Other special requirement.
2.Warranty:
You have 12 month guarantee, we provide 100% original spare parts and
online support if any breakdown in warranty period.
3.Price security:
We stand 50% of the floating cost if exchange rate changes before delivery.
4.How to ensure the machine work good with my material?
We can test your material in the machine and let you see process in video.
