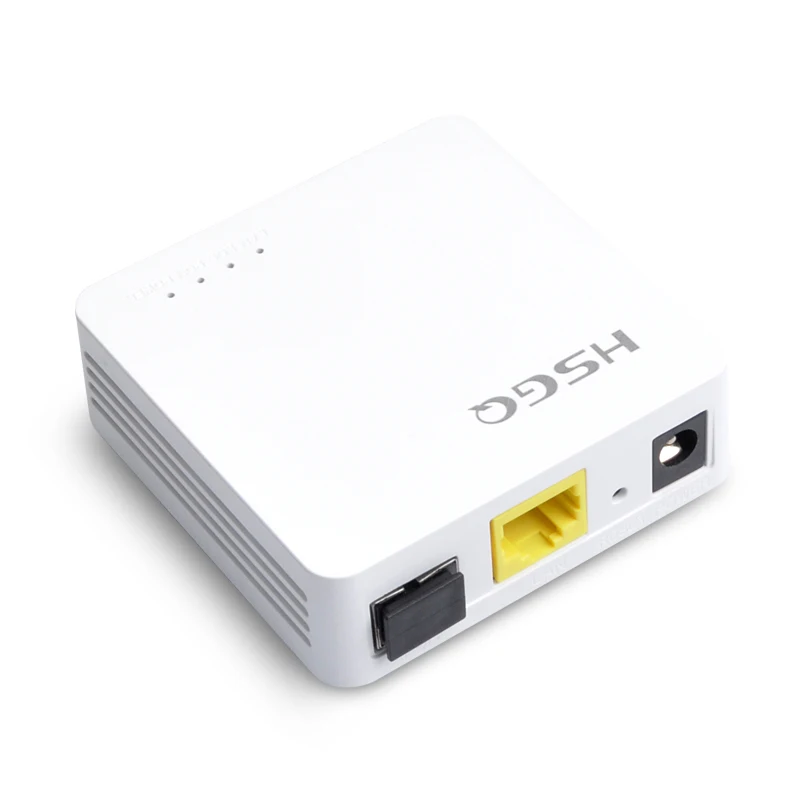

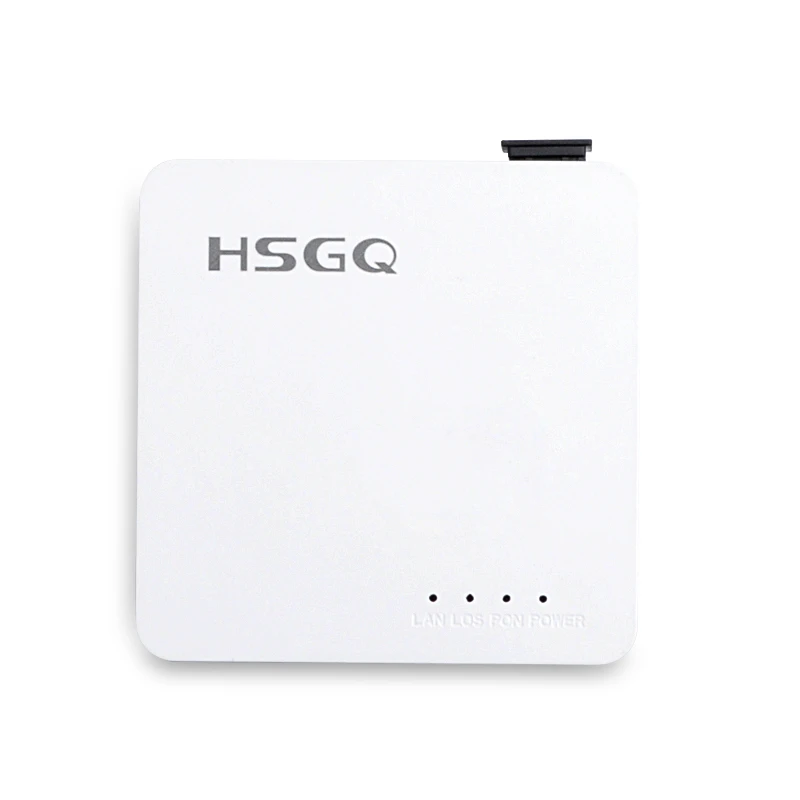

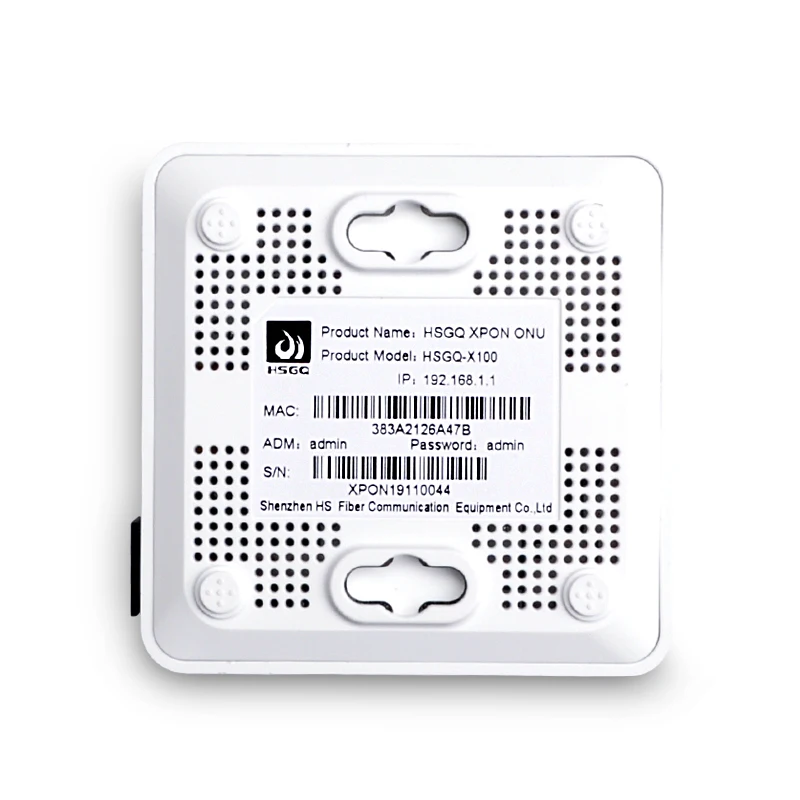

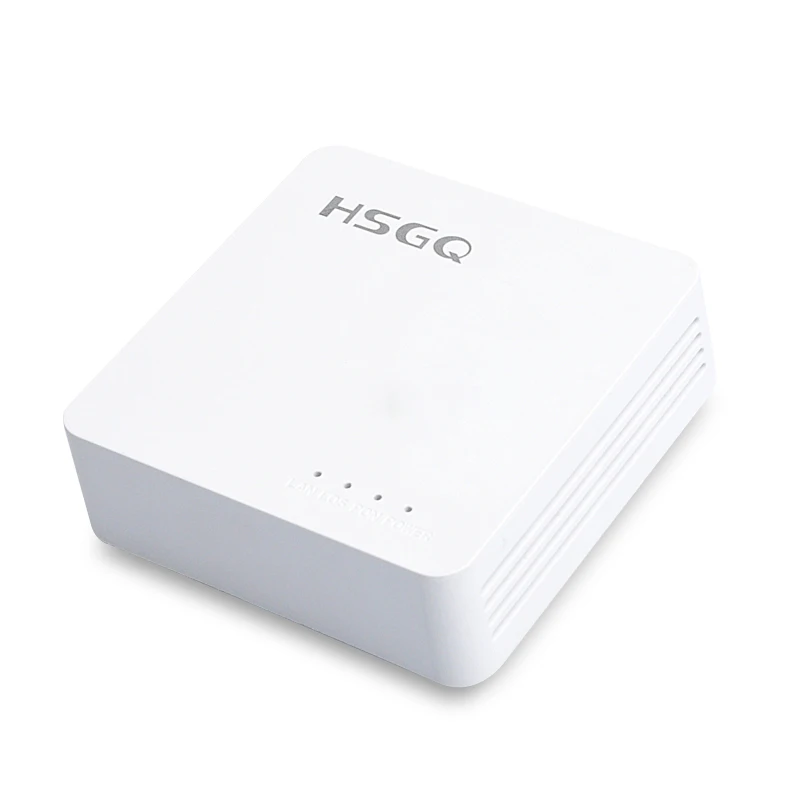

HSGQ FTTH XPON Onu 1GE GPON ONT

User interface

1 10/100/1000M RJ45 port

PON

Transmission speed :

GPON: upstream 1.25Gbps /downstream 2.5Gbps

EPON: upstream 1.25Gbps /downstream 1.25Gbps
Network coverage radius: 20KM
Optical receive sensitivity:≥-28dBm
Continuous light power: 0.5dBm~+5dBm
Security: ONU authentication mechanism

Ethernet

1*10/100/1000Mauto-negotiation

Full/half duplex mode

RJ45 connector

Auto MDI/MDI-X

100m distance

Capability

Support NAT
Support PPPOE/DHCP/Static IP/Bridge WAN

QOS

Backpressure flow control(half-duplex)
IEEE 802.3x flow control(full-duplex)
Prevent Head Of Line
IEEE 802.1p, CoS
WR,SP and FIFO queue scheduling algorithm
Port rate limit

Safety

IEEE 802.1x, access control based upon Port; support local and remote RADIUS.
CHAP,EAP certification;
Storm control, port protection,

Management

Various management modes such as Web, TELNET
Debug function.

Size

105mm(L) ×85mm(W) ×25mm(H)

Environment

Operating temperature:0℃~60℃
Operating humidity:10%~85% non-condensing

Storage temperature:-40℃~80℃
Storage humidity:5%~95% non-condensing

Power supply

110~240VAC 12V/0.5A DC
power interface size:2.1mm/5.5mm

Power
Consumption

~2W
