Стальная металлическая рама сборный стальной ресторан стальная конструкция строительное
- Категория: Каркасные дома >>>
- Поставщик: Weifang,Tailai,Steel,Structure,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 4903.78 $* | 5148.36 $* |
| Aug-20-2025 | 4862.73 $* | 5105.50 $* |
| Jul-20-2025 | 4079.66 $* | 4283.87 $* |
| Jun-20-2025 | 4779.64 $* | 5018.75 $* |
| May-20-2025 | 4161.65 $* | 4369.43 $* |
| Apr-20-2025 | 4697.83 $* | 4932.61 $* |
| Mar-20-2025 | 4656.65 $* | 4889.84 $* |
| Feb-20-2025 | 4614.57 $* | 4845.12 $* |
| Jan-20-2025 | 4573.6 $* | 4802.56 $* |
Характеристики
Steel Metal Frame Prefab Prefabricated Steel Restaurant Steel Structure Construction Building
PRODUCT INTRODUCTION
Steel structure is made up of steel materials and is a new type of building structure. The structure is mainly composed of steel beams, steel columns, steel trusses and other components made of H section steel and steel plate. The joints between steel components is usually welded and bolted. Because it have character of light weight and easy construction, it is widely used for large factory,warehouse,workshop, stadiums,bridges and super high rise buildings.
Product Advantage
.Fast construction, time saving and .Stable and earthquake resistance
labor saving to 9 grade
labor saving to 9 grade
.Lower cost and maintenance . Long using time up to 90 years
ITEM | MEMBER NAME | SPECIFICATION | |
Main Steel Frame | Column | Q355 Welded /Hot Rolled H Section Steel | |
Beam | Q355 Welded /Hot Rolled H Section Steel | ||
Secondary Frame | Purlin | Q235 or Q355 Z or C type Purlin | |
Knee Brace | Q235 Angle Steel | ||
Tie Bar | Q235 Circular Steel Pipe | ||
Strutting Piece | Q235 Round Bar | ||
Vertical & Horizontal Bracing | Q235 Angle Steel or Round Bar | ||
Cladding System | Roof Panel | EPS / Rock Wool / Fiber Glass/PU Sandwich Panel Or Steel Sheet | |
Wall Panel | Sandwich Panel or Corrugated Steel Sheet Panel | ||
Window | Aluminiumn Alloy Window | ||
Door | Sliding Sandwich Panel Door / Rolling Shutter Door | ||
Skylight | FRP | ||
Accessones | Rainspout | PVC | |
Gutter | Made Steel Sheet / Stainless Steel | ||
Connection | Anchor Bolt | Q235,M24/M30/M39 etc | |
High Strength Bolt | M12/16/20,10.9S | ||
Normal Bolt | M12/16/20,4.8S | ||
Wind Resistance | 12 Grades | ||
Earthquake-Resistance | 9 Grades | ||
Surface Treatment | Alkyd Paint.EpoxyZinc Rich Paint or Galvanized | ||

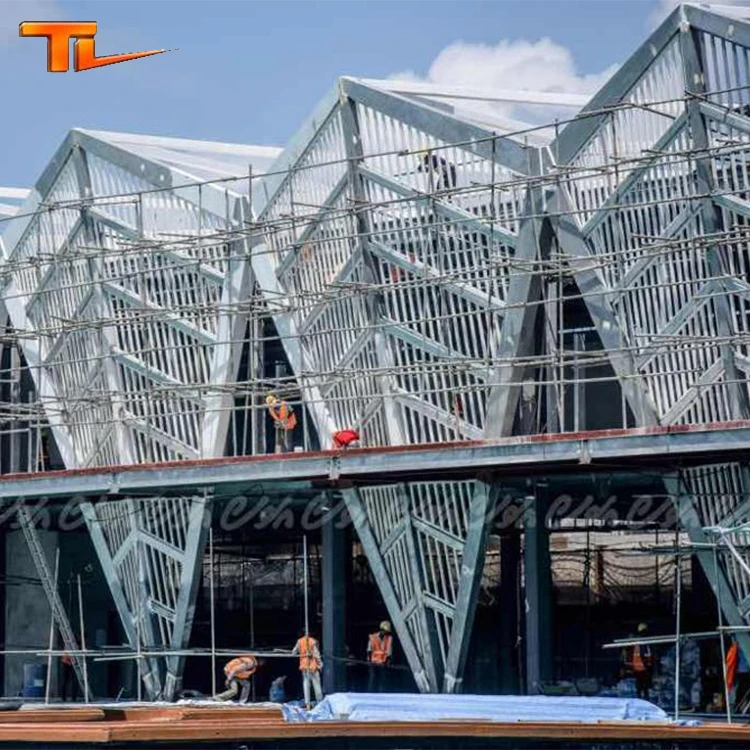

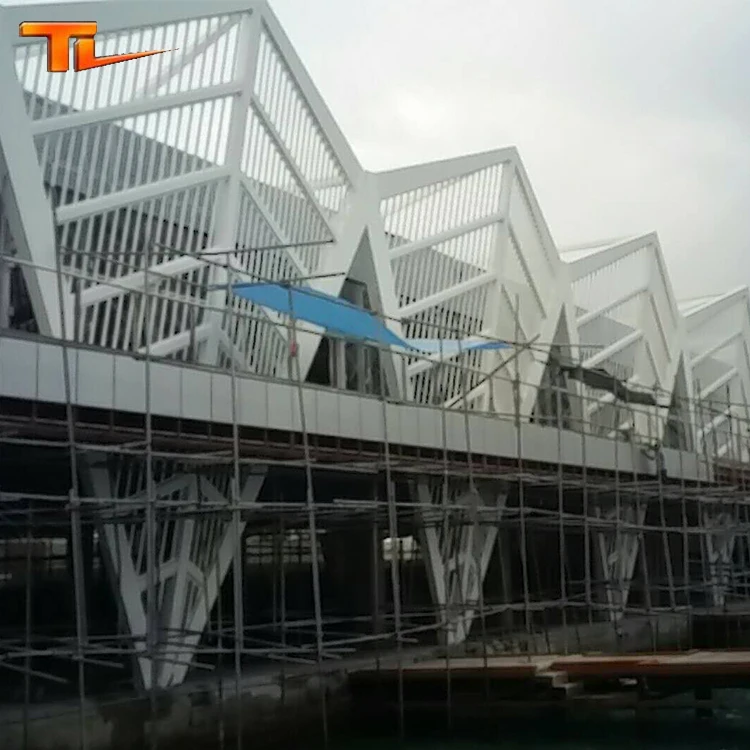

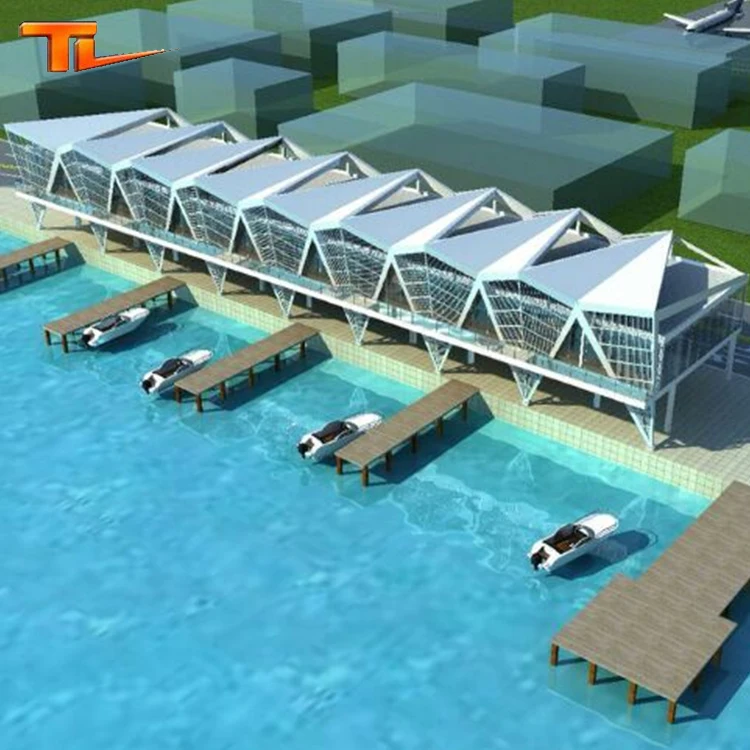

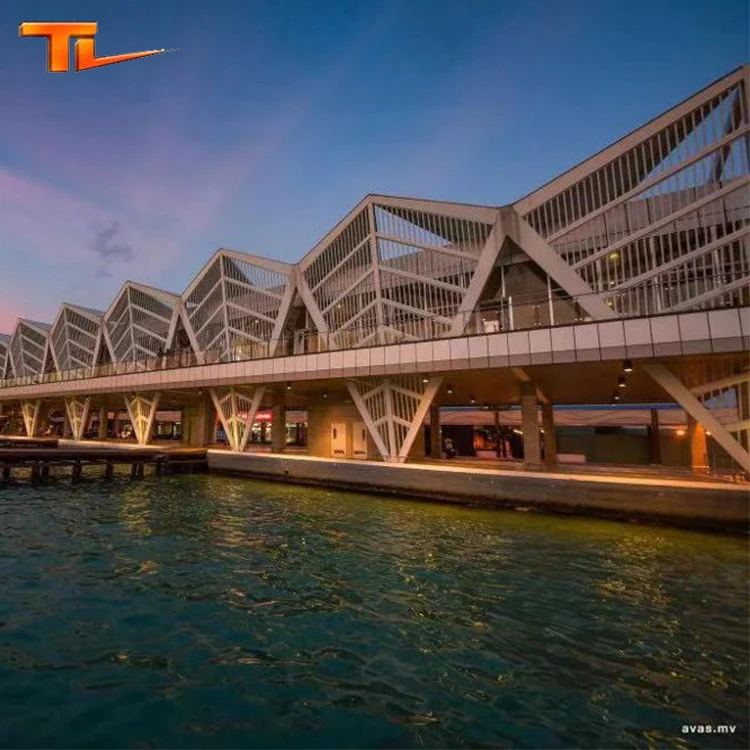

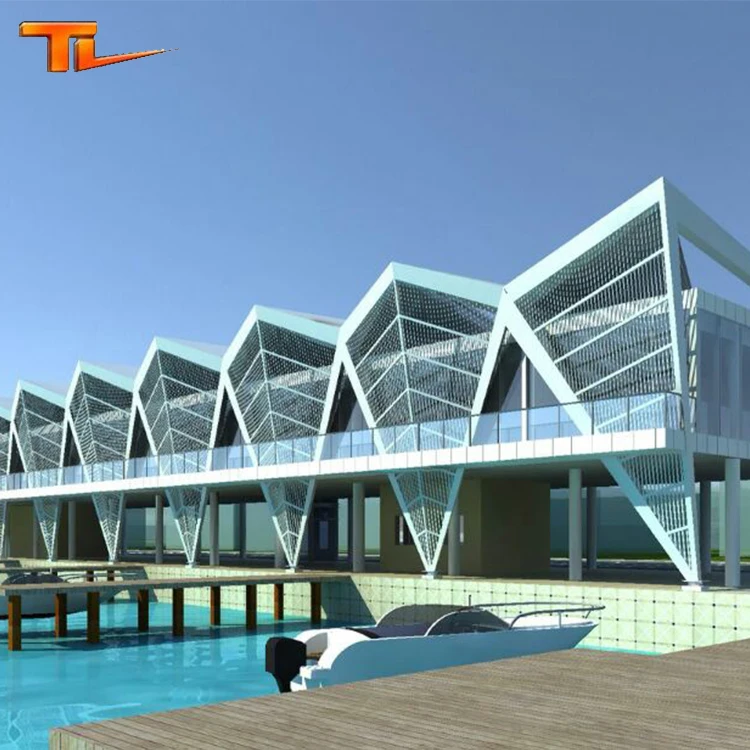

Project Case
PRODUCT CATEGORIES
Company profile
About us
Weifang Tailai Steel Structure Engineering Co., Ltd. was founded in 2003, with registered capital of 16 million RMB, located in Linqu County,Shandong province of China.we are one of the largest steel structure manufacturers in Shandong.We specialize in construction design, manufacturing and installation. We have the most advanced product line for H-section beams, box columns,truss frames, steel grids, and light steel keel . we also have the high precision 3-D CNC drilling machine,Laser cutting machine, Z&C type purlin machine,multi-model color steel forming machine, floor deck machine, and fully equipped inspection line.
Tailai has powerful technology strength, including employee over 180 ,more than 20 engineers. After years of development, we have four factories and eight production lines; the factory area is more than 50000 square meters. We have been awarded ISO 9001 certificate and PHI Passive House Certificate. We have exported to more than 50 countries.
Tailai will serve friends worldwide with our first class technology, first class products, first class services. With us, your money in safe; your business in safe!
Tailai has powerful technology strength, including employee over 180 ,more than 20 engineers. After years of development, we have four factories and eight production lines; the factory area is more than 50000 square meters. We have been awarded ISO 9001 certificate and PHI Passive House Certificate. We have exported to more than 50 countries.
Tailai will serve friends worldwide with our first class technology, first class products, first class services. With us, your money in safe; your business in safe!
Our factory
OUR SERVICES
1.If you have drawing, we can manufacture for you accordingly.
2.We will provide the installation drawing while delivery the steel building.
3.We can send our engineer there to guide the installation.
4.We can design the steel building for you if you don’t have the drawing, kindly provide us the details information:
What’s the location of the steel building?
What’s the usage of the building (warehouse or workshop )?
What’s the dimension (length *width* height)?
What’s the wall and roof panel ? (sandwich panel or steel sheet panel)?
What’s the steel surface treatment (galvanized or paint )?
What’s the local climate data( rain load, wind load, earthquake level )?
How many floor ?
Do you need crane ?
Do you need brick wall ?
What’s the usage of the building (warehouse or workshop )?
What’s the dimension (length *width* height)?
What’s the wall and roof panel ? (sandwich panel or steel sheet panel)?
What’s the steel surface treatment (galvanized or paint )?
What’s the local climate data( rain load, wind load, earthquake level )?
How many floor ?
Do you need crane ?
Do you need brick wall ?
FAQ
01 Are you a factory or a trading company?
We are a steel structure manufacturer founded in 2003, and we have experience building all kinds of steel buildings.
02 Is steel structure building expensive?
The steel structure is economical. Its technology and materials decrease the cost of the building. All the materials, including the steel frames, wall system, and roof system for installation, are prefabricated during the production process. Therefore the labor costs for installation are decreased.
03 Can I customize my steel structure building?
Yes. We can design the steel structure building for you according to your requirements. We will respect your opinion and will give our advice as well.
04 Do you offer service for installation?
We will provide detailed installation drawings and video, And if you need, we can send engineers there to guide the installation or a team there to help you
