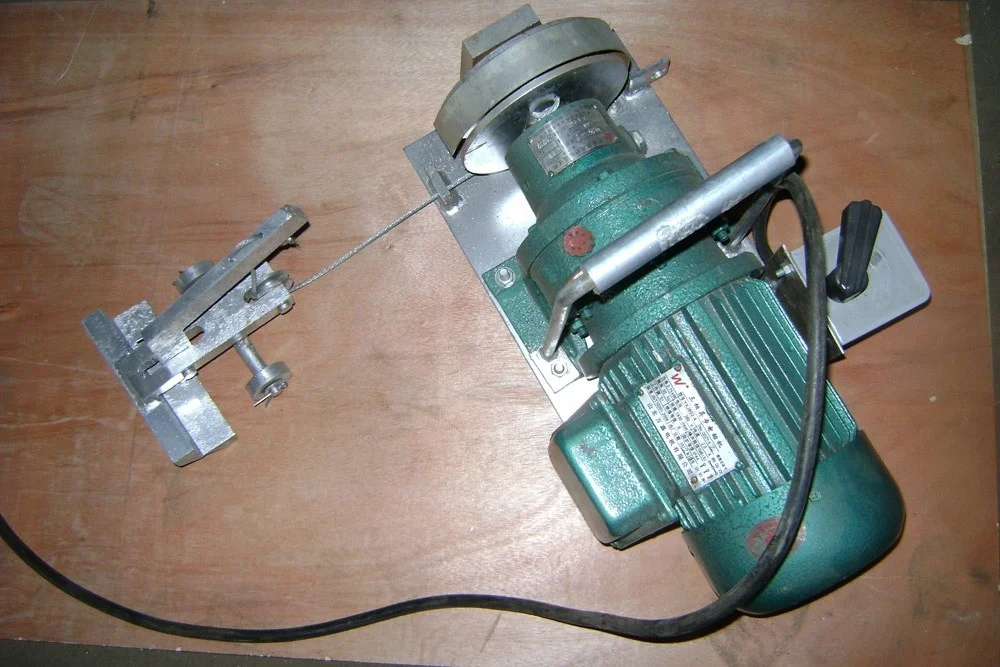

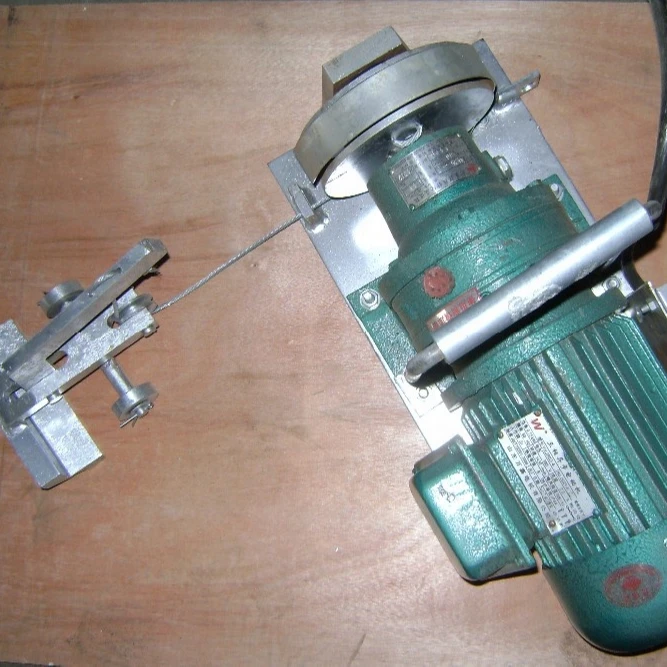

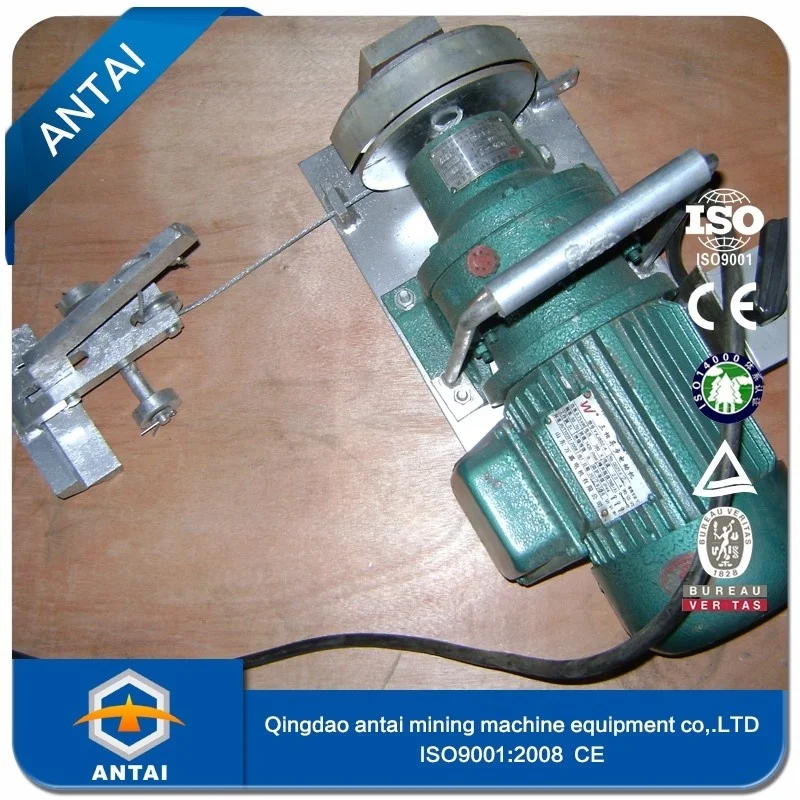

DB-G типа конвейерная лента обдирочная

Performance characteristics

Rubber belt strip machine used ordinary power , convenient operation, reliable work, light handling, can complete the work of various wire rope transport tapes, widely used in metallurgy, mining, cement, power plants, ports, building materials, chemical industries, etc. The auxiliary equipment of the joint has high work efficiency, low labor intensity and light weight. It is suitable for on-site production in various environments, domestically original and internationally leading.

Technical Parameters

1. power supply, voltage: 380V 50Hz

2.Power: 3Kw

3. Weight: 36Kg

4. the scope of application: EP, NN, cotton canvas and other layered joints, 650mm-2200mm various broadband ordinary conveyor belt.

5.Dimensions:40*30*25cm

Main Parts

Operation Method of the conveyor belt  machine:

  1. According to the conventional method, the conveyor belt should be centered, and the corresponding joints should be cut open and separated by a knife

  2. Place the conveyor stripping machine in the proper position and secure it with a wire rope;

  3. Turn on the power;

  4. Clamp the separated first layer with a clamp, start the motor, and use the cutter to cut the stripped portion in the appropriate place;

  5. After peeling off one layer, repeat the above relevant steps, and peel off the second layer, the third layer, etc.;

For FCL goods, we usually pack machines with stretched film and then load them to the

container. to ensure safety, we will fix machine with steel .

  For LCL goods, we usually pack machines with standard wood boxes first, and then they will be transported .

Guarantee : 1 years ,manufacturer sell,    We offer lifetime technical support

After sales: once problems appear, we will reply in 24 hours. And give solutions

provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines

Q

Qingdao Antai Mining Machinery Co.,ltd is located in the north of China.The coastal city of Shandong province named Qingdao. Antai has research and development centers and production workshops. The company has a professinal team for over 18 engineers which owns the latest advanced technology and the 20 years experience in manufacturing the conveyor belt vulcanizing press.

The portable belt vulcanizing press equipment has been widely used in belting maintenence service and belting solutions company,metallurgy, mining, food factory,cement factory, power plants, port transportation, building materials, chemical and other sectors.

It has been used to splice and repair the rubber steelcord conveyor belt,fabric belt,

PVC belt,PVG belt,PVK belt,PU belt,etc.

Our main products are Conveyor Belt Vulcanizing Press, conveyor belt repairing machine, conveyor belt splicing machine, conveyor  belt ply splitter equipment,belt splice kits and vulcanizing press spare parts. The heating element, pressurized water bag produced by Antai are widely used by the same industry manufacturers.

1. Q: Are you a manufacturer or training company?

    A: We are the manufacturer. We have our own plant,worker and techniques research developing department.

2 .Q: Where is your factory located? How can I visit there?

    A: Our factory add is located in the beautiful Qingdao West Coast Economic Zone Nearest airport is Qingdao liuting international airport Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.

3. Q: What are your hot sale machine?

    A: The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other corollary equipment.

4. Q: How does your factory do regarding quality control?

    A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.

5 .Q: Are the techncal parameter is fixed?

    A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
