Сварочный шлем с автоматическим затемнением и встроенным воздухоочистителем 4001FP5001D одобрен


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.83 $* 0.9 $*
Aug-16-2025 0.27 $* 0.35 $*
Jul-16-2025 0.62 $* 0.20 $*
Jun-16-2025 0.17 $* 0.69 $*
May-16-2025 0.60 $* 0.88 $*
Apr-16-2025 0.10 $* 0.11 $*
Mar-16-2025 0.79 $* 0.85 $*
Feb-16-2025 0.2 $* 0.33 $*
Jan-16-2025 0.18 $* 0.82 $*

Характеристики






Product Description





This product is a kind of powered air purifying solar


Auto-darkening welding helmet that can proof dust and gas
Filtrating precision 0.3μm, filtrating efficiency 99.996%.





Technical Characteristics


Airflow velocity system : level 1=170L/min, level2=200L/min,level 3= 230L/min


Automatic detecting and controlling system provide constantly stable clean air


Switch :     3 levels of airflow control


            On/off switch


           Automatic shutting down if unused for 30 minutes


Liquid crystal display: airflow level and data


                   Battery life


                   Filter loading status


Warning:    low battery


           Jammed filter


           Airflow jammed causing low airflow


           High battery temperature


Working noise : max 73db


High filter efficiency:  99.996%@0.3um


Filtration level  : TH2 PR SL


Size    :  240x165x70mm


Weight  :  complete unit 1370 grams


          No battery 1020 grams


Battery operating time:  Level 1 : 8 hours min


                    Level 2 : 6 hours min


                    Level 3 : 4 hours min


Battery   :    Li-ION 12v 4400mah


Charging time : 3.5 hours


Charging frequency : 500 times min


Operating temperature :  -5 - 55 deg


Certificate : CE EN12941.1998 + A2: 2008































































































Helmet No.



AS-4001FP



ADF Model



XA-5001D



Filter dimension



114X133mm(5.25"x4.5")



View size



100x60mm(3.94"x2.36")



Classification



1/1/1/2



Sensors



4



Light state



4



Dark state



Variable shade 9-13



Power control



Fully automatic



Shade control



Internal digital control



Switching time at 23℃



0.08ms



Sensitivity & Delay time control



Adjustable(internal digital)



Time from dark to light



0.1-0.9s adjustable



Grinding function



Yes



Low battery Warring indicator



Yes



Operation temperature



-10℃- 65℃(14℉-149℉)



Storing temperature



-20℃- 85℃(-4℉-185℉)



Power supply



Solar cell,CR2450 Lithium battery,replaceable



Minimum tig welding current



3A



Maximum tig wedlign current



350A



Certifications approved



CE, ANSI , CSA








Packaging & Shipping


 packing bag .jpg 660packing carton .jpg 660








Our Services


 4001FP5022.jpg 660





 4010FP5122-26604010FP5122-4 660




4016 blow unit 6604016 lithium battery 660


 Spare parts available

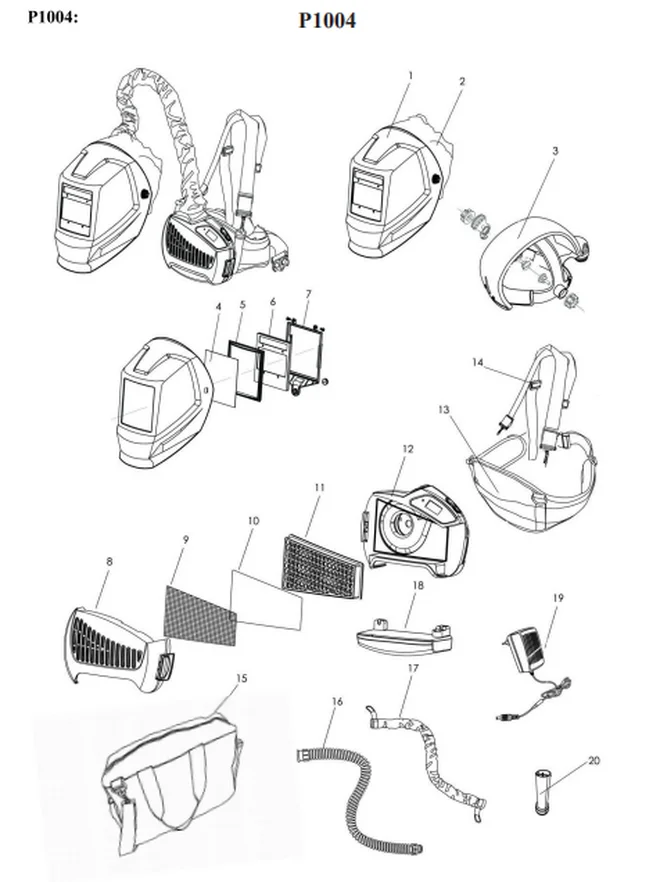

SPARE PARTS DRAWING

SPARE PARTS

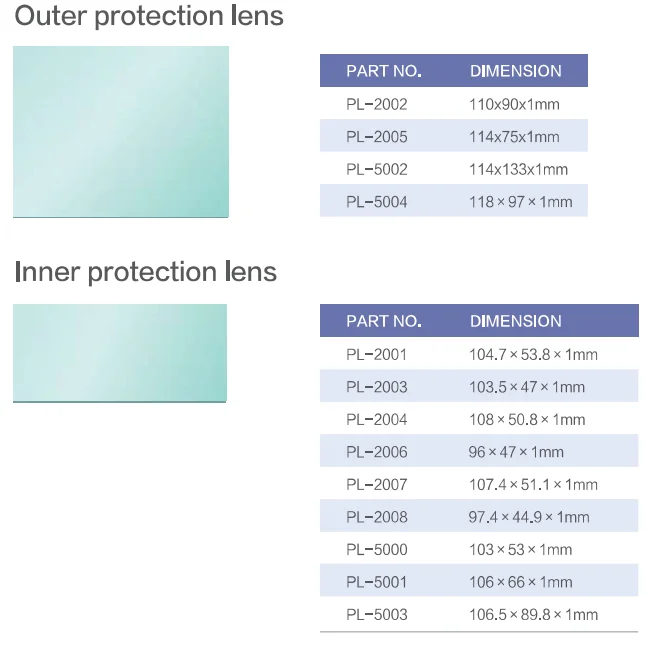

 PROTECTION LENS PL





Company Information


 SHINE ESSEN 660.jpg





shine work site

 CE PAPR 2019-11

 CE PAPR



FAQ





Q: what is warranty time ?


A: 24 months from you got the cargo.


During warranty time, we will supply the free parts by air in free,


after that date,  we will supply spare parts  in the base of part cost .


Q: what is delivery time / lead time ?


A: 30 days


Q: what is your minimum order ?


A: 10 pcs


Q: what is your payment term ?


A:  1- 30% down payment for order confirmation, 70% before shipment.


2- 100% at sight LC


Q: can we visit your factory ?


A: yes you can at your free time.
