ACM1252U-Y3 NFC читатель/писатель модуль браслет устройство для считывания/записи acr1252 карт nfc писатель поддержка M1/FeliCa/NFC
- Категория: Устройство чтения для контрольно-пропускной системы >>>
- Поставщик: Shenzhen,Chuangxinji,Smart,Card,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 44.24 $* | 45.10 $* |
| Jul-16-2025 | 36.20 $* | 37.71 $* |
| Jun-16-2025 | 44.63 $* | 45.69 $* |
| May-16-2025 | 43.49 $* | 44.87 $* |
| Apr-16-2025 | 35.60 $* | 36.69 $* |
| Mar-16-2025 | 43.25 $* | 44.79 $* |
| Feb-16-2025 | 42.13 $* | 43.90 $* |
| Jan-16-2025 | 42.29 $* | 43.86 $* |
Характеристики
ACM1252U-Y3 NFC Reader/ writer Module wristband Reader/acr1252 carte nfc writer Support M1/FeliCa/NFC Cards/Tags

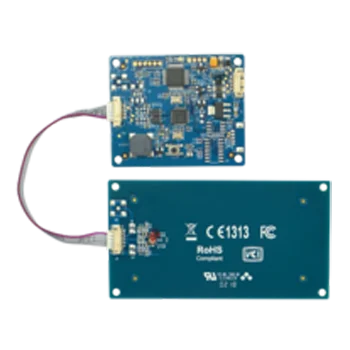

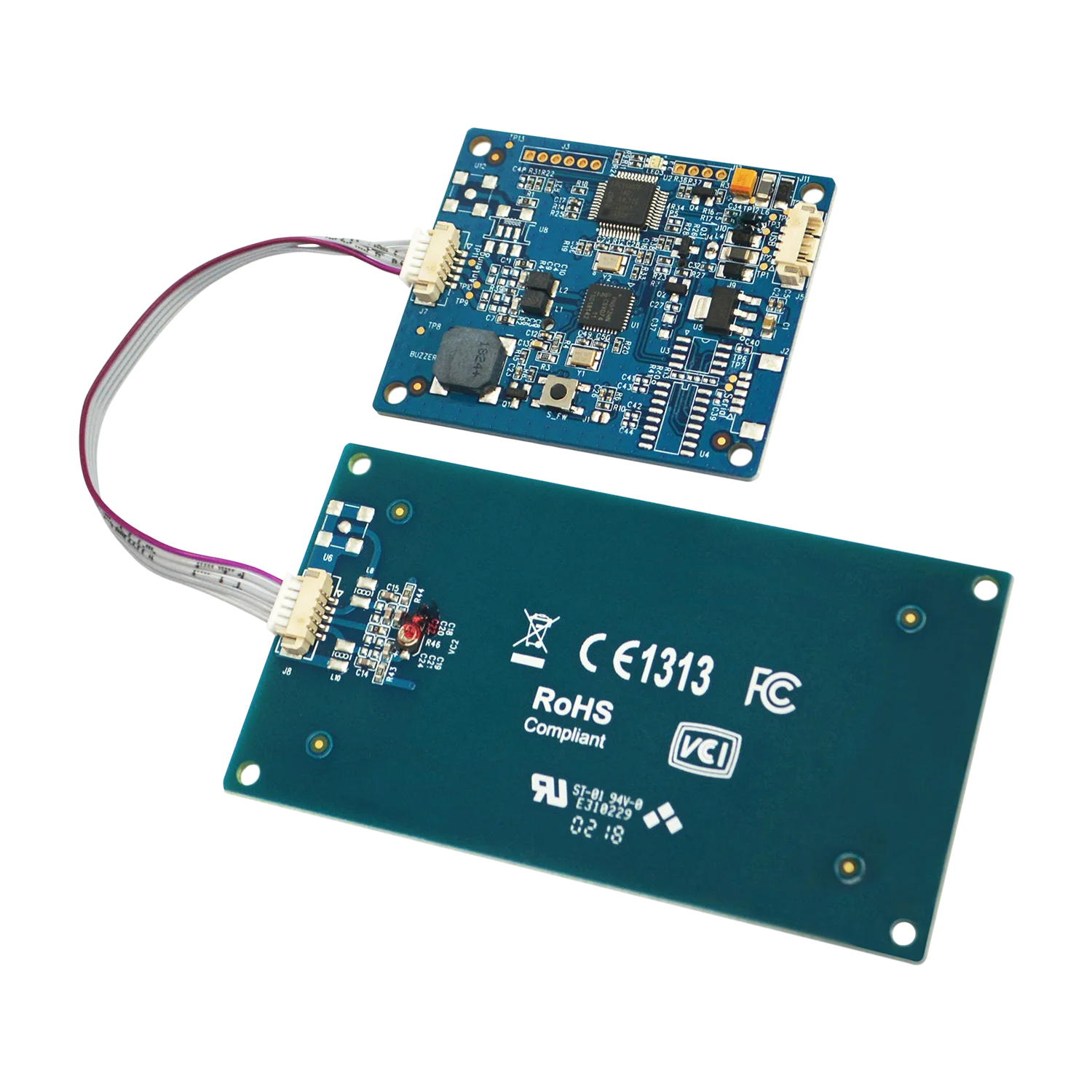

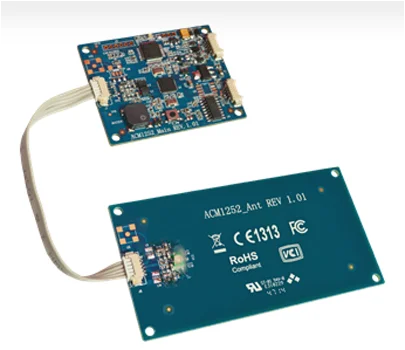

The ACM1252U-Y3 USB NFC Reader Module with Detachable Antenna Board is developed based on the 13.56 MHz contactless technology. This smart card reader module is designed for fast and easy integration into embedded systems.
This reader module supports the three NFC modes (card reader/writer, card emulation, and peer-to-peer communication) and supports various cards such as ISO 14443 Type A and B, MIFARE®, and FeliCa cards, and ISO 18092–compliant NFC tags. It also supports other NFC devices with access speeds of up to 424 Kbps and proximity operating distances of up to 50 mm (depending on tag type used).
The ACM1252U-Y3 comes with a detachable antenna and optional USB cable, which provide flexibility when integrating the module into embedded systems, such as kiosks and vending machines. It is the perfect front-end interface module to enable NFC transactions for applications involving integrated systems.
Upon request, ACM1251U-Y3 comes with a Class A, ISO 7816-compliant Secure Access Module (SAM) slot.
Features:
- USB 2.0 Full Speed Interface
- CCID Compliance
- USB Firmware Upgradeability
- Smart Card Reader:
- Contactless Interface:
- Read/write speed up to 424 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
- Supports ISO 14443 Type A and B, MIFARE, and FeliCa cards, and all 4 types of NFC (ISO/IEC 18092) tags
- Supports MIFARE 7-byte UID, MIFARE Plus and MIFARE DESfire
- Built-in anti-collision feature (only 1 tag is accessed at any time)
- NFC Support:
- NFC Reader/Writer Mode
- Peer-to-Peer Mode
- Card Emulation Mode
- Contactless Interface:
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Peripherals:
- User-controllable bi-color LED
- User-controllable buzzer
RFID Readers
Product Description
| |||||||||||||||||||||||||||||||||||||||||
|
Company profile
Company Info
Established in 2001 year, Shenzhen Chuangxinji smart card co.,Ltd was specialized in producing of RFID wristbands,Smart cards and RFID Tags etc.
We have three modern and high standard production line:
PVC cards production line with monthly output of 30,000,000 pieces cards: Brand-new CTP machines and brand Heidelberg offset printing machines, 8 compounding machines.
RFID Antenna production line with monthly output of 20,000,000 pieces: roll to roll printing machines, compounding machines, machines for erosion and engraving.
RFID products production line with monthly output of 10,000,000 smart cards and 30,000,000 RFID tags: reversed assembling machines compound die cutting machines, laminating machines.
Marketing Team
We own 26 marketing staffs who speak English, Germany, France, Spanish, Arabic and so on, our business range from Europe, America, Oceania, Africa, Asia and middle east countries and regions.
